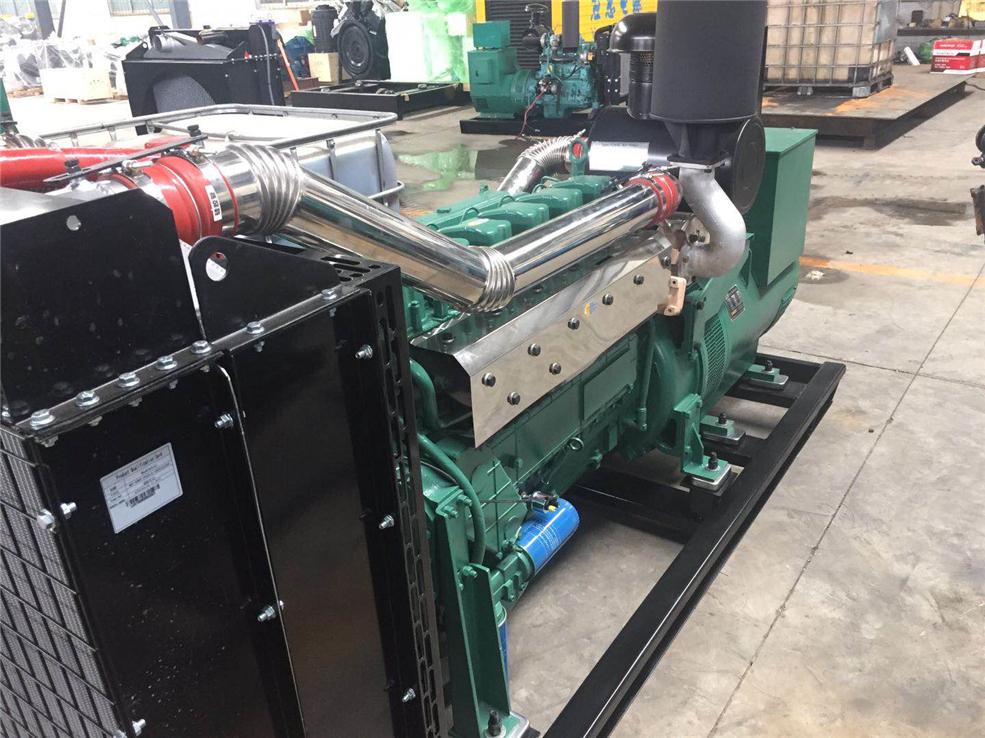

model

300GF

Unit power (KVA/KW)

375 / 300

Output voltage (V)

400/230

Rated output current (A)

540

Wiring method

Three-phase four-wire

Power Factor

0.8 (hysteresis)

Startup method

24V DC start

Frequency ( Hz )

50

Unit weight ( kg )

2400

Unit size (length x width x height)

2900 × 1000 × 1650

Diesel engine data

Manufacturer

Weifang

model

6126IZLD

Rated speed(Rpm)

1500

Engine power(KW)

308

Number of cylinders

6

Cylinder arrangement

In-line

Cylinder diameter x stroke (mm)

126*135

Exhaust volume (L)

9.726

Air intake method

Supercharged intercooler

Compression ratio

16:1

Fuel

China 0# Light Diesel Oil

100% load fuel consumption (G/KW.h)

228

Lubricant Specifications

15W/40CD

Lubricating oil consumption (L/h)

0.5% fuel consumption

Startup method

Electric start

Coolant capacity (L)

68

Engine cooling method

Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard

Generator data

Manufacturer

Fujian or Shanghai

model

STC -300

Power (KVA/KW)

375 / 300

Protection level

IP21

Insulation class

F

Steady state voltage regulation

Better than ±1%

No-load voltage adjustment range

≥±5%

Voltage control method

AVR

efficiency(%)
