model

200GF

Unit power (KVA/KW)

360 / 250

Output voltage(V)

400/230

Rated output current(A)

360

Wiring method

Three-phase four-wire

Power Factor

0.8 (hysteresis)

Startup method

24V DC start

Frequency (Hz)

50

Unit weight (kg)

2000

Unit size (length x width x height)

2800×1000× 1650

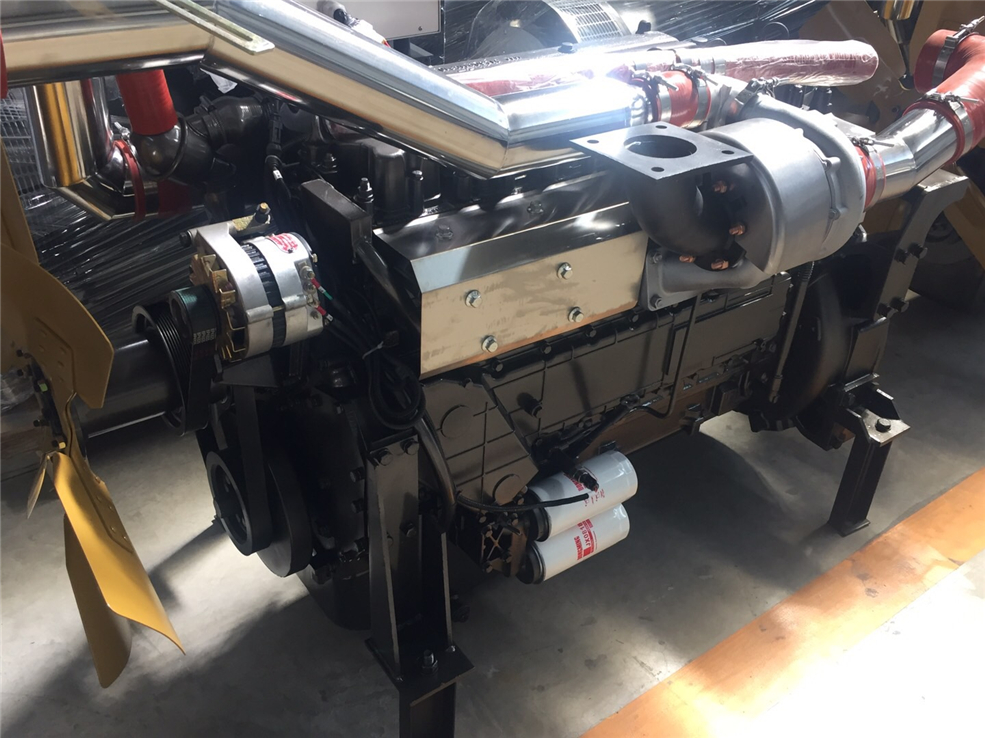

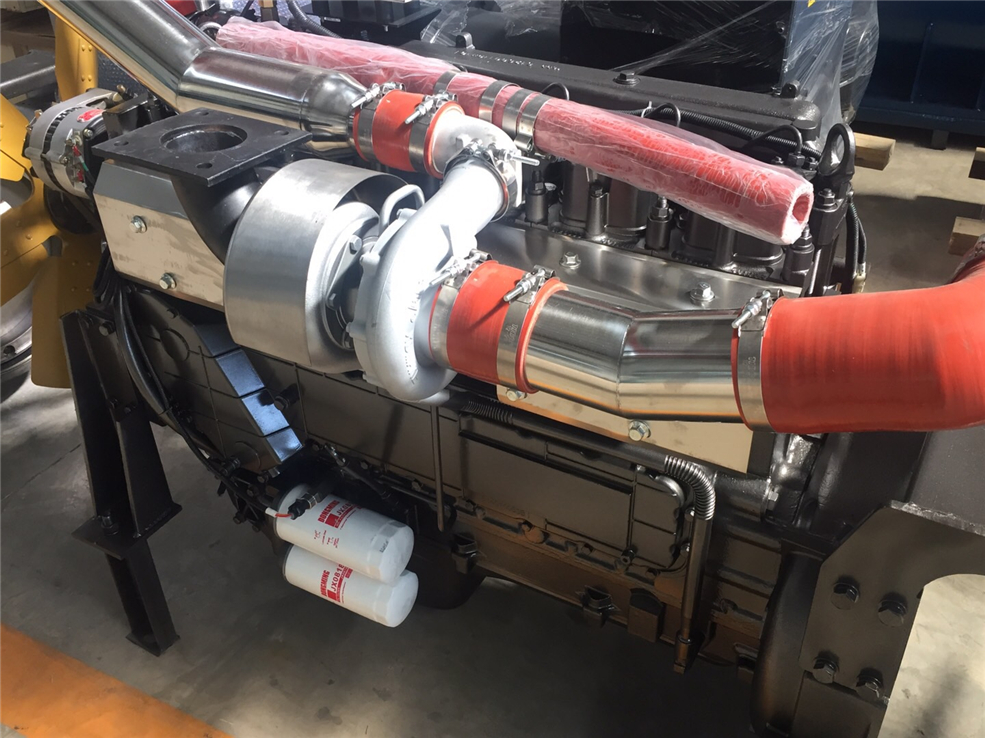

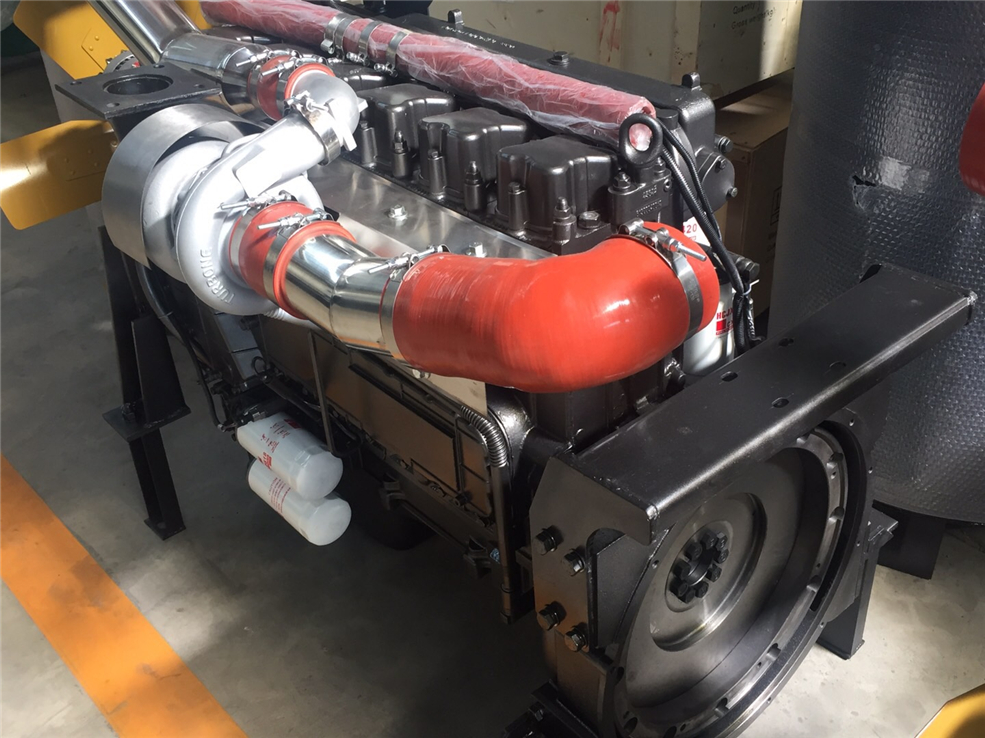

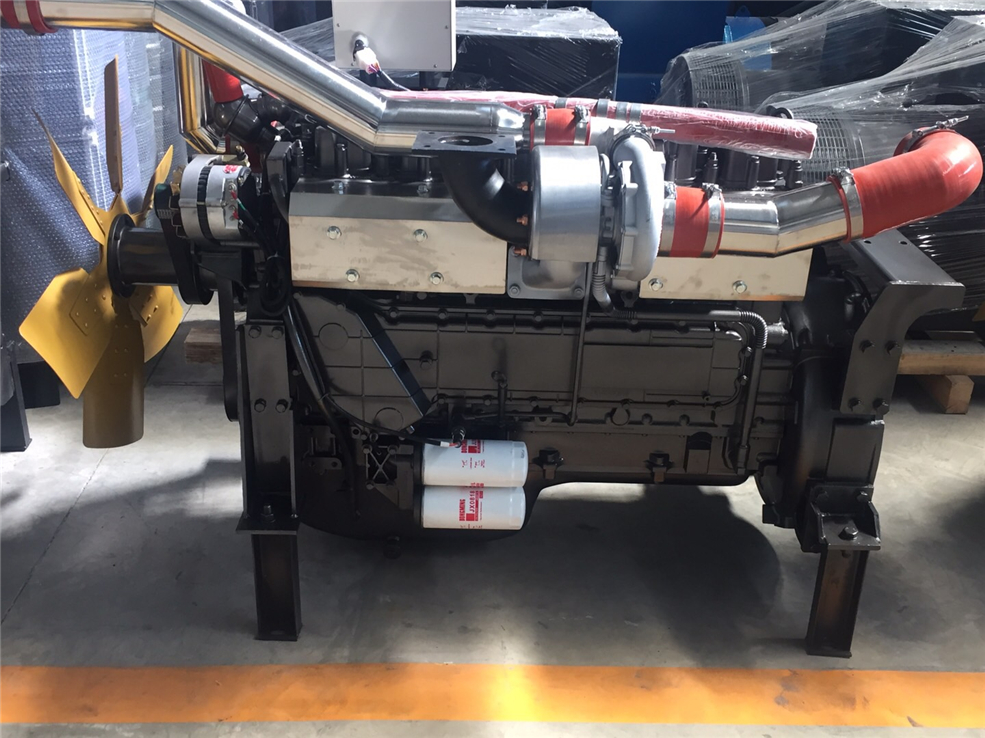

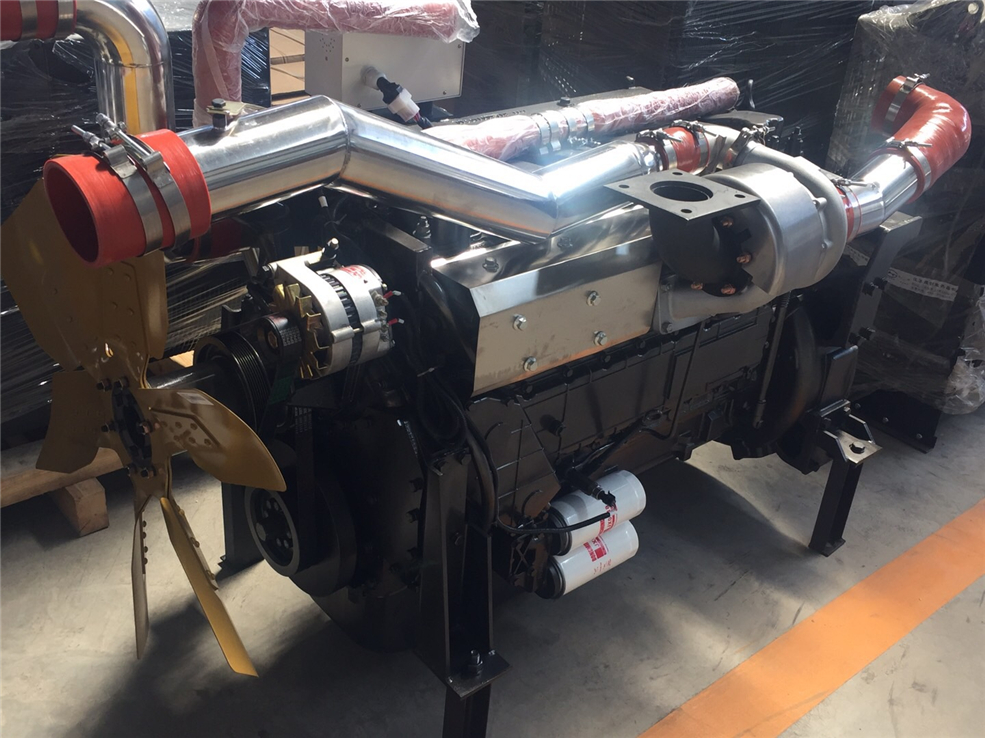

Diesel engine data

Manufacturer

Weifang

model

R61 26ZLD

Rated speed(Rpm)

1500

Engine power(KW)

200

Number of cylinders

6

Cylinder arrangement

In-line

Cylinder diameter x stroke (mm)

126*130

Exhaust volume (L)

9

Air intake method

Supercharged intercooler

Compression ratio

16:1

Fuel

China 0# Light Diesel Oil

100% load fuel consumption (G/KW.h)

≤210

Lubricant Specifications

15W/40CD

Lubricating oil consumption (L/h)

0.5% fuel consumption

Startup method

Electric start

Coolant capacity (L)

68

Engine cooling method

Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard

Generator data

Manufacturer

Fujian or Shanghai

model

STC -200

Power (KVA/KW)

250 / 200

Protection level

IP21

Insulation class

F

Steady state voltage regulation

Better than ±1%

No-load voltage adjustment range

≥±5%

Voltage control method

AVR

efficiency(%)
