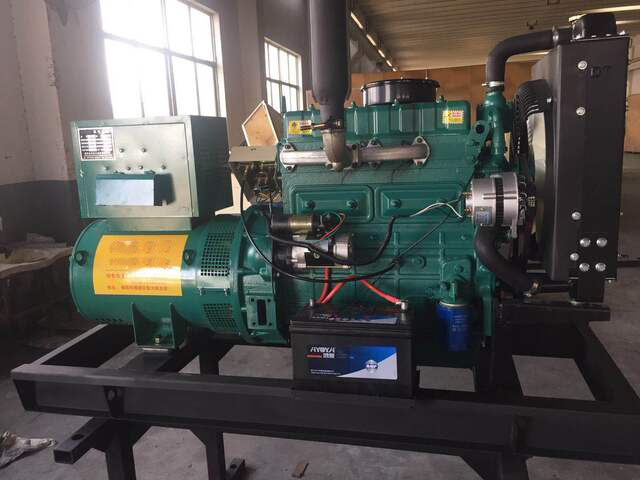

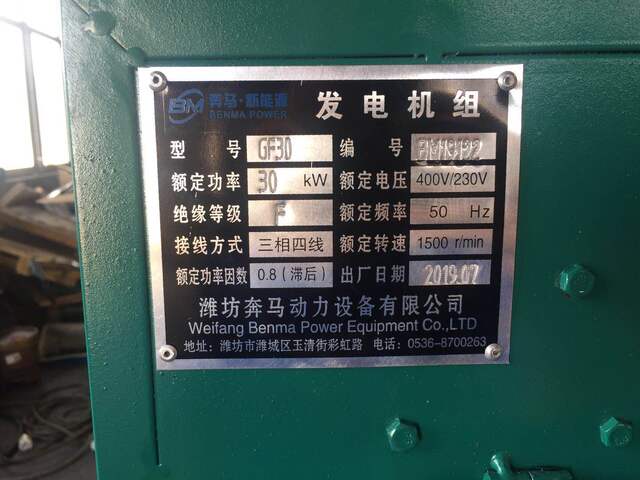

model

30GF

Main power of unit (KVA/KW)

37.5 /30

Unit standby power (KVA/KW)

42/33

Rated output current (A)

54

Output voltage (V)

400/230

Power Factor

0.8 (hysteresis)

Wiring method

Three-phase four-wire

Frequency ( Hz )

50

Startup method

24V DC start

Unit size (length x width x height)

1600 × 680 × 1200mm

Unit weight ( kg )

600

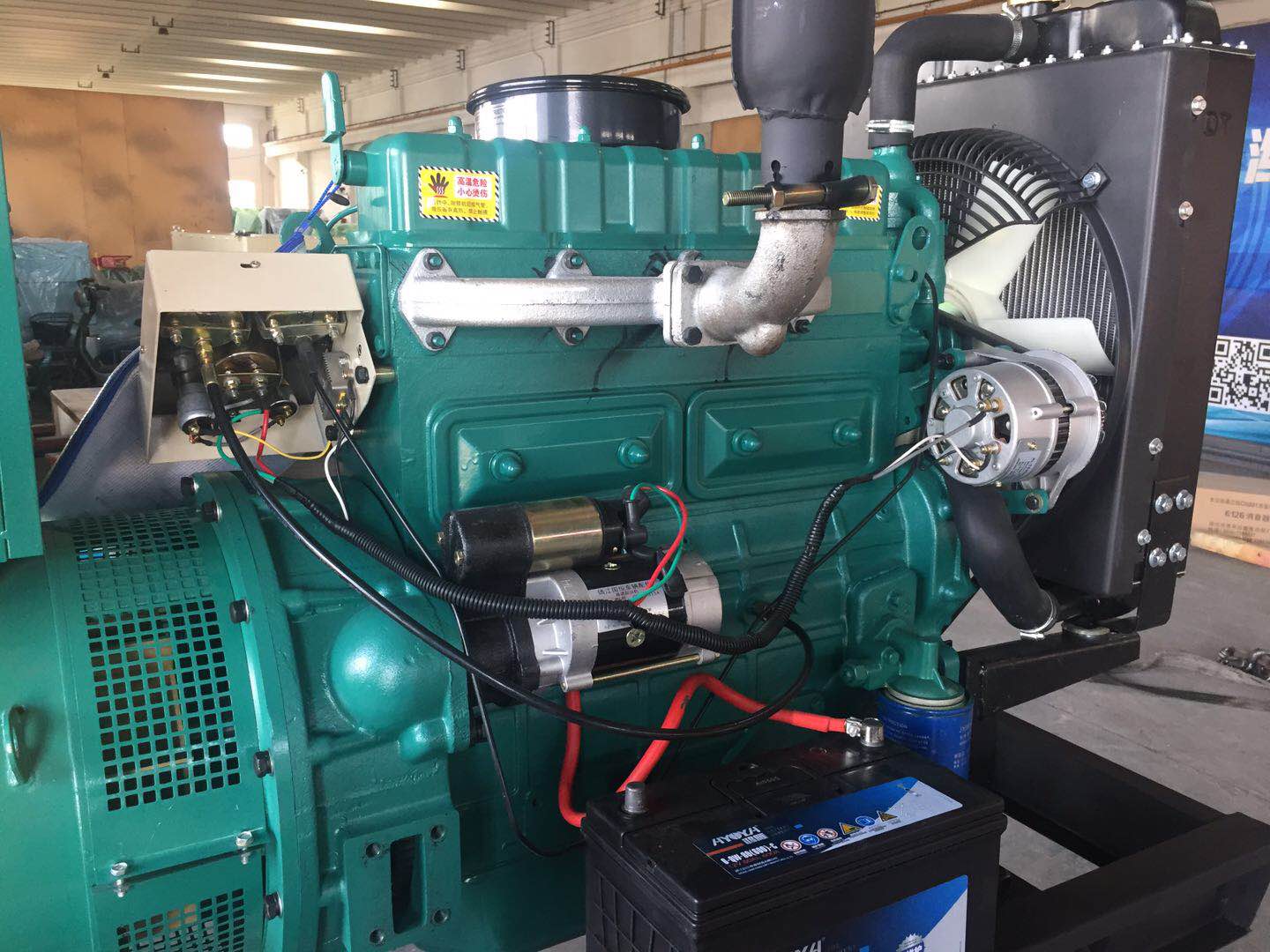

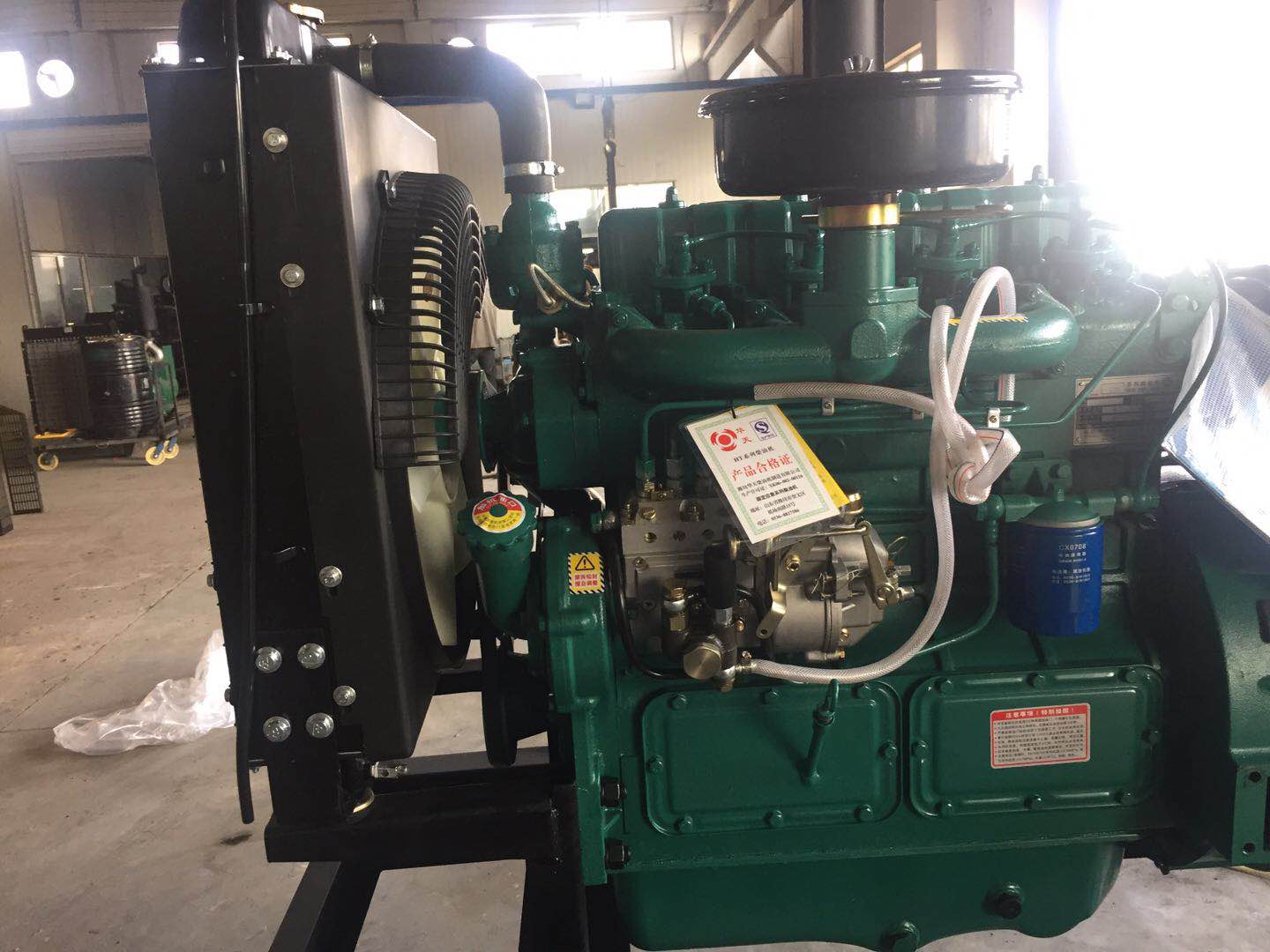

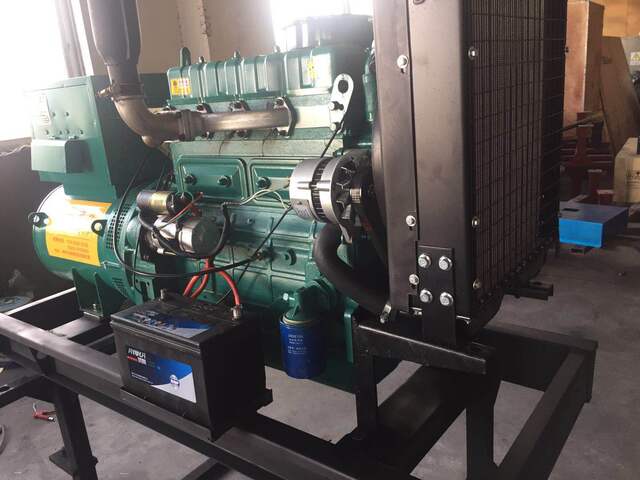

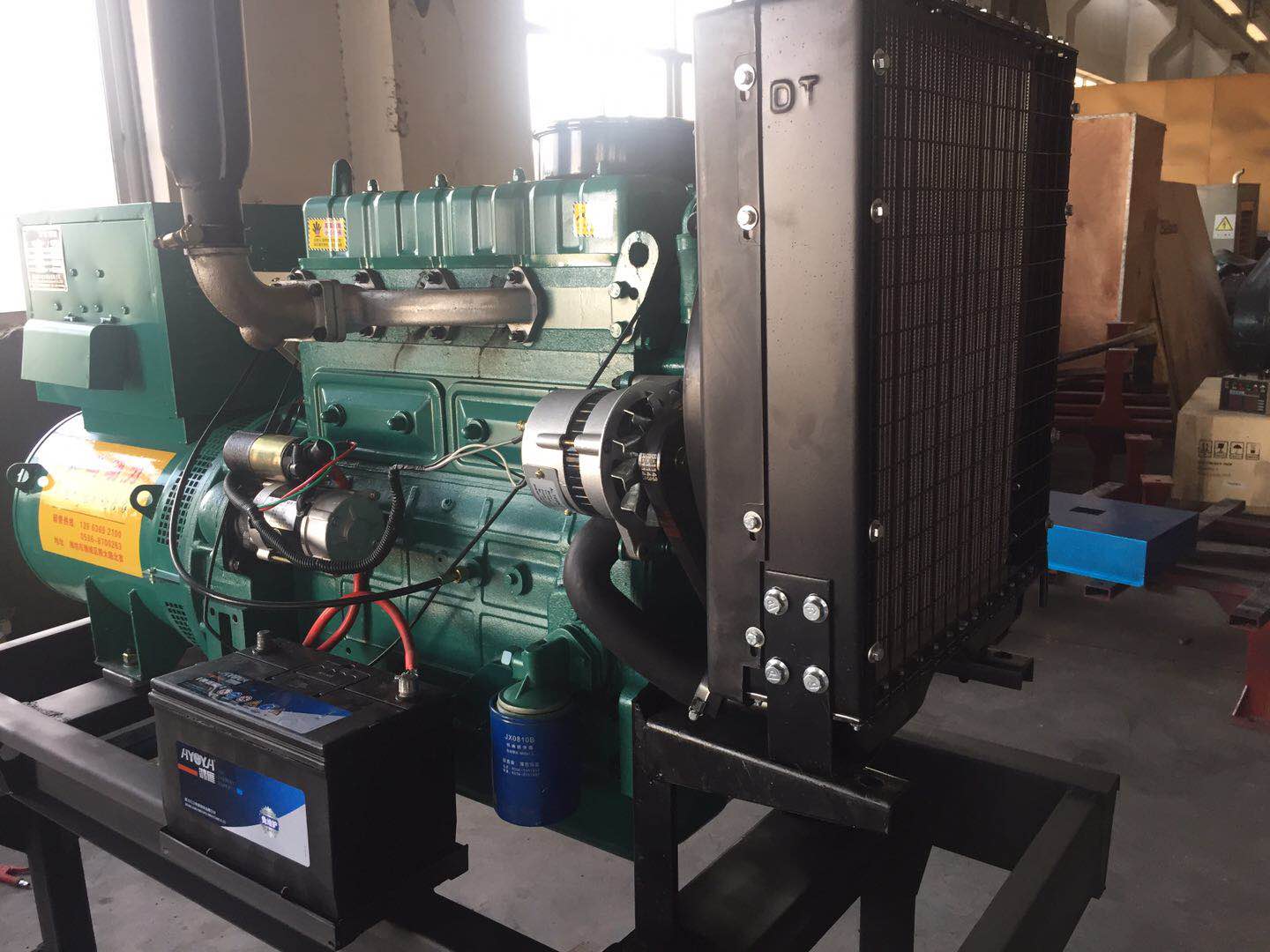

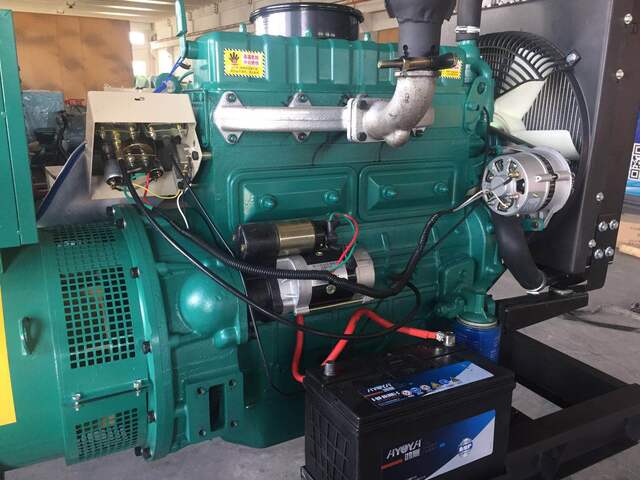

Diesel engine data

Manufacturer

Weifang Golden Horse

    model

K4100D

Rated speed (Rpm)

1500

Engine power (KW)

30.1

Number of cylinders

4

Cylinder arrangement

In-line

Cylinder diameter x stroke (mm)

100×115

Exhaust volume

3.26

Air intake method

Natural air intake

Compression   ratio

19:1

Fuel

China 0# Light Diesel Oil

100% load fuel consumption (G/KW.h)

258

Lubricant Specifications

15W/40CD

Lubricating oil consumption (L/h)

0.5% fuel consumption

Total lubricating oil capacity (L)

13

Coolant capacity ( L )

twenty one

Engine cooling method

Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard

Generator data

Manufacturer

Shanghai

model

STC-30

Power (KVA/KW)

37.5/30

Protection level

IP21

Insulation class

F

Steady state voltage regulation

Better than ±1%

No-load voltage adjustment range

≥±5%

Voltage control method

AVR

efficiency(%)

80
