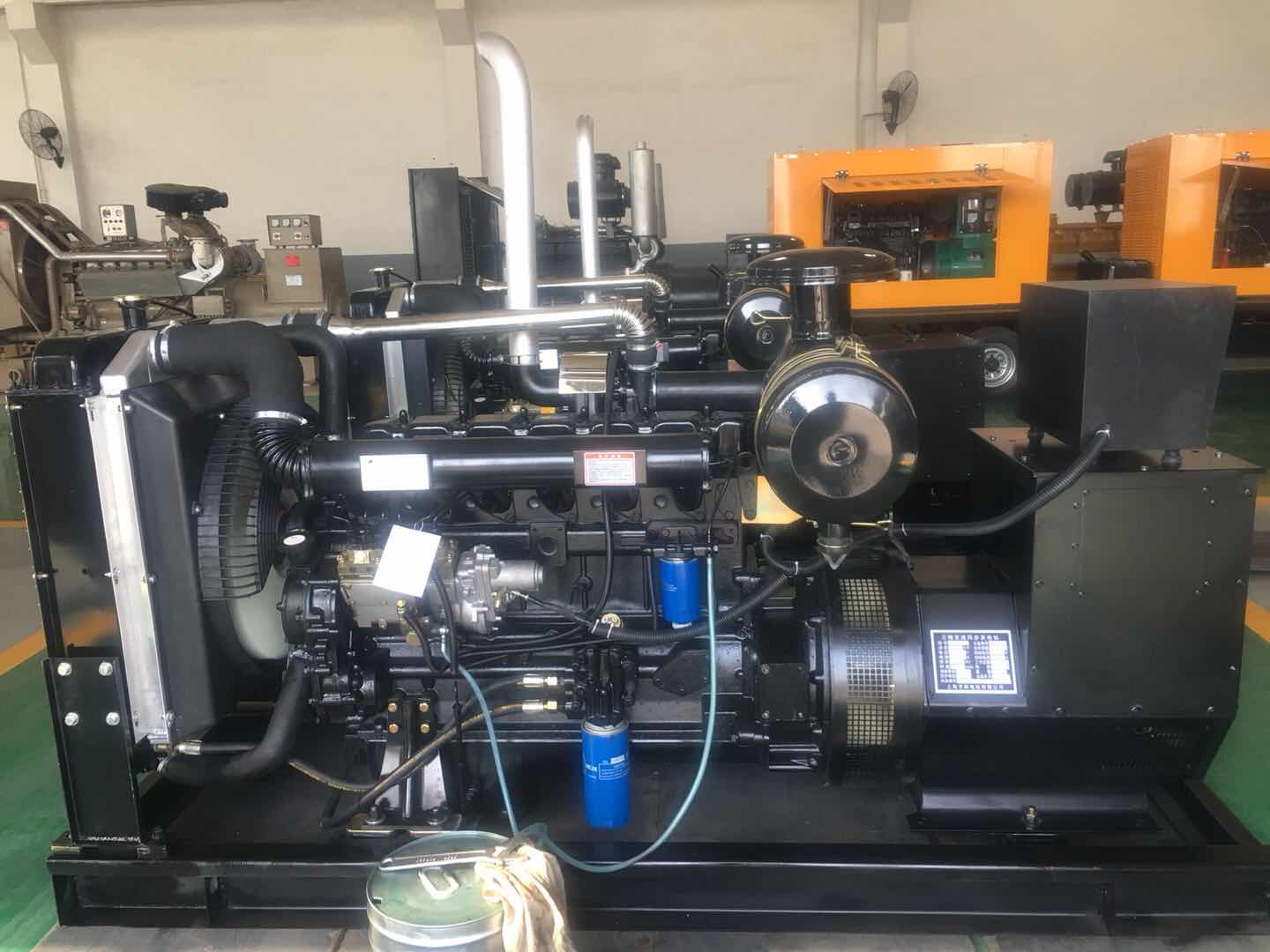

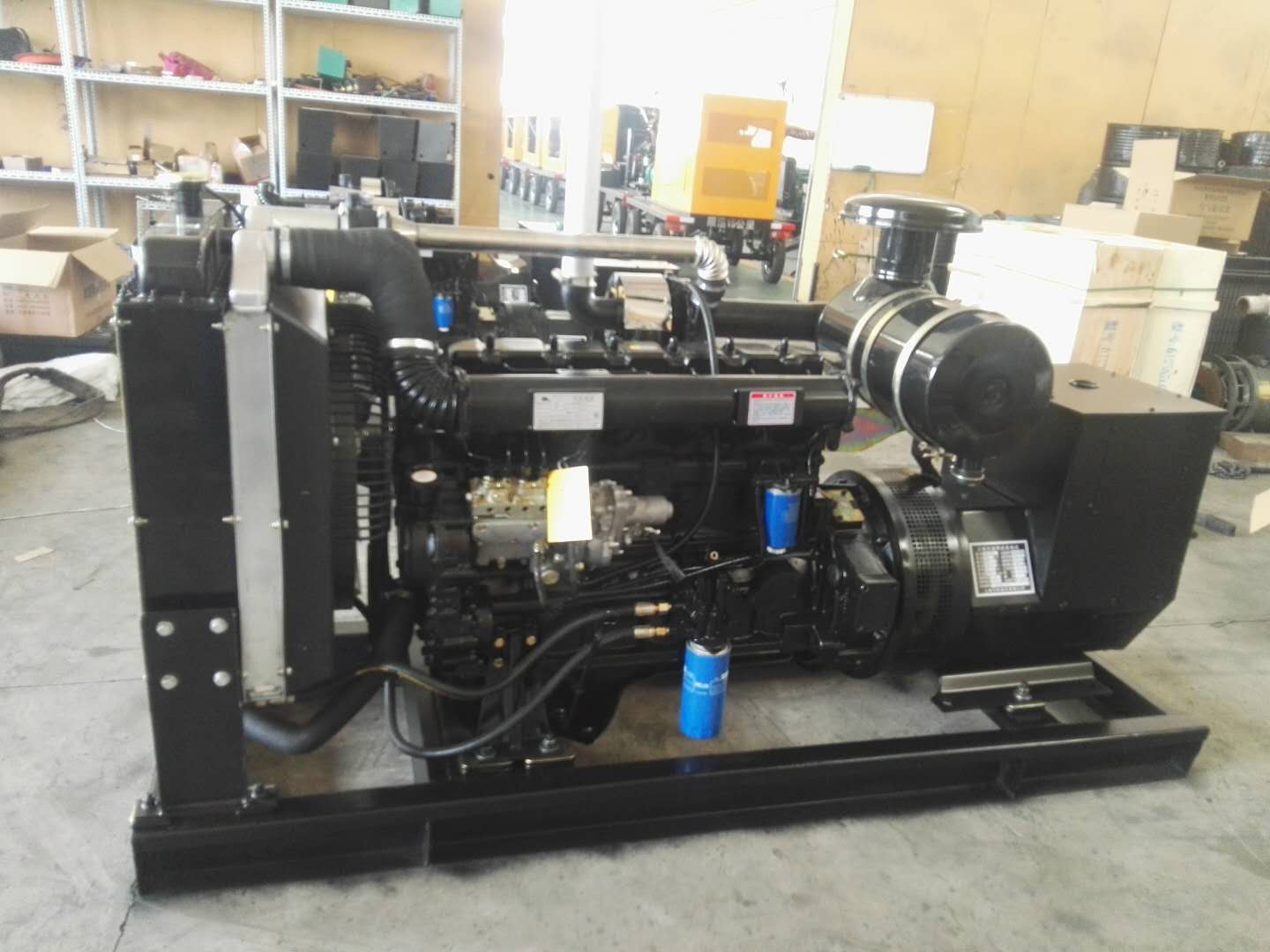

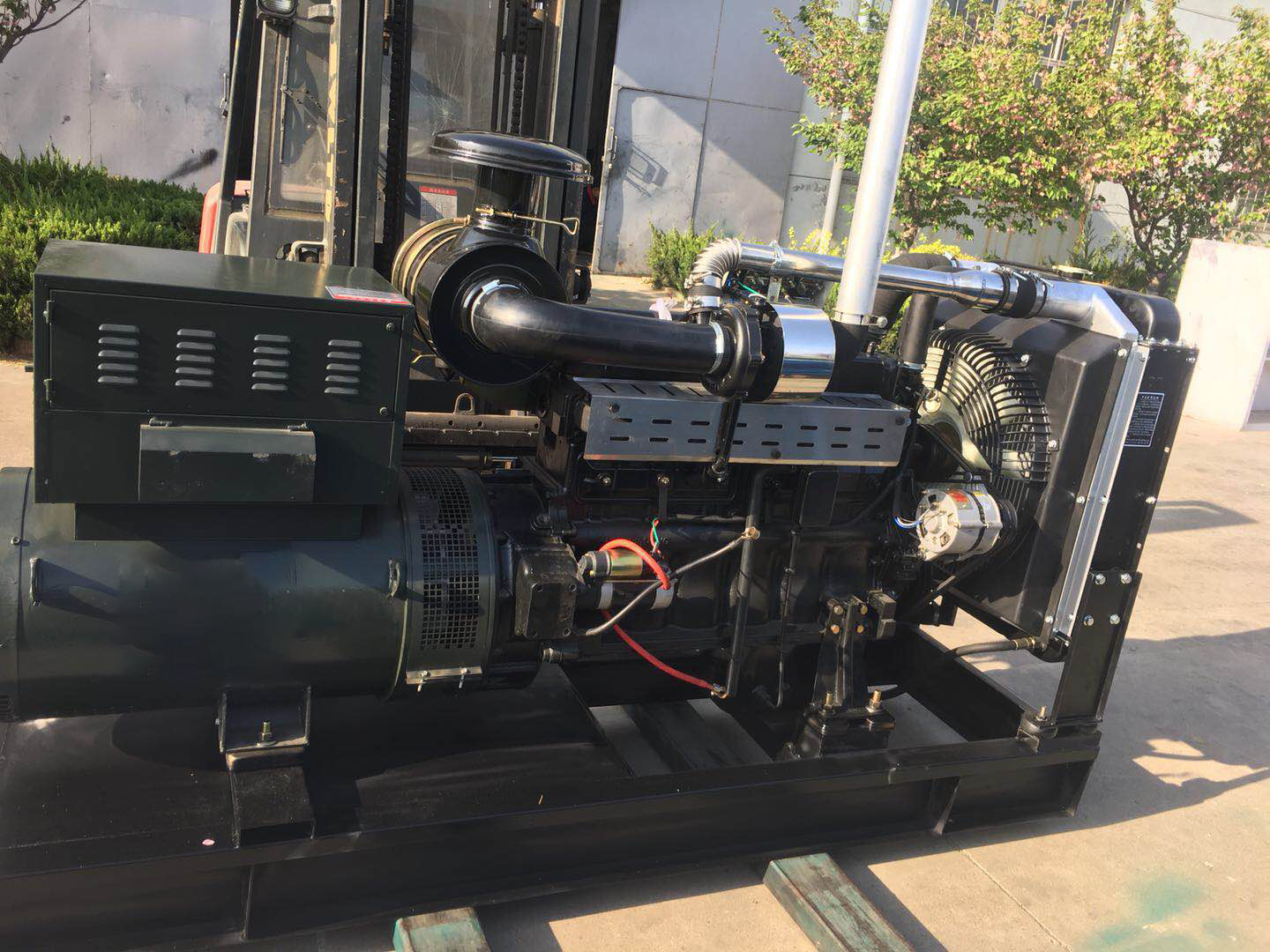

model

120GF

Unit power (KVA/KW)

150/120

Output voltage (V)

400/2 3 0

Rated output current (A)

21 7

Wiring method

Three-phase four-wire

Power Factor

0.8 (hysteresis)

Startup method

24V DC start

Frequency ( Hz )

50

Unit weight ( kg )

1350

Unit size (length x width x height)

2400 × 750 × 1400mm

Diesel engine data

Manufacturer

Weifang

 model

R6105IZLD

Rated speed (Rpm)

1500

Engine power (KW)

132

Number of cylinders

6

Cylinder arrangement

In-line

Cylinder diameter x stroke (mm)

105×135

Exhaust volume (L)

6.49

Air intake method

Supercharged intercooler

Compression  ratio

16:1

Fuel

China 0# Light Diesel Oil

Load fuel consumption (G/KW.h)

218

Lubricant Specifications

15W/40CD

Lubricating oil consumption (L/h)

0.5% fuel consumption

Startup method

Electric start

Coolant capacity ( L )

48

Engine cooling method

Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard

Generator data

Manufacturer

Fujian or Shanghai

model

STC-120

Power (KVA/KW)

150/120

Protection level

IP21

Insulation class

F

Steady state voltage regulation

Better than ±1%

No-load voltage adjustment range

≥±5%

Voltage control method

AVR

efficiency(%)

80
