1000KW Weichai diesel generator set
1000KW Weichai diesel generator set, the diesel engine uses Weichai diesel engine, model: 12M3D1210E200 electronic speed regulation National II emission standard, the motor uses Aerospace KWIS motor, pure copper brushless motor, Henan Zhongzhi control module model HGM9510 parallel module, the circuit breaker uses Zhejiang Chint 2000A intelligent circuit breaker, the base uses channel steel base, with oil antifreeze, batteries and other accessories.
1000KW diesel generator set technical parameters:
Diesel generator set data | |||
model | 1000GF | Unit power (KVA/KW) | 1250/1000 |
Output voltage (V) | 400/230 | Rated output current (A) | 1800 |
Wiring method | Three-phase four-wire | Power Factor | 0.8 (hysteresis) |
Startup method | 24V DC start | Frequency ( Hz ) | 50 |
Unit weight ( kg ) | 95 00 | Unit size (length x width x height) | 4600× 1680 ×1500mm |
Diesel engine data | |||

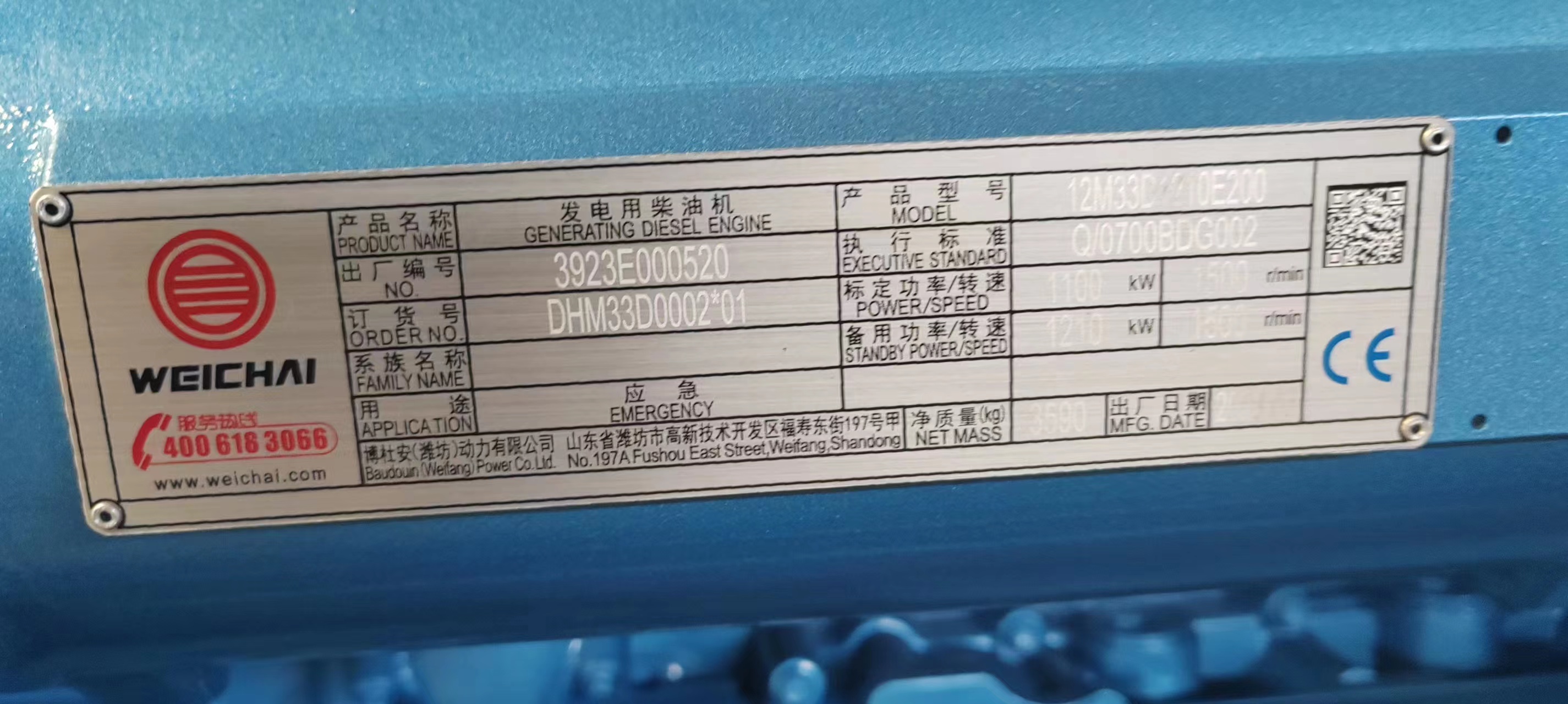

Manufacturer | Weichai Power | model | 12M33D1210E200 |
Rated speed (Rpm) | 1500 | Maximum engine power (KW) | 1210 |
Number of cylinders | 12 | Cylinder arrangement | In-line |
Cylinder diameter x stroke (mm) | 150×185 | Exhaust volume (L) | 39.2 |
Air intake method | Turbocharger | Compression ratio | 15:1 |
Fuel | China 0# Light Diesel Oil | 100% load fuel consumption (G/KW.h) | 258 |
Lubricant Specifications | 15W/40CD | Lubricating oil consumption (L/h) | 0.5% fuel consumption |
Startup method | Electric start | Coolant capacity ( L ) | 83 |
Engine cooling method | Radiator that meets ambient temperature of 40℃, belt-driven cooling fan, with fan safety cover | ||
Generator data | |||

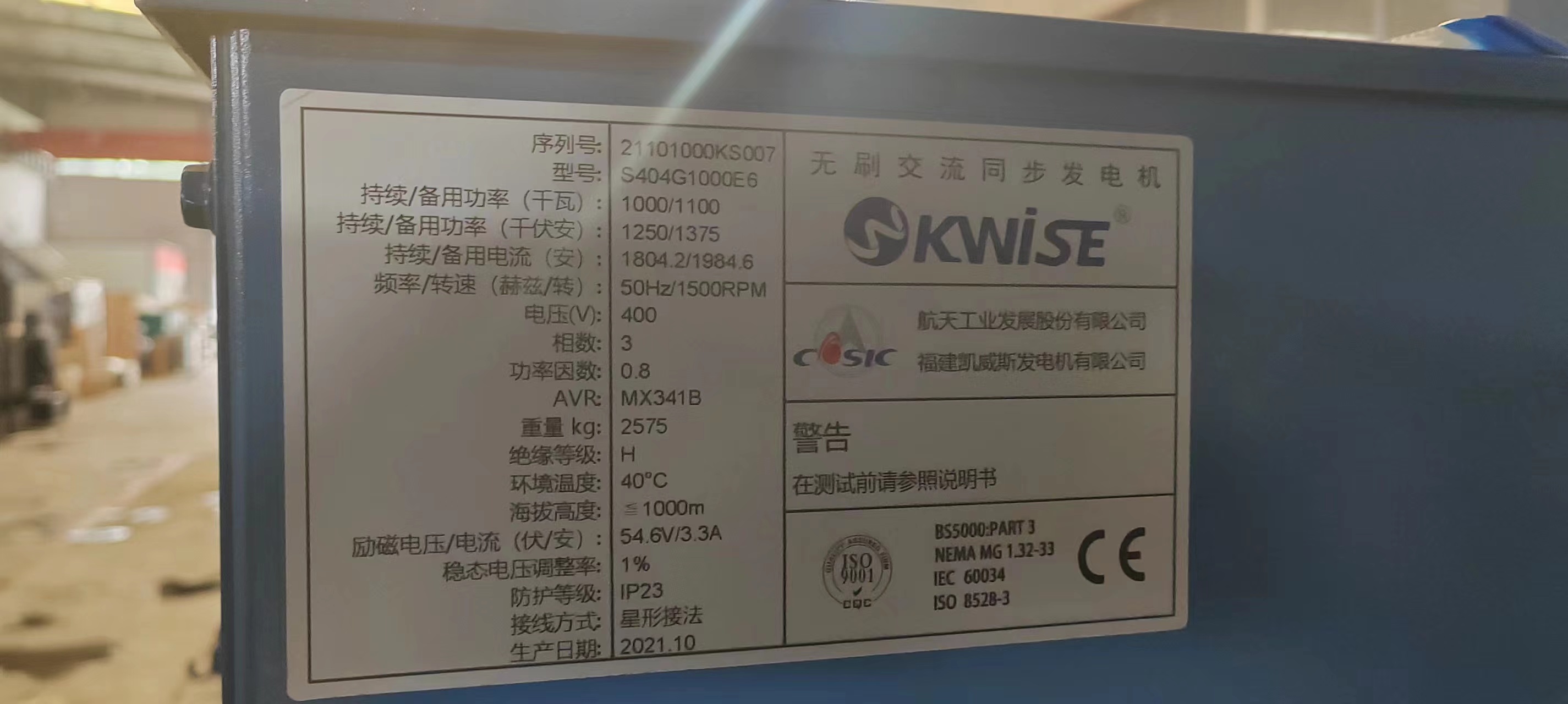

Manufacturer | Aerospace KWIS | model | S404G1000E6 |
Power (KVA/KW) | 1250/1000 | Protection level | IP22 |
Insulation class | H | Steady state voltage regulation | Better than ±1% |
No-load voltage adjustment range | ≥±5% | Voltage control method | AVR |
efficiency (%) | 80 | ||

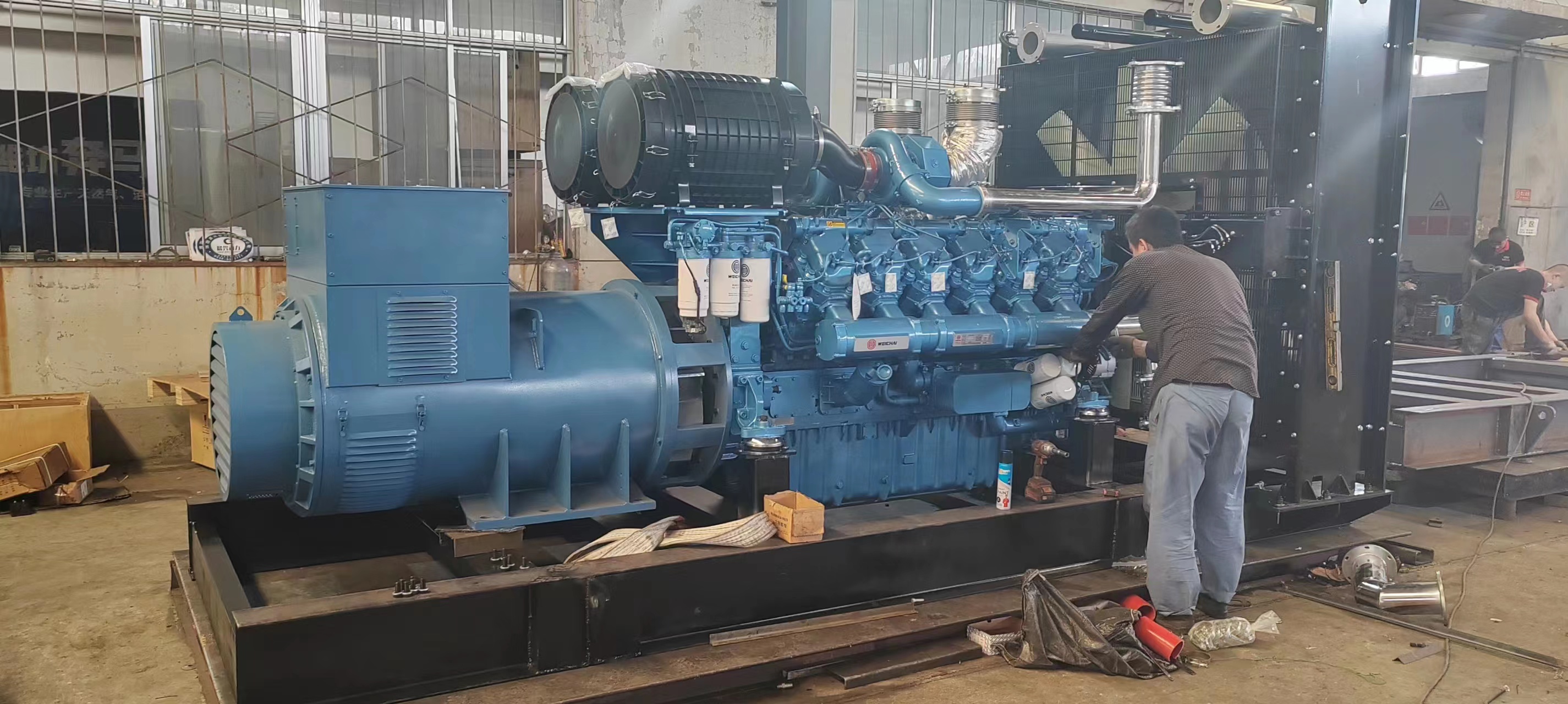

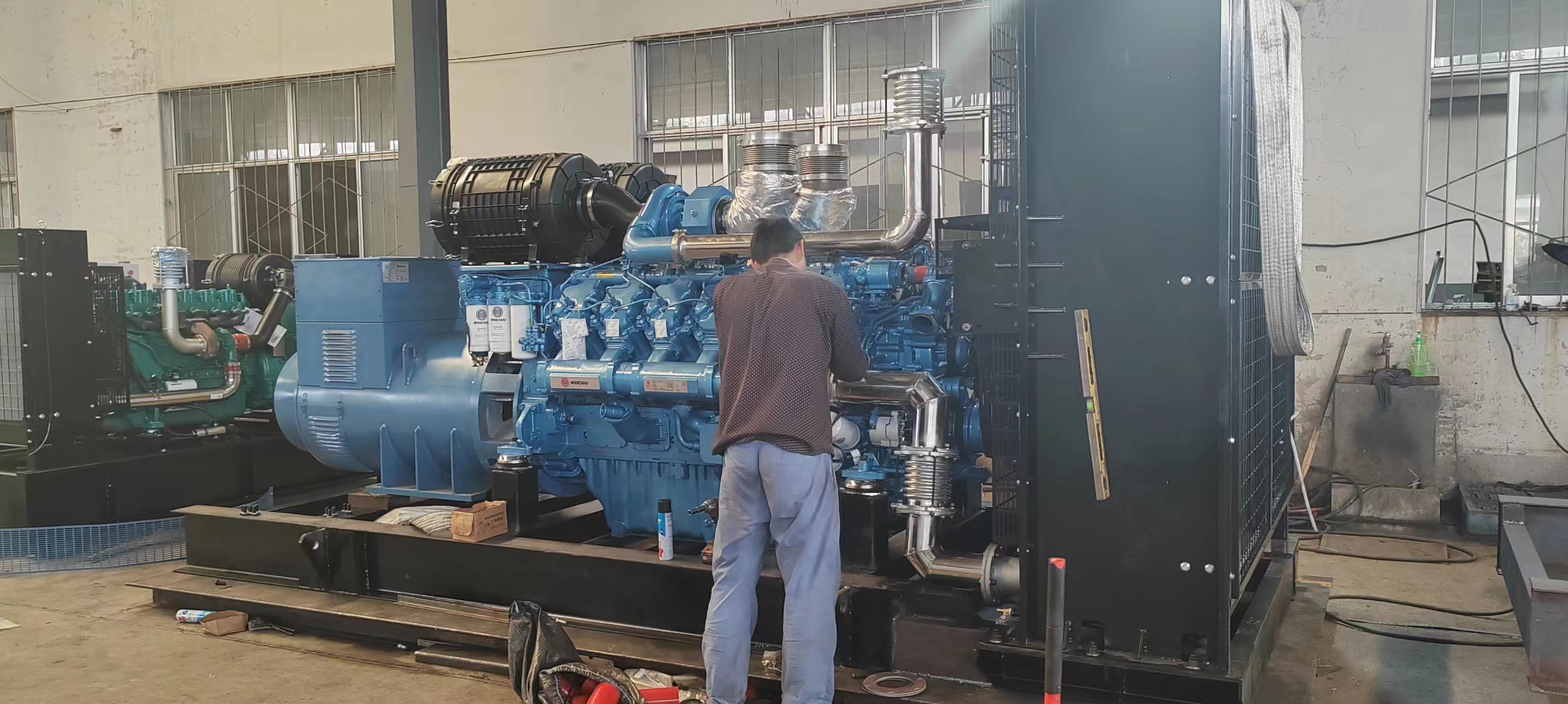

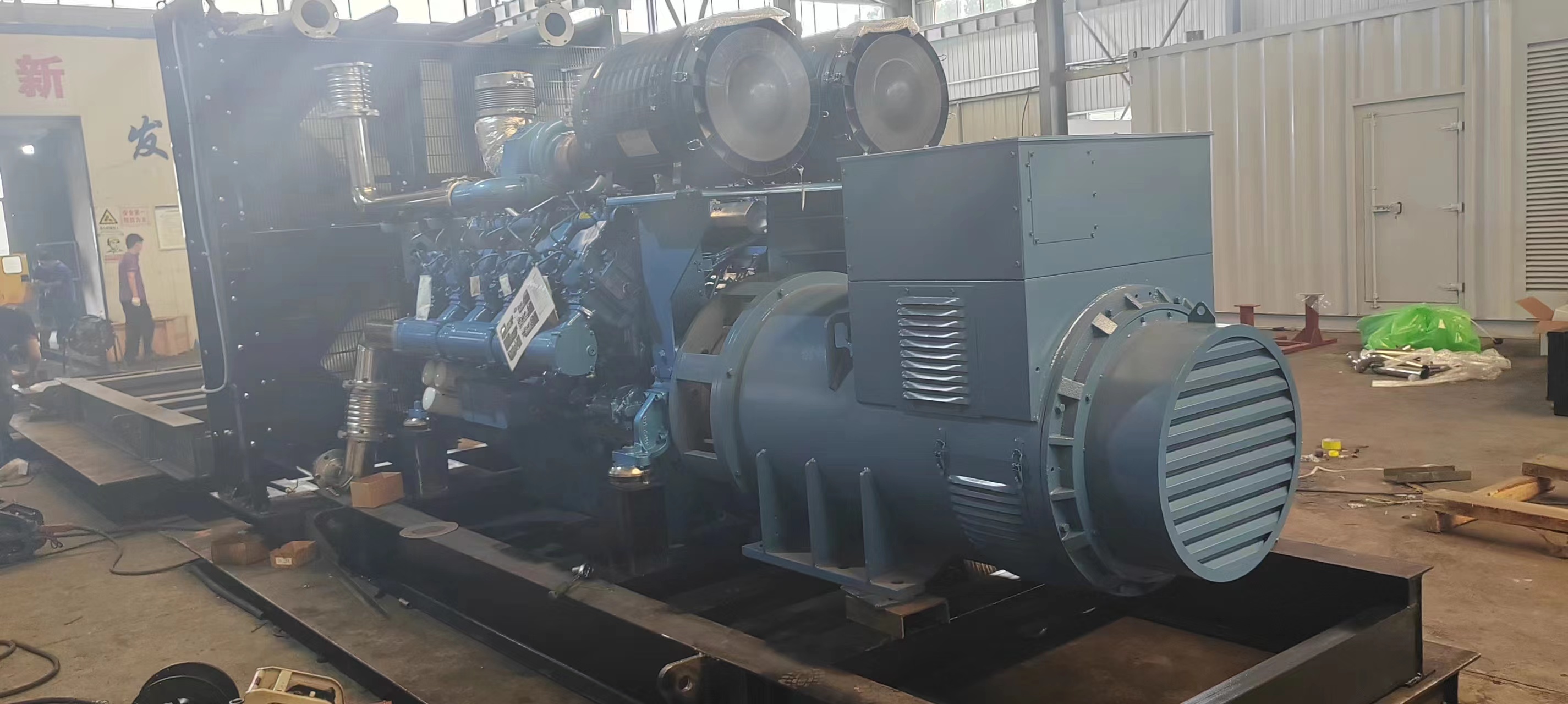

1000KW diesel generator equipment pictures:
