400KW Dongfeng Cummins diesel generator set. The diesel engine used is Dongfeng Cummins diesel engine. The motor used is Leroy Semir motor, pure copper brushless, with ATS dual power switching cabinet, engine oil, antifreeze, water tank, base, battery. The product is a high-end product. The joint venture brand has perfect after-sales service. New and old customers are welcome to consult and place orders for production.

400KW diesel generator set

Product Configuration:

1. Engine: Dongfeng Cummins

2. AC synchronous generator: Lelai Senma motor

3. Cooling water tank (applicable environment: 40℃-50℃)

4. Load output switch

5. Control system ATS dual power switch cabinet

6. Maintenance-free battery and connection device

7. Standard industrial muffler (diesel engine original accessory)

8. Diesel oil pipe (standard 6m long) and connecting fixtures

9. Coupling: Single-point flexible connection disc

10. Public chassis (with shock-absorbing pads as standard)

11. Materials: certificate, instruction manual

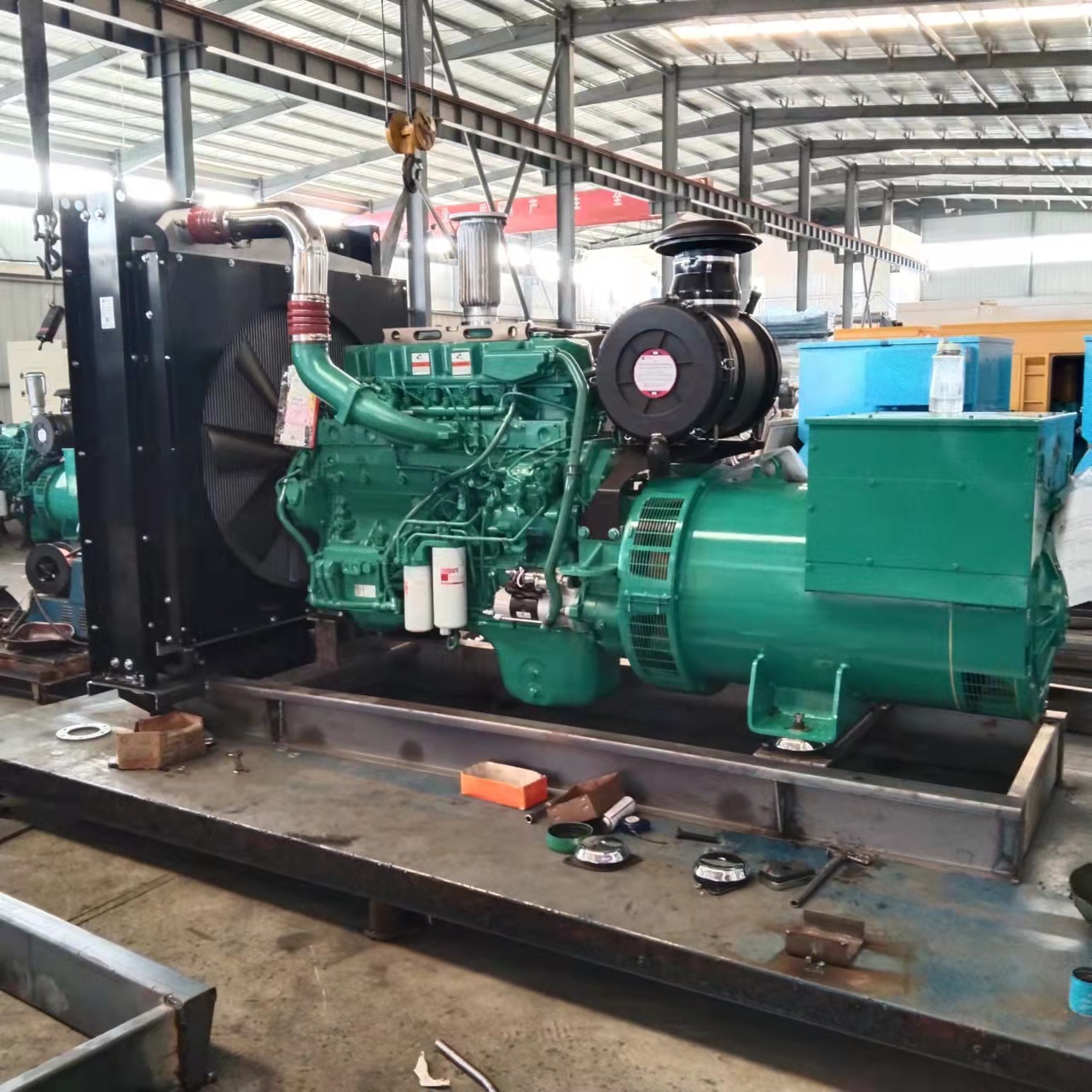

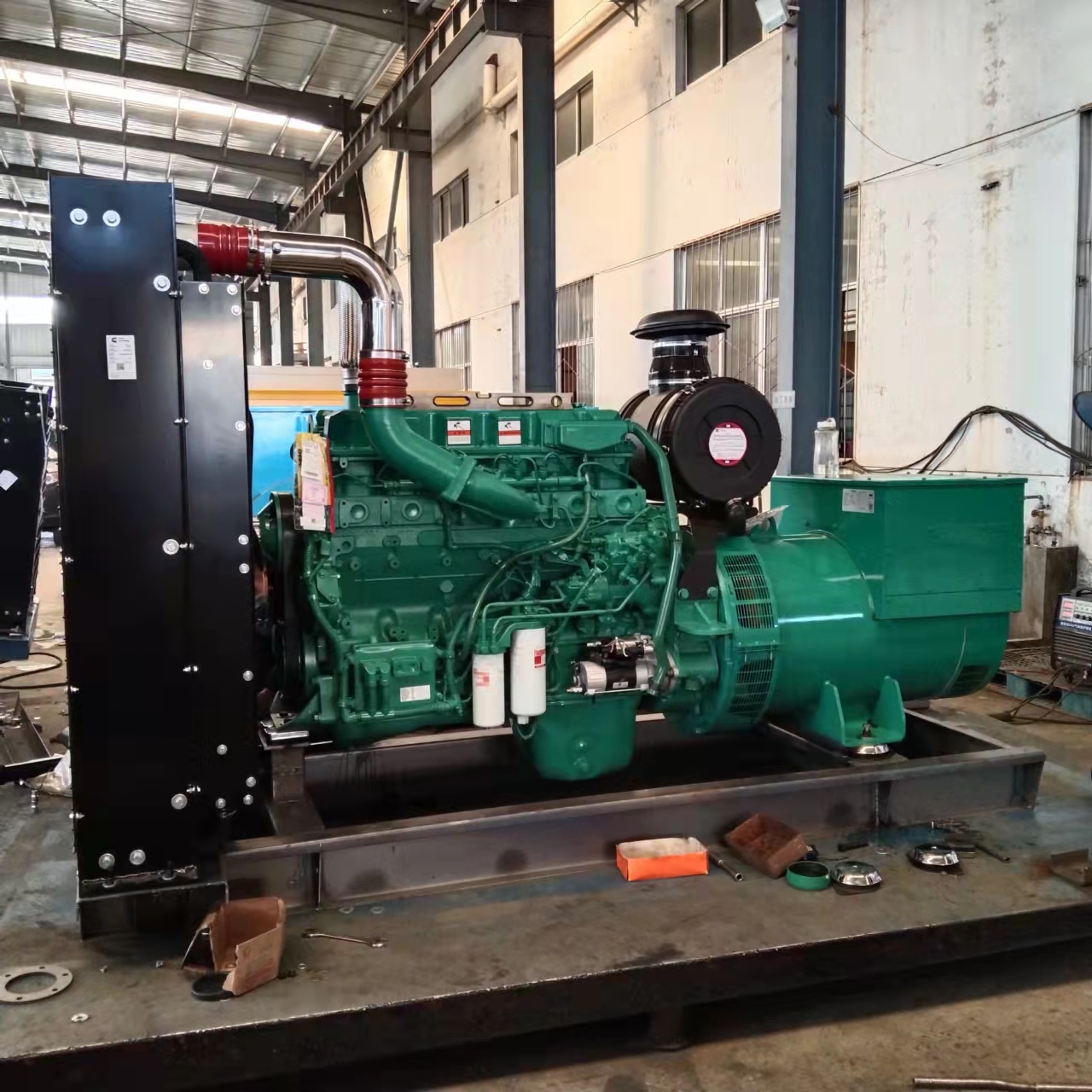

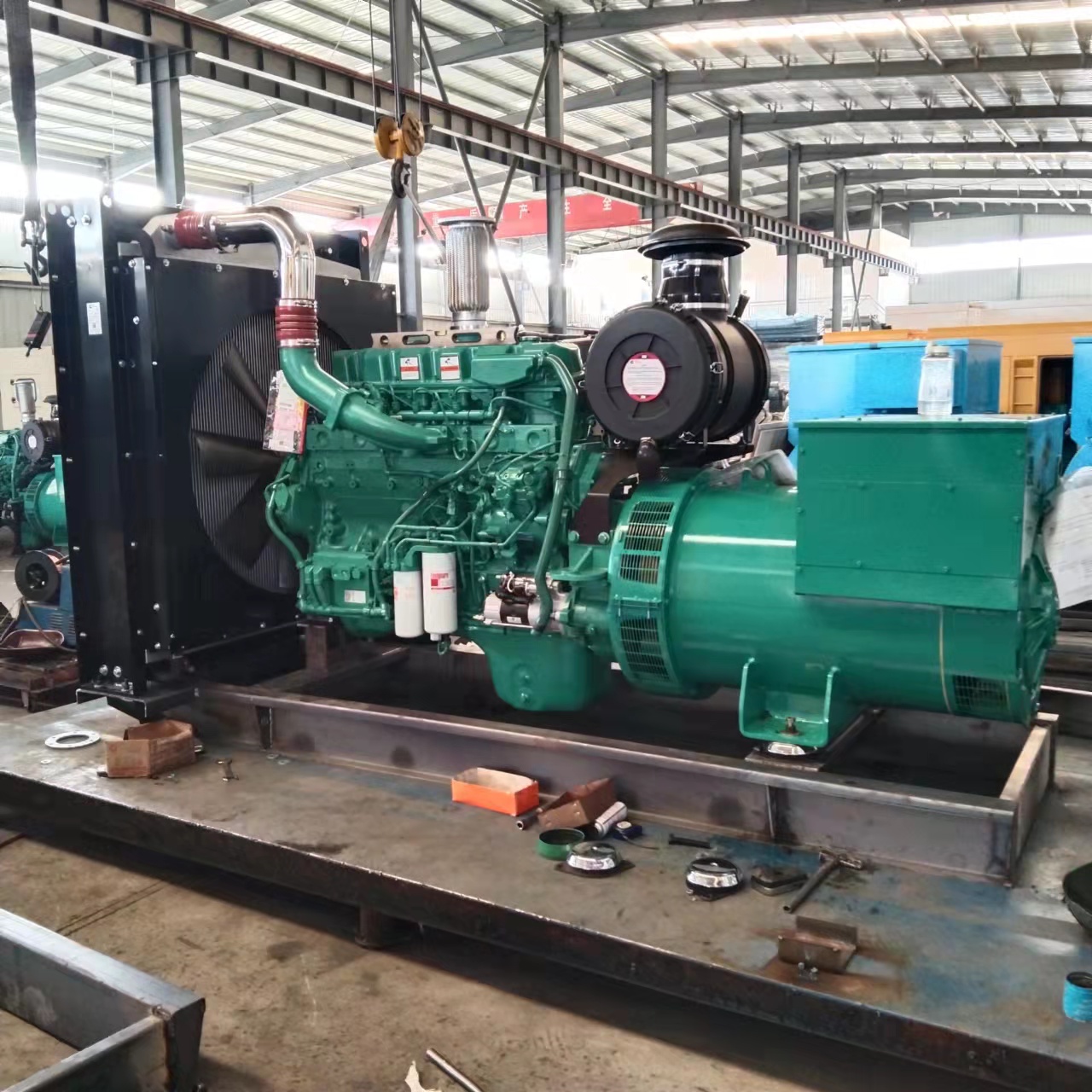

400KW Dongfeng Cummins diesel generator set equipment pictures:

2. Technical Parameters

Diesel generator set data
model	BM400GF
Rated output power (KVA/KW)	500/400	Rated output current (A)	720
Wiring method	Three-phase four-wire	Power Factor	0.8 (hysteresis)
Startup method	24V DC start	Frequency ( Hz )	50
Unit weight ( kg )	3100	Unit size (length x width x height)	3100×1250×1800mm
Diesel engine data
Manufacturer	Dongfeng Cummins	model	QSZ13-G2
Rated speed (Rpm)	1500	Engine power (KW)	440
Cylinder stroke	130*163	Compression ratio	17.5 : 1
Number of cylinders	6	Fuel consumption rate ( g/kwh )	≤198
Speed regulation mode	ESC	Oil fuel consumption ratio ( % )	≤0.1
Lubricant Specifications	AFI-CF4	Air intake method	Exhaust gas turbocharger
Engine cooling method	Radiator that meets ambient temperature of 40℃ , belt-driven cooling fan, with fan safety cover
Generator data
Manufacturer	Weifang Benma Power Equipment Co., Ltd.	model	BM-400
Power (KVA/KW)	500/400	Protection level	IP22
Insulation class	H	Power Factor	0.8 lag
