400KW Weichai diesel generator set equipment parameters



400KW Weichai Landking Diesel Generator Set Parameters

1. Technical Specifications



(1) Model: 400GF



Normal power (KW): 400



1 hour power (KW): 440



Frequency: 50Hz



Output voltage: 400/230V



Speed: 1500rpm



Power factor: COSΦ=0.8 (lagging)



Fuel consumption (g/Kw*h) ≤205±3% (No. 0 diesel is recommended)

Output current (A): 720



Phase/wire number: three-phase four-wire



Noise ≤105db (a)



Overall dimensions (mm): 2980*1240*1855 (Applicable dimensions are subject to the actual product)



Weight: 2500Kg (weight is subject to the actual product)



(2) Diesel engine :



Brand: Weichai Landking



Origin: Weichai Power Co., Ltd.



Model: WP13D440E310



Cooling start: Closed water cooling

Starting method: 24V DC starting

Number of cylinders: 6

Diesel engine displacement: 12.54L

Compression ratio: 17:1

Diesel engine oil capacity: 36L

Diesel engine coolant capacity: 25L

Fuel supply method: direct injection

Intake method: supercharged

Cylinder arrangement: in-line

Intercooling method: water cooling

Fuel type: Domestic 0# light diesel

Speed control mode: electronic control

Engine oil type: WD/40

Bore/stroke: 127/165mm

Diesel engine oil fuel consumption ratio: ≤0.2%

Diesel engine net weight Kg: 1000±50

Dimensions: 1813*954*1289mm

WP13 series diesel engines for power generation are a new series of diesel engines developed based on the Landking series diesel engines.

The WP13D440E310 diesel engine is a special diesel engine for power generation in the WP13 series. It is a new type of diesel engine for power generation with a mid-mounted supercharger developed by the company.

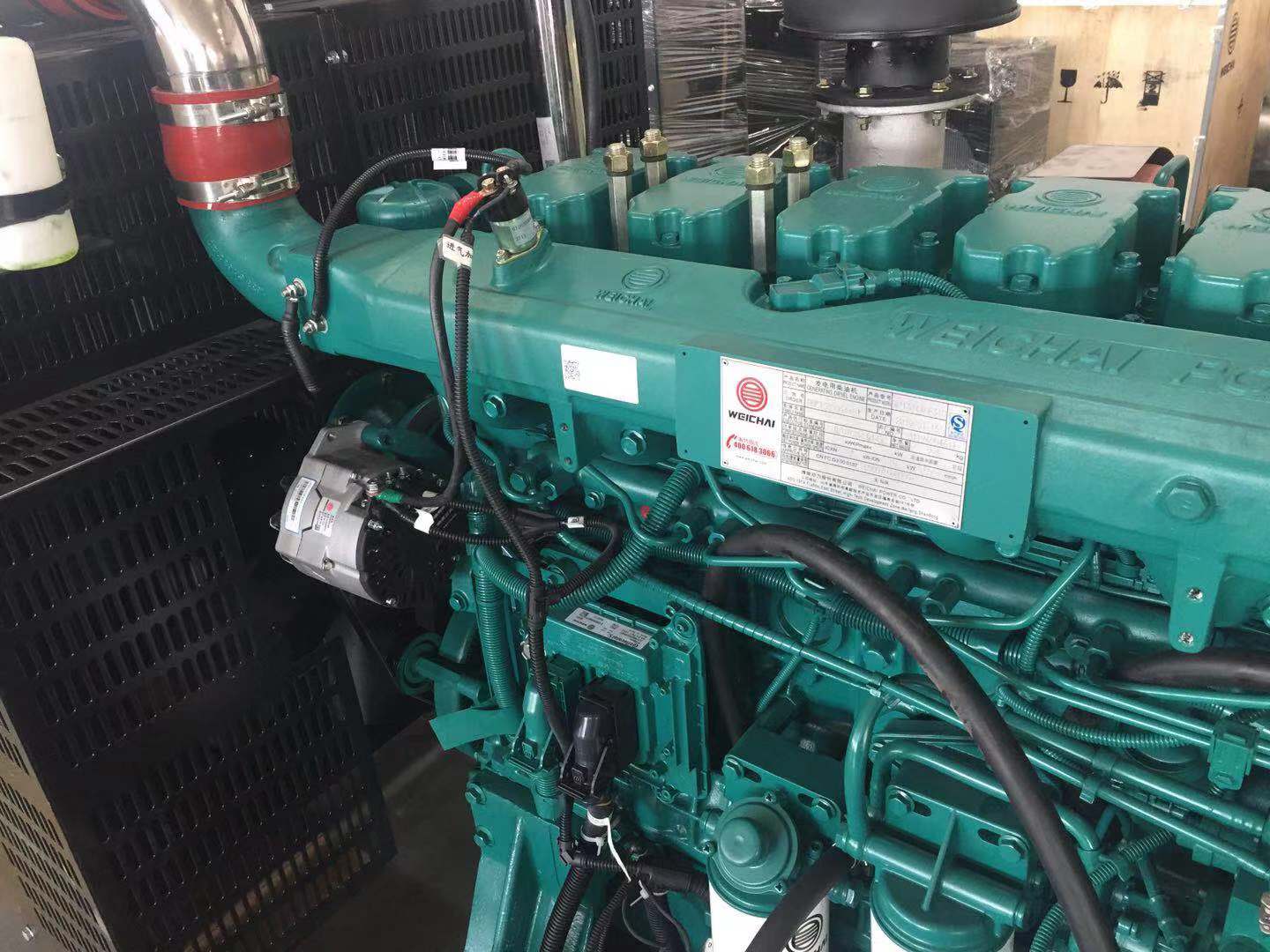

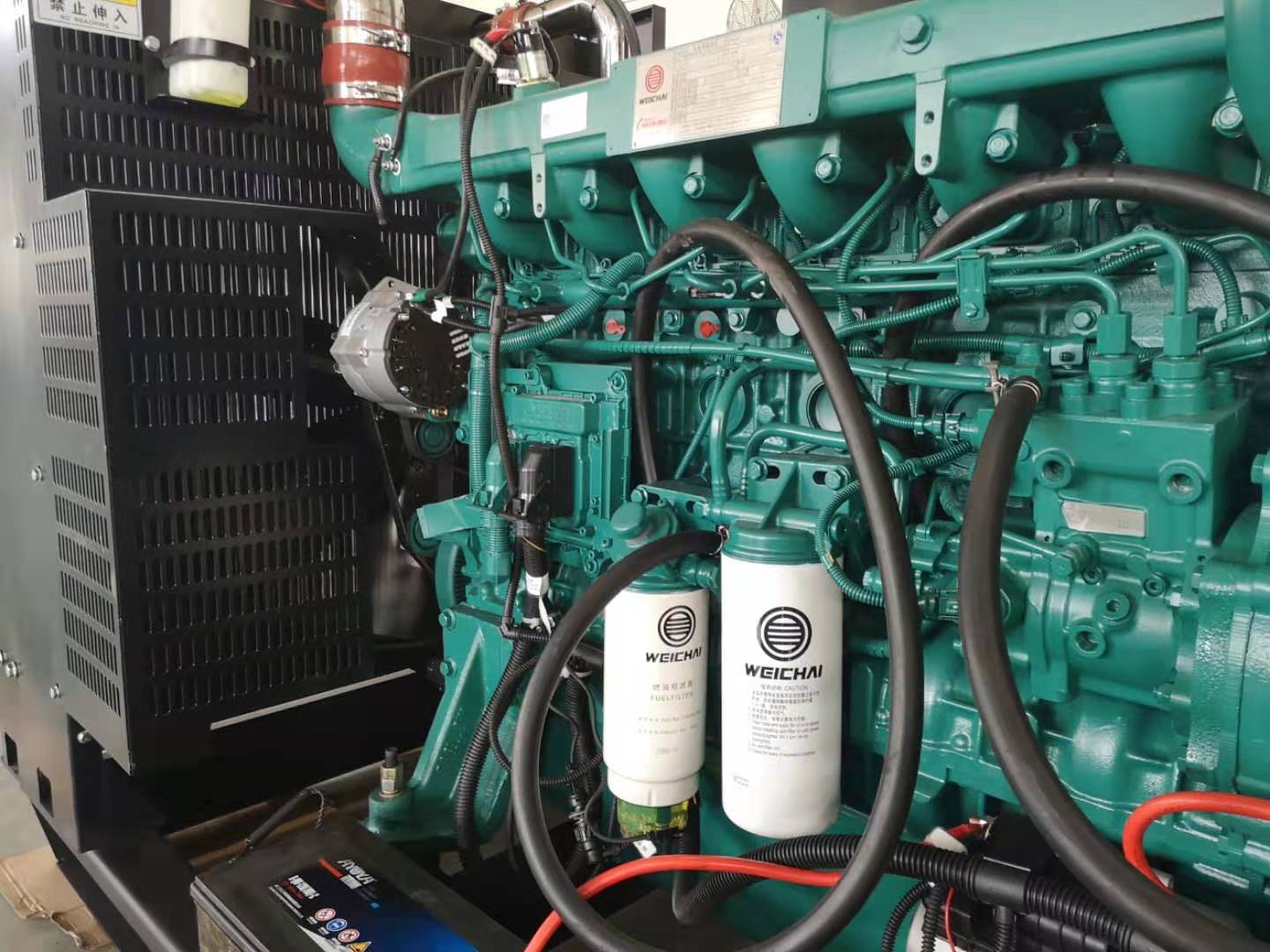

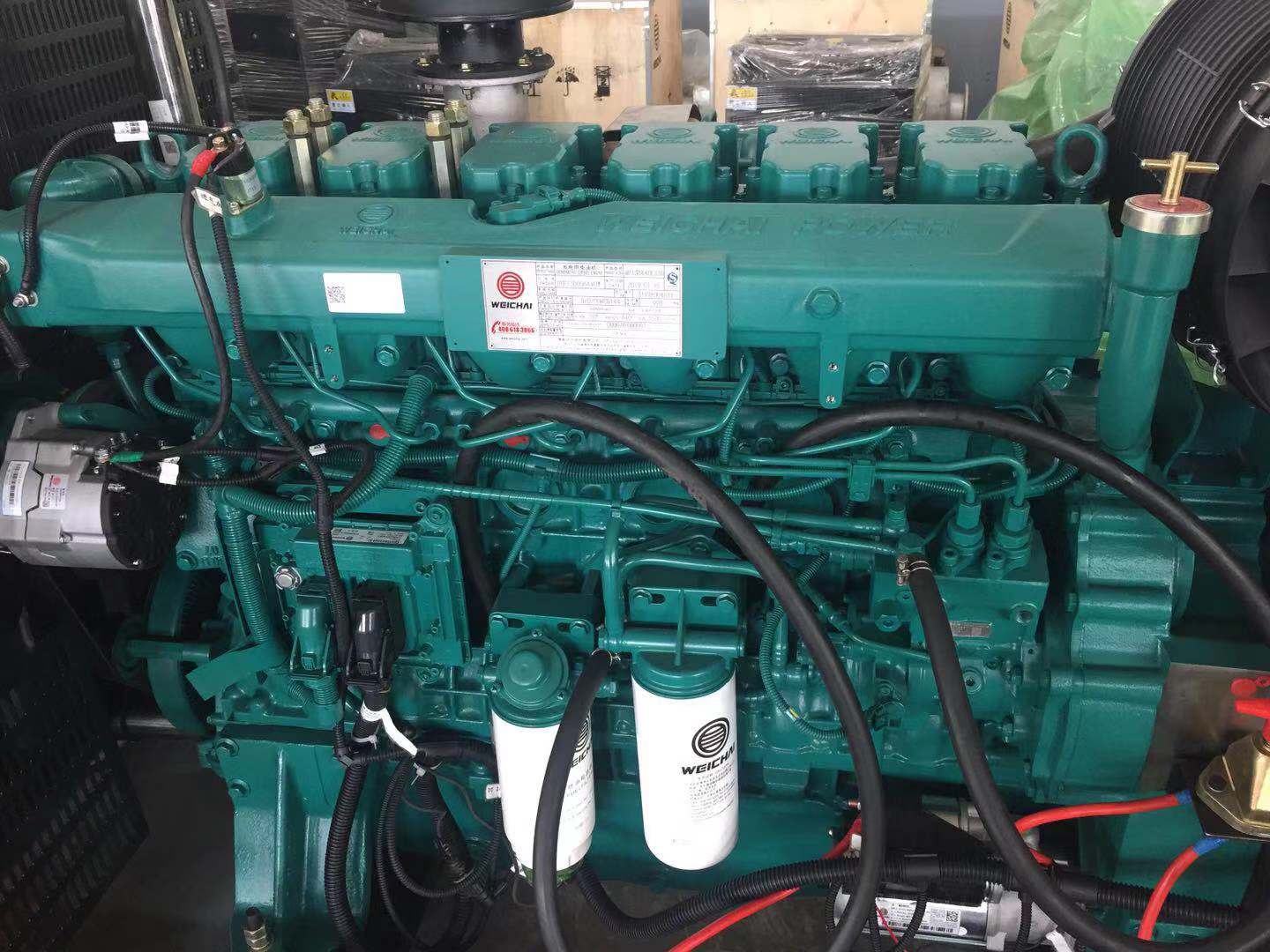

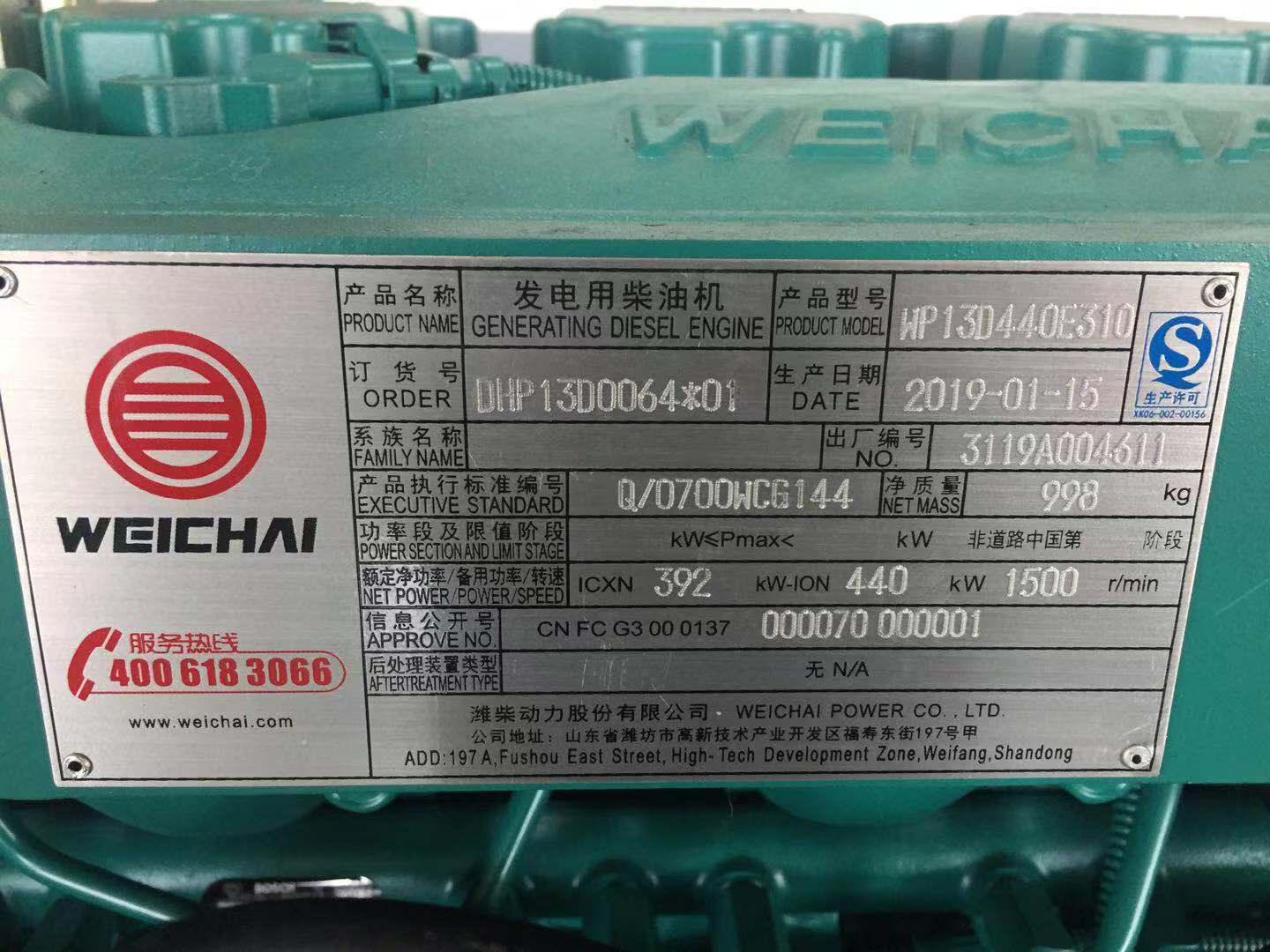

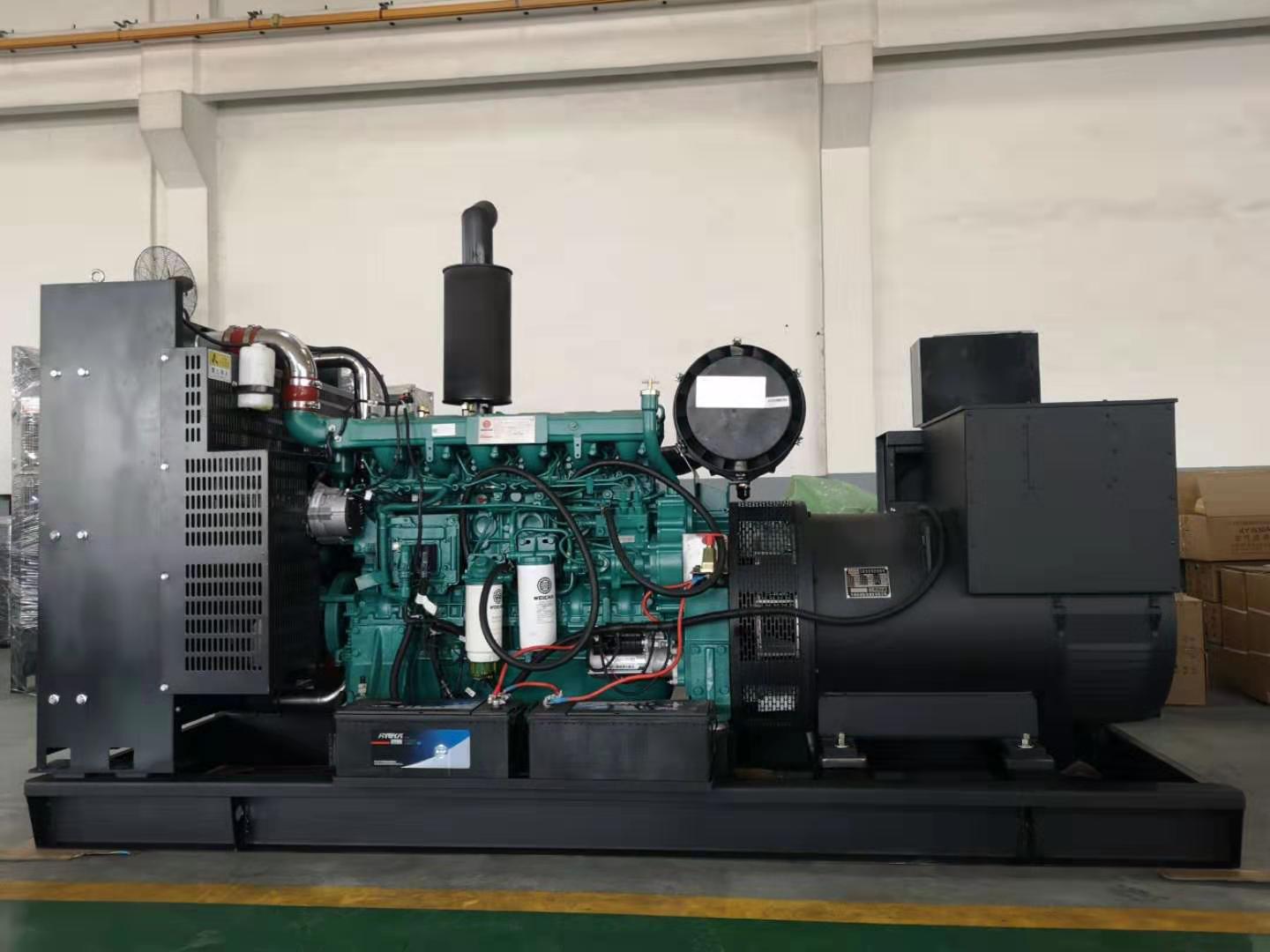

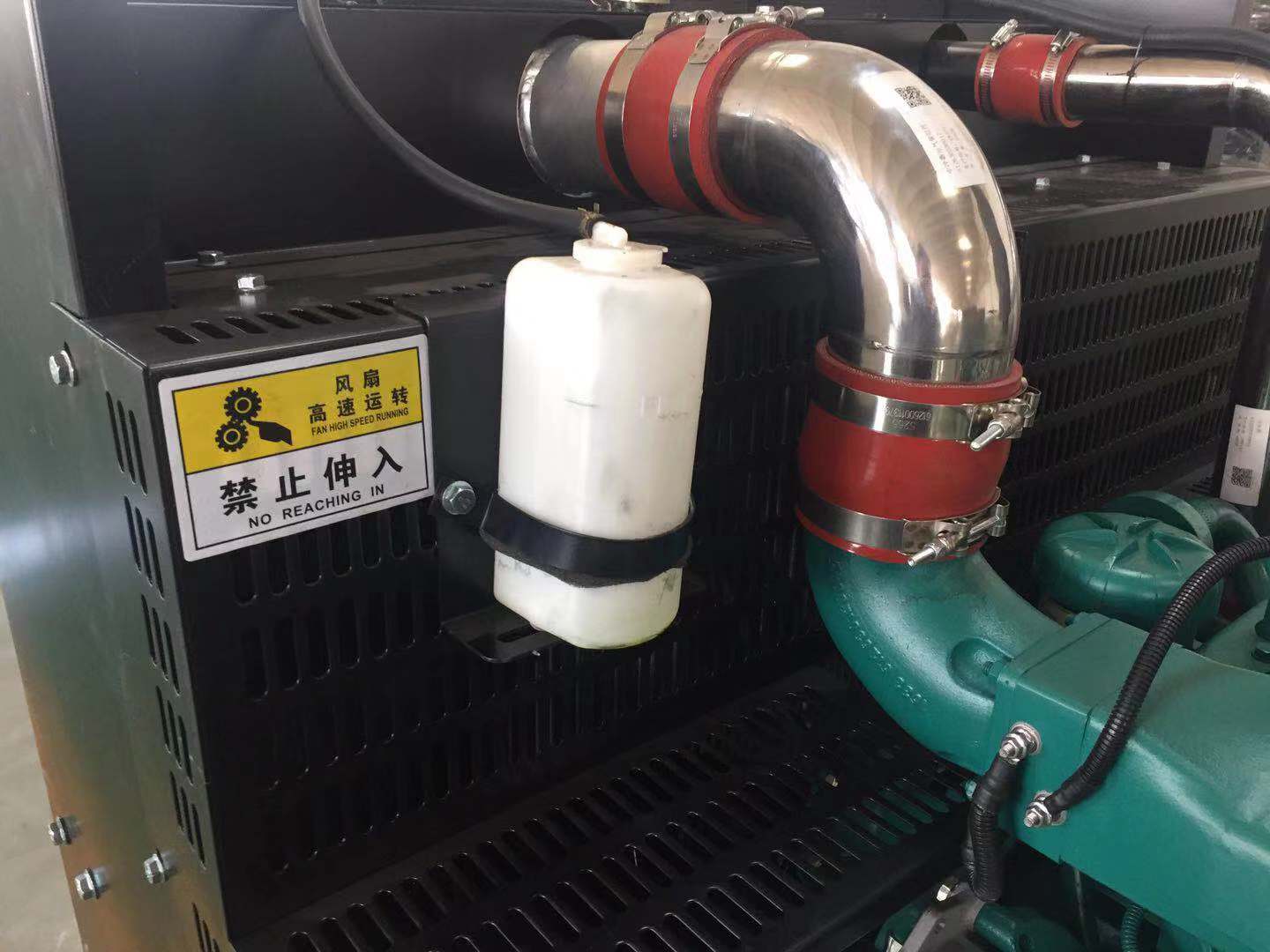

400KW diesel generator equipment pictures:
