100KW Weichai diesel generator set equipment parameters:

Weichai diesel generator set parameters 100KW

1. Technical specifications
(1) Model: 100GF
Normal power (KW): 100
Standby power (KW): 132

Frequency: 50Hz

Output voltage: 400/230V

Speed: 1500rpm

Power factor: COSΦ=0.8 (lagging)

Fuel consumption (g/Kw*h): 25

Output current (A): 180 (No. 0 diesel is recommended)

Phase/wire number: three-phase four-wire

Noise LP7m: 105db

Overall dimensions (mm): 2470*930*1450 (Appearance dimensions are subject to the actual product)

Weight: 1550Kg (weight is subject to the actual product)

(2) Diesel engine :
Brand: Deutz
Origin: Weichai Power Co., Ltd.

Model: WP6D132E200

Cooling start: Closed water cooling

Starting method: 24V DC starting

Number of cylinders: 6

Diesel engine oil capacity: 18L

Diesel engine coolant capacity: 16L

Fuel supply method: direct injection

Intake method: supercharged

Cylinder arrangement: in-line

Intercooling method: water cooling

Fuel type: Domestic 0# light diesel

Speed regulation mode: mechanical/electronic speed regulation

Engine oil type: WD/40

Bore/stroke: 105/130mm

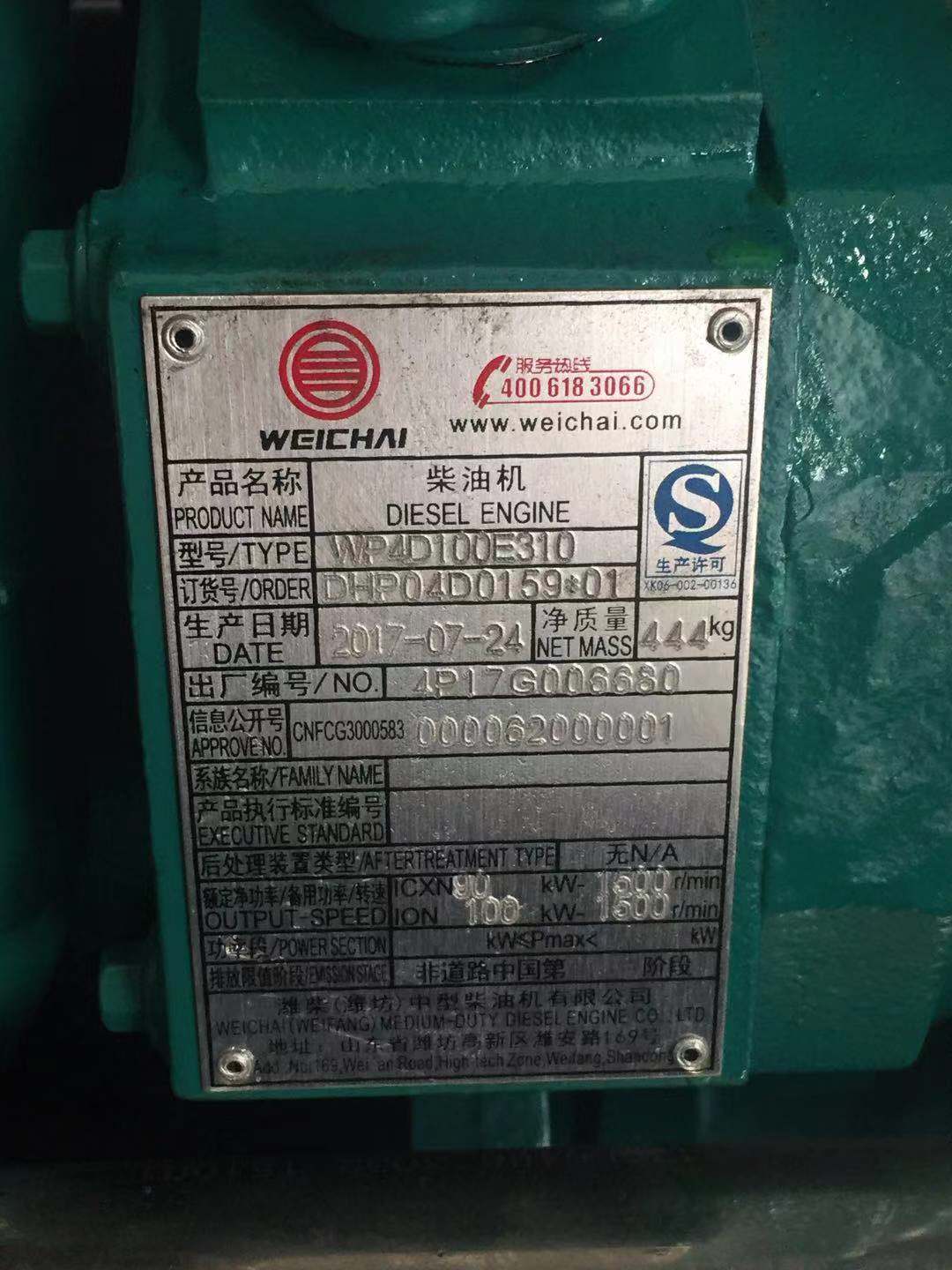

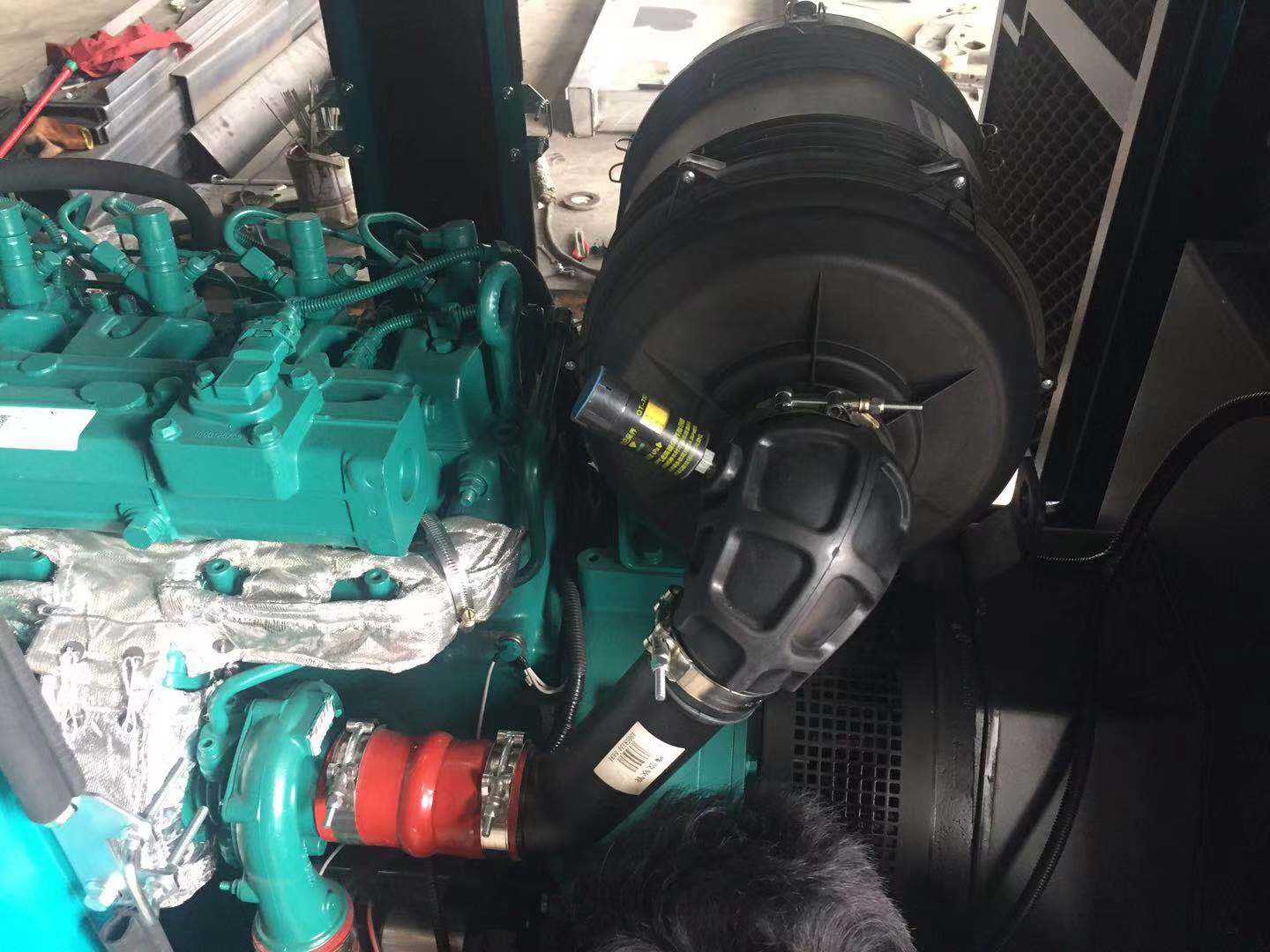

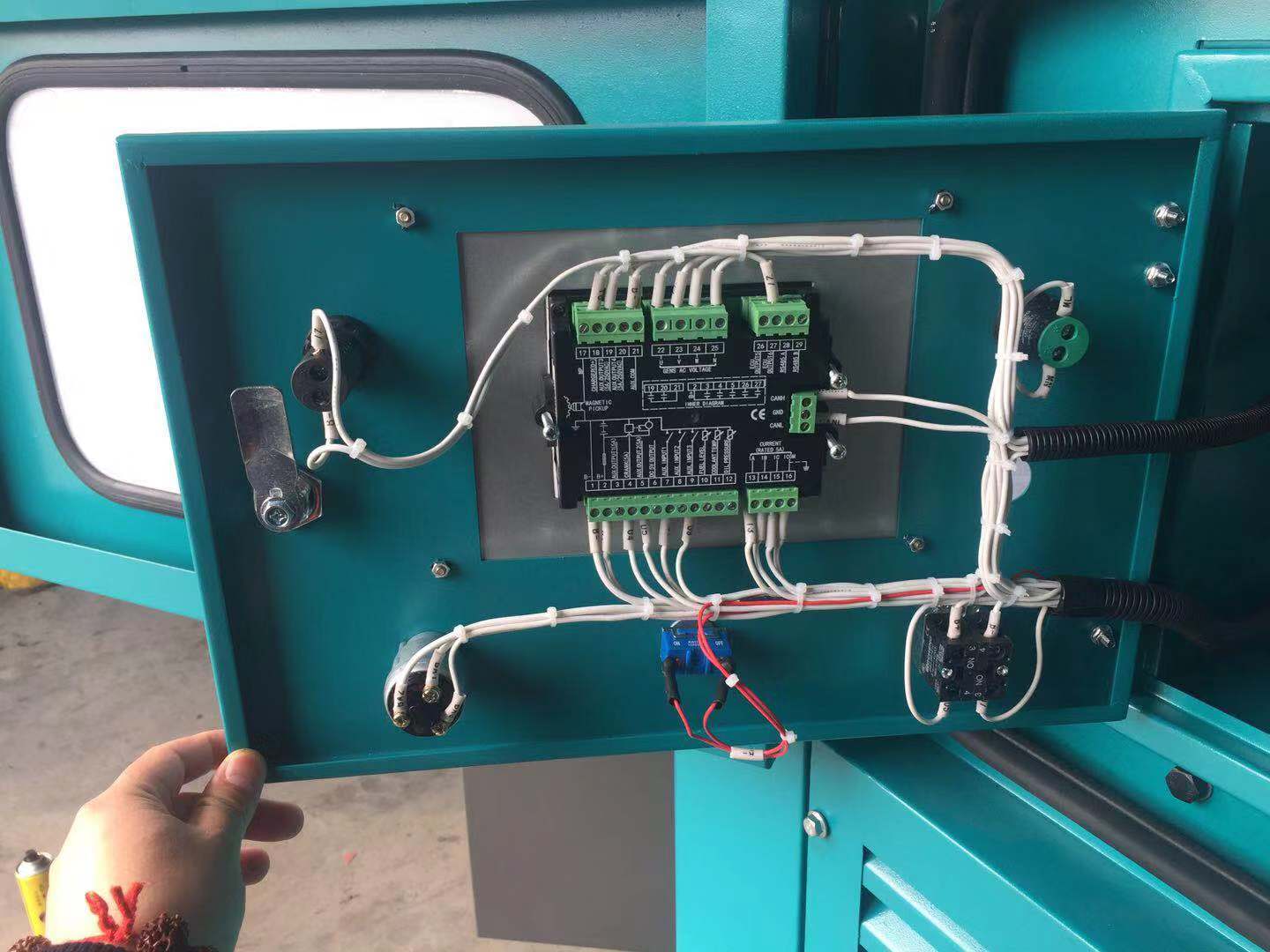

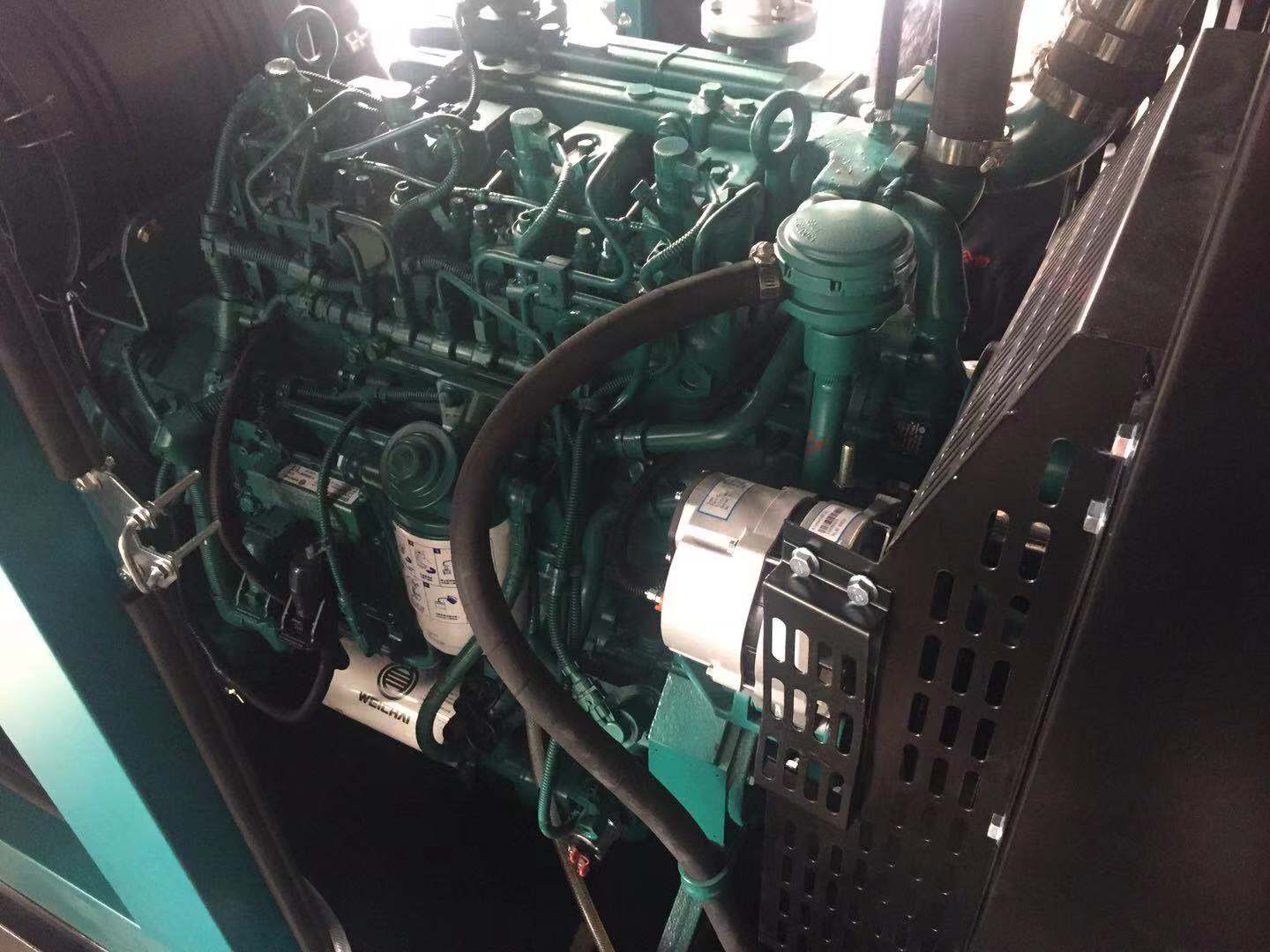

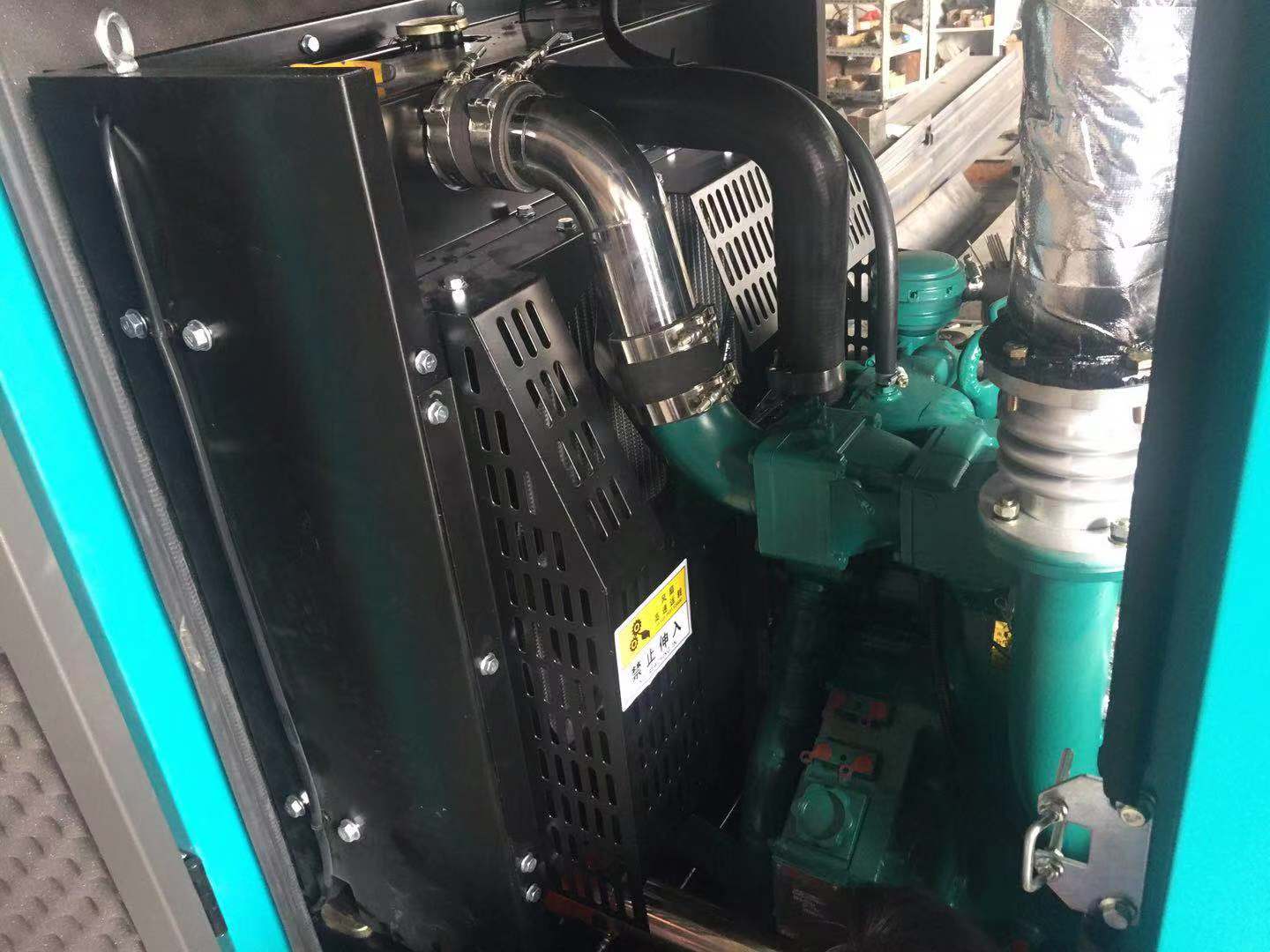

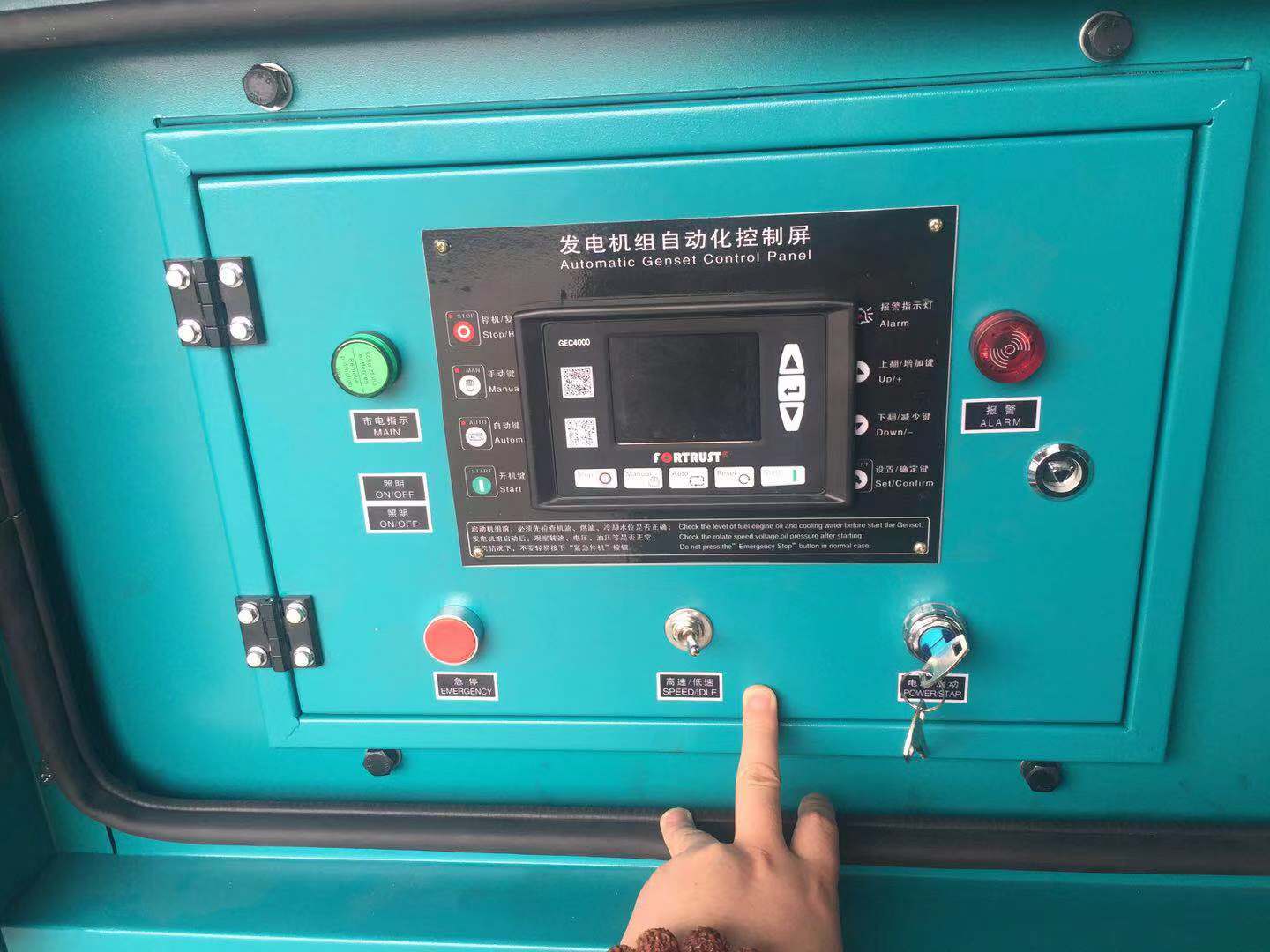

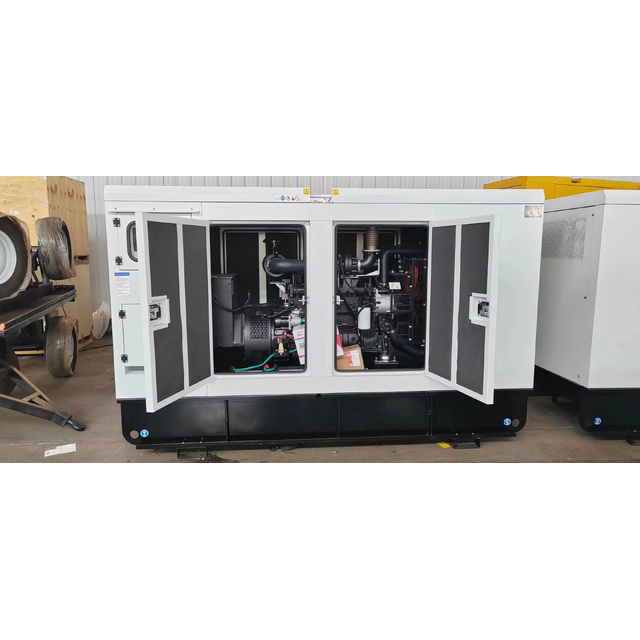

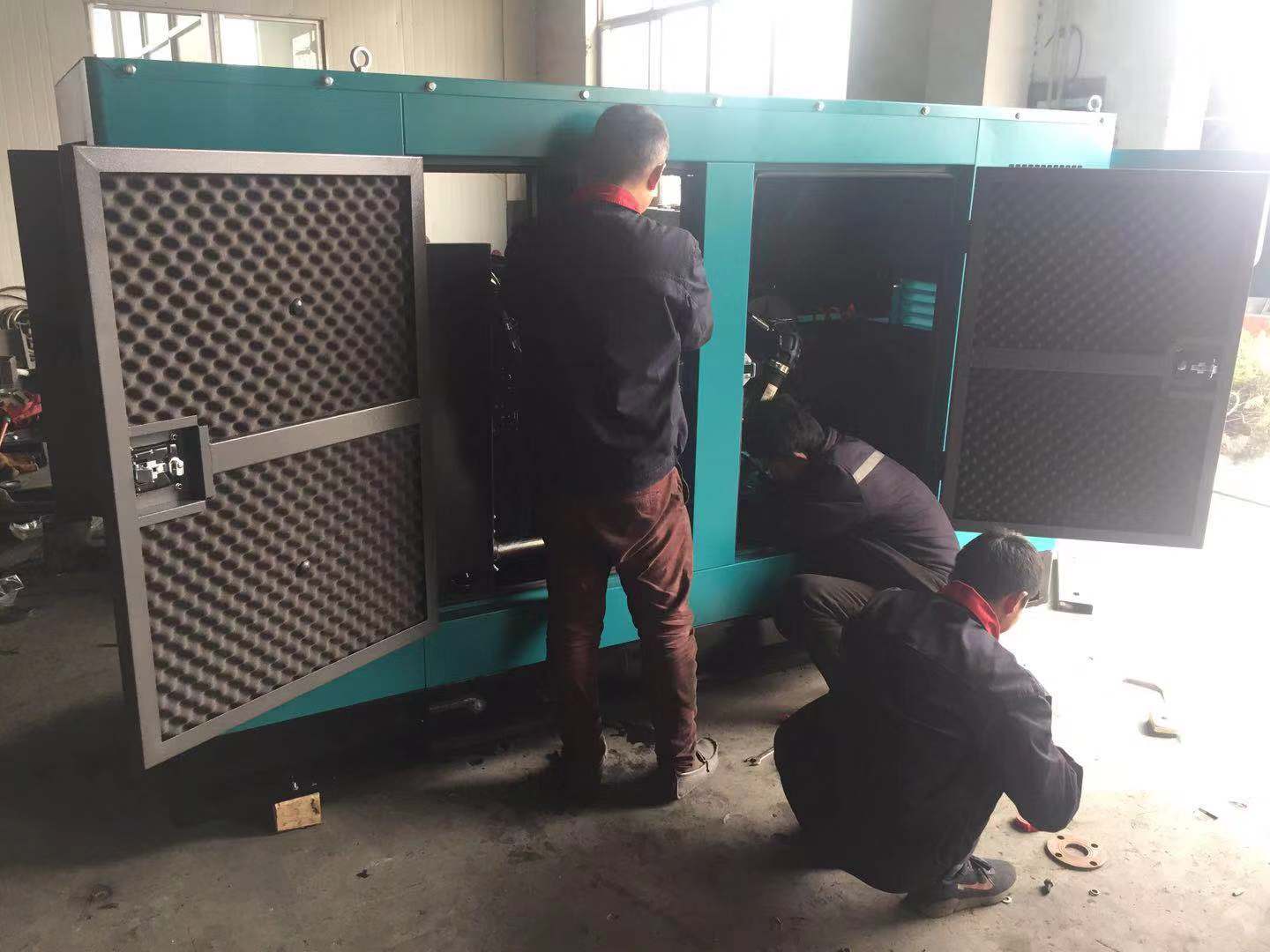

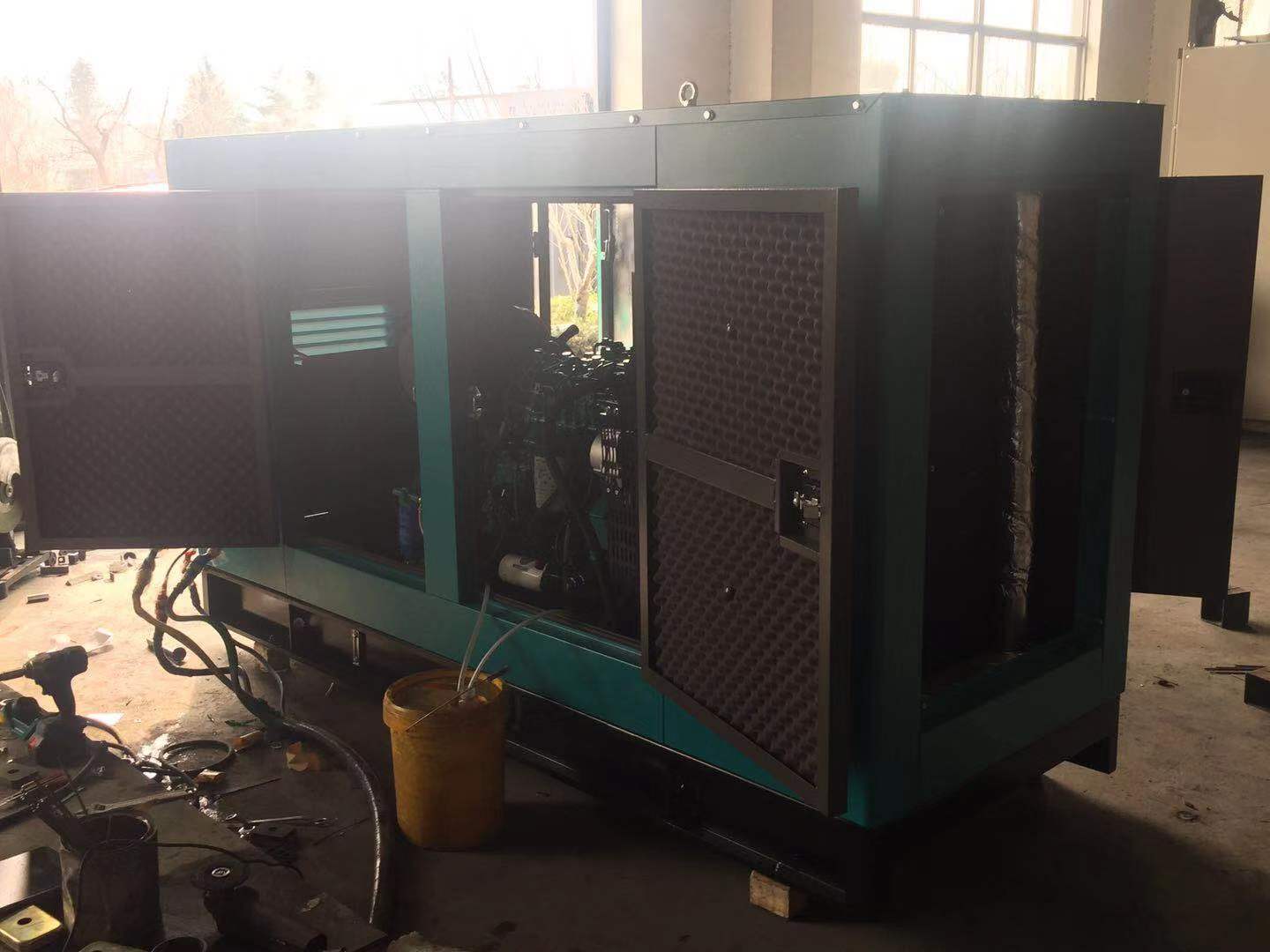

100KW Weichai diesel generator equipment pictures:
