900KW Weichai diesel generator set equipment parameters:

900KW Baudouin diesel generator set parameters

1. Technical Specifications

(1) Model: 900GF

Common power (KW): 900

Reserve power (KW): 1108

Frequency: 50Hz

Output voltage: 400/230V

Speed: 1500rpm

Power factor: COSΦ=0.8 (lagging)

Fuel consumption (g/Kw*h): 210 (No. 0 diesel is recommended)

Output current (A): 1800

Phase/wire number: three-phase four-wire

Noise LP7m: 108db

Overall dimensions (mm): 4300*1800*2135 (Appearance dimensions are subject to the actual product)

Weight: 7800Kg (weight is subject to the actual product)

(2) Diesel engine :

Brand: Baudouin

Place of Origin: Baudouin (Weifang) Power Co., Ltd.

Model: 12M33D1108E200
Cooling start: Closed water cooling
Starting method: 24V DC start
Number of cylinders: 12
Cylinder arrangement: V-type
Displacement: 39.2L
Compression ratio: 15:1
Diesel engine bore/stroke mm: 150/185
Diesel engine coolant capacity: 75.94L
Diesel engine oil pan capacity: 146L
Fuel supply method: direct
injection Intake method: supercharged intercooler
Intercooling method: water intercooling
Fuel model: domestic 0# light diesel
Speed regulation method: electronic speed regulation
Engine oil model: WD/40
Diesel engine net weight (Kg): 3390
Overall dimensions (mm): 2524*1311*1731

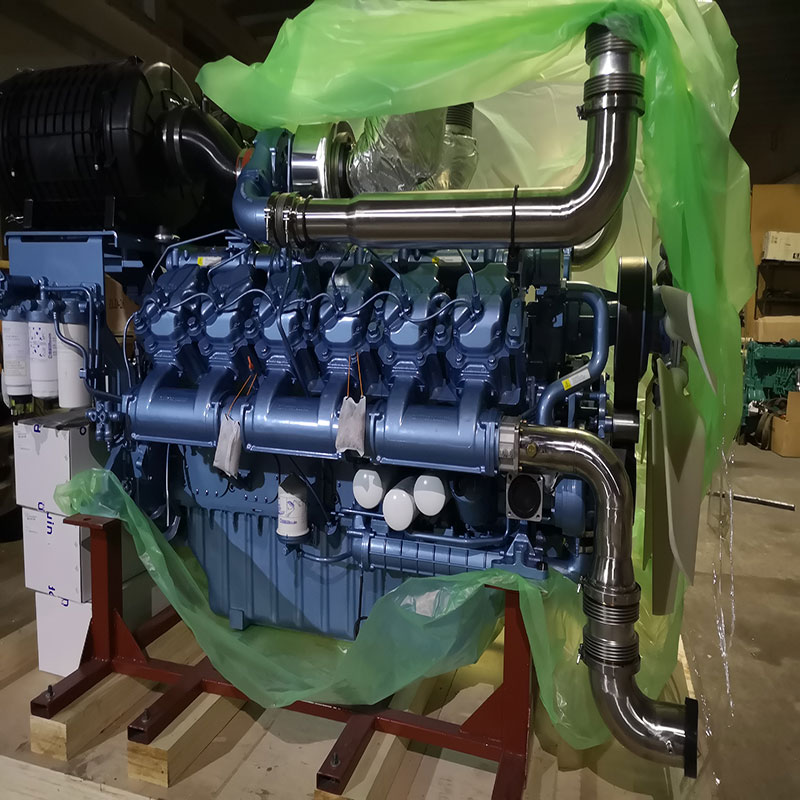

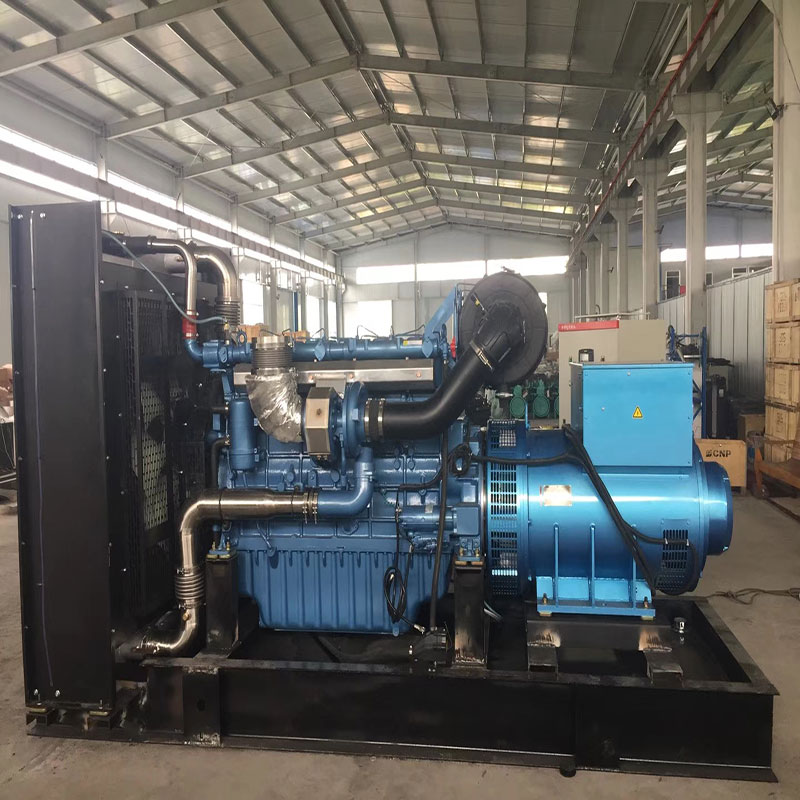

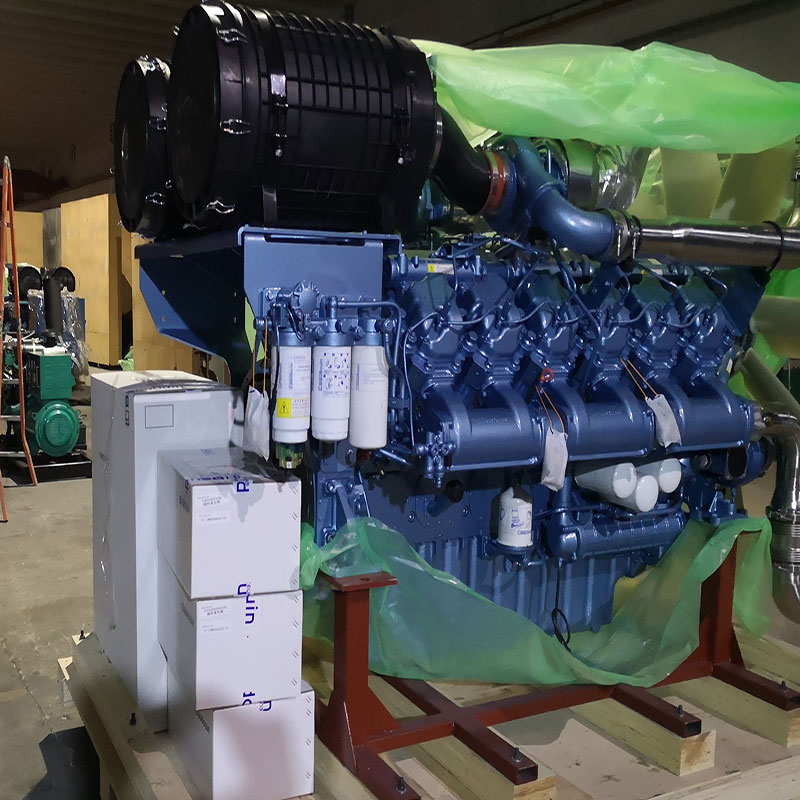

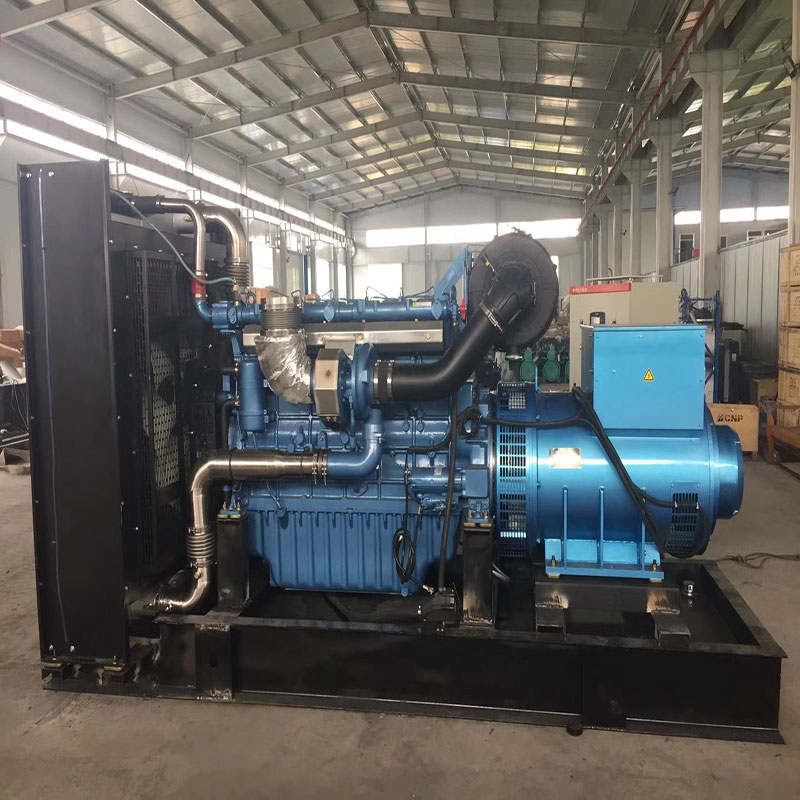

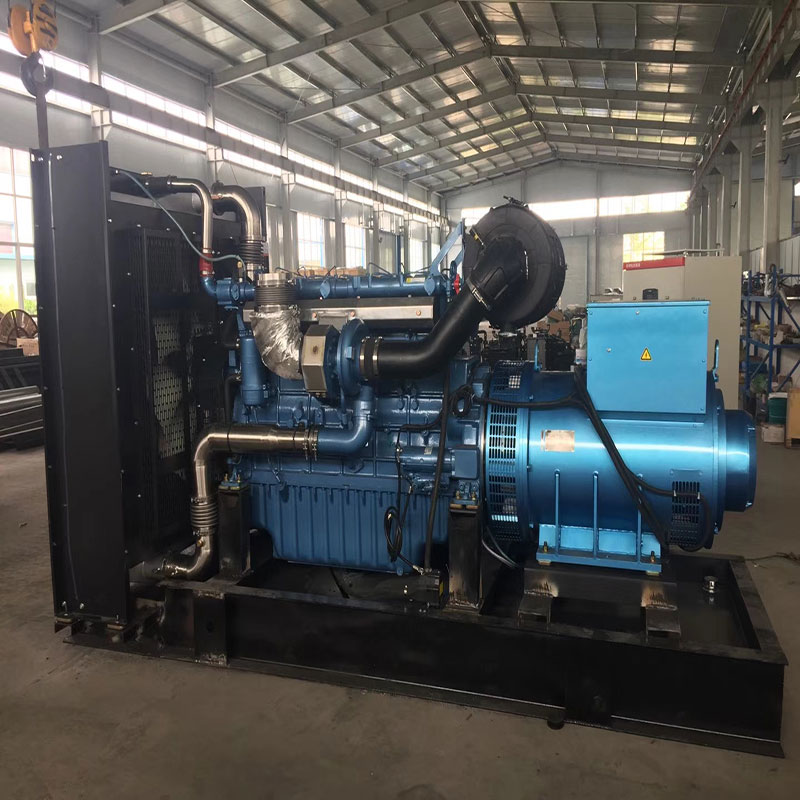

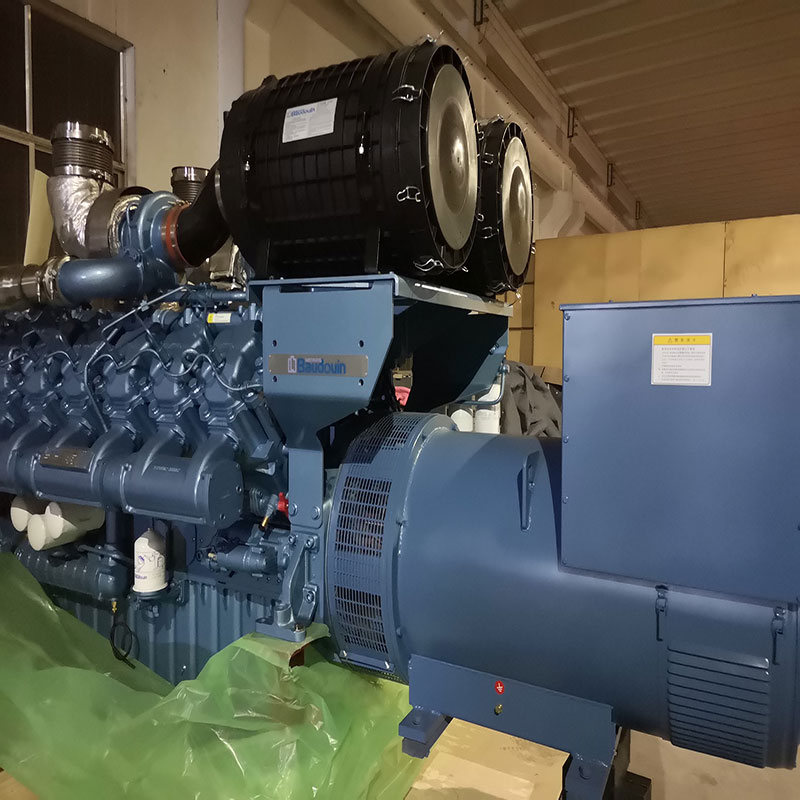

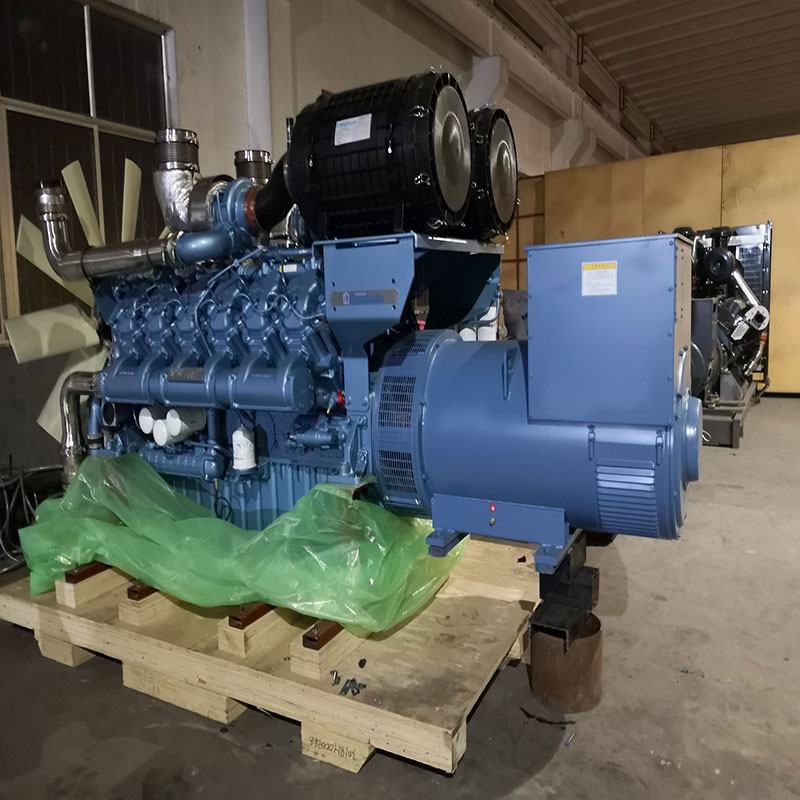

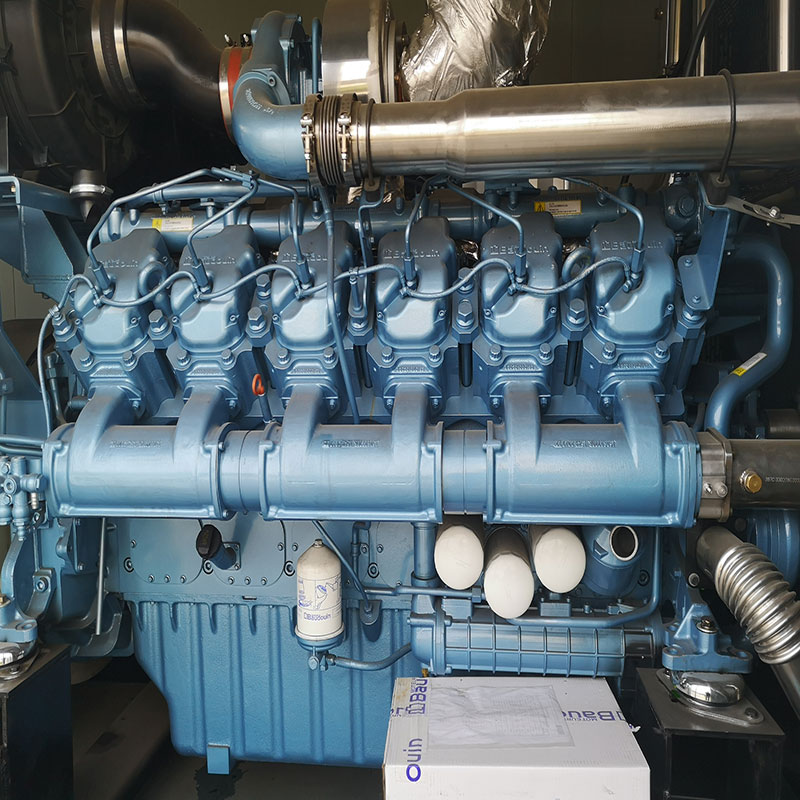

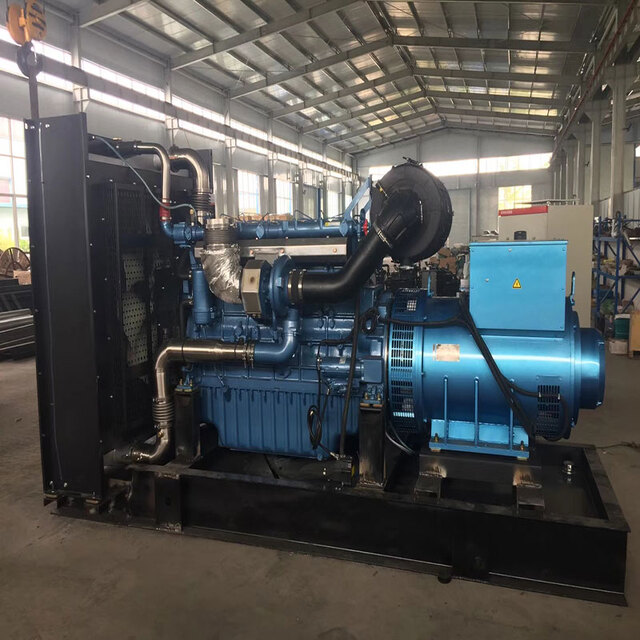

900KW Weichai diesel generator set pictures:
