800KW Weichai diesel generator set equipment parameters:



12M26D968E200 Baudouin 800KW diesel generator set technical parameters
1. Unit model: GF-800
2. Unit power: 800KW
3. Generator model: STF-800
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): 210
9. Output current (A): 1620
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: 108db
12. Overall size (mm): 4200*1750*2135
13. Weight: 7600Kg
2. Technical parameters of Baudouin 12M26D968E200 diesel engine (800KW)
1. Model: 12M26D968E200
2. Rated power: 968KW
3. Manufacturer: Baudouin (Weifang) Power Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 24V DC start
6. Number of cylinders: 12
7. Cylinder bore/stroke mm: 150/150
8. Cylinder arrangement: V-type
9. Displacement: 31.8L
10. Compression ratio: 15:1
11. Coolant capacity: 80L
12. Oil pan capacity: 113L
13. Fuel supply method: direct injection
14. Intake method: supercharged intercooler
15. Intercooler: water intercooler
16. Fuel model: domestic 0# light diesel
17. Speed regulation: electronic speed regulation
18. Engine oil type: WD/40
19. Net weight (Kg): 3200
20. Overall dimensions (mm): 3203*1992*2344

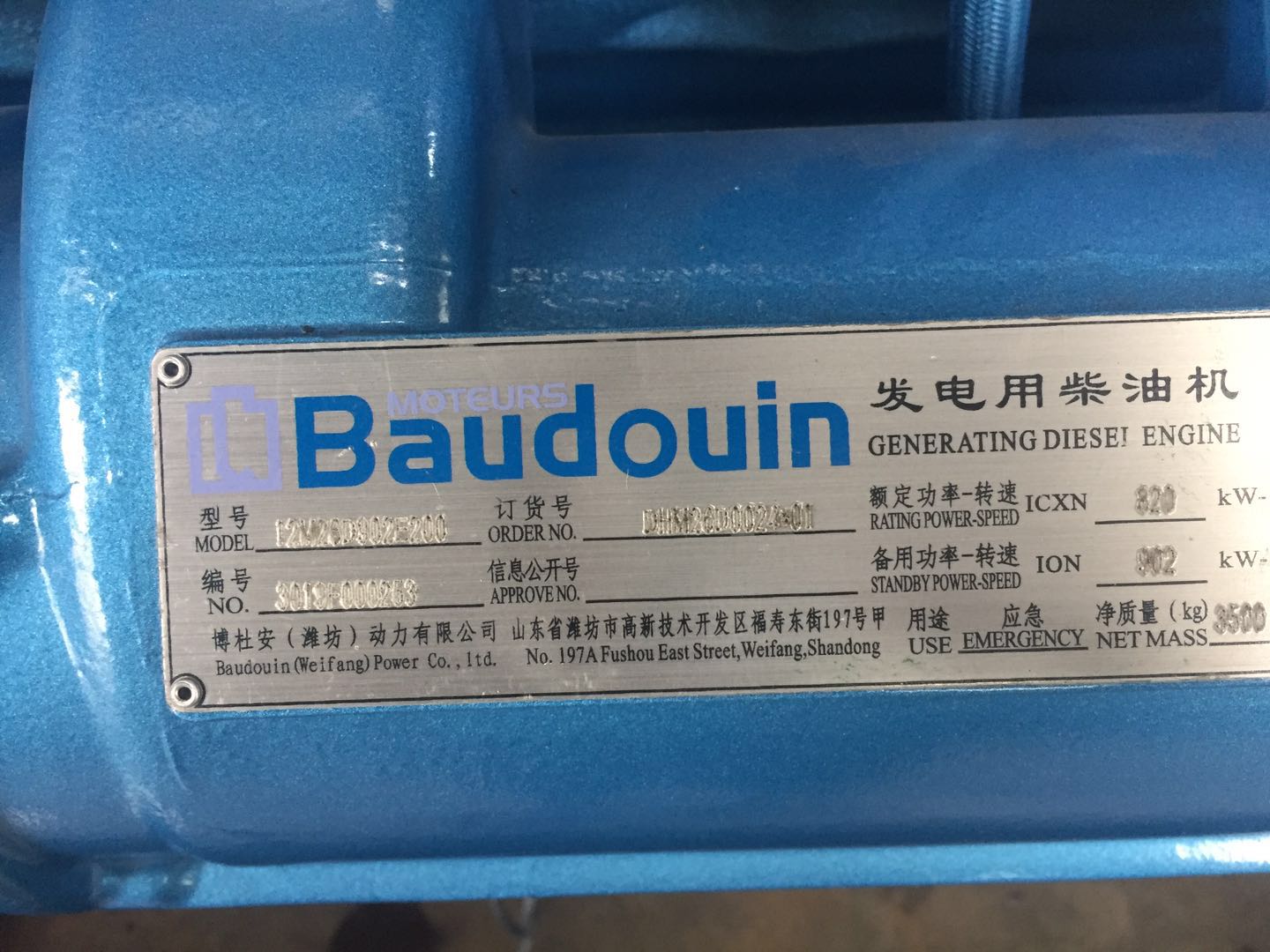

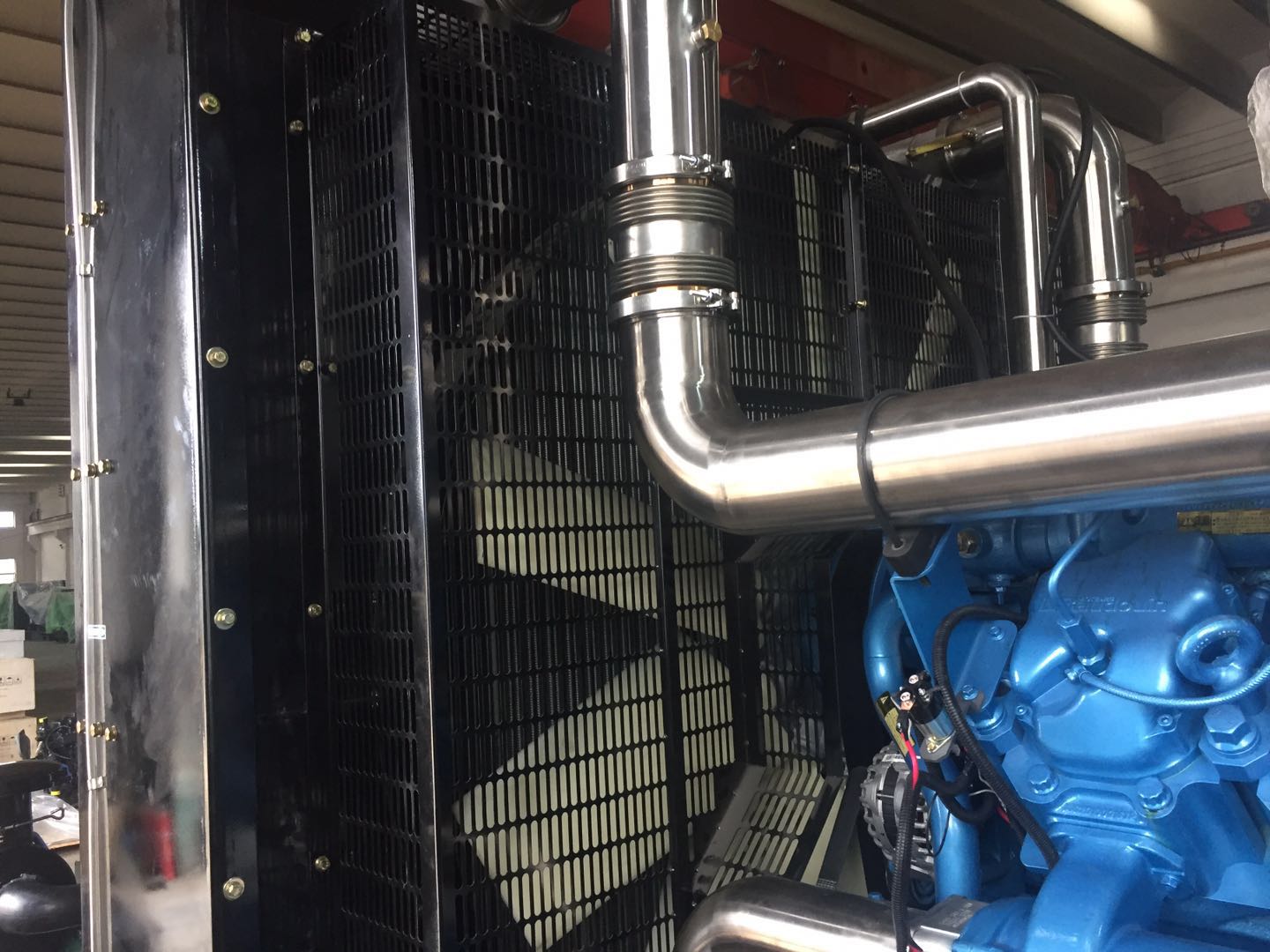

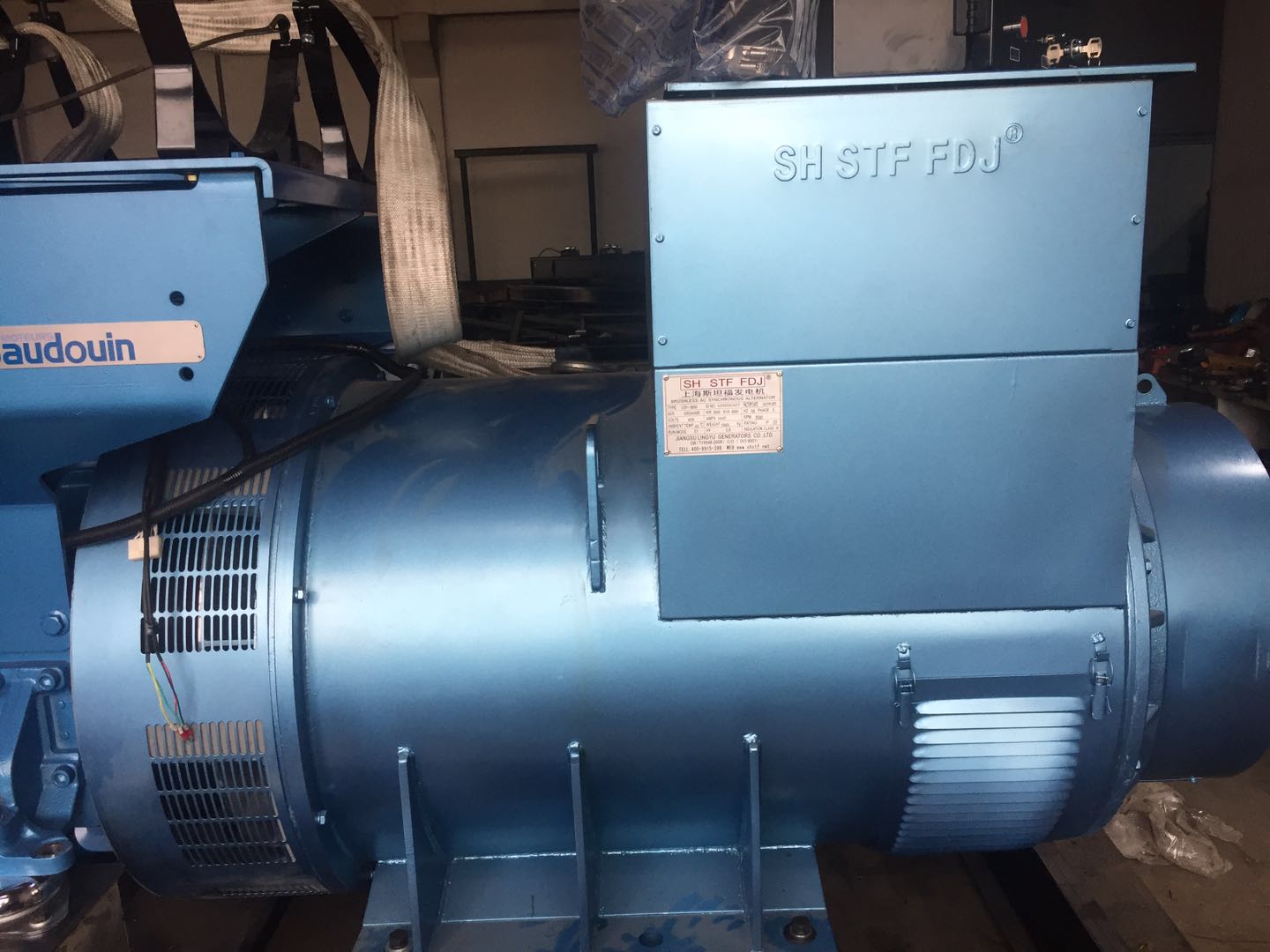

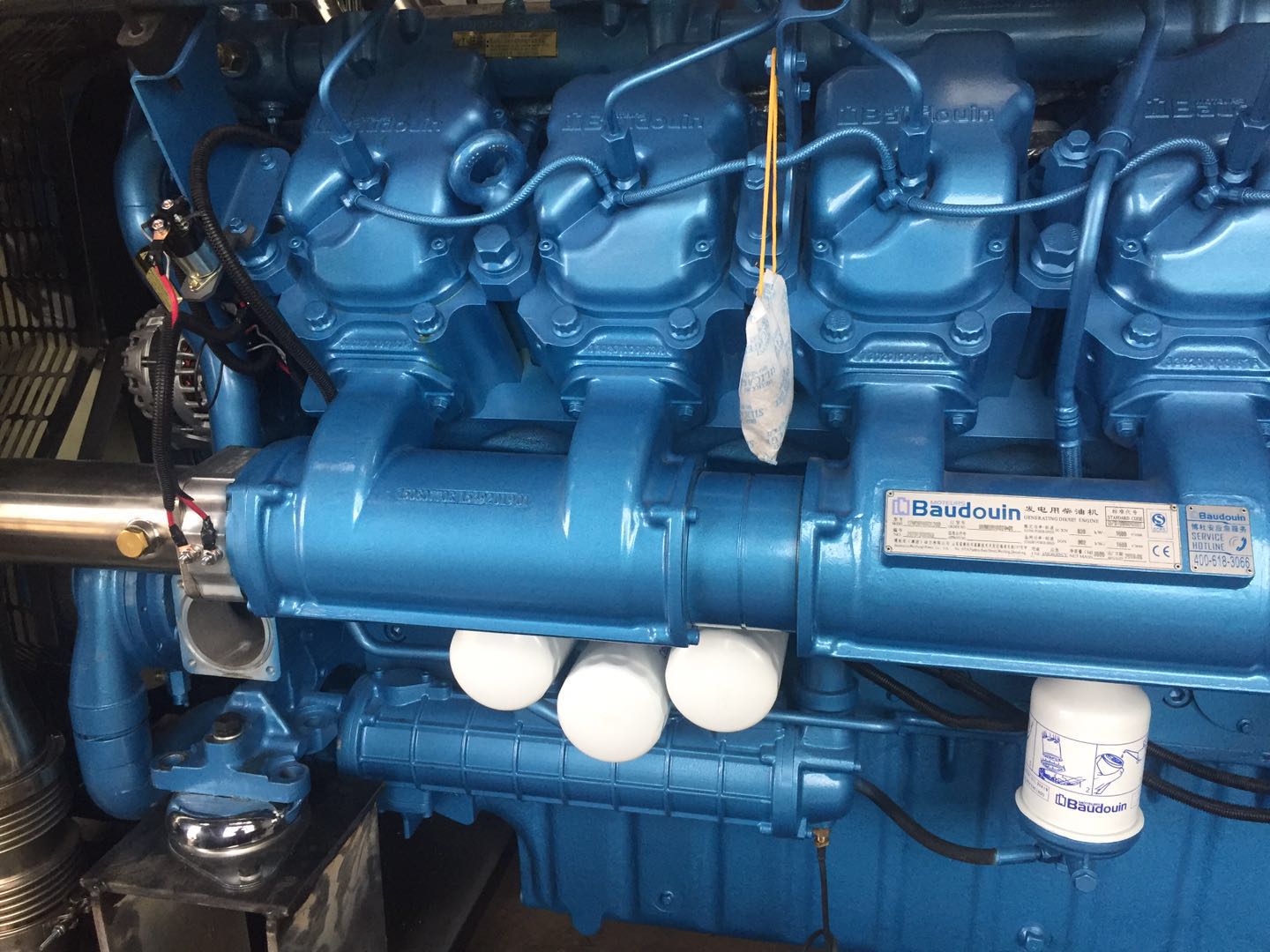

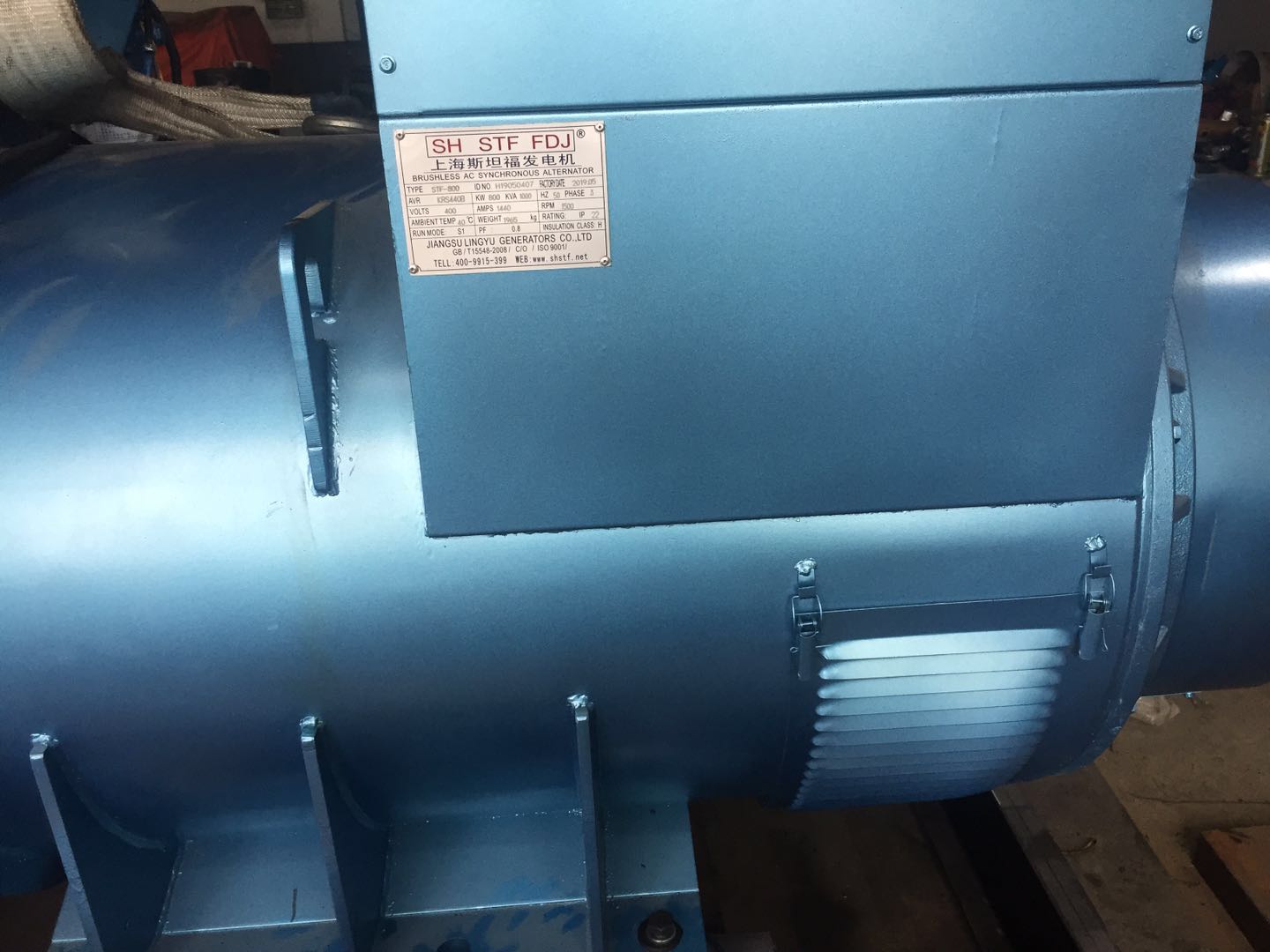

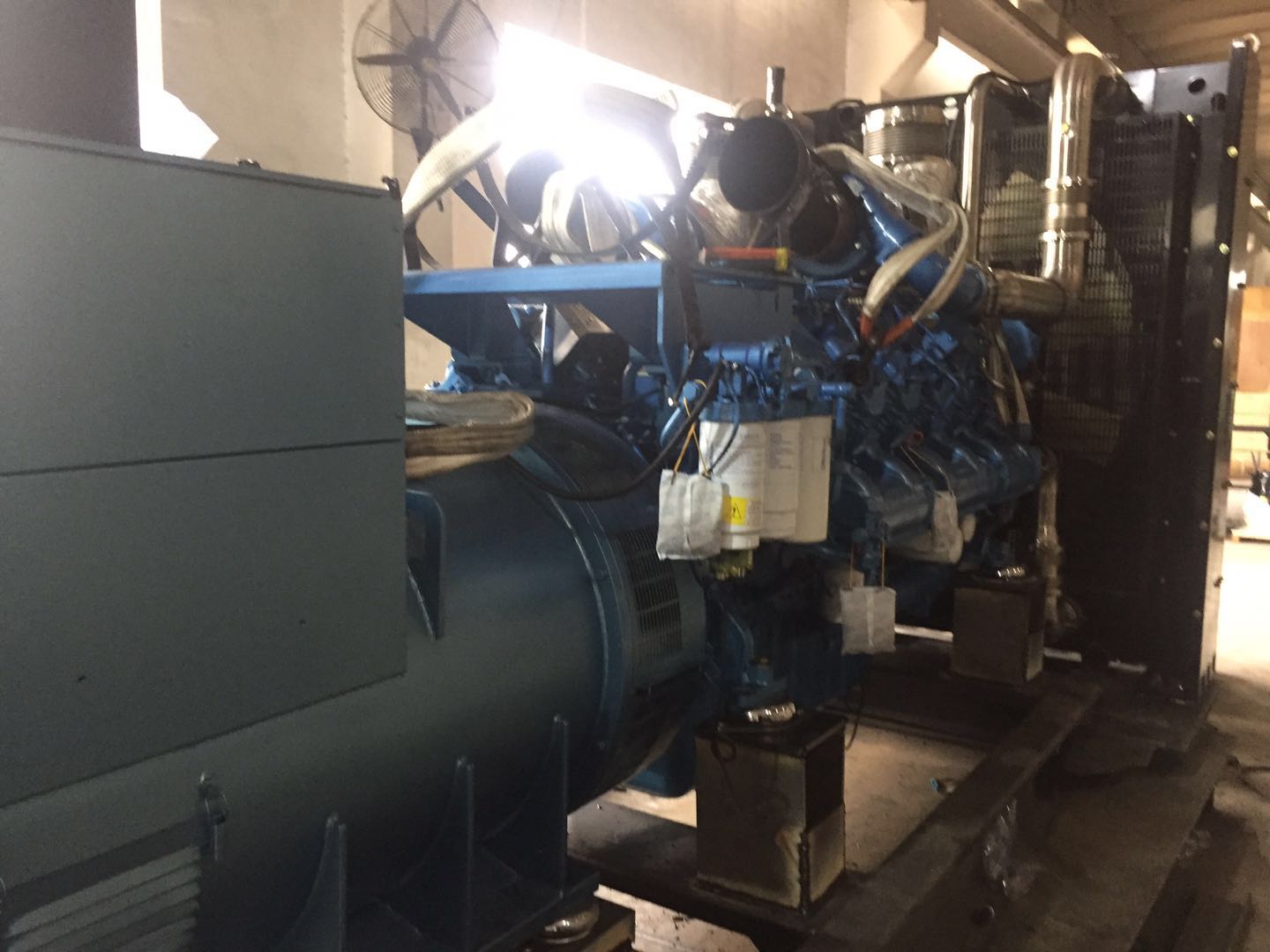

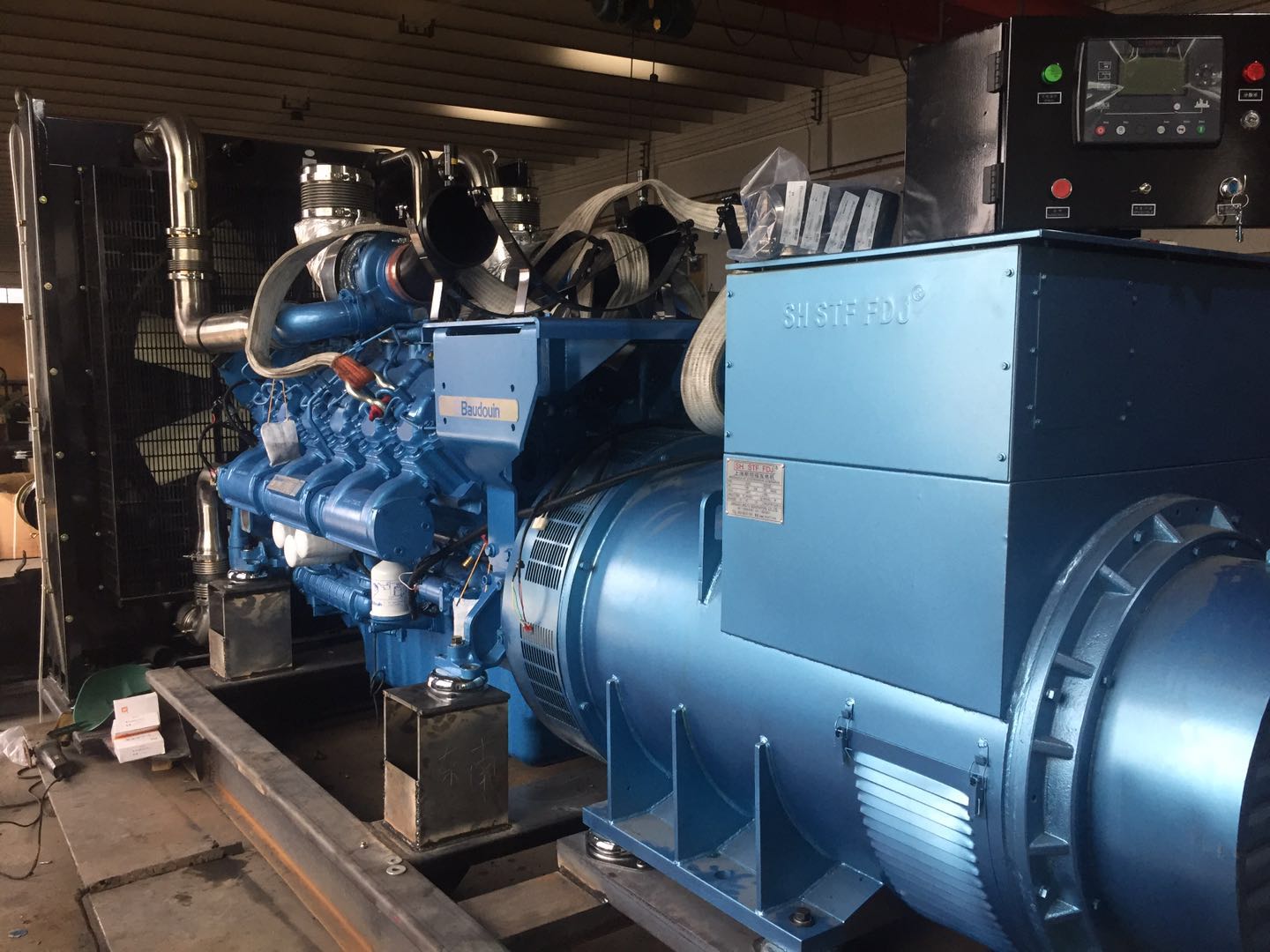

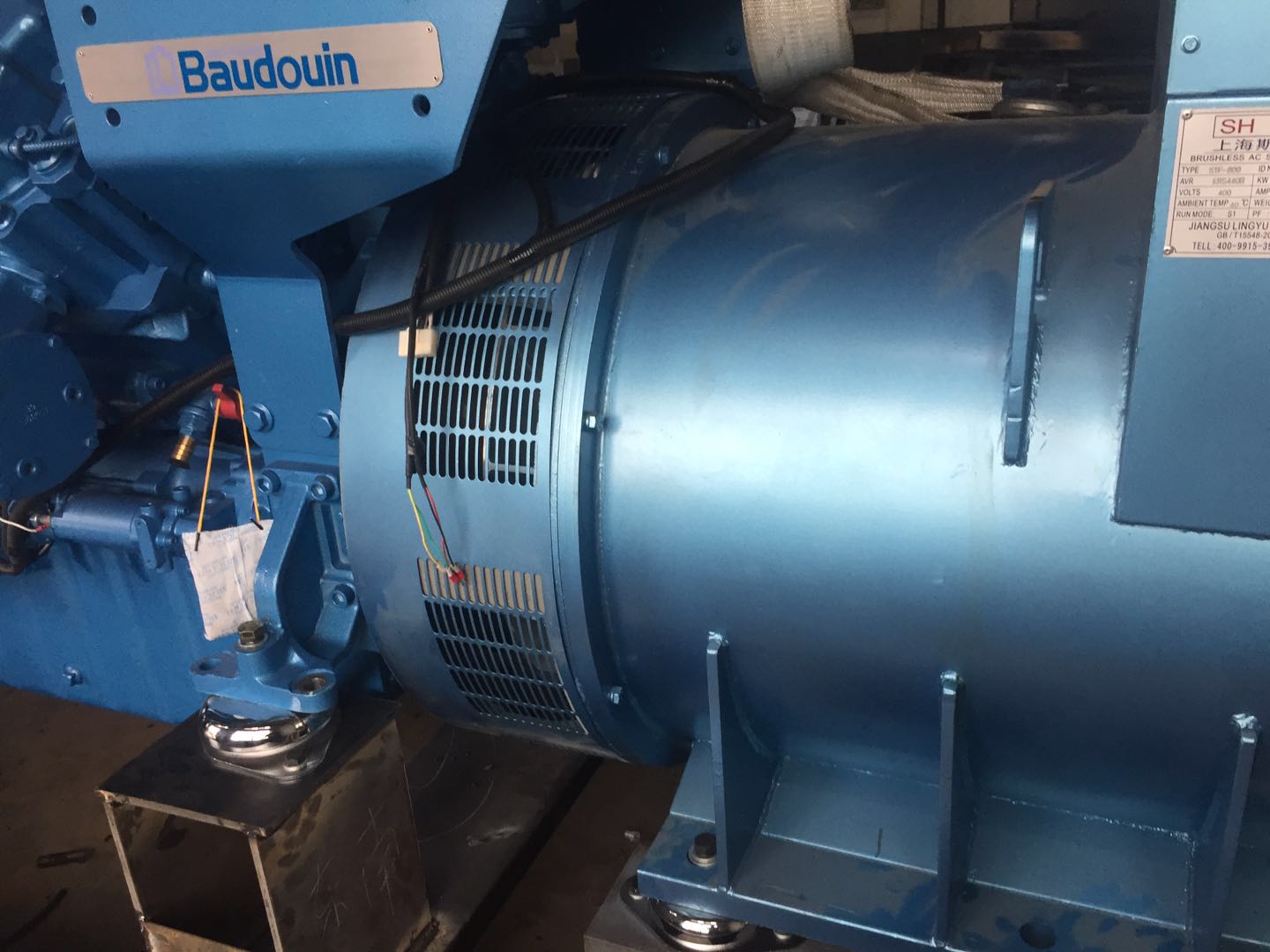

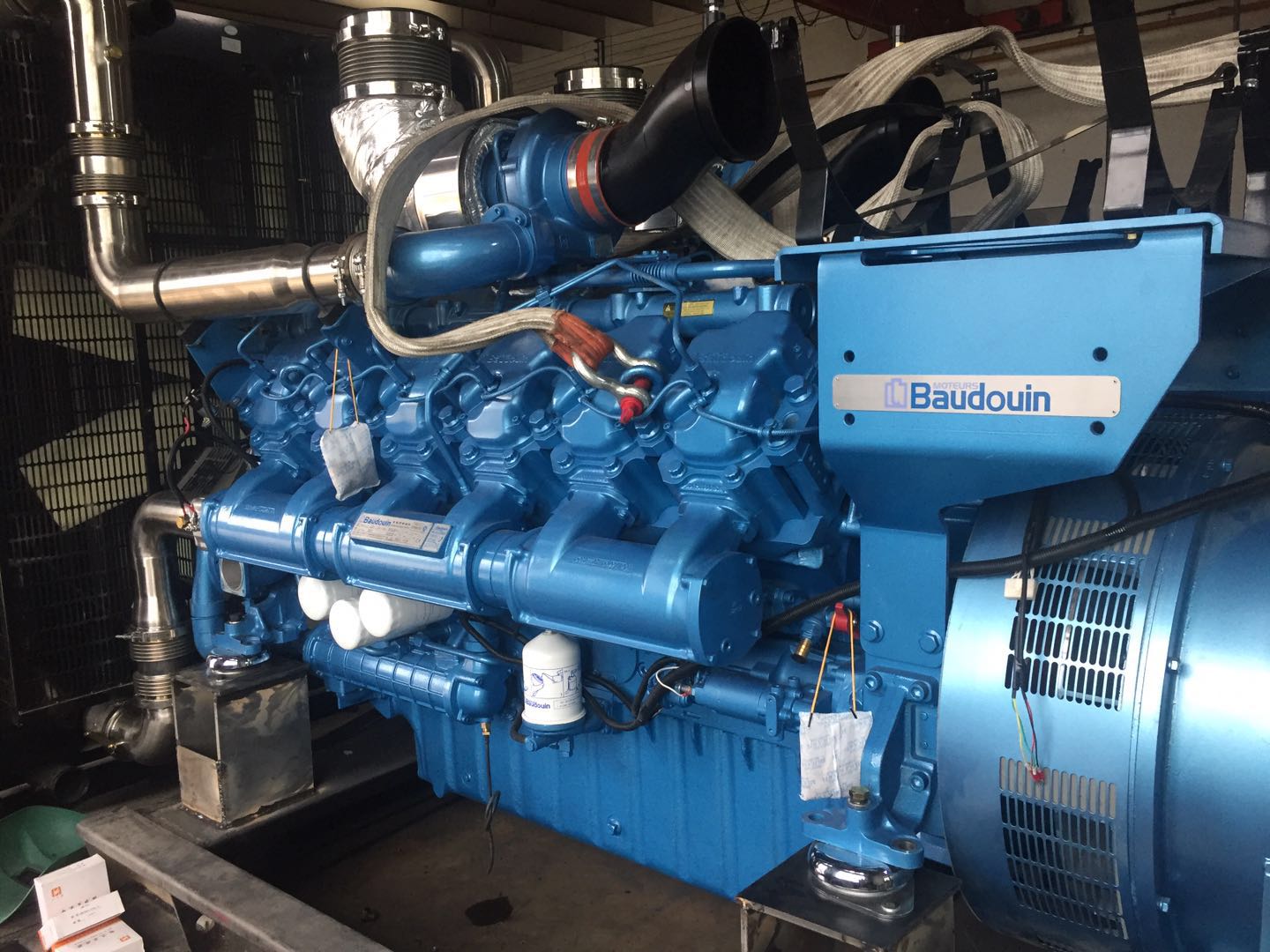

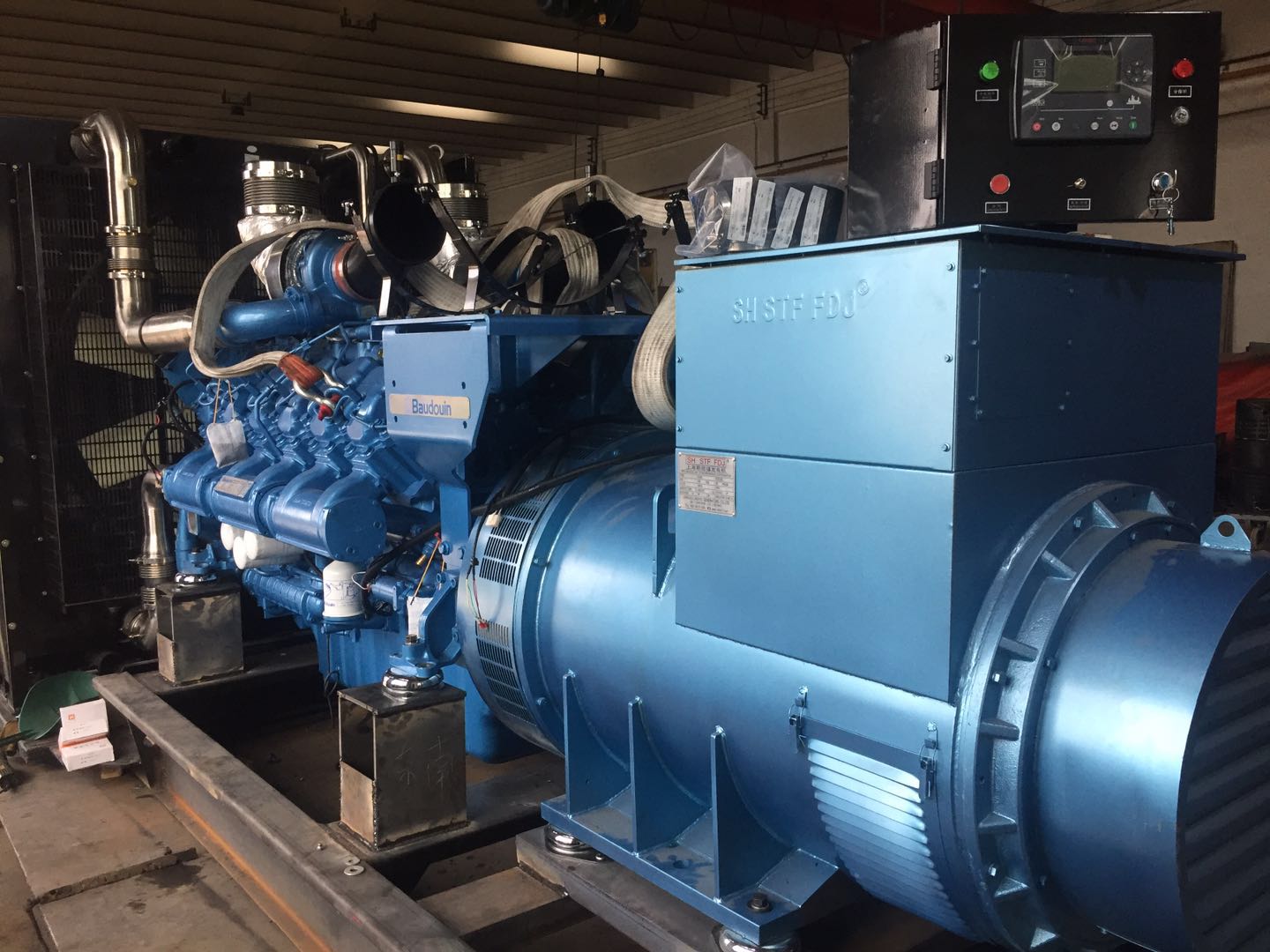

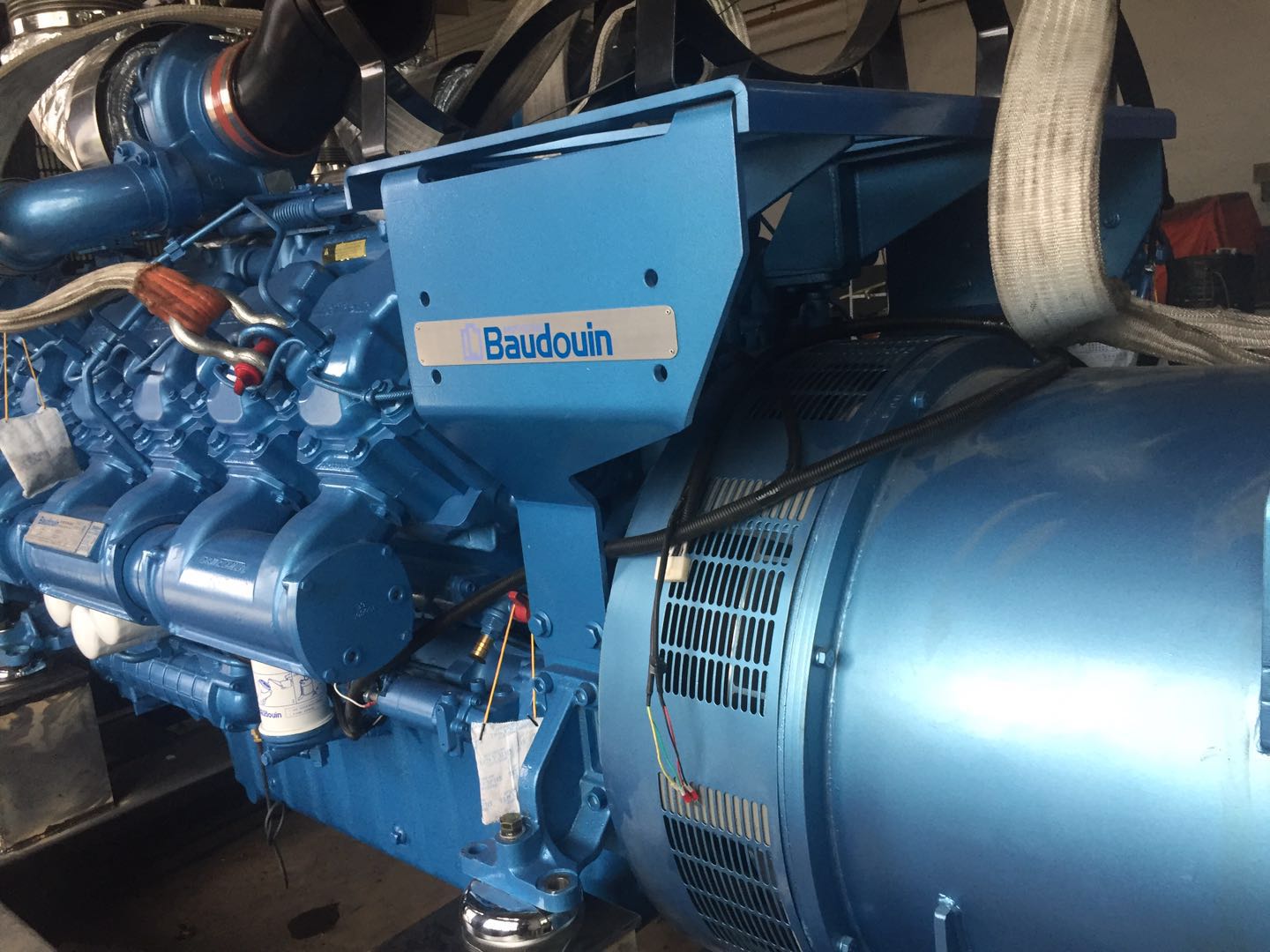

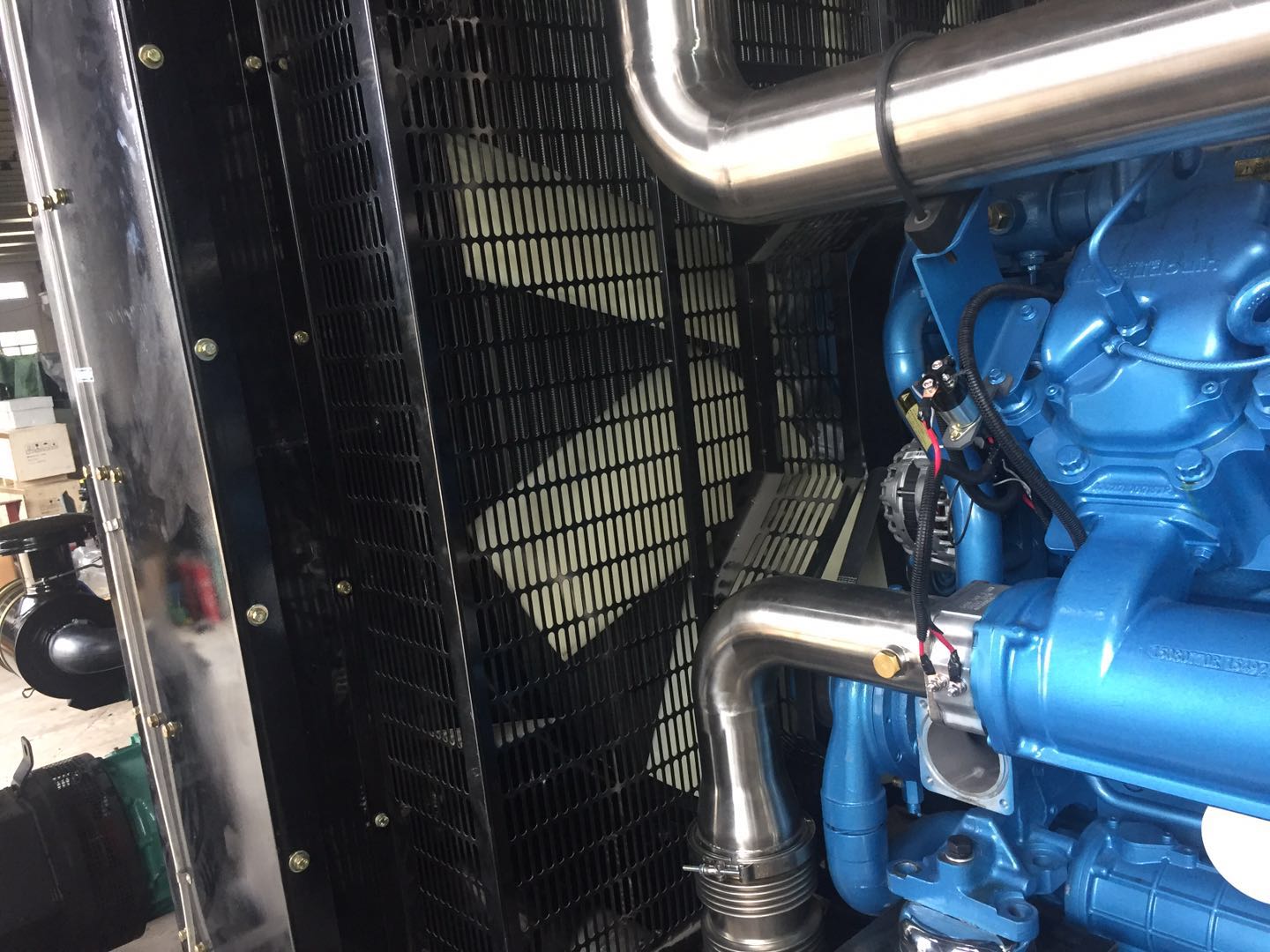

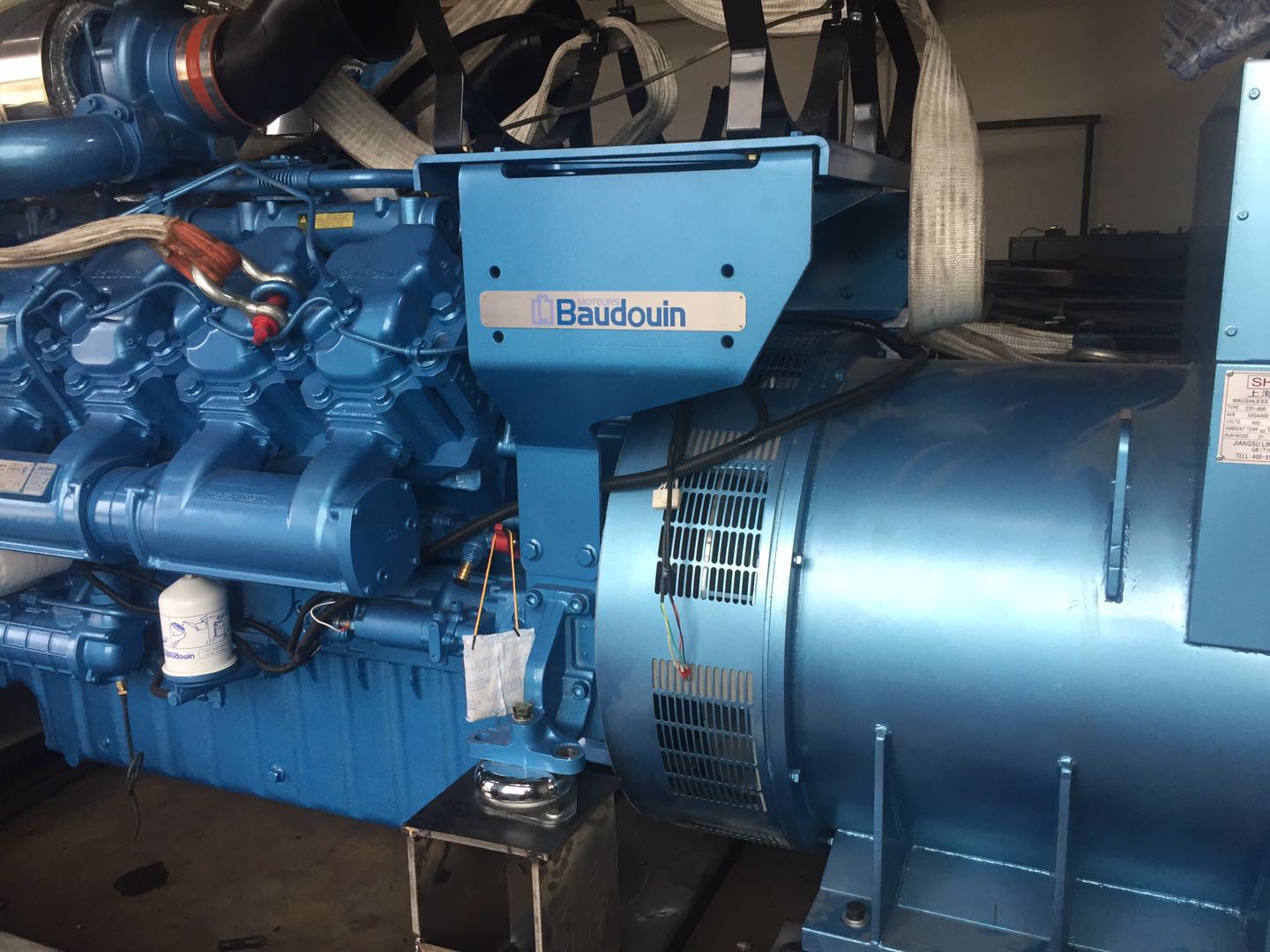

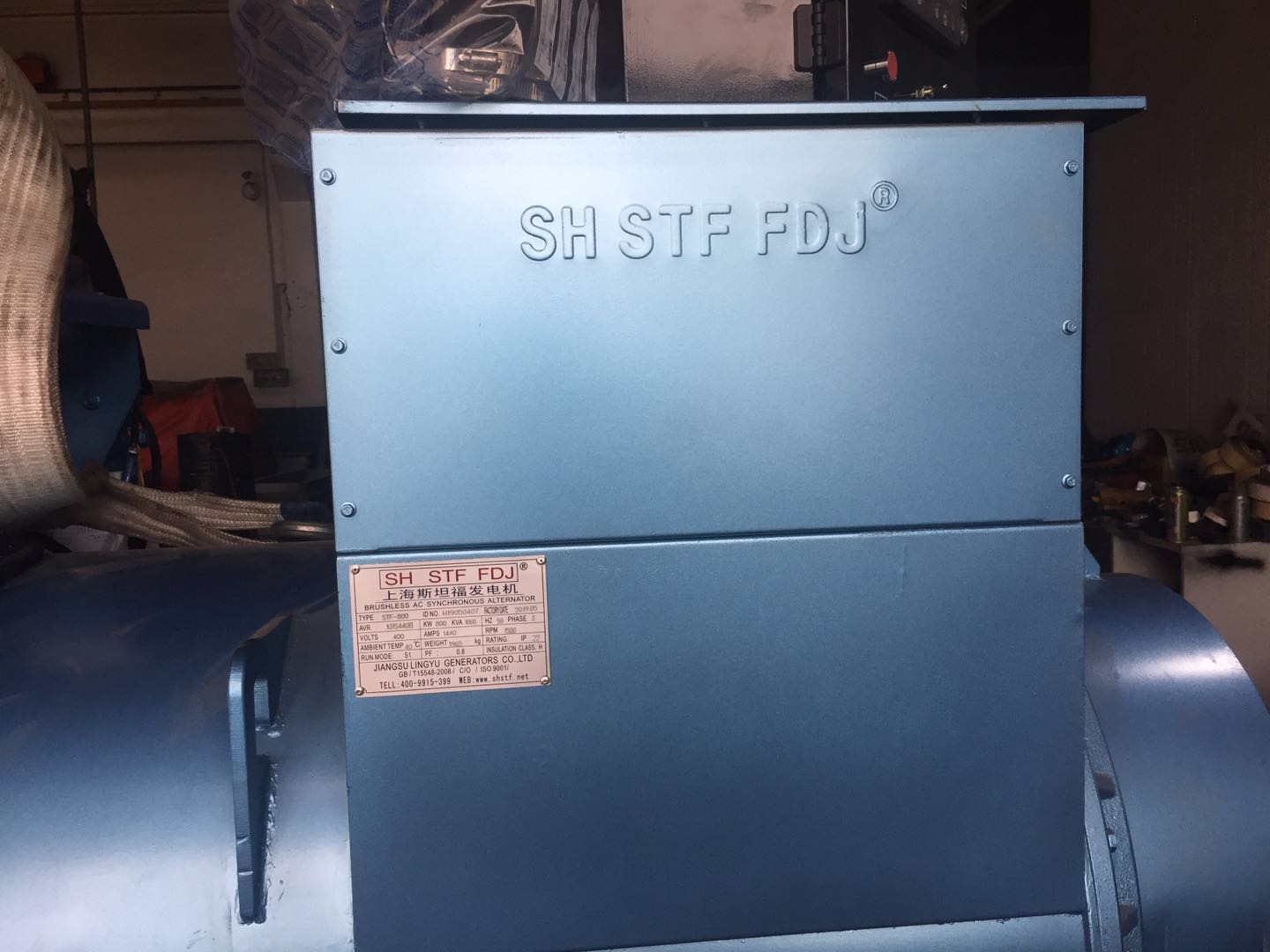

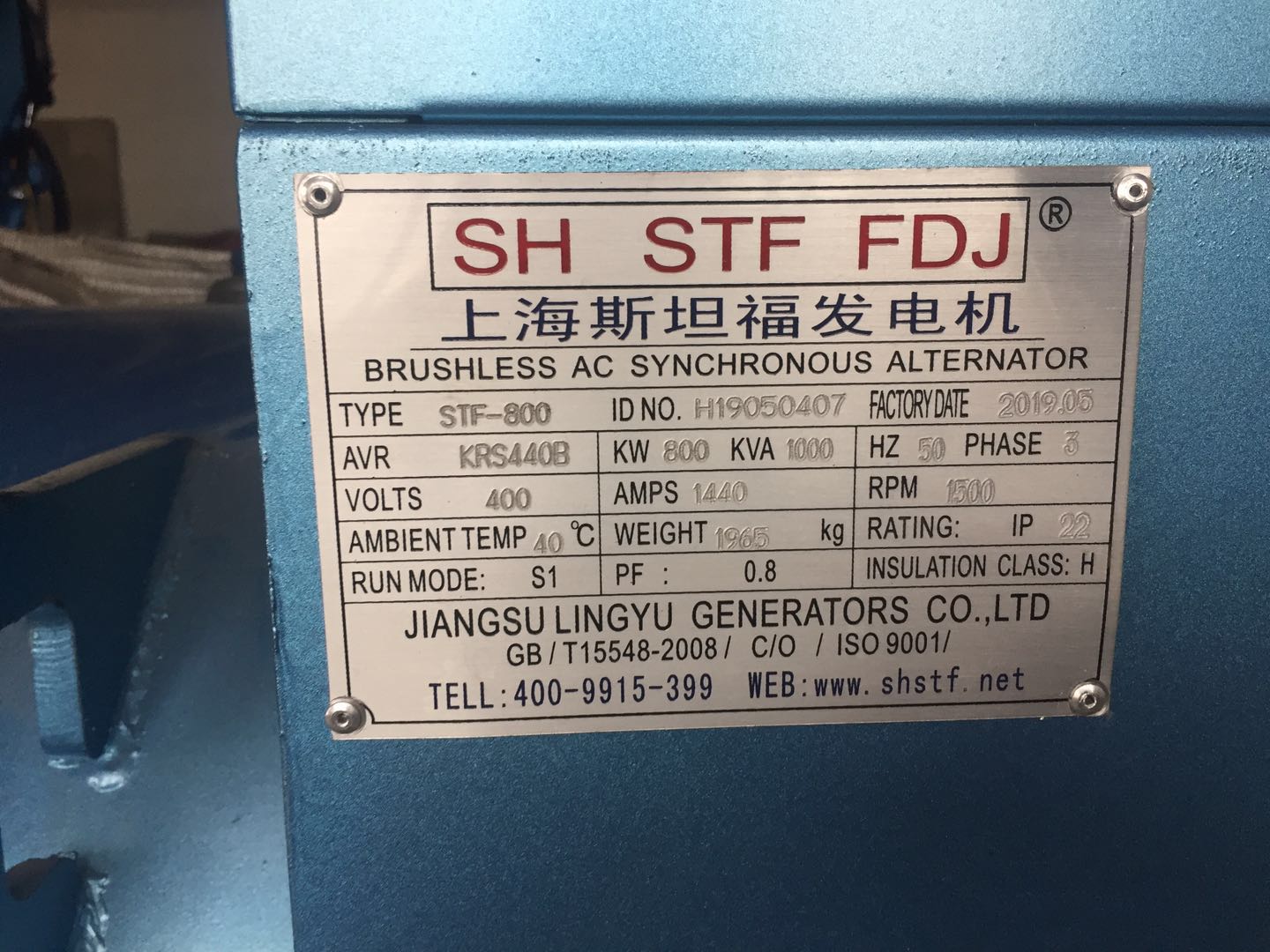

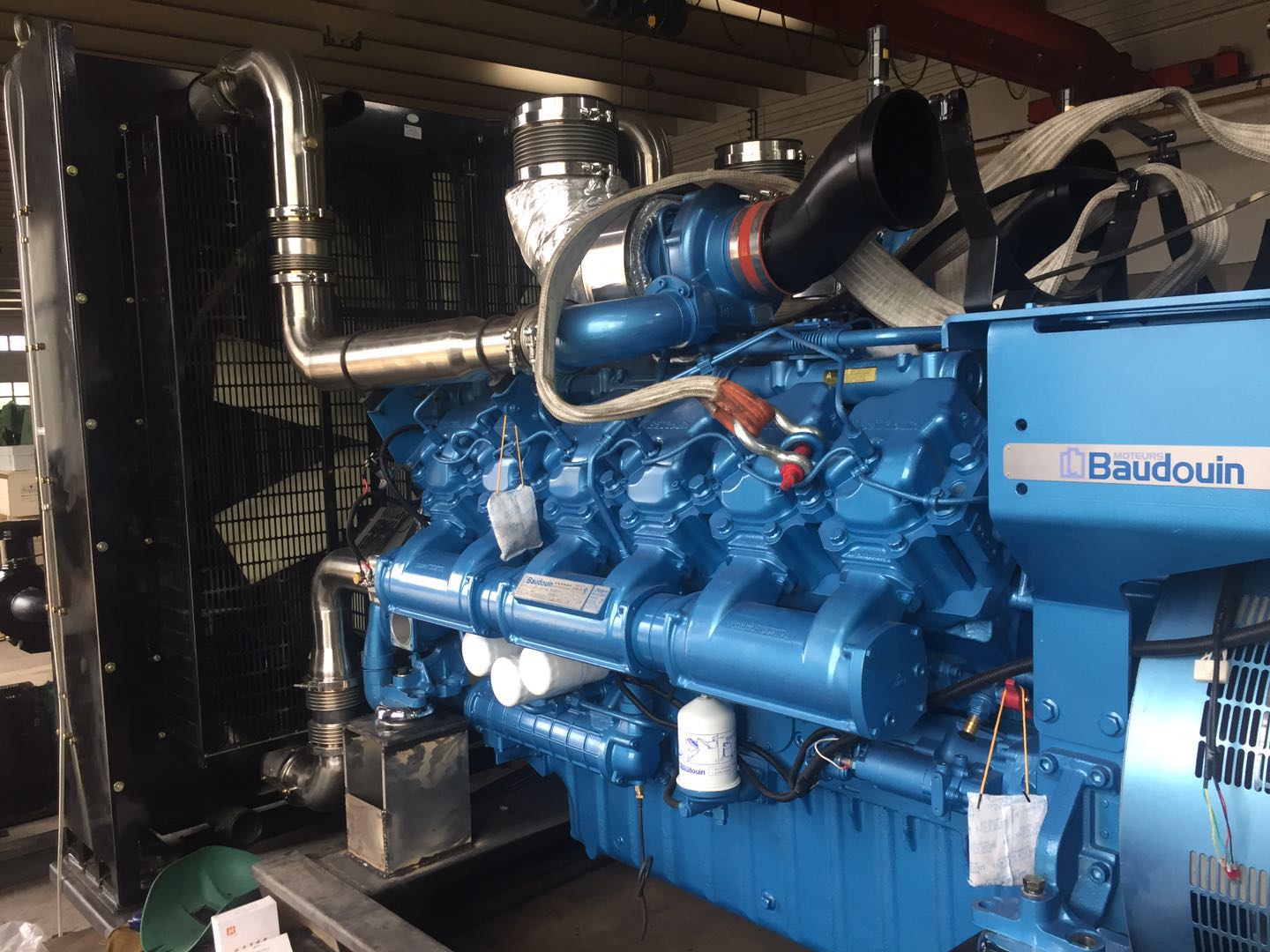

800KW Weichai diesel generator set equipment pictures:
