200KW Weichai diesel generator set equipment parameters:

Weichai Landking diesel generator set parameters 200KW

1. Technical Specifications

(1) Model: 200GF

Normal power (KW): 200

Reserve power (KW): 238

Frequency: 50Hz

Output voltage: 400/230V

Speed: 1500rpm

Power factor: COSΦ=0.8 (lagging)

Fuel consumption (g/Kw*h): 51.3 (No. 0 diesel is recommended)

Output current (A): 360

Phase/wire number: three-phase four-wire

Noise LP7m: 105db

Overall dimensions (mm): 2858*1167*1800 (Applicable dimensions are subject to the actual product)

Weight: 2072Kg (weight is subject to the actual product)

(2) Diesel engine :

Brand: Weichai Landking

Manufacturer: Weichai Power Co., Ltd.

Model: WP10D238E200

Cooling start: Closed water cooling

Starting method: 24V DC starting

Intake method: supercharged

Number of cylinders: 6

Total cylinder displacement L: 9.726

Fuel supply method: direct injection

Cylinder arrangement: in-line

Intercooling method: Intercooling

Fuel type: Domestic 0# light diesel

Speed regulation mode: mechanical/electronic

Diesel engine coolant capacity: 42L

Engine oil type: WD/40

Bore/stroke: 126/130mm

Diesel engine oil capacity L: 23

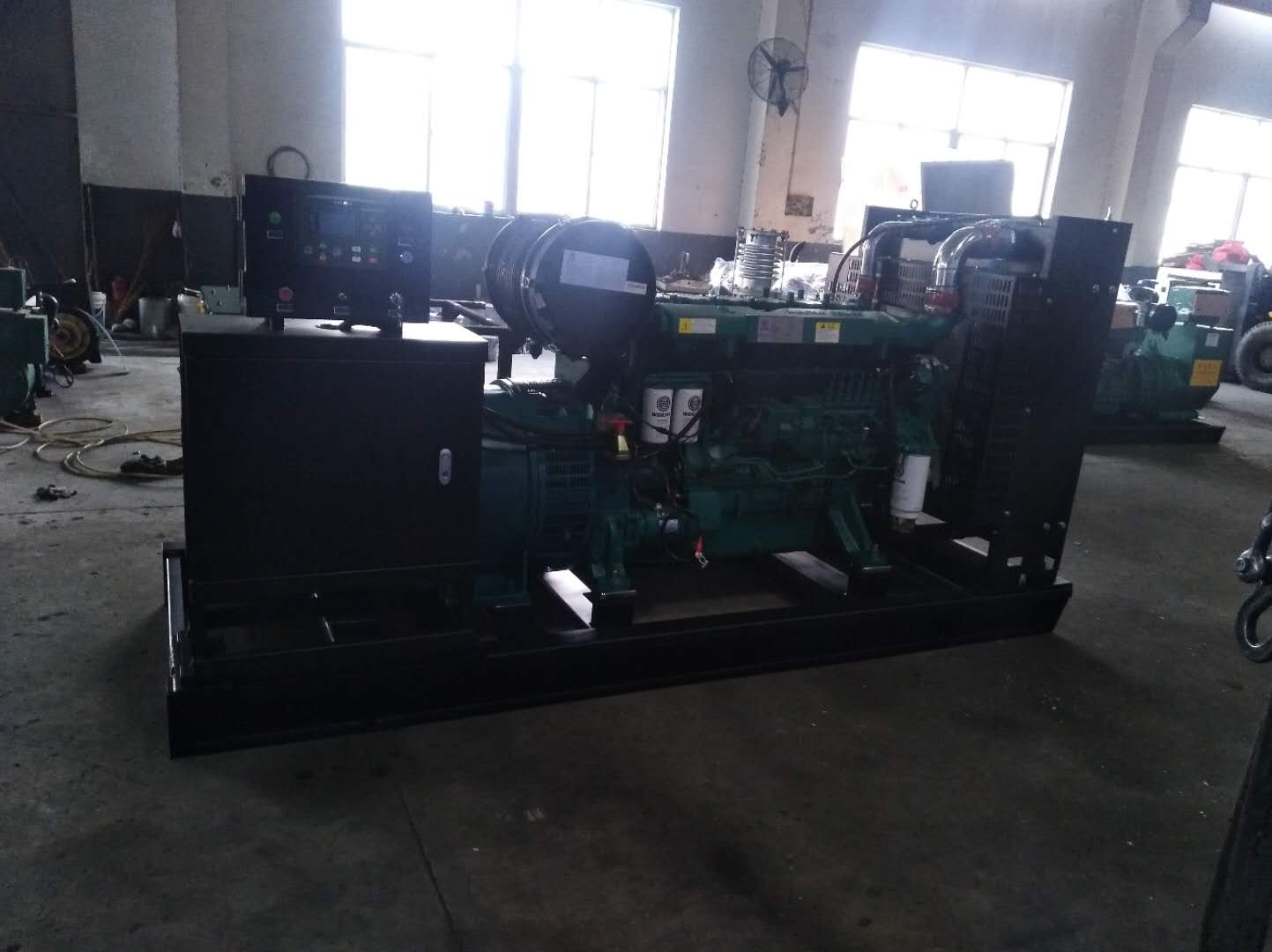

200KW Weichai Industrial Power Diesel Generator Set

Equipment pictures:
