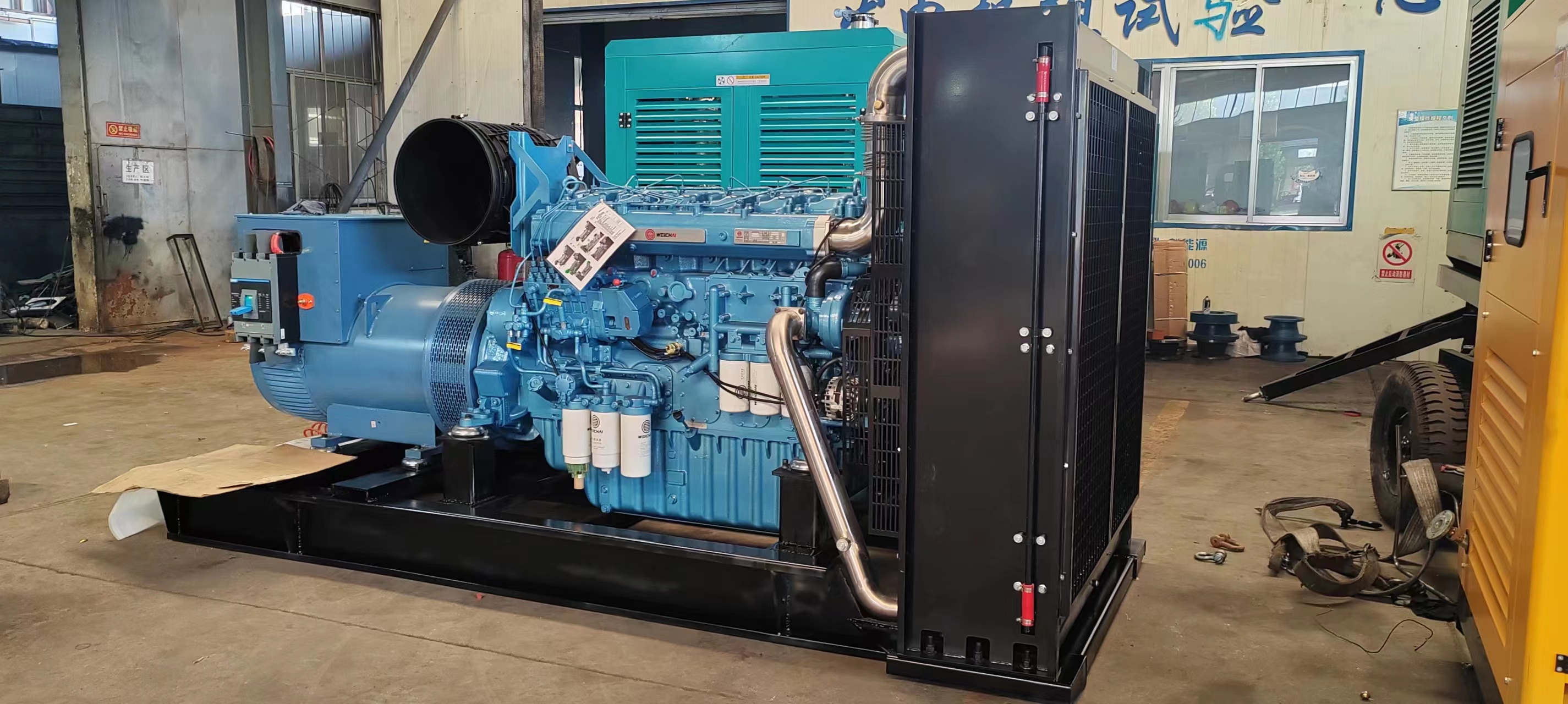

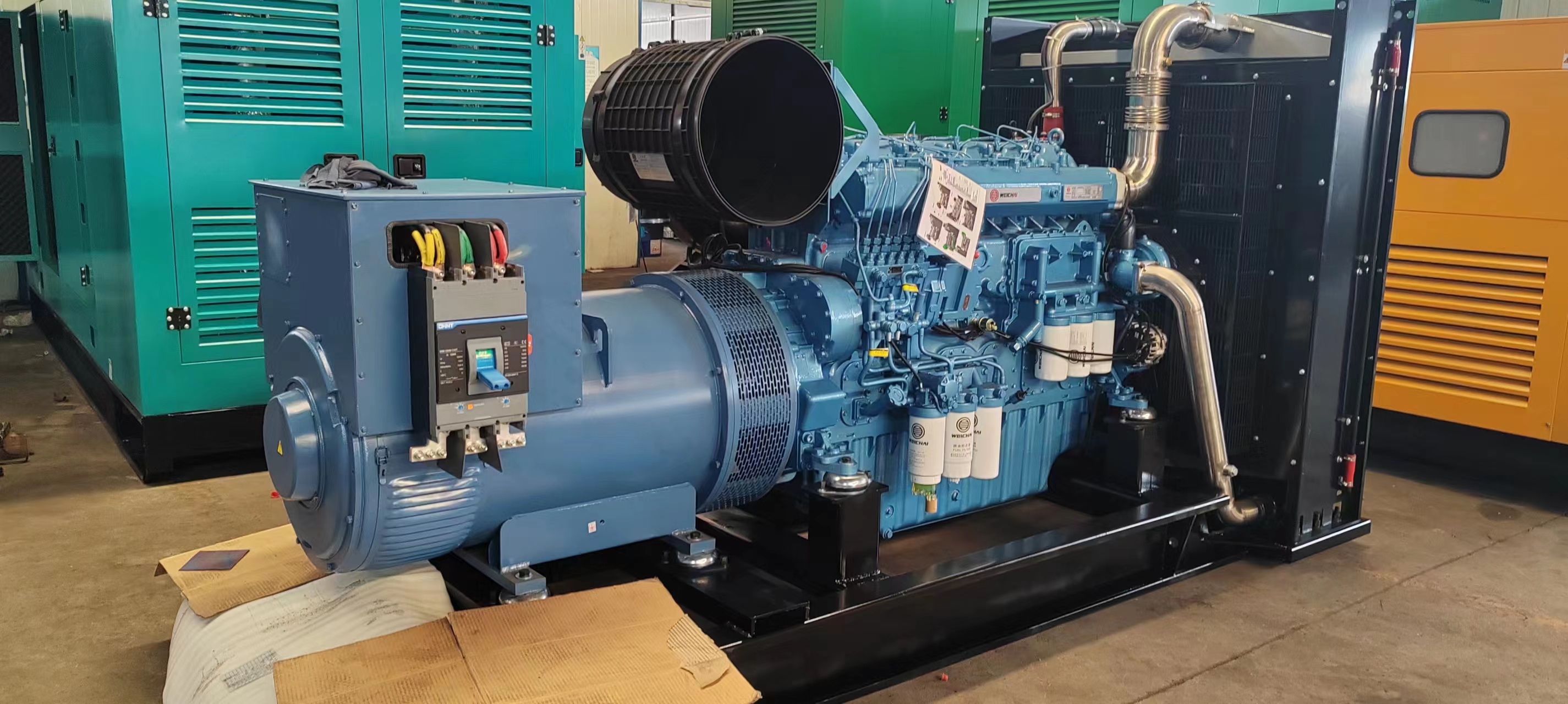

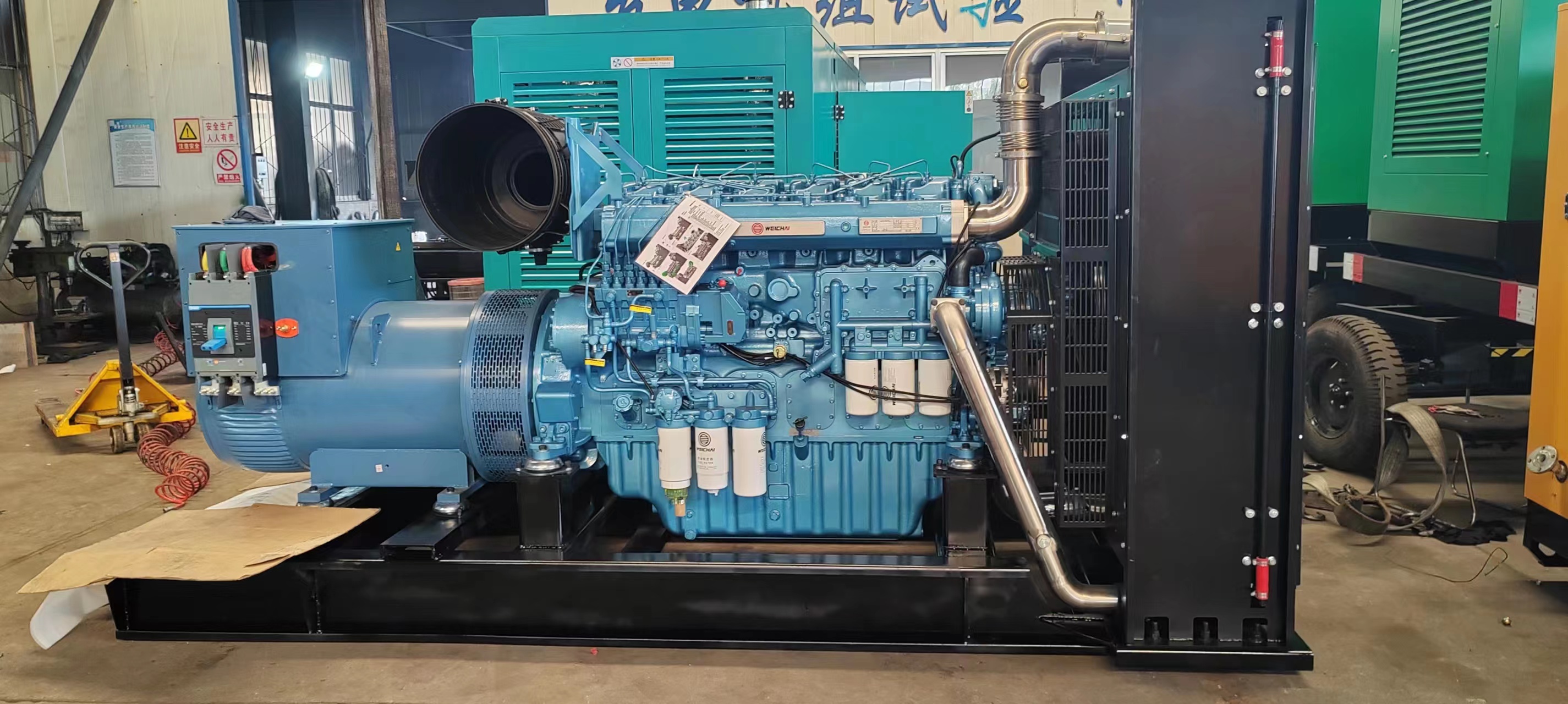

550KW diesel generator set
Weichai Baudouin 550KW silent box-type diesel generator set technical parameters
Unit model: GF550
Rated frequency: 50Hz
Unit power/capacity: 550KW/687.5KVA
Rated speed: 1500rpm
Power factor: COSΦ=0.8 (lagging)
Starting method: DC24V electric start
Output voltage: 400V/230V
Cooling method: closed water circulation cooling
Output current: 990A
Fuel brand: (standard) 0# light diesel (normal temperature)
Dimensions: 4600×1900×2000 (L×W×H mm)
Unit weight: 5500kg

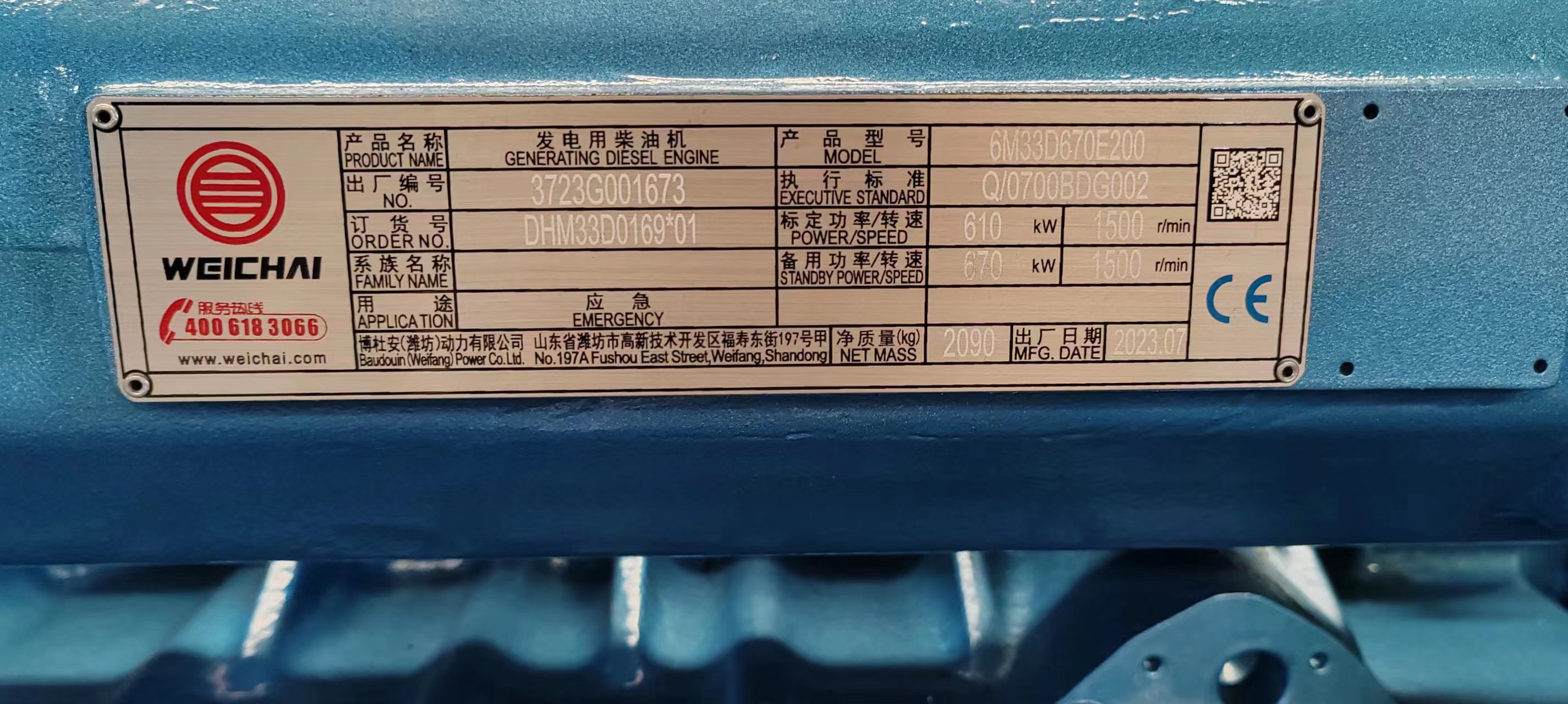

Weichai Baudouin diesel engine technical parameters
Brand/Origin: Weichai Baudouin/Weifang, Shandong
Fuel consumption (load): 210g/kW•h
Diesel engine model: 6M33D670E200
Speed regulation mode: electronic speed regulation
Diesel engine power: 609/670KW
Exhaust emission standard: National II
Number of cylinders/cylinder structure: 6 cylinders/in-line
Cylinder stroke: 150×185 mm
