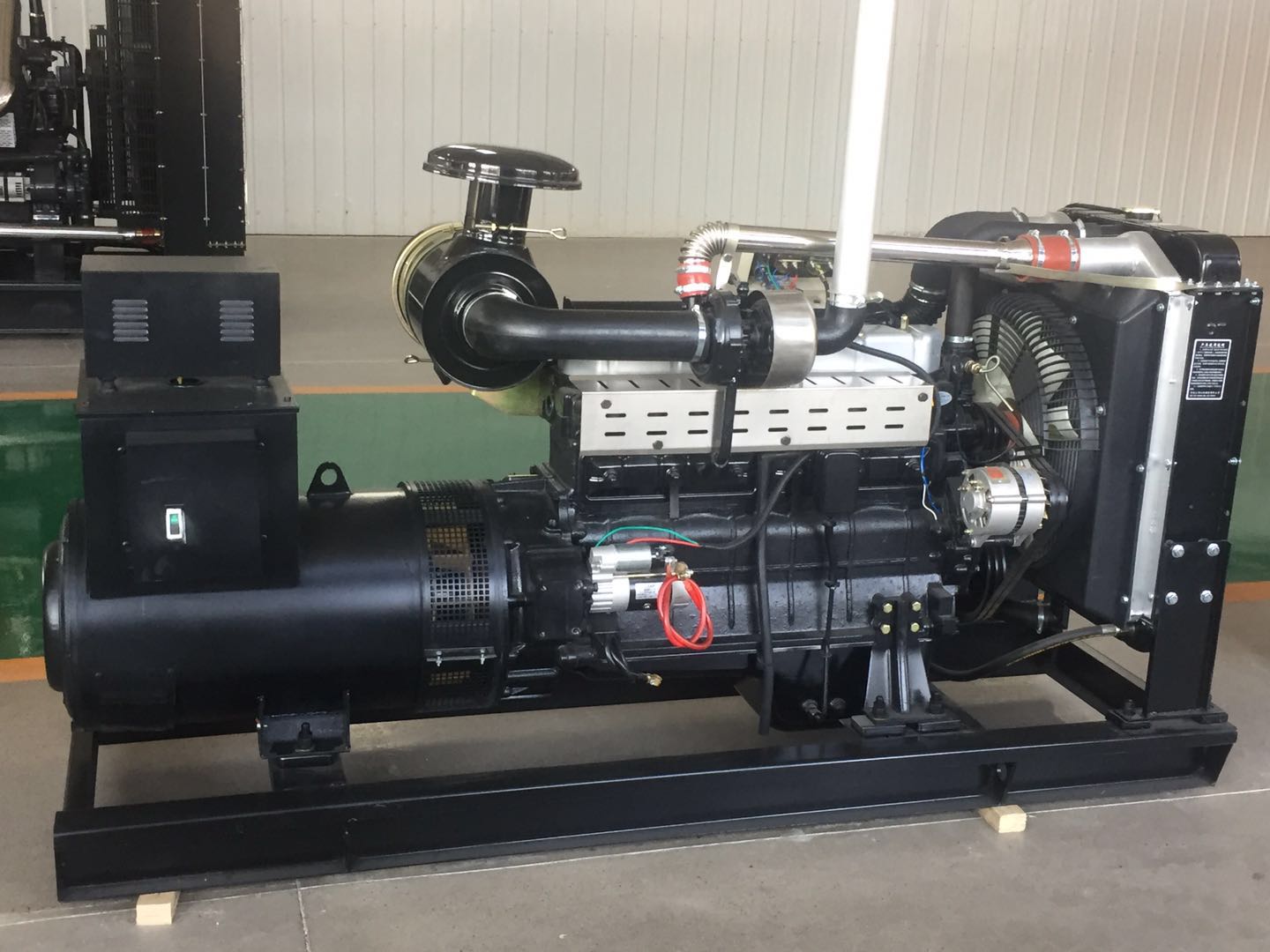

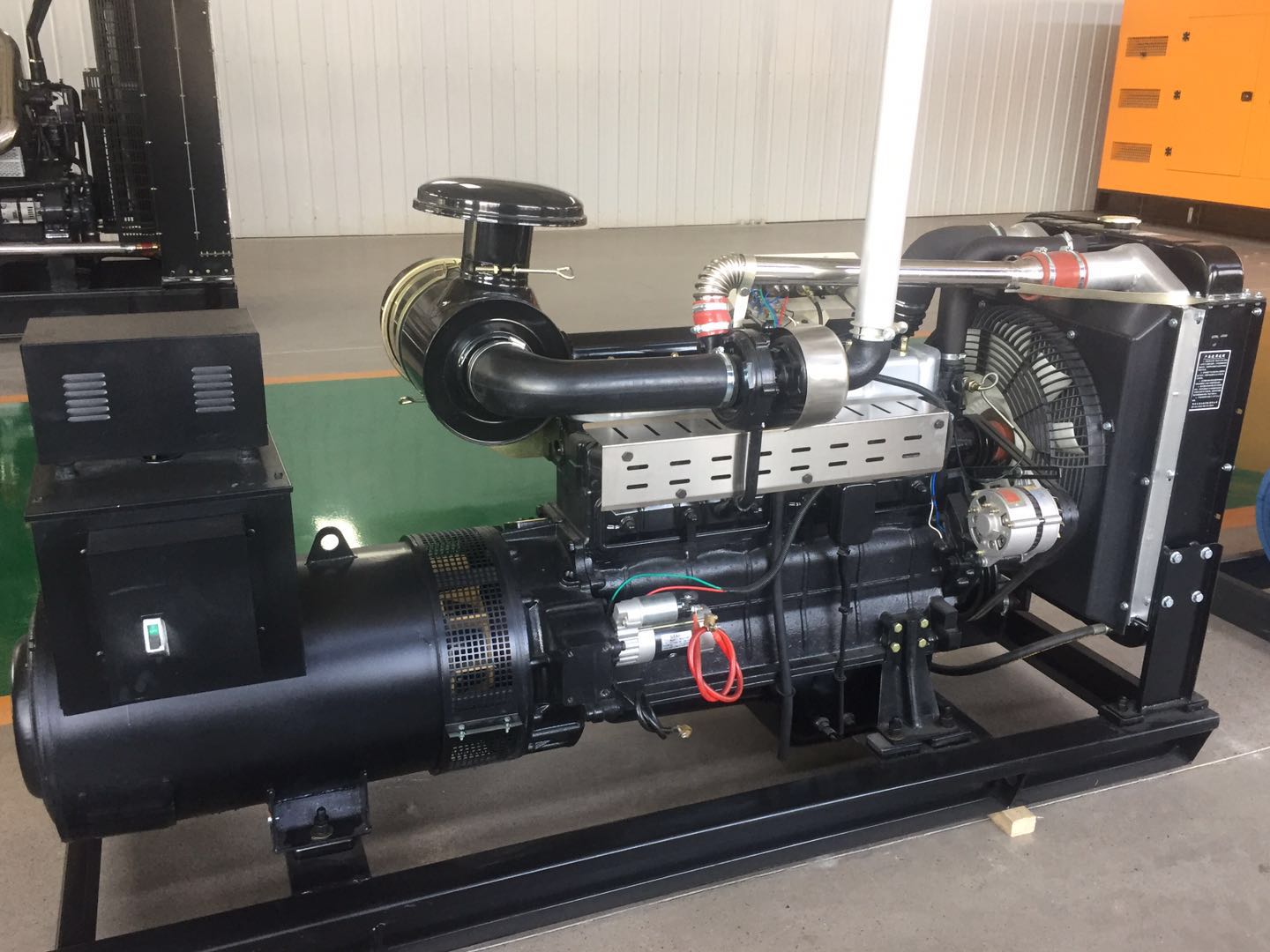

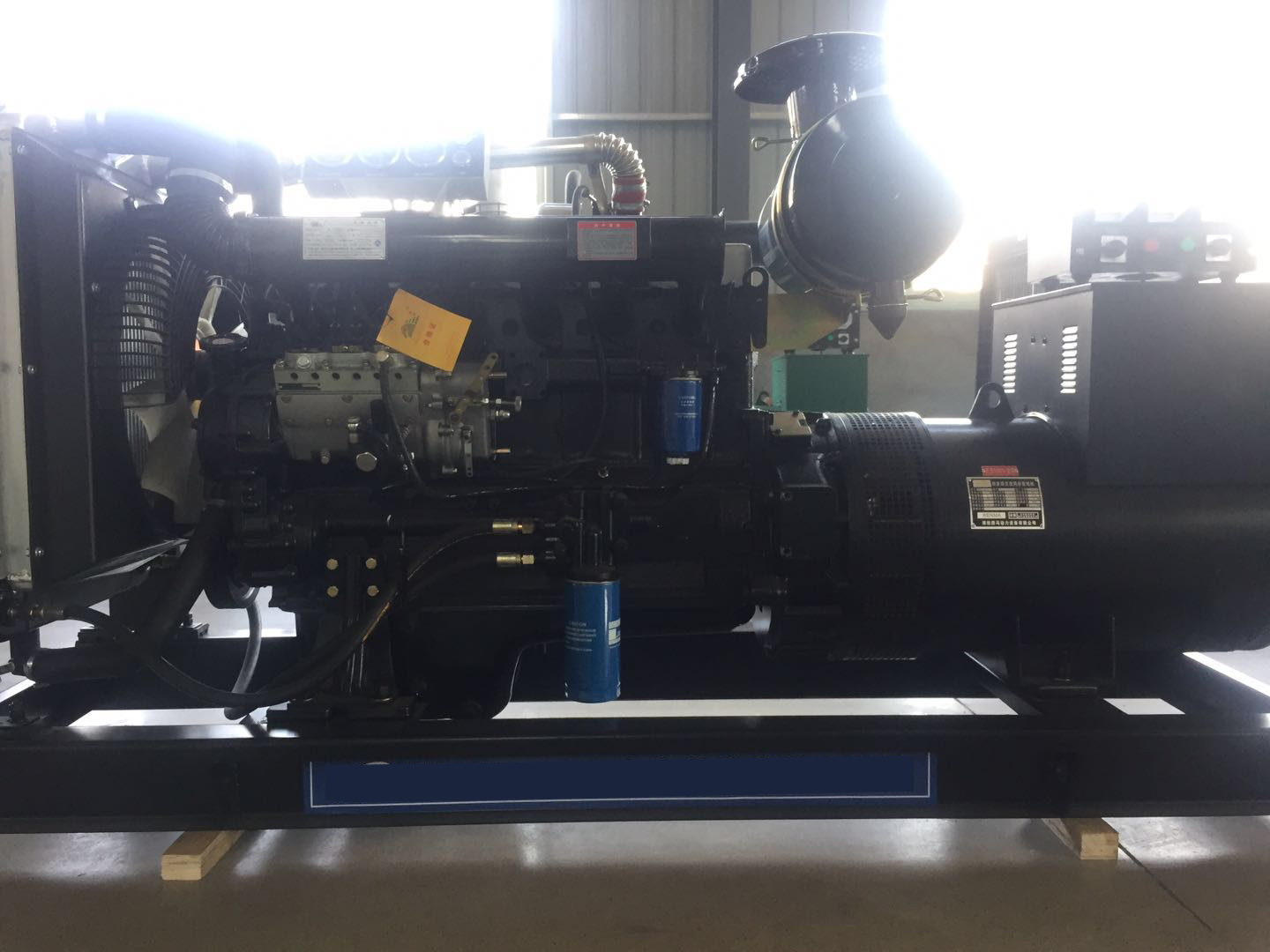

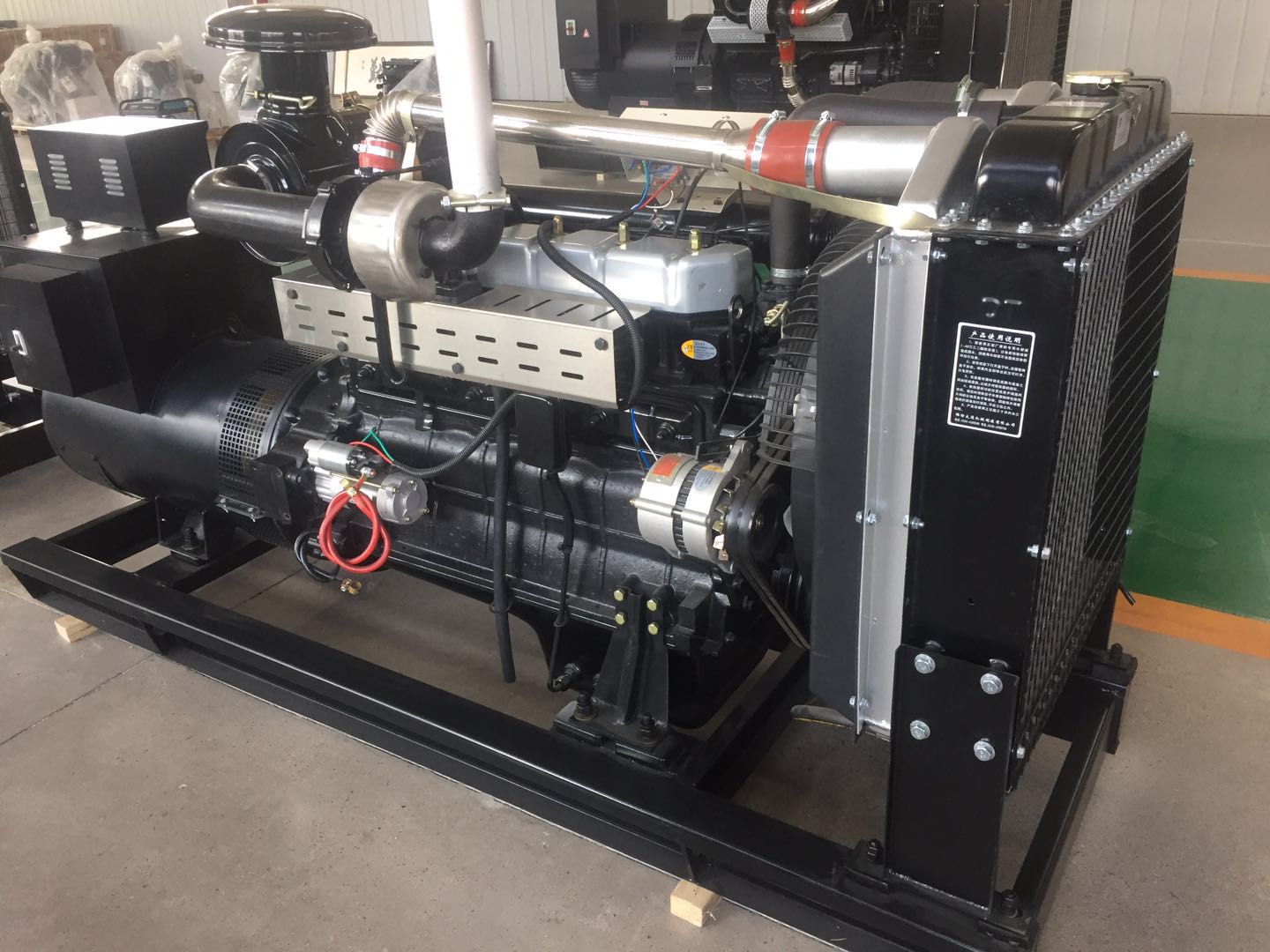

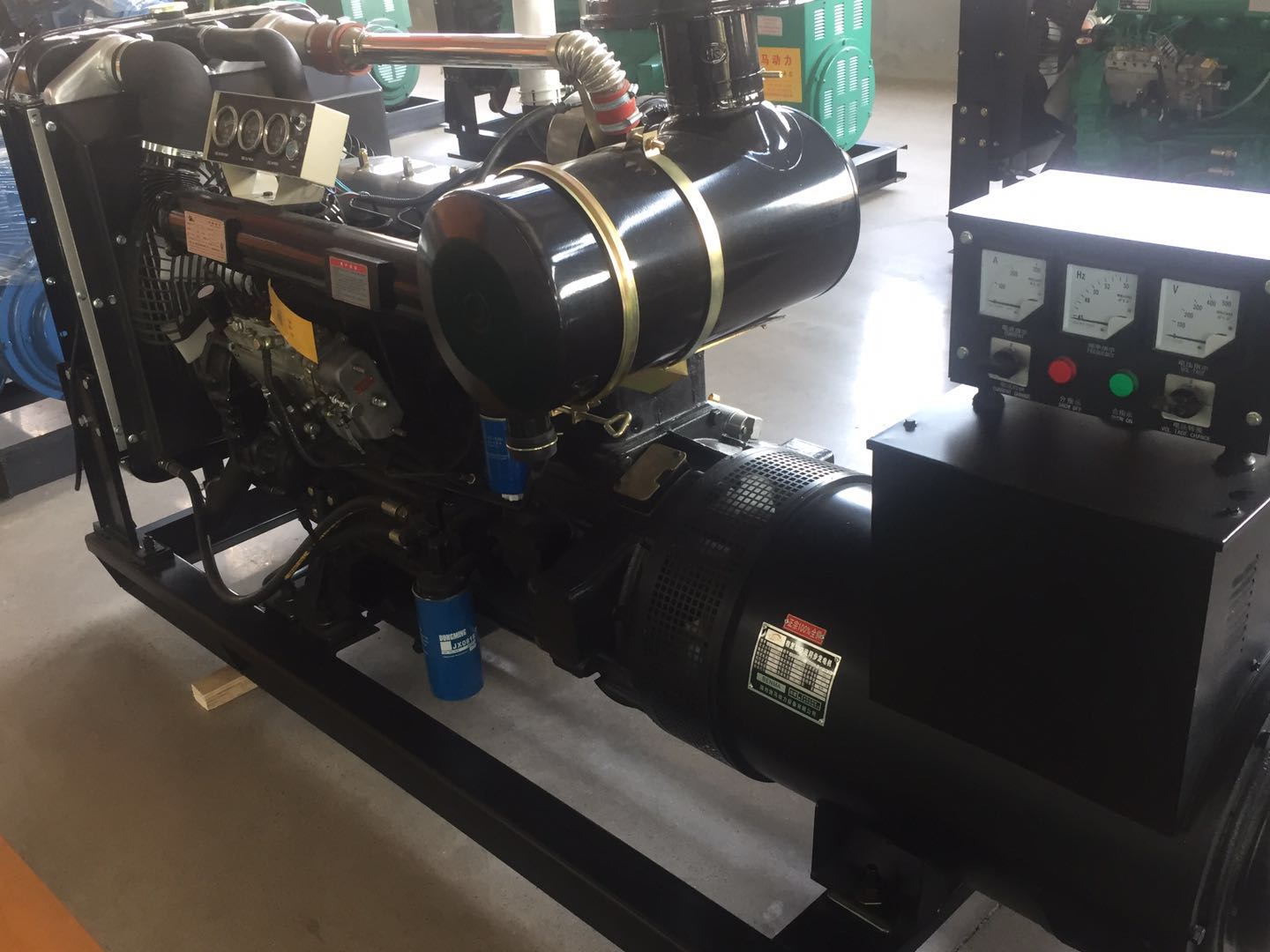

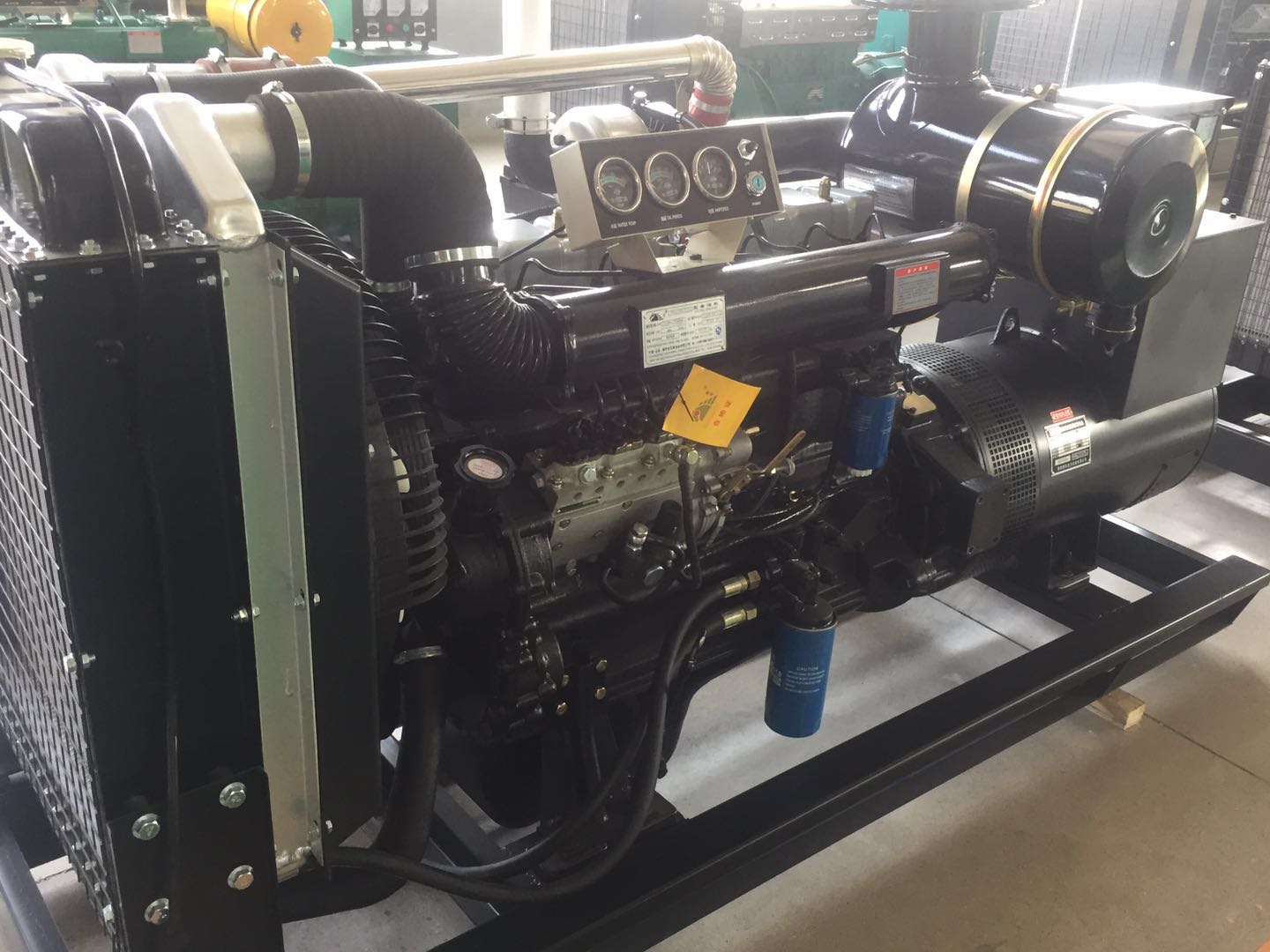

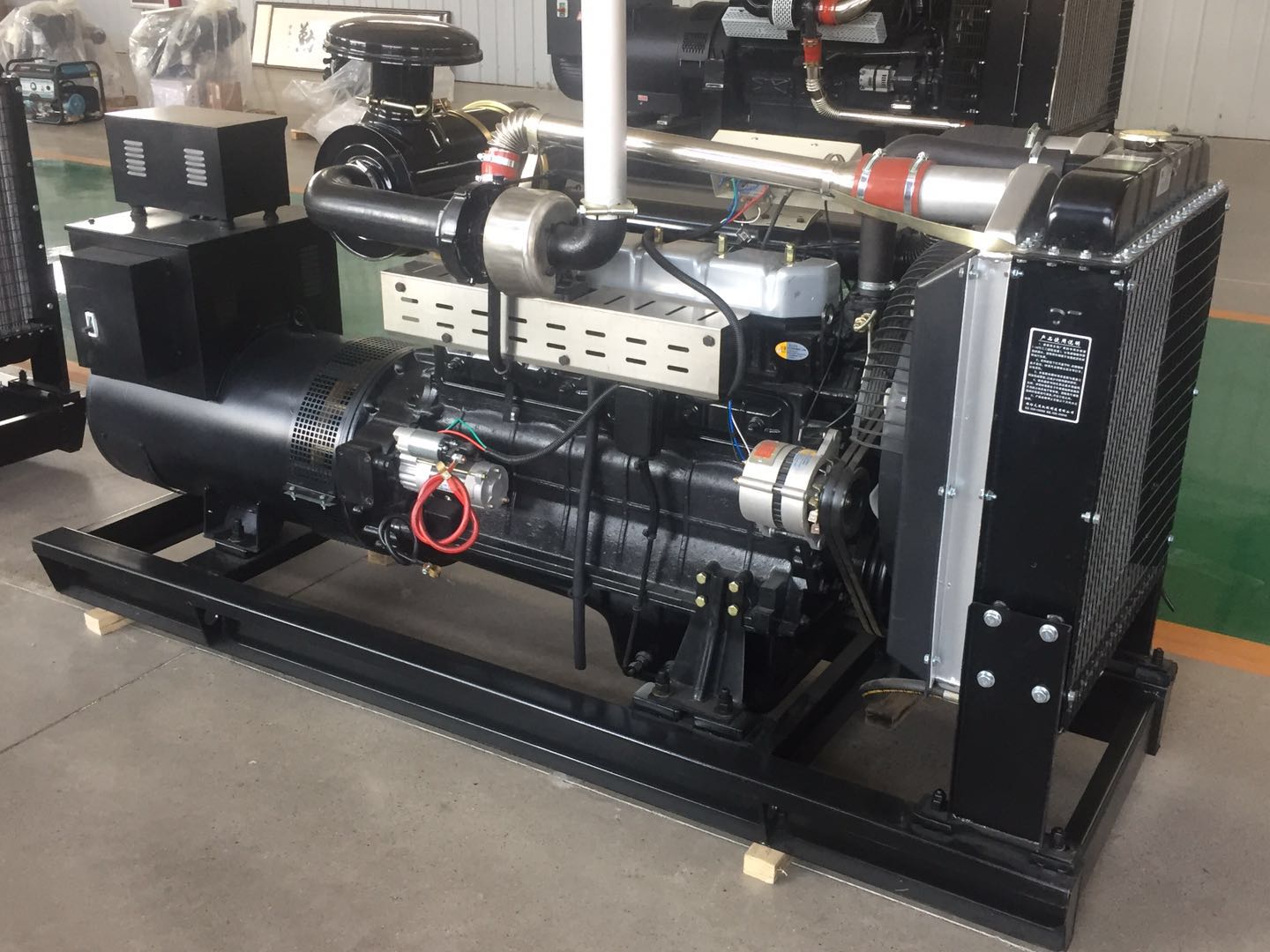

Diesel generator set data |
model | BM100 GF |
Rated output power (KVA/KW) | 125/100 | Rated output current(A) | 180 |
Wiring method | Three-phase four-wire | Power Factor | 0.8 (hysteresis) |
Startup method | 24V DC start | Frequency (Hz) | 50 |
Unit weight (kg) | 1500 | Unit size (length * width * height) | 2300 * 850 * 1350 mm |
Diesel engine data |
Manufacturer | Weifang Jinma Diesel Engine Co., Ltd. | model | 6105AZLD |
Rated speed(Rpm) | 1500 | Engine power (kW) | 121 |
Cylinder stroke | 105* 125 | Compression ratio | 1 6 ： 1 |
Number of cylinders | 6 | Fuel consumption rate ( g/kwh ) | ≤2 18 |
Speed regulation mode | ESC | Engine oil fuel consumption ratio ( % ) | ≤ 0.5 |
Lubricant Specifications | 15W/40CD | Air intake method | Exhaust gas turbocharger |
Engine cooling method | Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard |
Generator data |
Manufacturer | Nianfeng (Fujian) Motor Co., Ltd. | model | NF-100 |
Power(KVA/KW) | 125/100 | Protection level | IP2 2 |
Insulation class | H | Power Factor | 0.8 lag |
No-load voltage adjustment range | ≥±5% | Voltage control method | AVR |
efficiency(%) | 88.4 | Wiring method | Three-phase four-wire |
