100KW Weifang Jinma diesel generator set



Diesel generator sets are a type of power generation equipment that uses diesel as the main fuel. It uses the diesel engine as the motive force to drive the generator (i.e., electric bulb) to generate electricity, and is a mechanical device that converts kinetic energy into electrical energy and thermal energy . The entire diesel generator set is mainly divided into three parts:

1. Diesel engine.

2. Generator (i.e. electric bulb).

3. Controller .

Specifically speaking, it consists of a base, a diesel engine, a base tank, a generator set (i.e., a bulb), a controller (which plays a role in controlling and protecting the unit), a radiator (air cooling: fan; water cooling: water tank), a mute box, and other components. According to the different needs of different places, we divide the generator set into fixed and movable trailers. In order to reduce the noise emitted by the generator set and reduce the impact on people's work and life, designers have designed a generator set with a mute box, that is, a metal box is installed outside the generator set, and sound-absorbing materials are attached inside , so as to protect the generator set around. Doors are set on both sides of the box, which is convenient for people to inspect and control the generator set. The mute box not only reduces the noise emitted by the generator set, but also can be placed outdoors. The box is like a house, which is sun-proof and rain-proof, saving people the trouble of having no place to build a machine room. Diesel generator sets are divided into common generator sets and standby generator sets , and the power is also divided into common power and standby power accordingly. The standard common power of each generator set is generally 80% of the standby power. According to different needs, you should use the national power grid at ordinary times. If you need it only because of power outage, please use a standby diesel generator set; if you need to run for a long time, please choose a common diesel generator set. If you maintain it regularly, the common diesel generator set can run for more than 300 days a year. The relationship between common power and standby power is: for example, if the user needs a 100KW diesel generator set, the common power of the standby 100KW diesel generator set is 100KW*80%=80KW. That is, the common power of the standby 100KW diesel generator set is 80KW. If a mute box is installed on the diesel generator set, the power of the generator set will also decrease, generally by about 10%. Therefore, when users purchase diesel generator sets, they should consider the power reduction of the mute box.

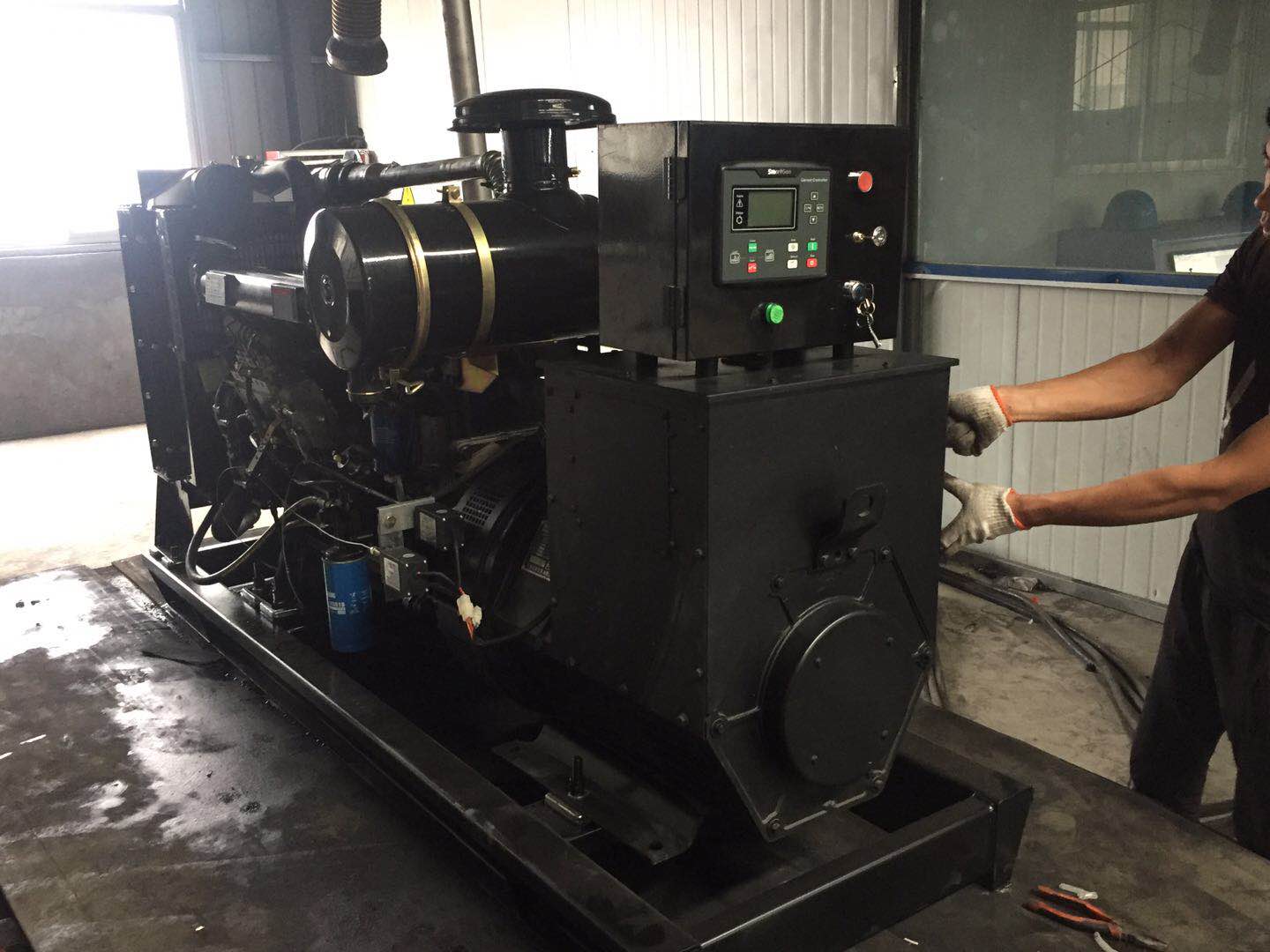

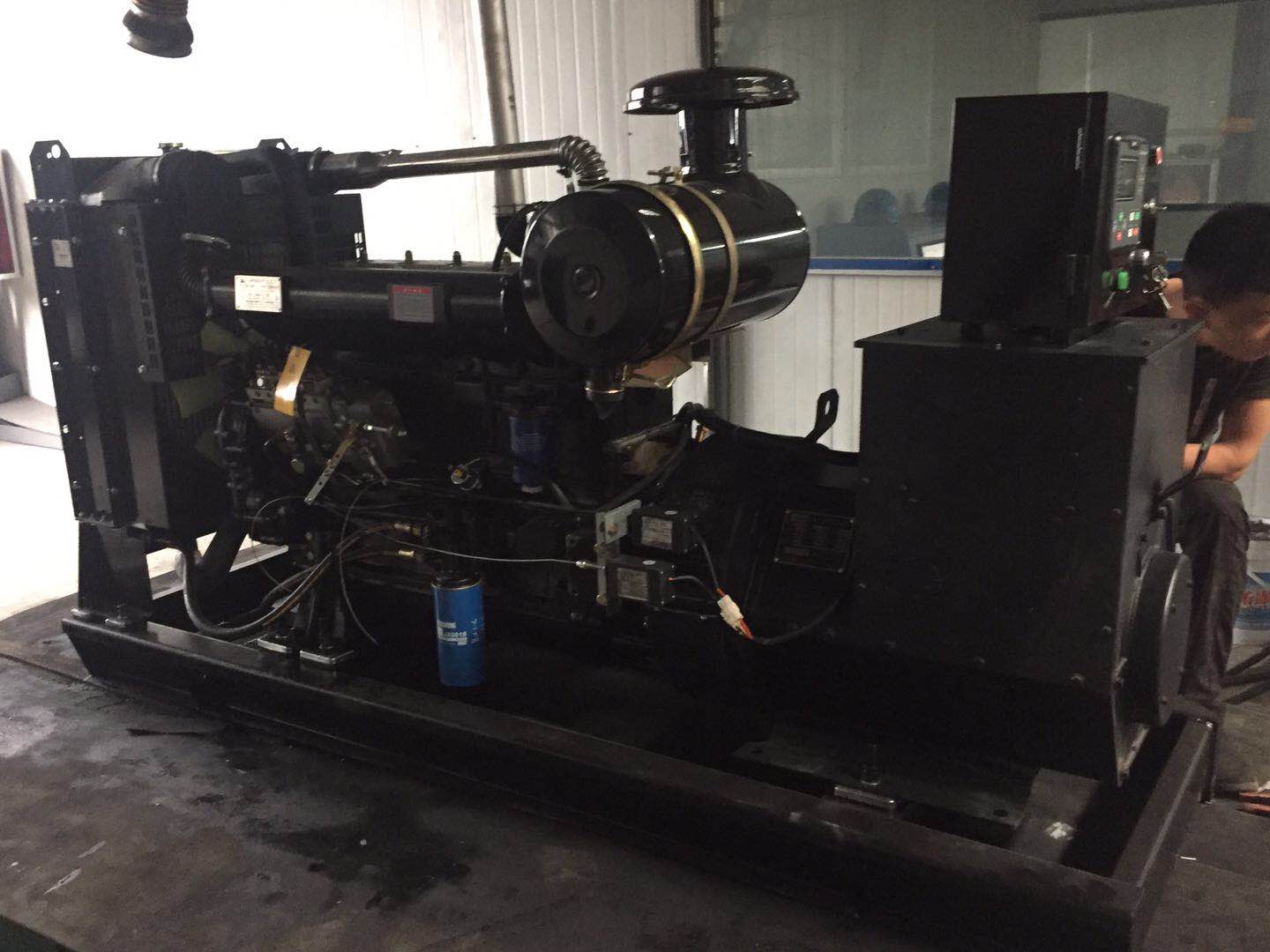

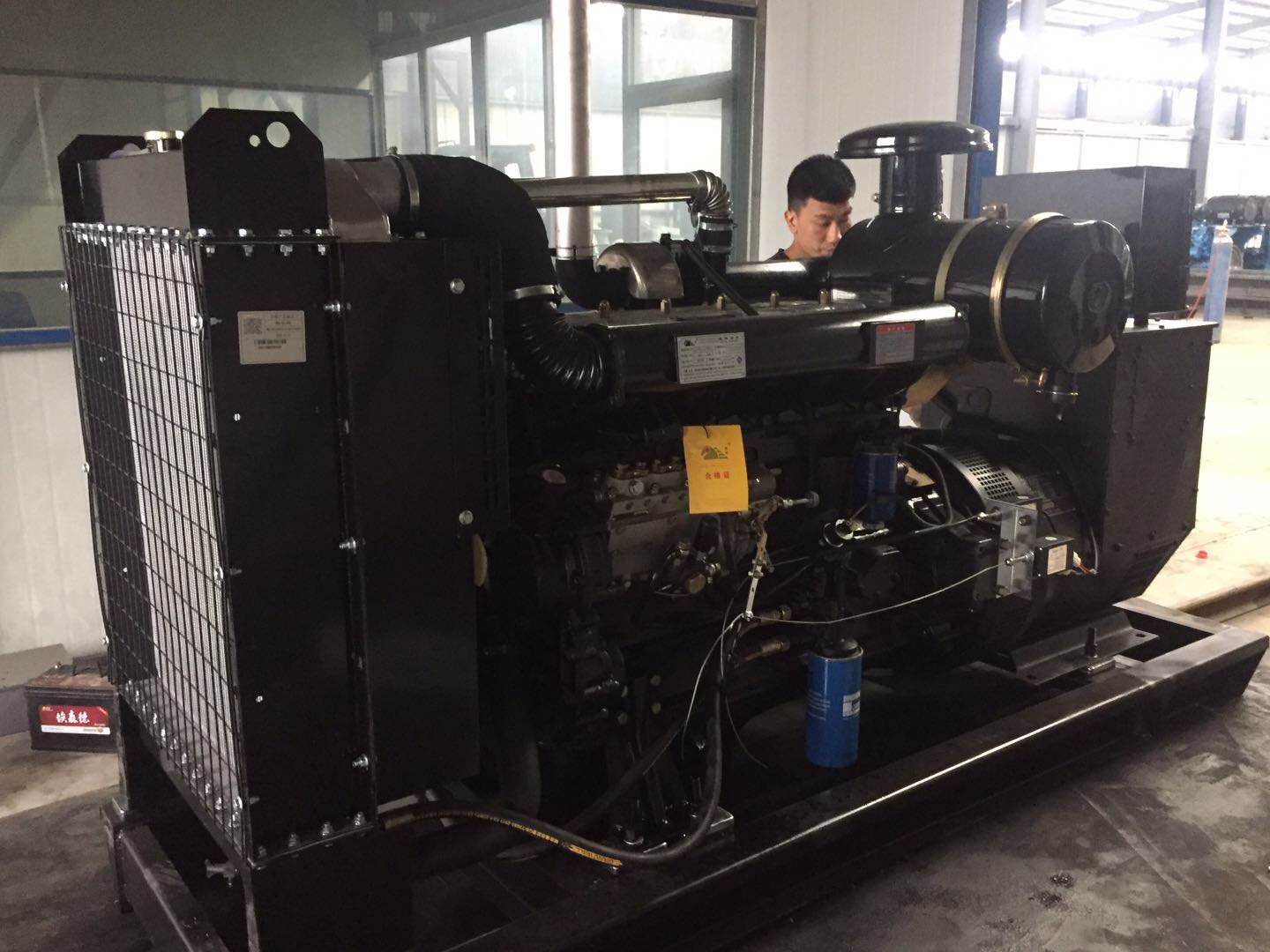

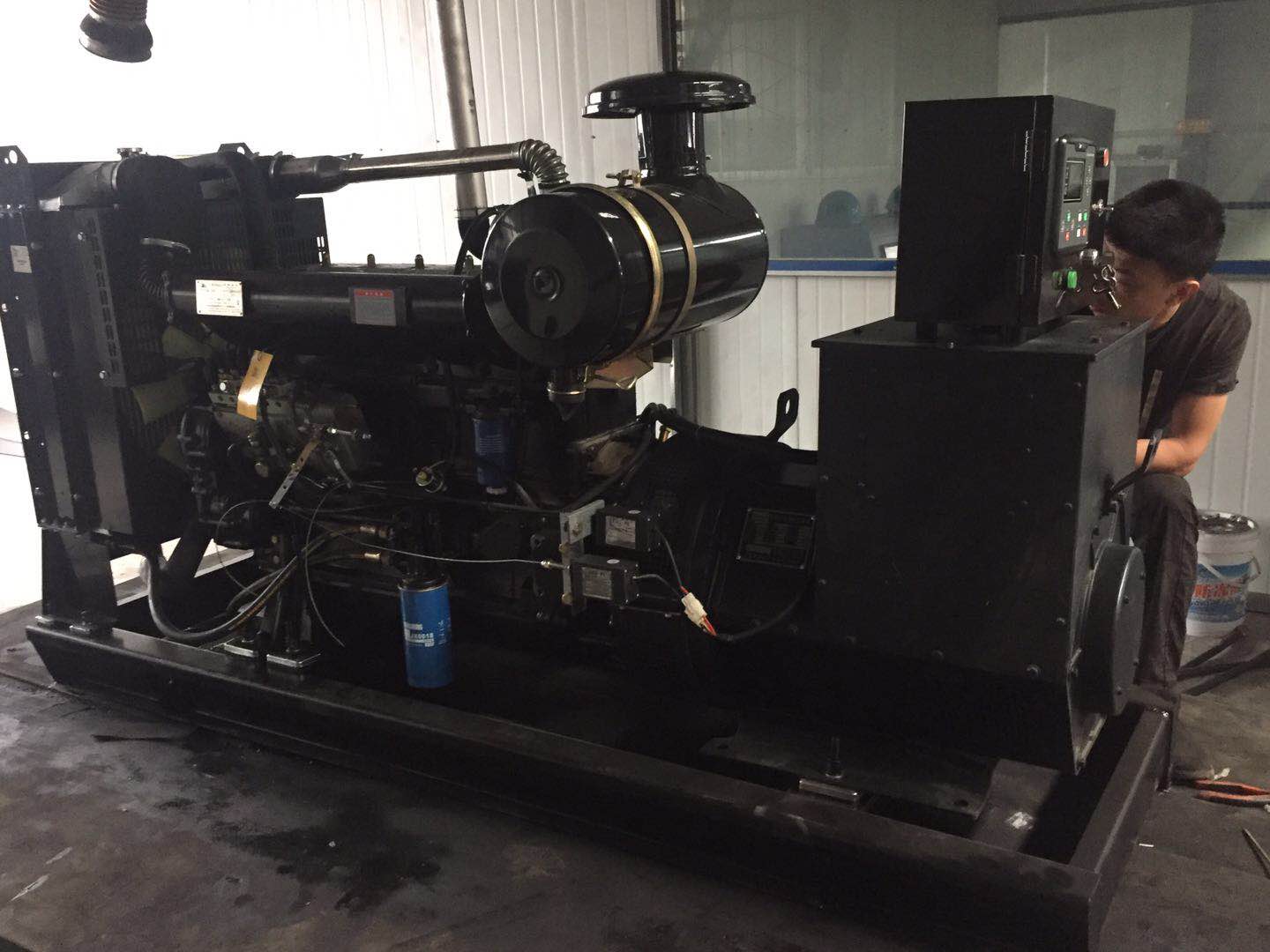

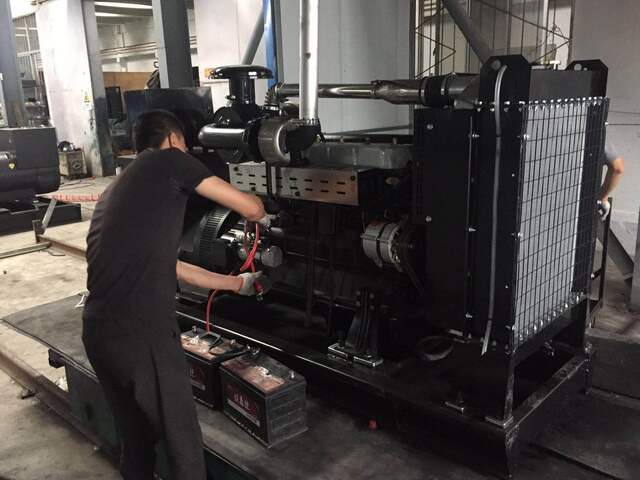

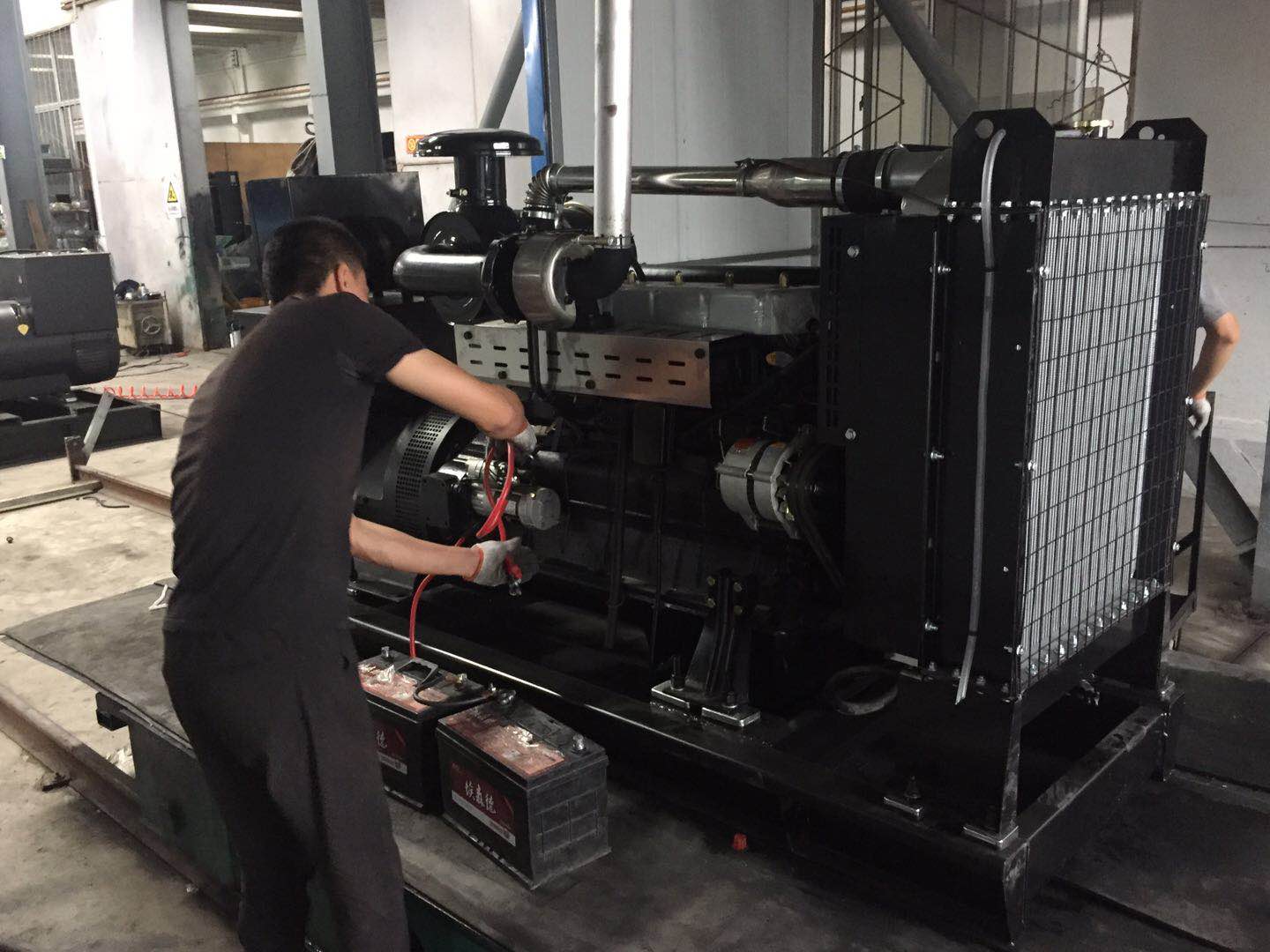

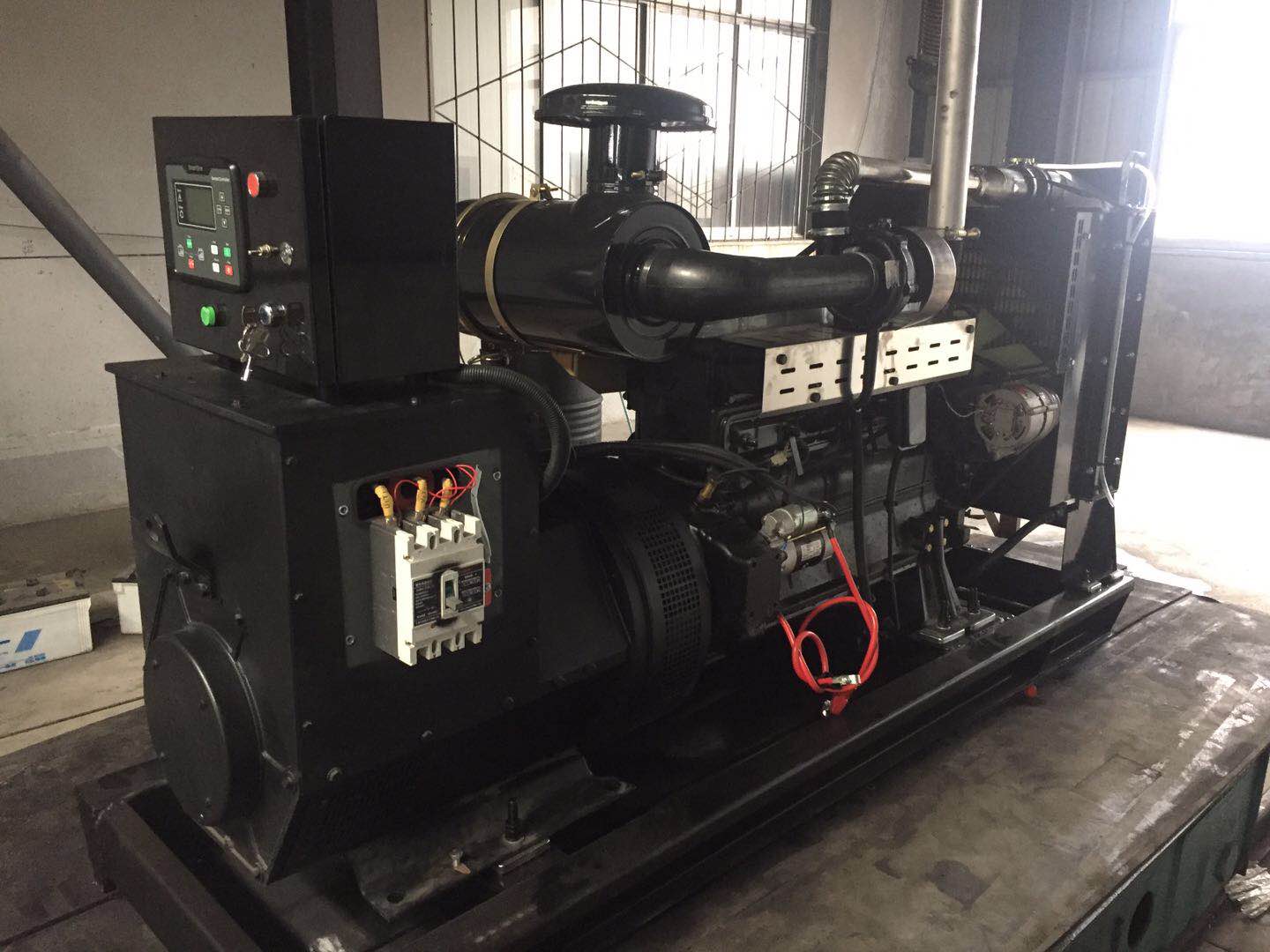

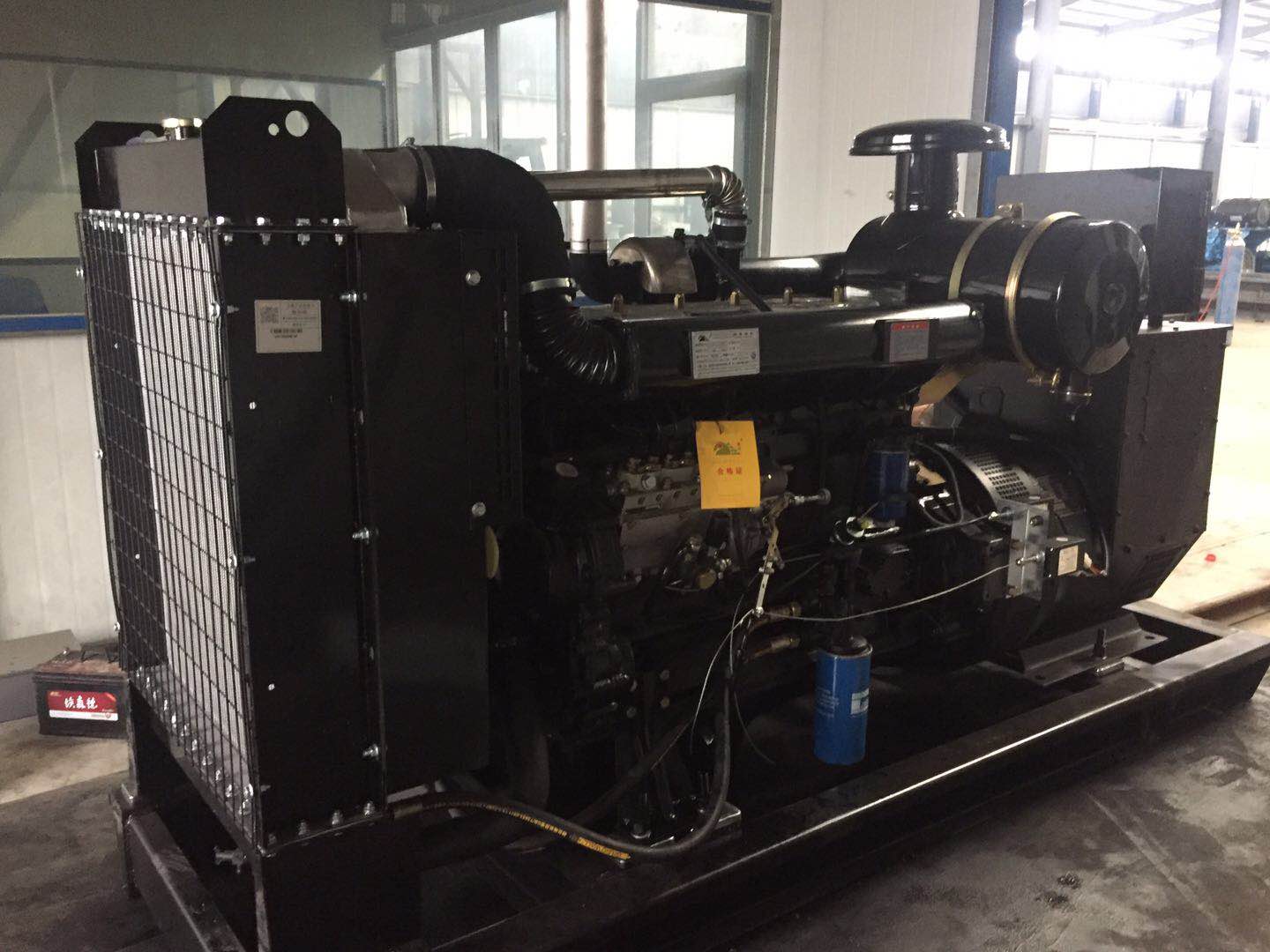

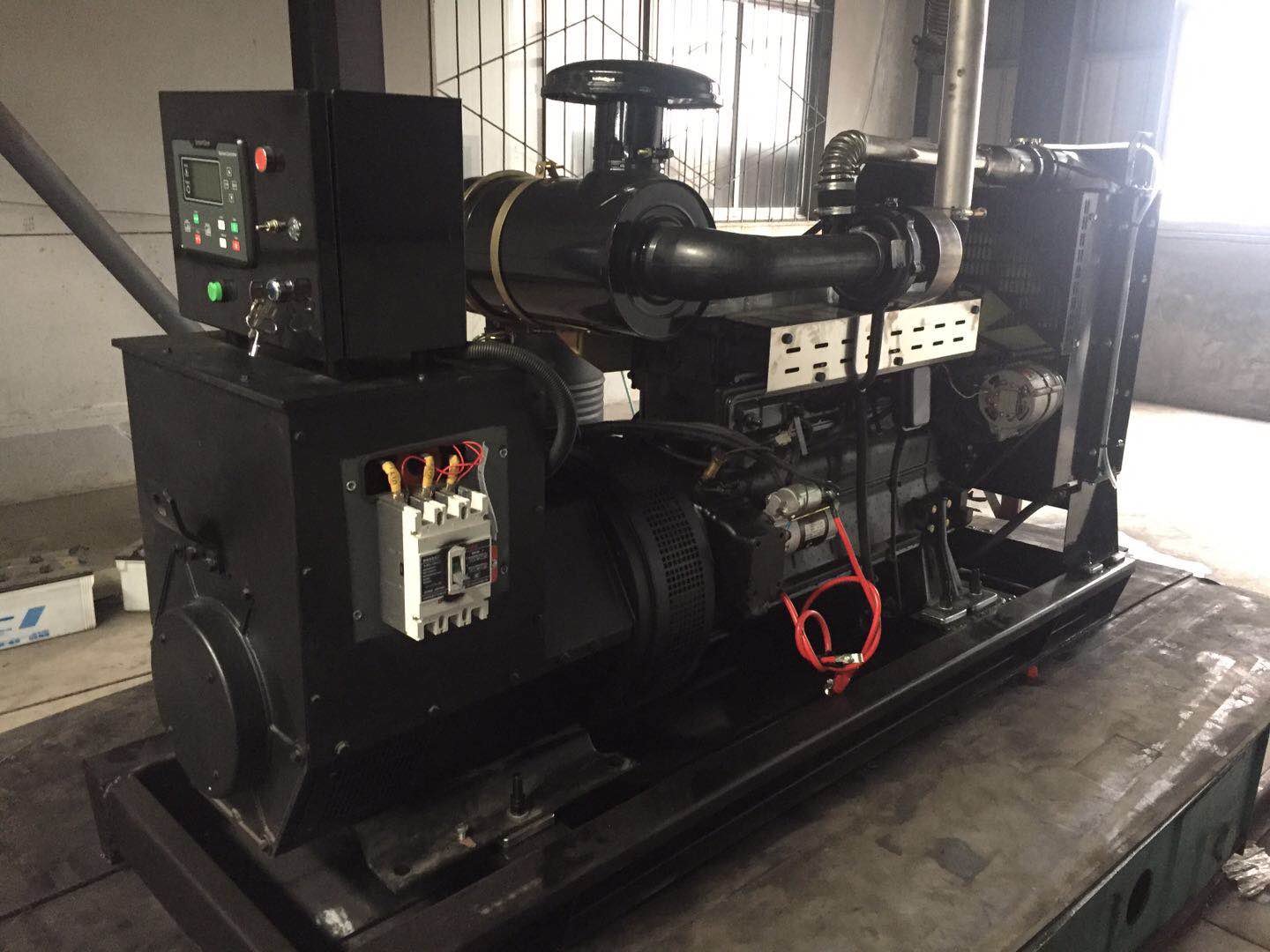

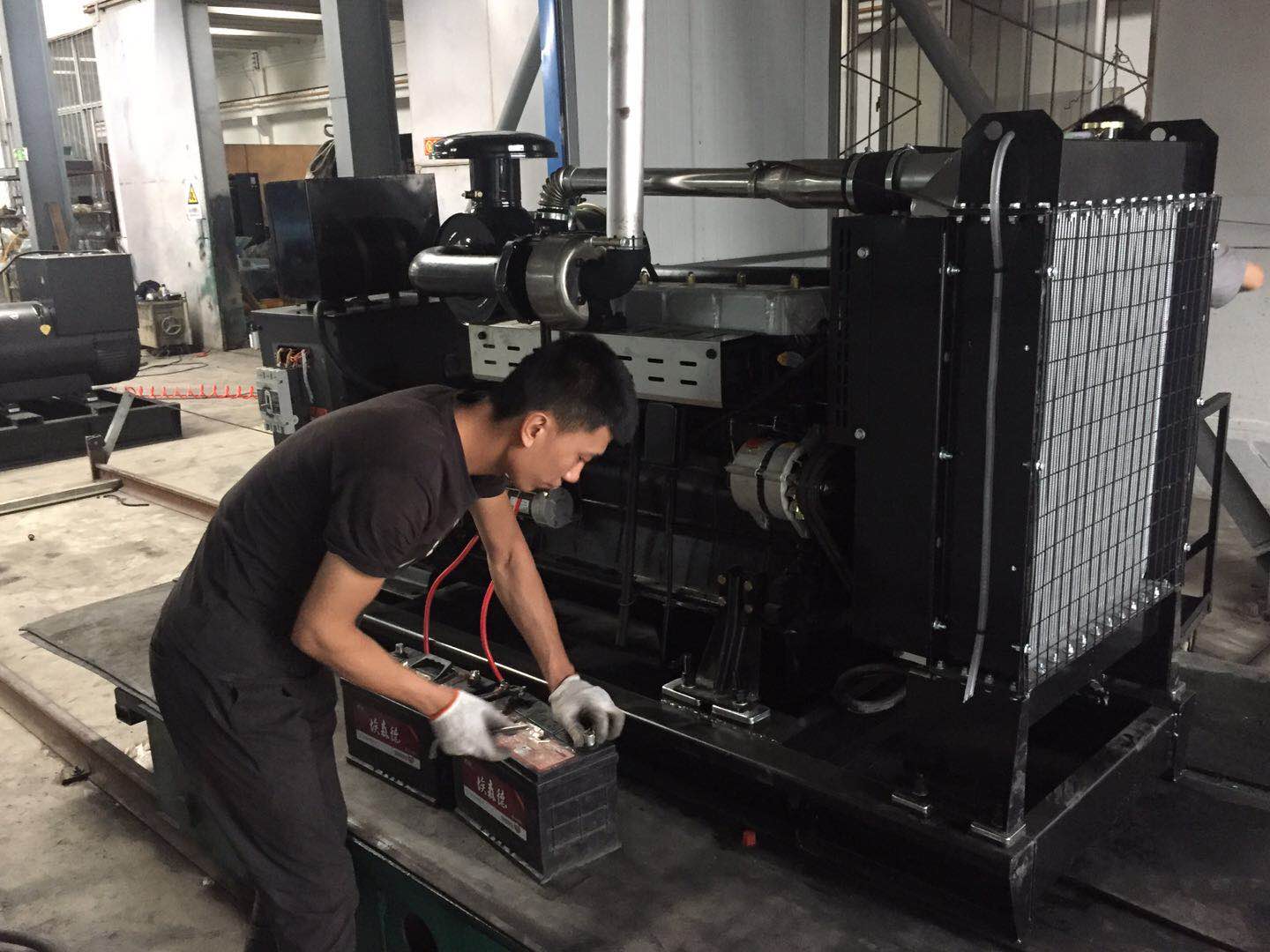

100KW diesel generator equipment picture:

100KW Weifang Jinma diesel generator set equipment parameters:



Diesel generator set data
model	100GF	Unit power (KVA/KW)	125/100
Output voltage (V)	400/230	Rated output current (A)	181
Wiring method	Three-phase four-wire	Power Factor	0.8 (hysteresis)
Startup method	24V DC start	Frequency ( Hz )	50
Unit weight ( kg )	1300	Unit size (length x width x height)	2400 × 750 × 1400mm
Diesel engine data
Manufacturer	Weifang	model	R6105AZLD
Rated speed (Rpm)	1 5 00	Engine power (KW)	121
Number of cylinders	6	Cylinder arrangement	In-line
Cylinder diameter x stroke (mm)	105×125	Exhaust volume (L)	6.49
Air intake method	Supercharged intercooler	Compression  ratio	16:1
Fuel	China 0# Light Diesel Oil	100% load fuel consumption (G/KW.h)	218
Lubricant Specifications	15W/40CD	Lubricating oil consumption (L/h)	0.5% fuel consumption
Startup method	Electric start	Coolant capacity ( L )	48
Engine cooling method	Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard
Generator data
Manufacturer	Fujian or Shanghai	model	STC-100
Power (KVA/KW)	125/100	Protection level	IP21
Insulation class	F	Steady state voltage regulation	Better than ±1%
No-load voltage adjustment range	≥±5%	Voltage control method	AVR
efficiency(%)	80
