30KW Weifang Jinma diesel generator set
30KW Weifang Jinma diesel generator set equipment
In the industry, small diesel generator sets below 30KW are widely used in schools, hospitals, hotels and other industries as backup power or temporary power. Small diesel generator sets are small in size, powerful in horsepower, safe and reliable in use, stable in quality, and inexpensive.

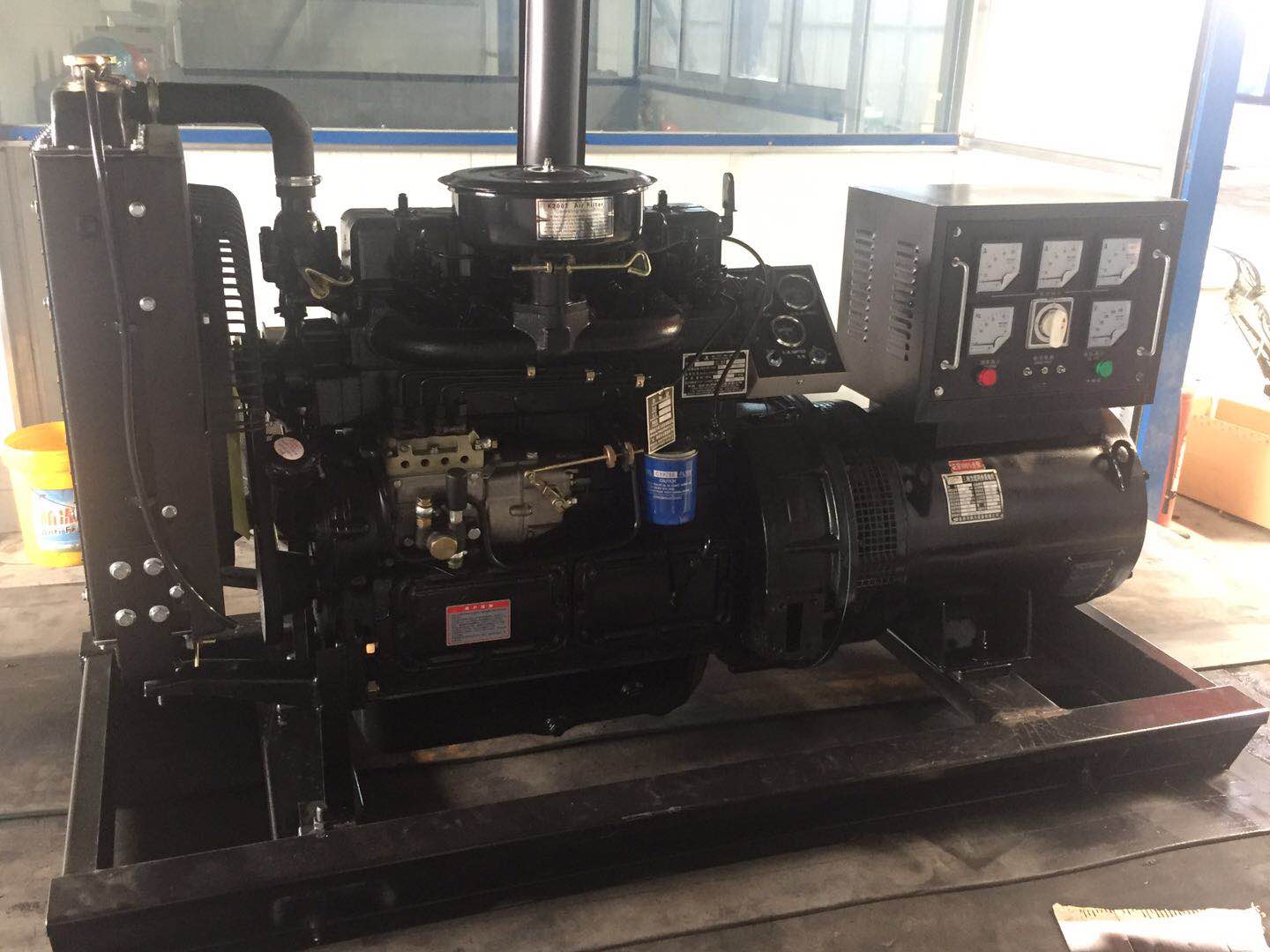

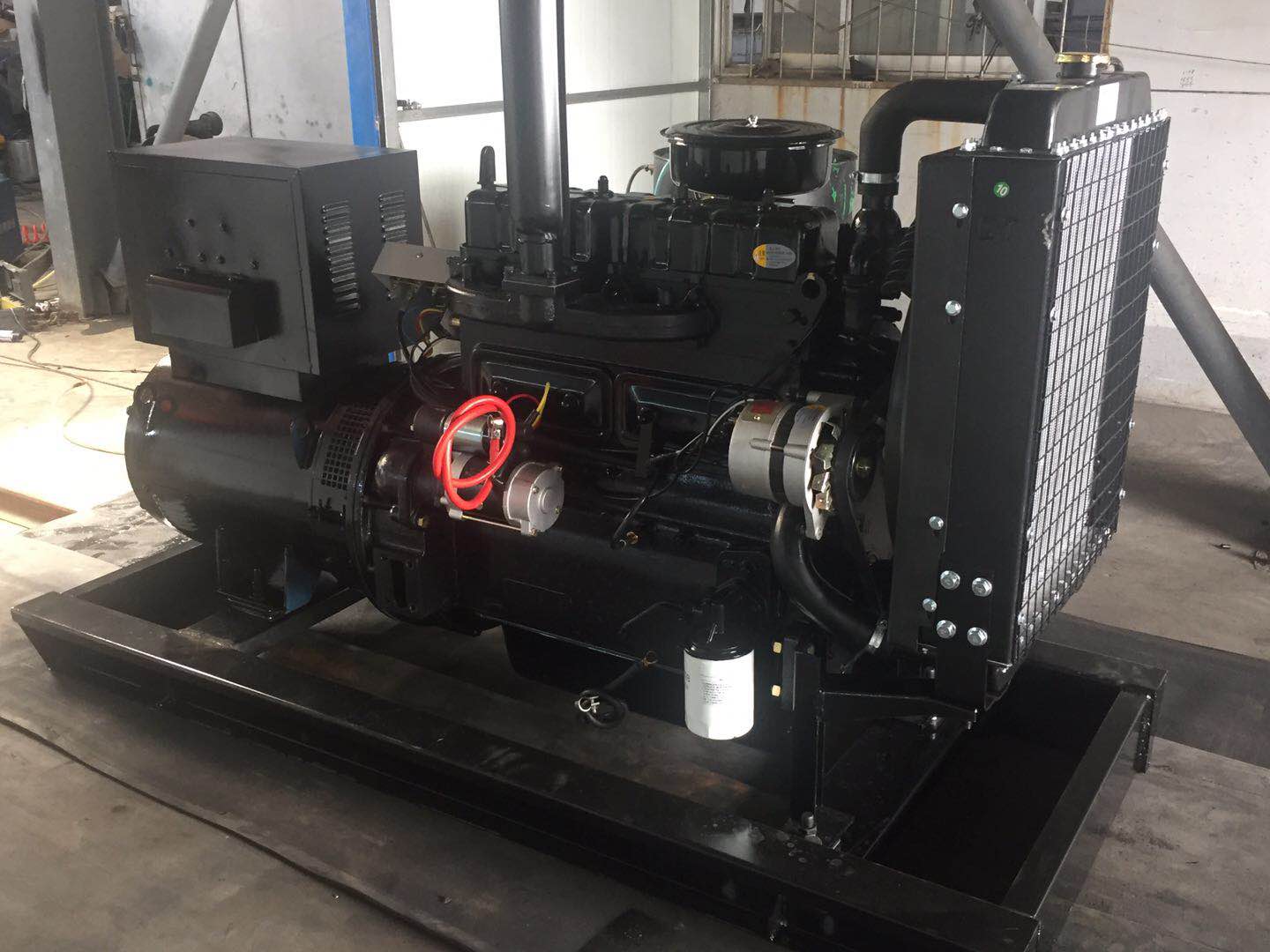

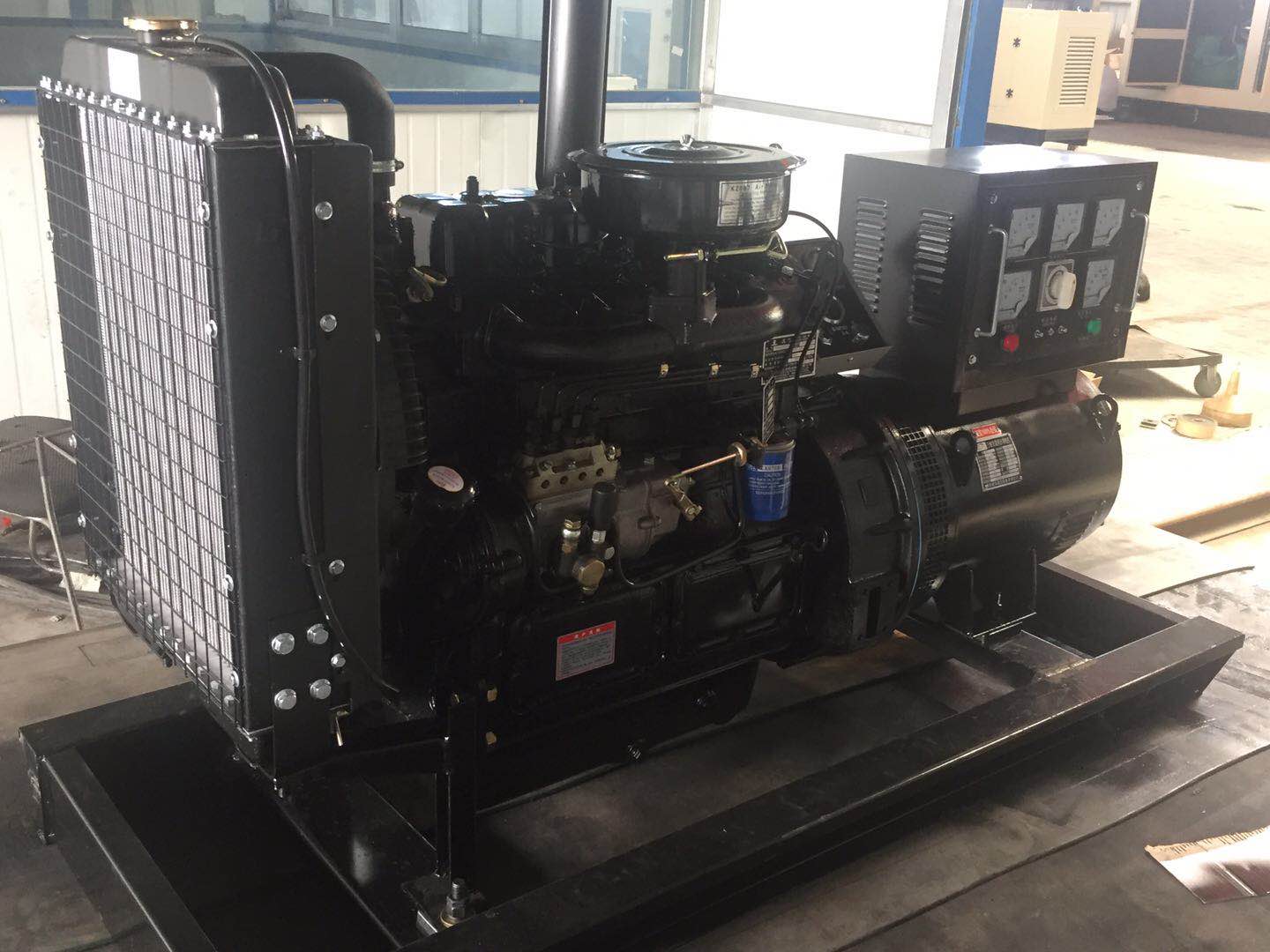

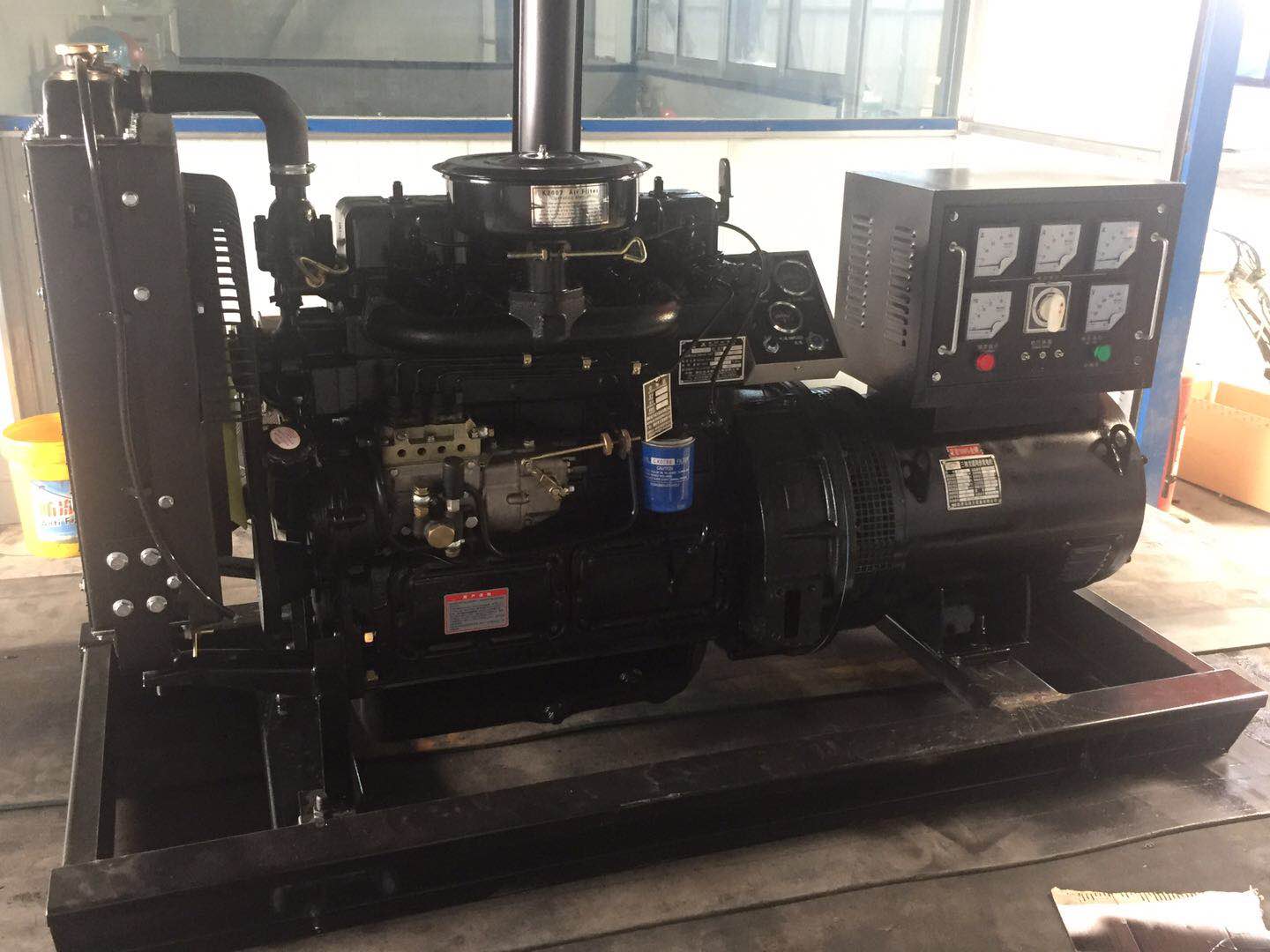

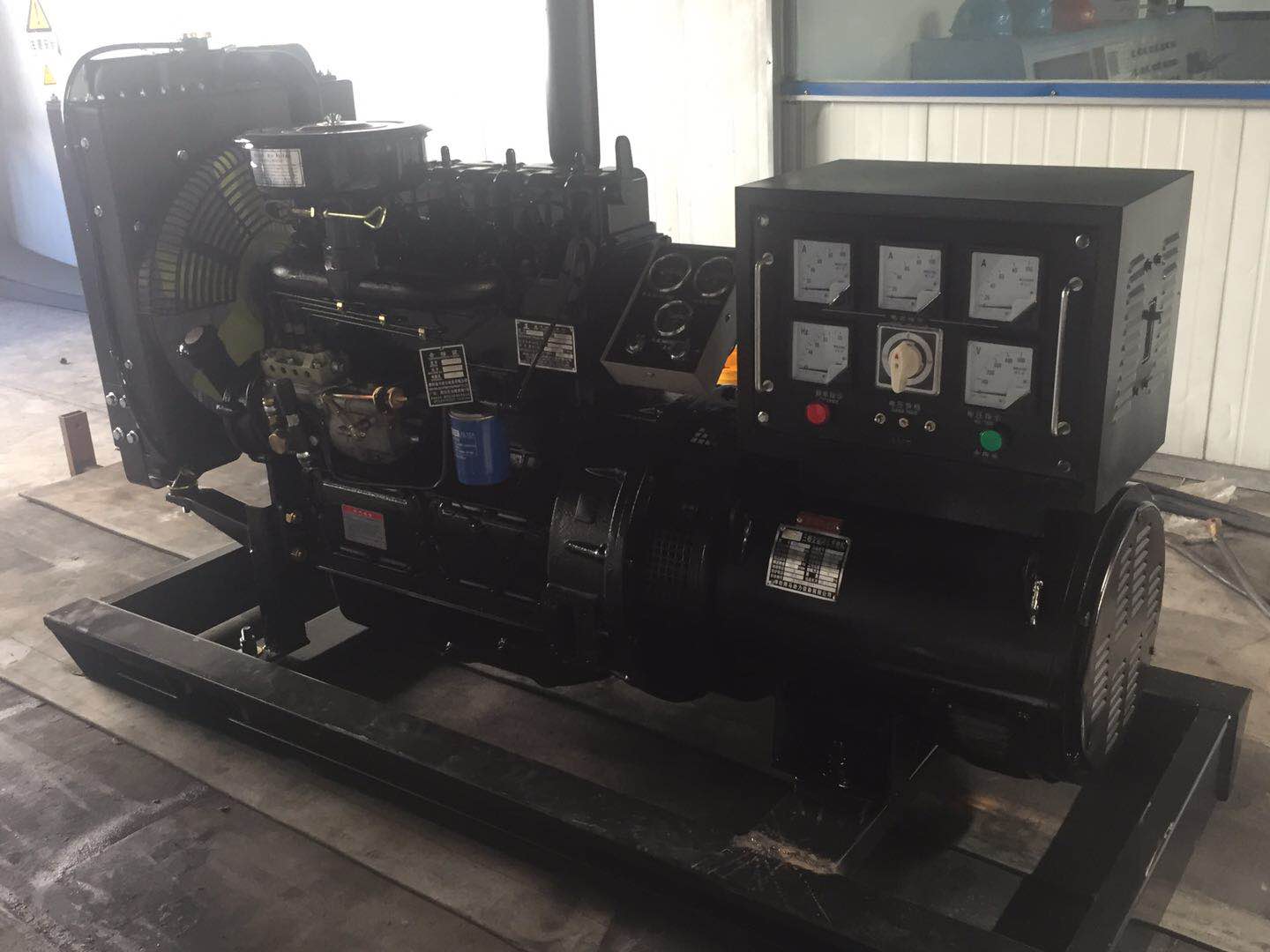

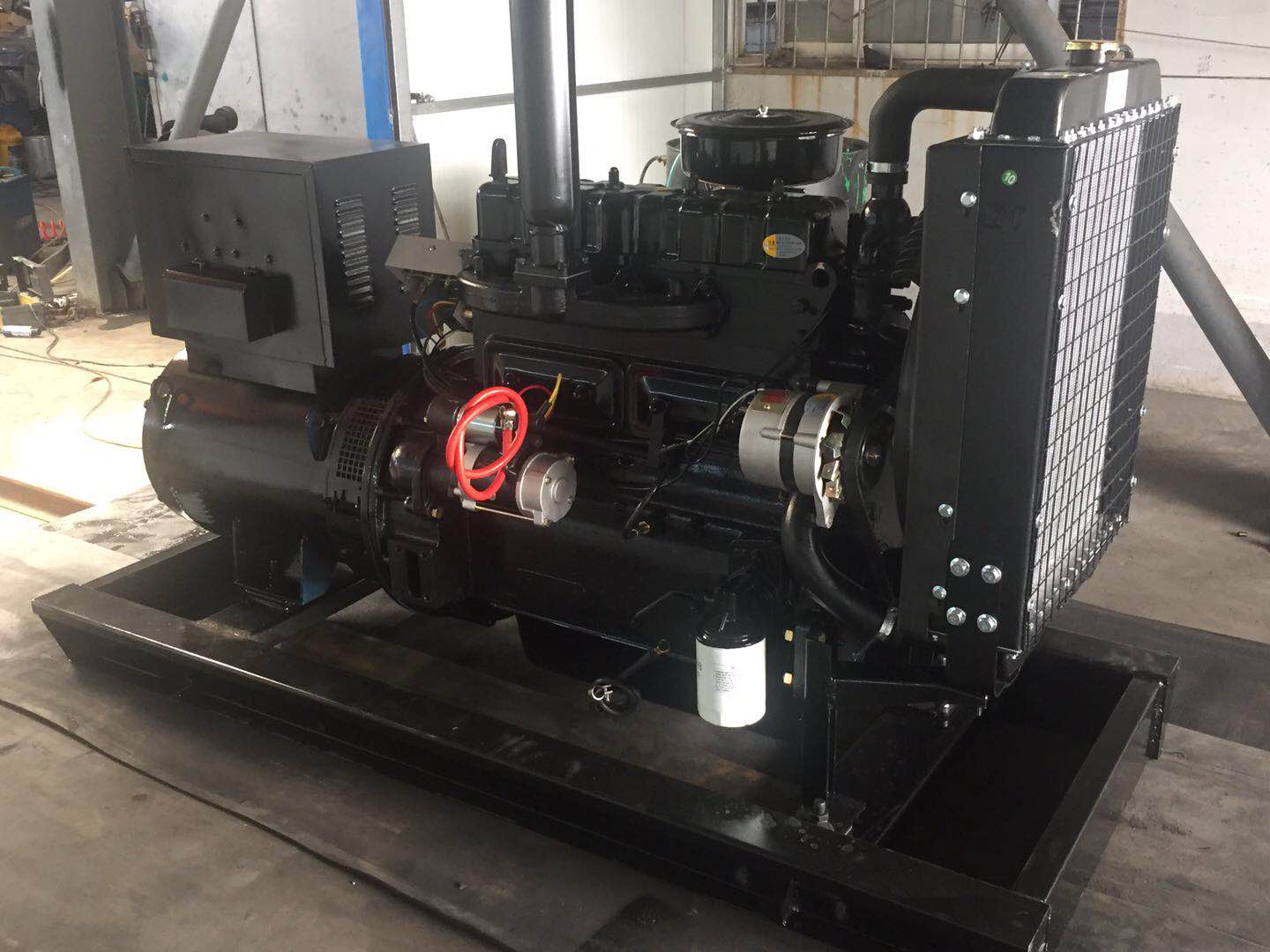

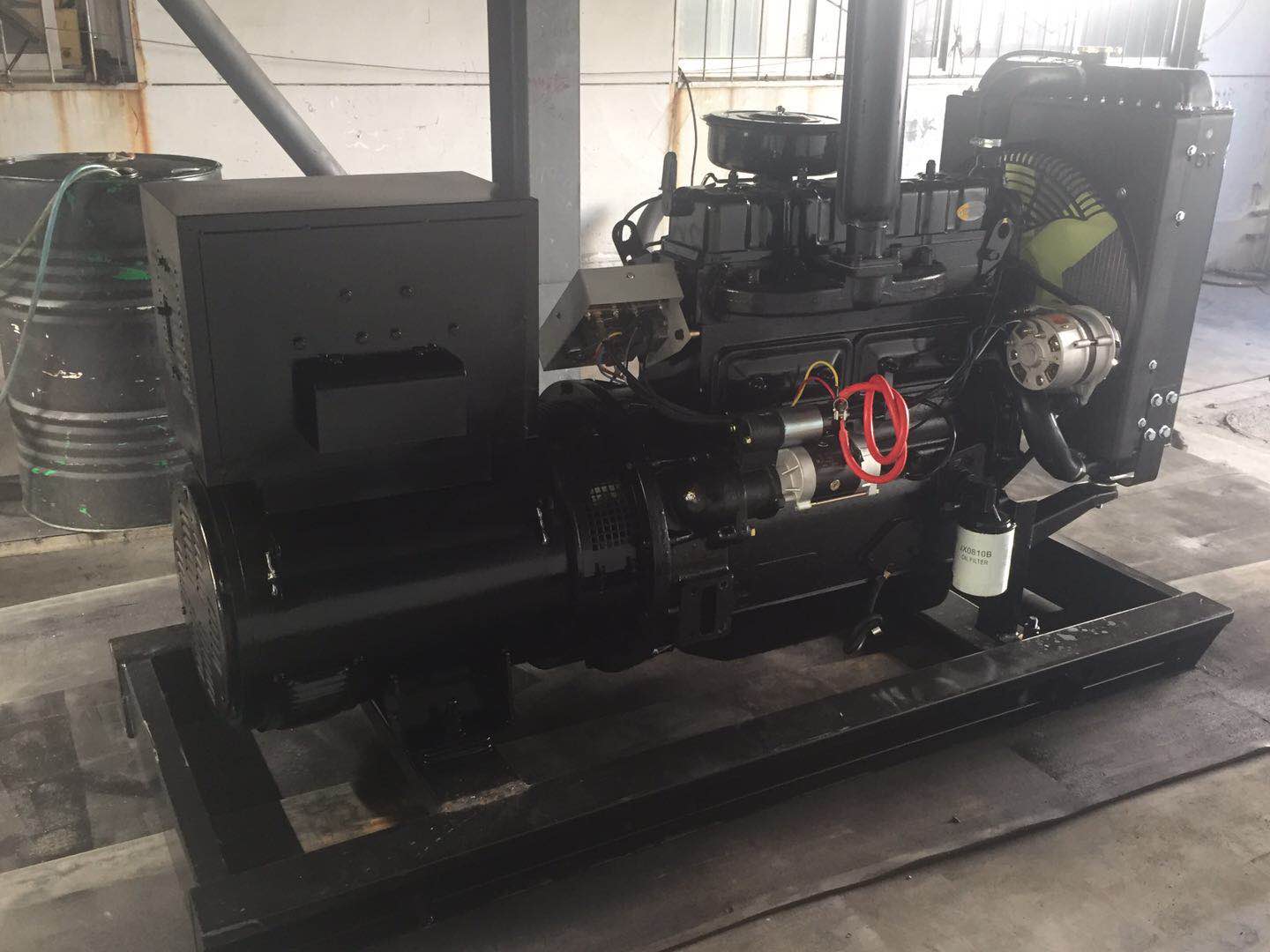

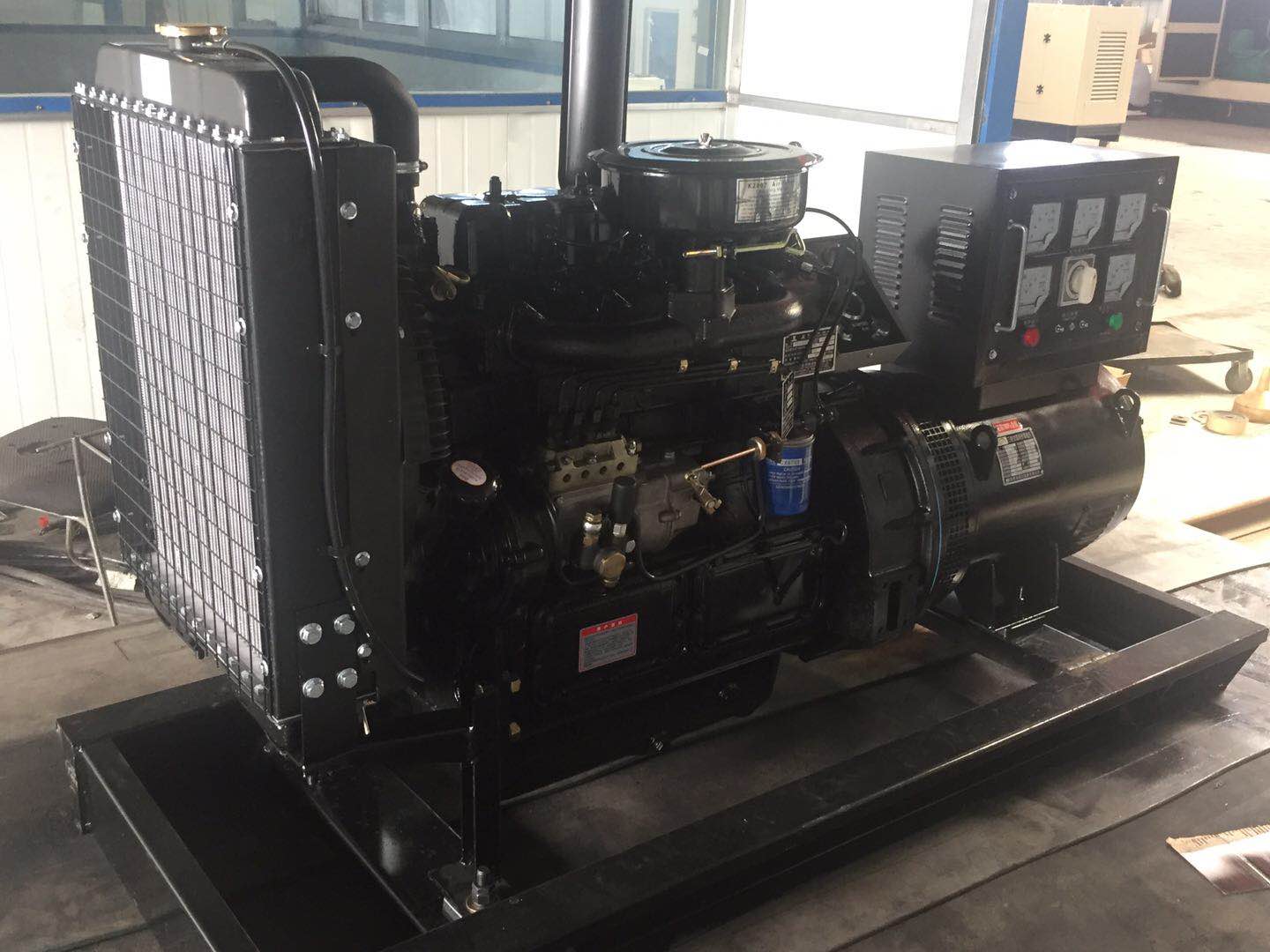

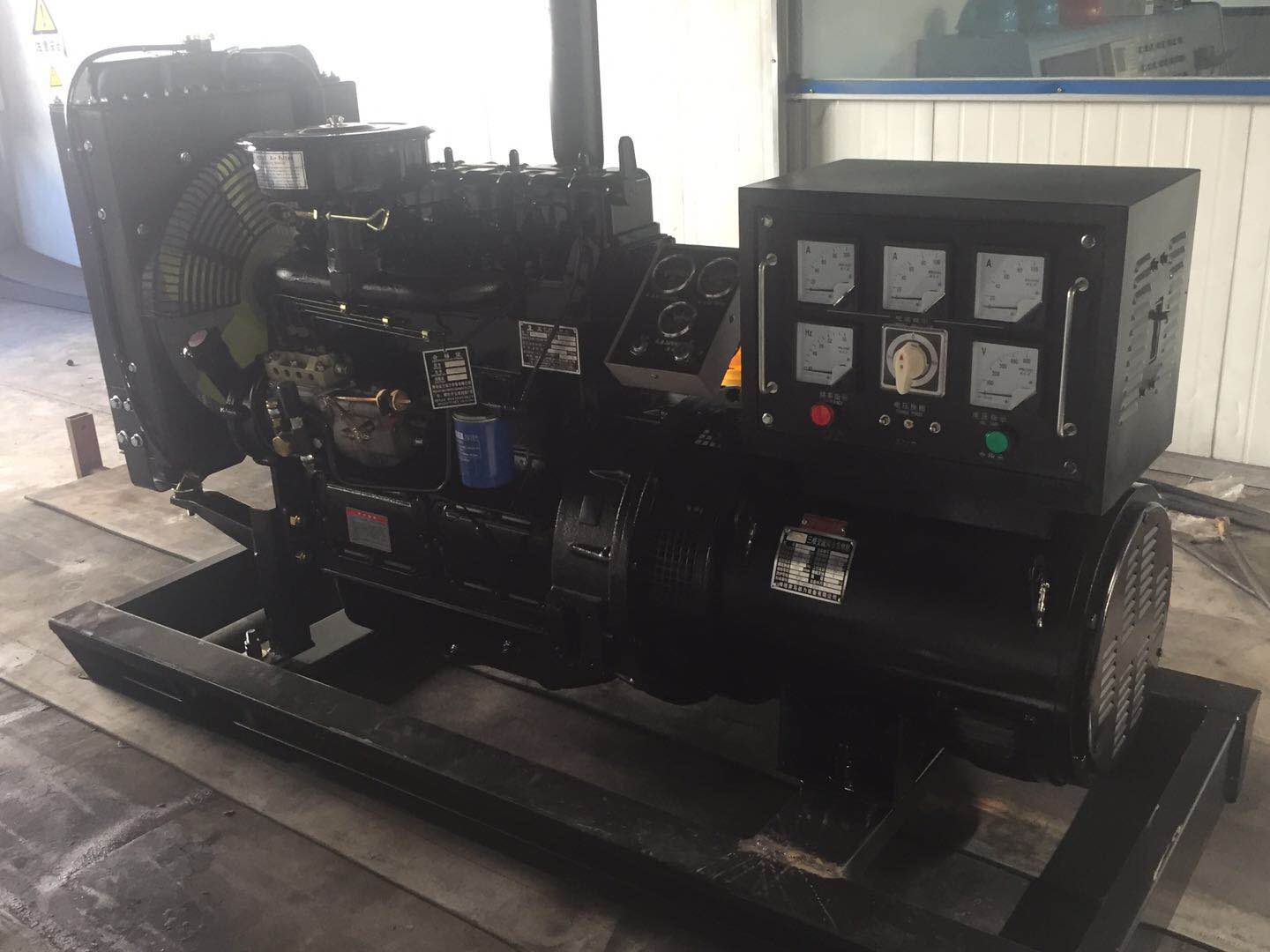

30KW diesel generator set equipment picture:
30KW Weifang Jinma diesel generator set equipment parameters:
Diesel generator set data | |||
model | 30GF | Main power of unit (KVA/KW) | 37.5 /30 |
Unit standby power (KVA/KW) | 42/33 | Rated output current (A) | 54 |
Output voltage (V) | 400/230 | Power Factor | 0.8 (hysteresis) |
Wiring method | Three-phase four-wire | Frequency ( Hz ) | 50 |
Startup method | 24V DC start | Unit size (length x width x height) | 1600 × 680 × 1200mm |
Unit weight ( kg ) | 600 | ||
Diesel engine data | |||
Manufacturer | Weifang Golden Horse | model | K4100D |
Rated speed (Rpm) | 1500 | Engine power (KW) | 30.1 |
Number of cylinders | 4 | Cylinder arrangement | In-line |
Cylinder diameter x stroke (mm) | 100×115 | Exhaust volume | 3.26 |
Air intake method | Natural air intake | Compression ratio | 19:1 |
Fuel | China 0# Light Diesel Oil | 100% load fuel consumption (G/KW.h) | 258 |
Lubricant Specifications | 15W/40CD | Lubricating oil consumption (L/h) | 0.5% fuel consumption |
Total lubricating oil capacity (L) | 13 | Coolant capacity ( L ) | twenty one |
Engine cooling method | Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard | ||
Generator data | |||
Manufacturer | Shanghai | model | STC-30 |
Power (KVA/KW) | 37.5/30 | Protection level | IP21 |
Insulation class | F | Steady state voltage regulation | Better than ±1% |
No-load voltage adjustment range | ≥±5% | Voltage control method | AVR |
efficiency(%) | 80 | ||
