300KW Weichai diesel generator set equipment parameters:



1. Unit model: BM-300
2. Unit power: 300KW
3. Generator model: STF-300
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): 210
9. Output current (A): 450
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: 105db
12. Dimensions (mm): 2980*1200*1855
13. Weight: 2386Kg II. Technical parameters of
Landking WP10D320E200 diesel engine
1. Diesel engine model: WP10D320E200
2. Power (KW): 320
3. Manufacturer: Weichai Power Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 24V DC start
6. Number of cylinders/number of valves: 6/24
7. Cylinder diameter/stroke: 126/130mm
8. Compression ratio: 17:1
9. Oil pan capacity: 24L
10. Displacement: 9.726L
11. Coolant capacity: 22L
12. Engine oil fuel consumption (g/Kw*h): ≤0.2%
13. Fuel supply method: direct injection
14. Intake method: turbocharged intercooler
15. Cylinder arrangement: in-line
16. Intercooler: water intercooler
17. Fuel model: domestic 0# light diesel
18. Speed control method: mechanical/electronic speed control
19. Engine oil model: WD/40
20. Overall dimensions (mm): 1772*846*1175
21. Weight: 875Kg

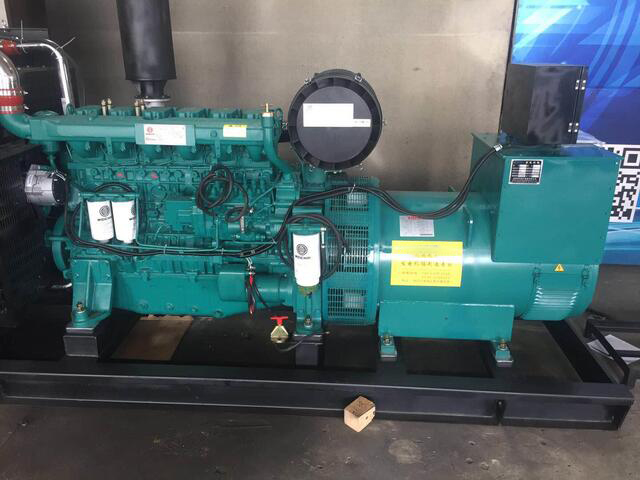

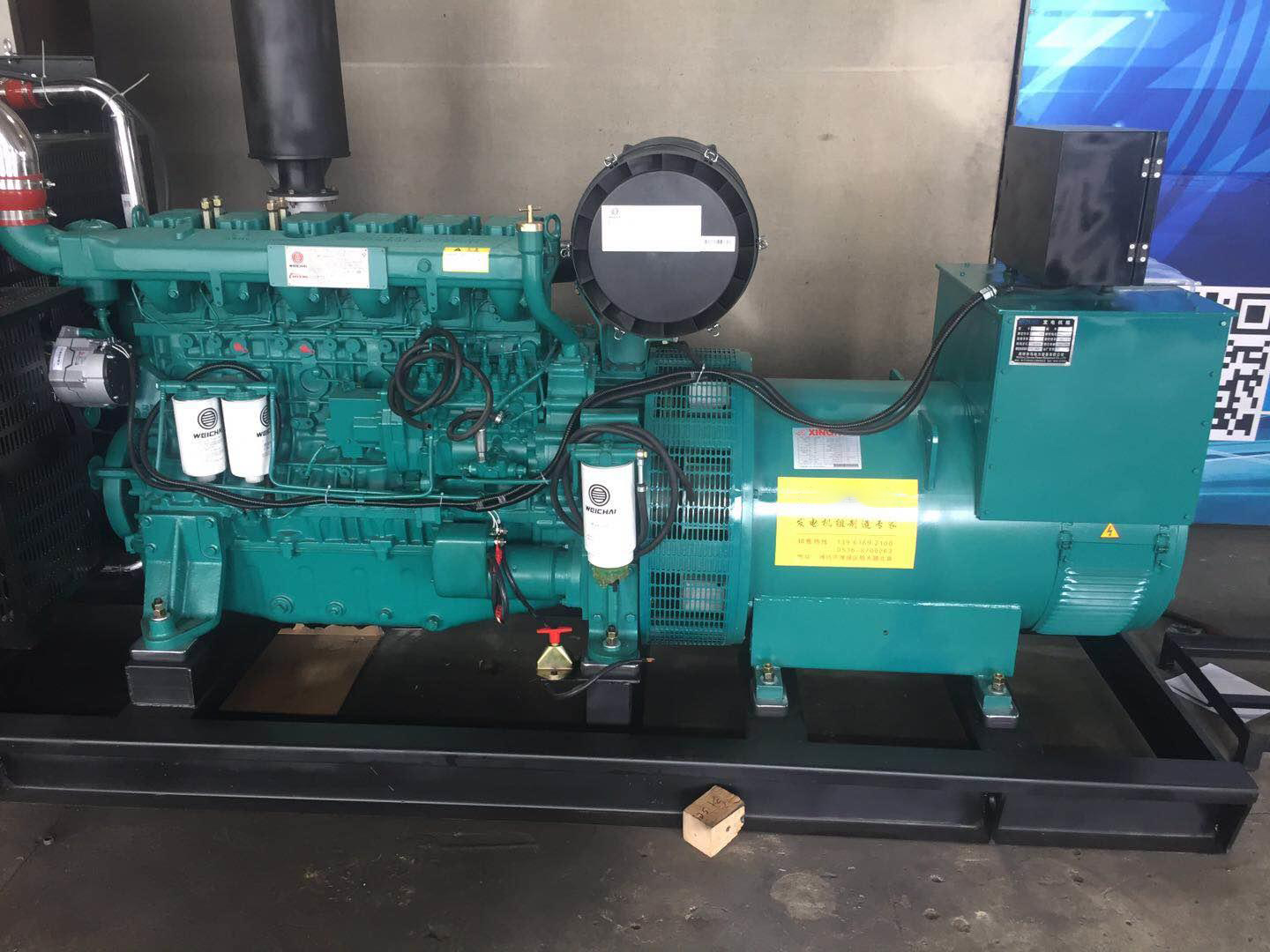

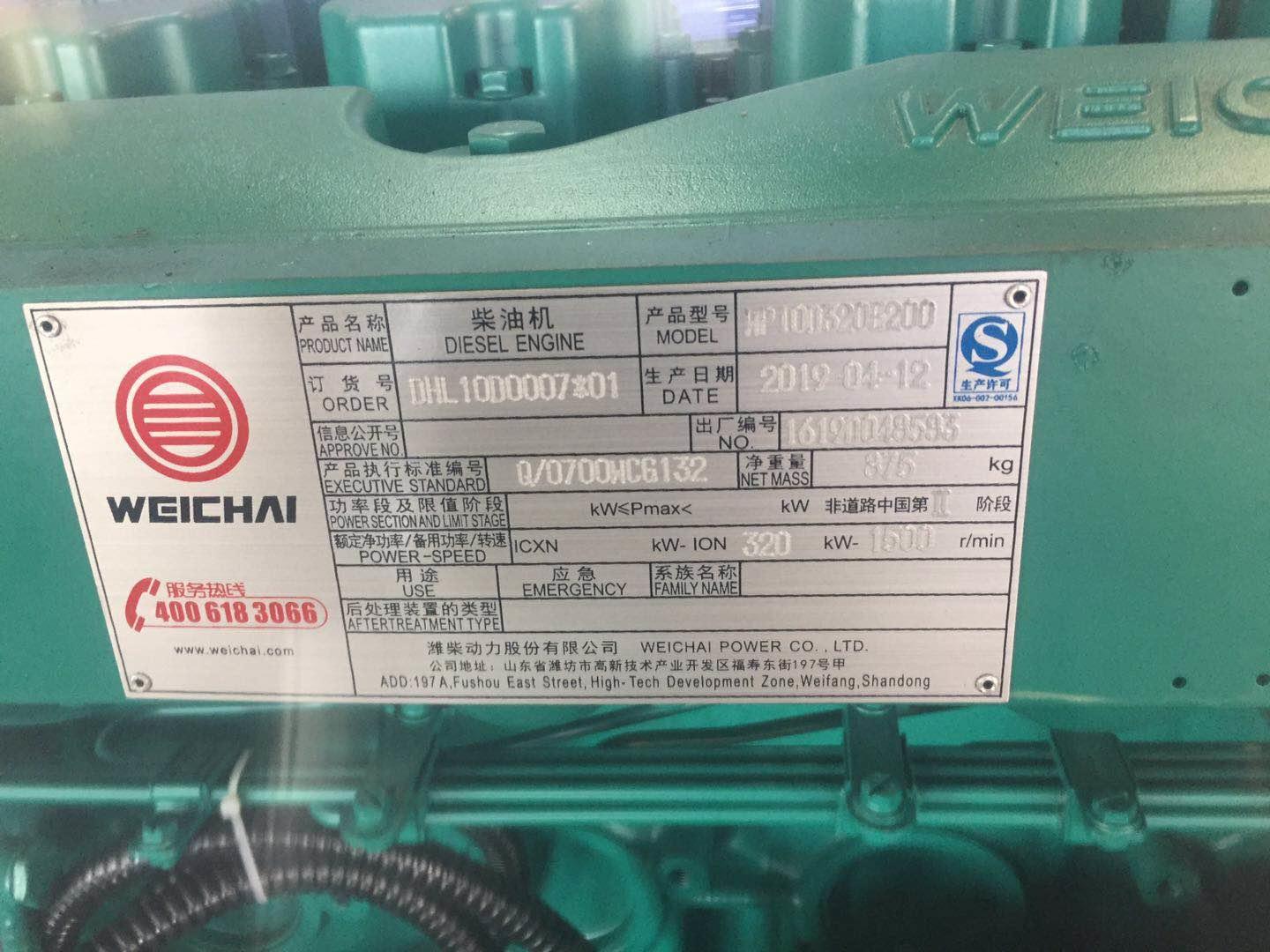

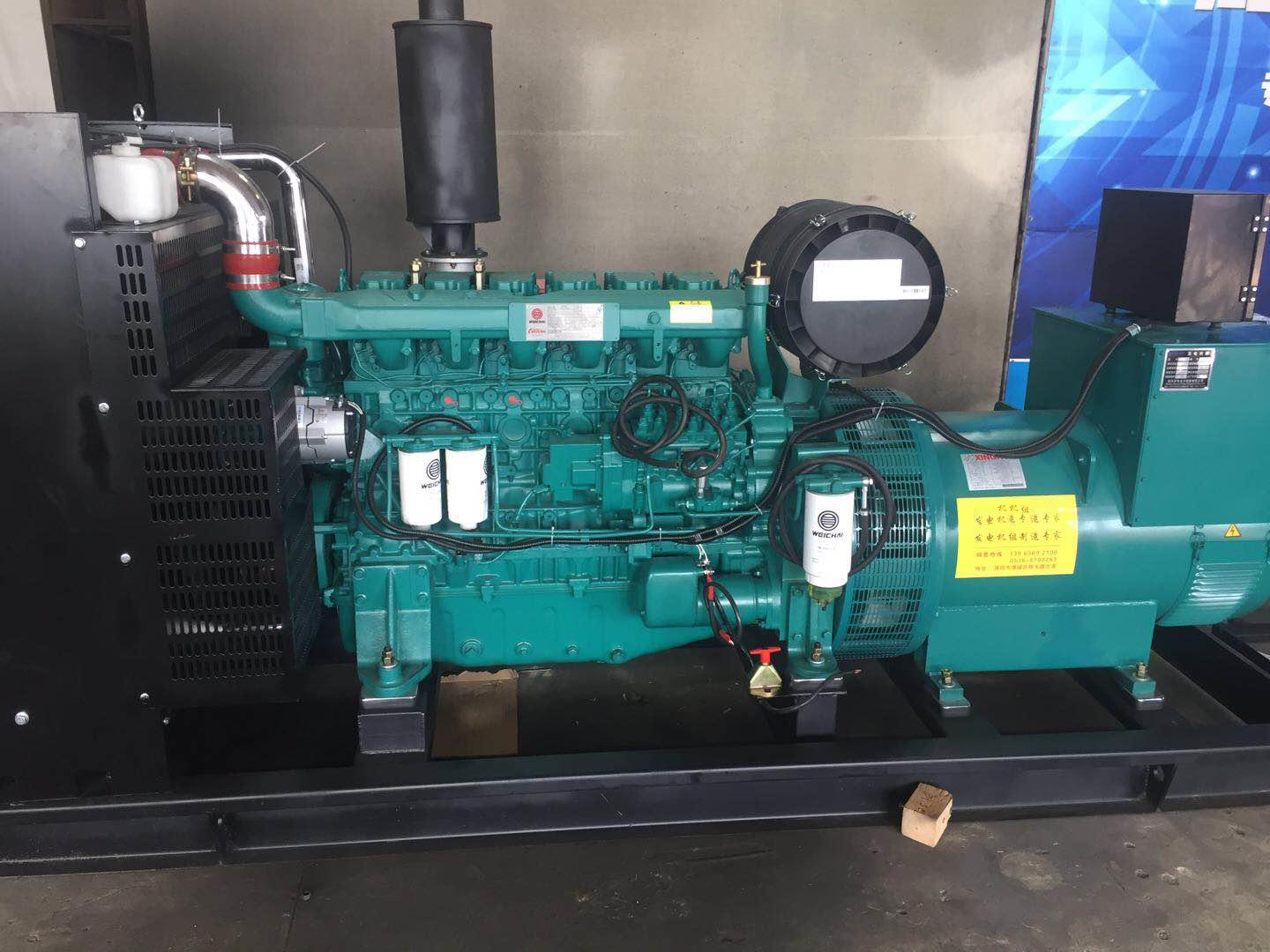

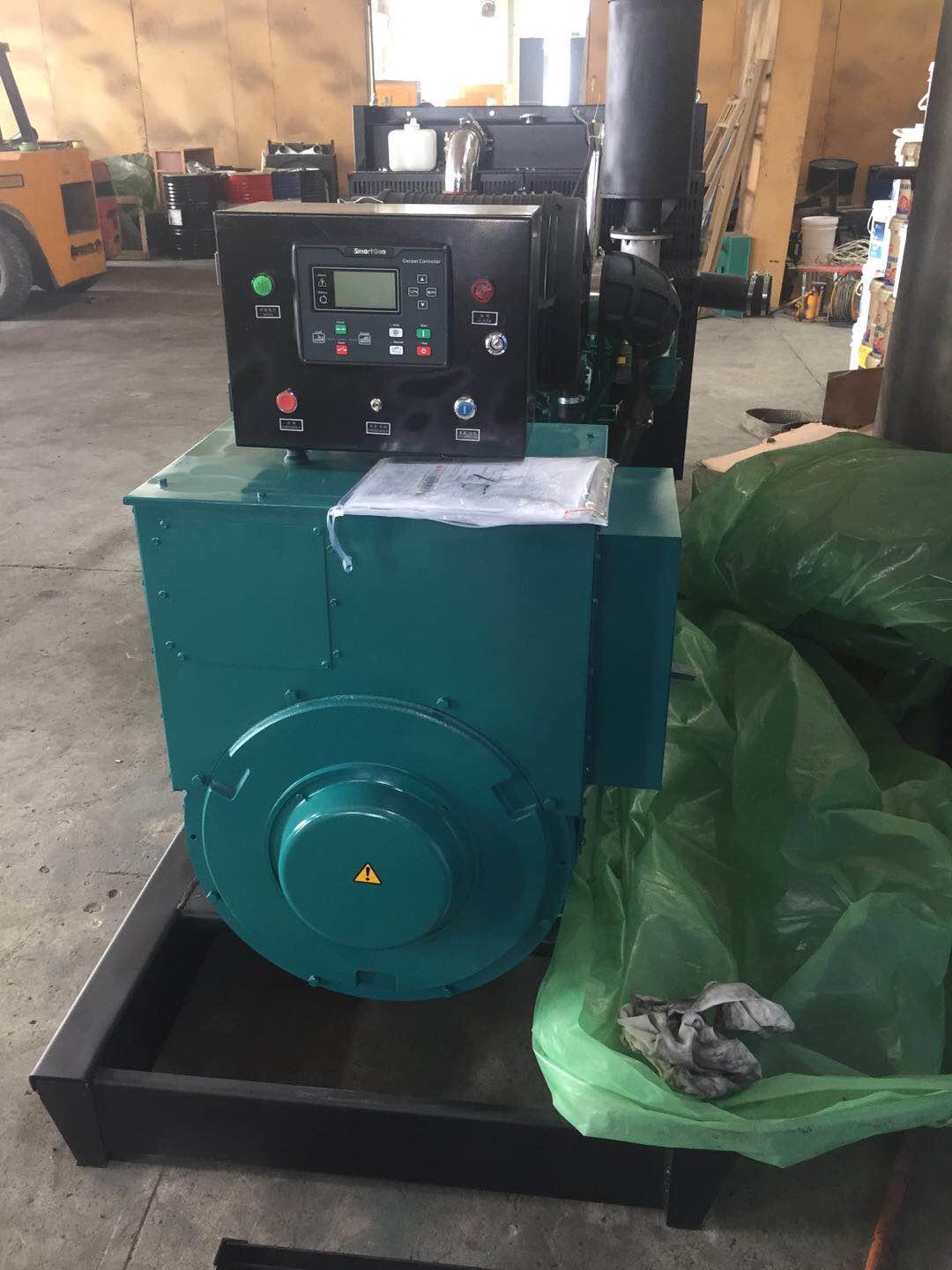

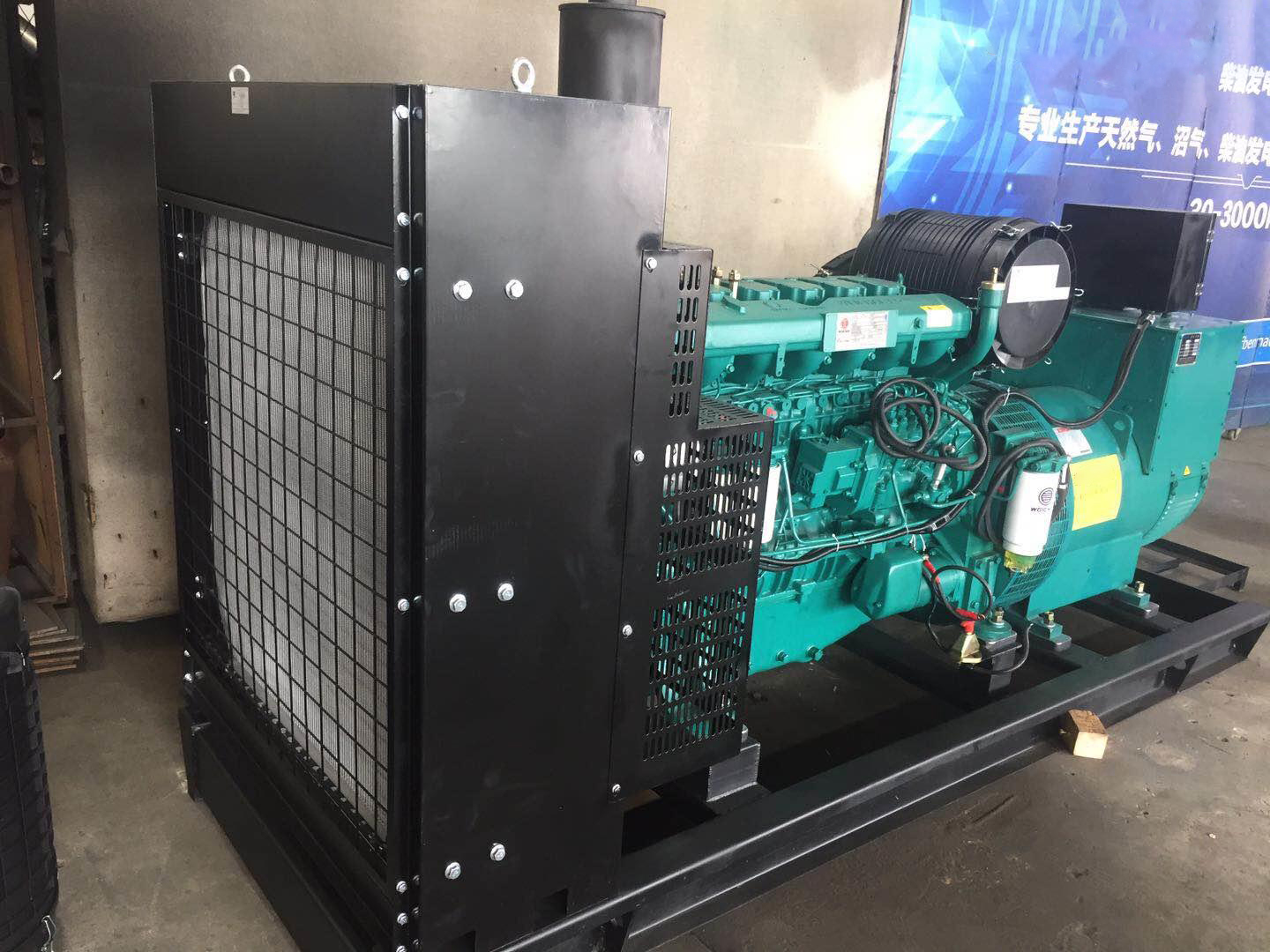

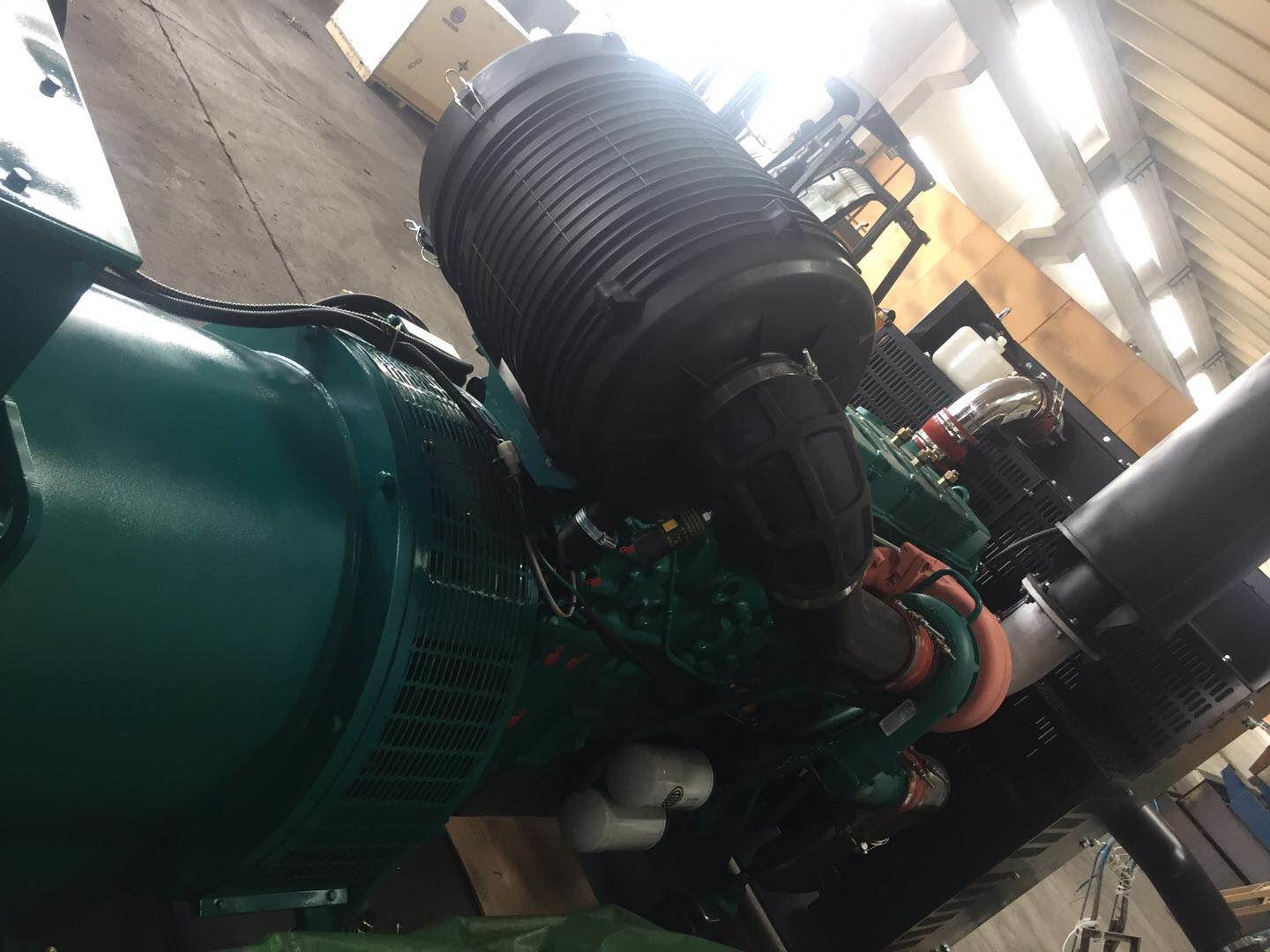

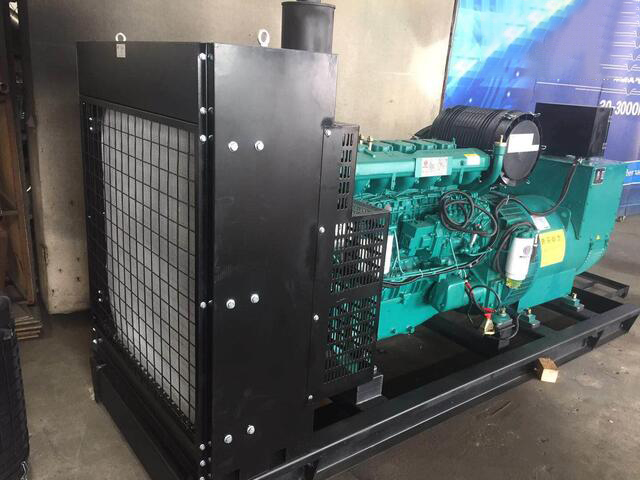

300KW diesel generator equipment pictures:
