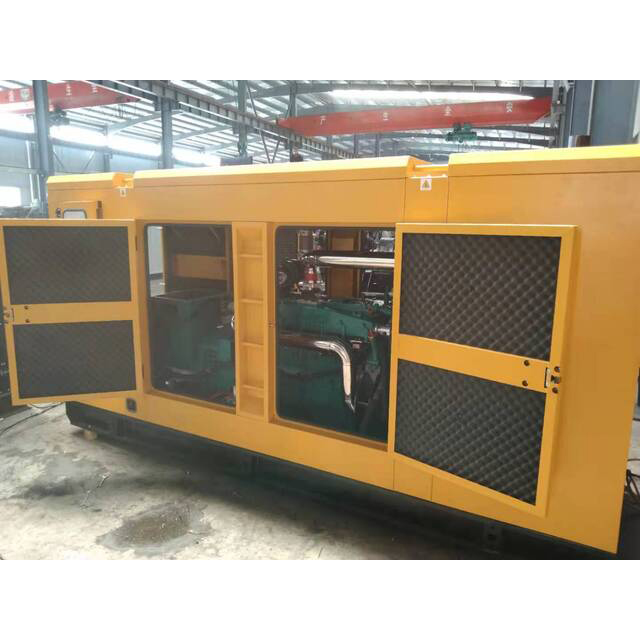

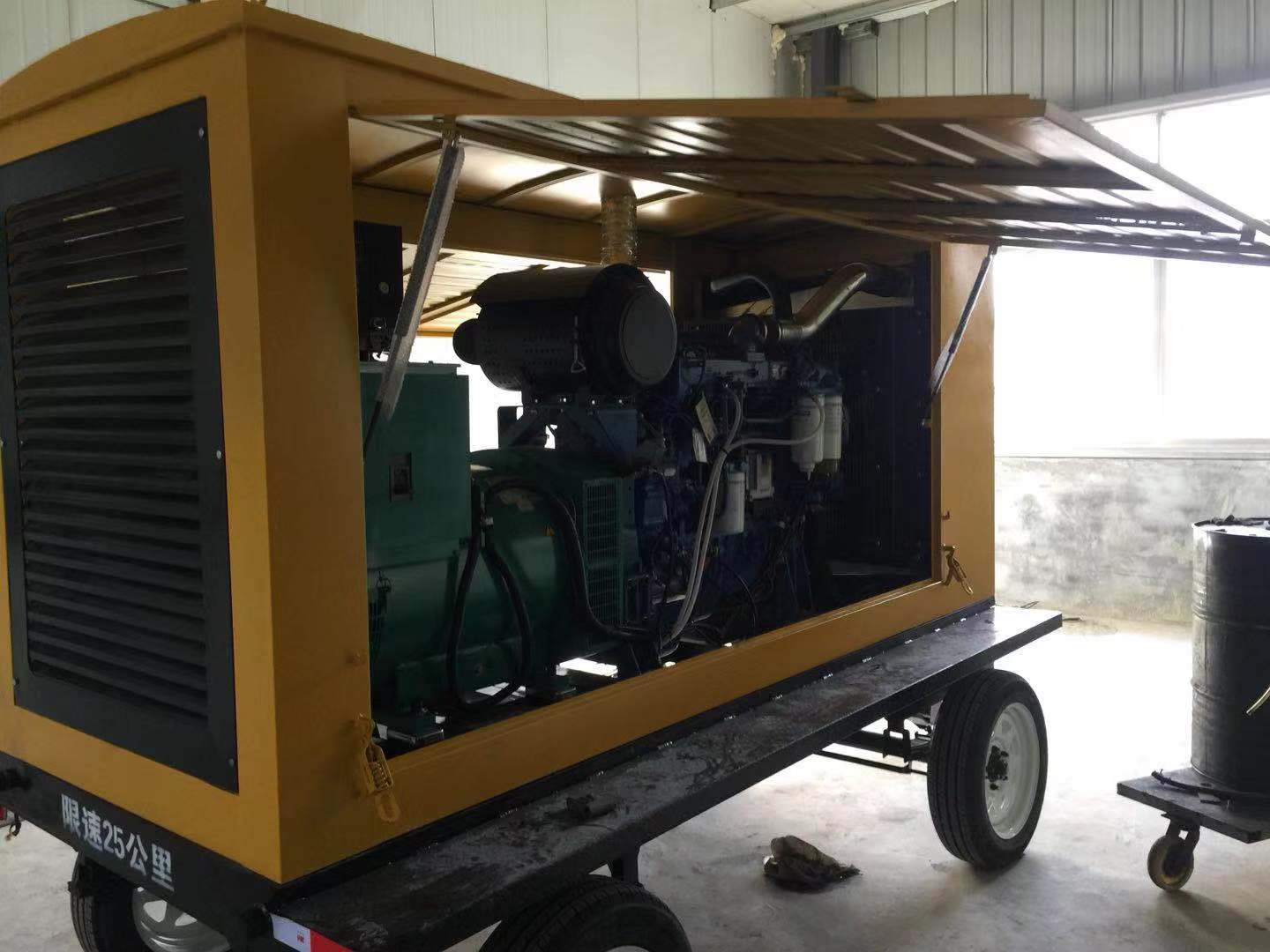

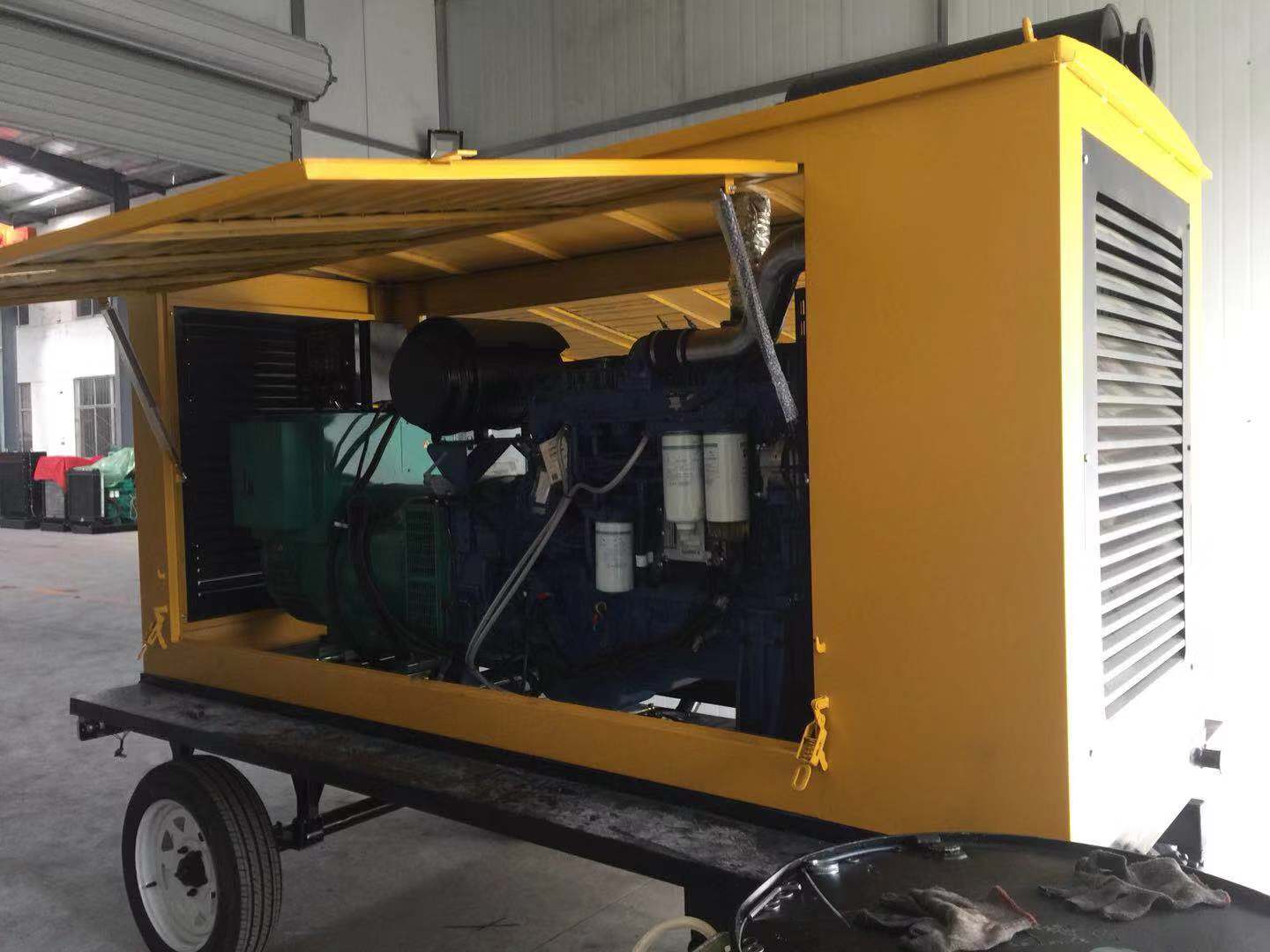

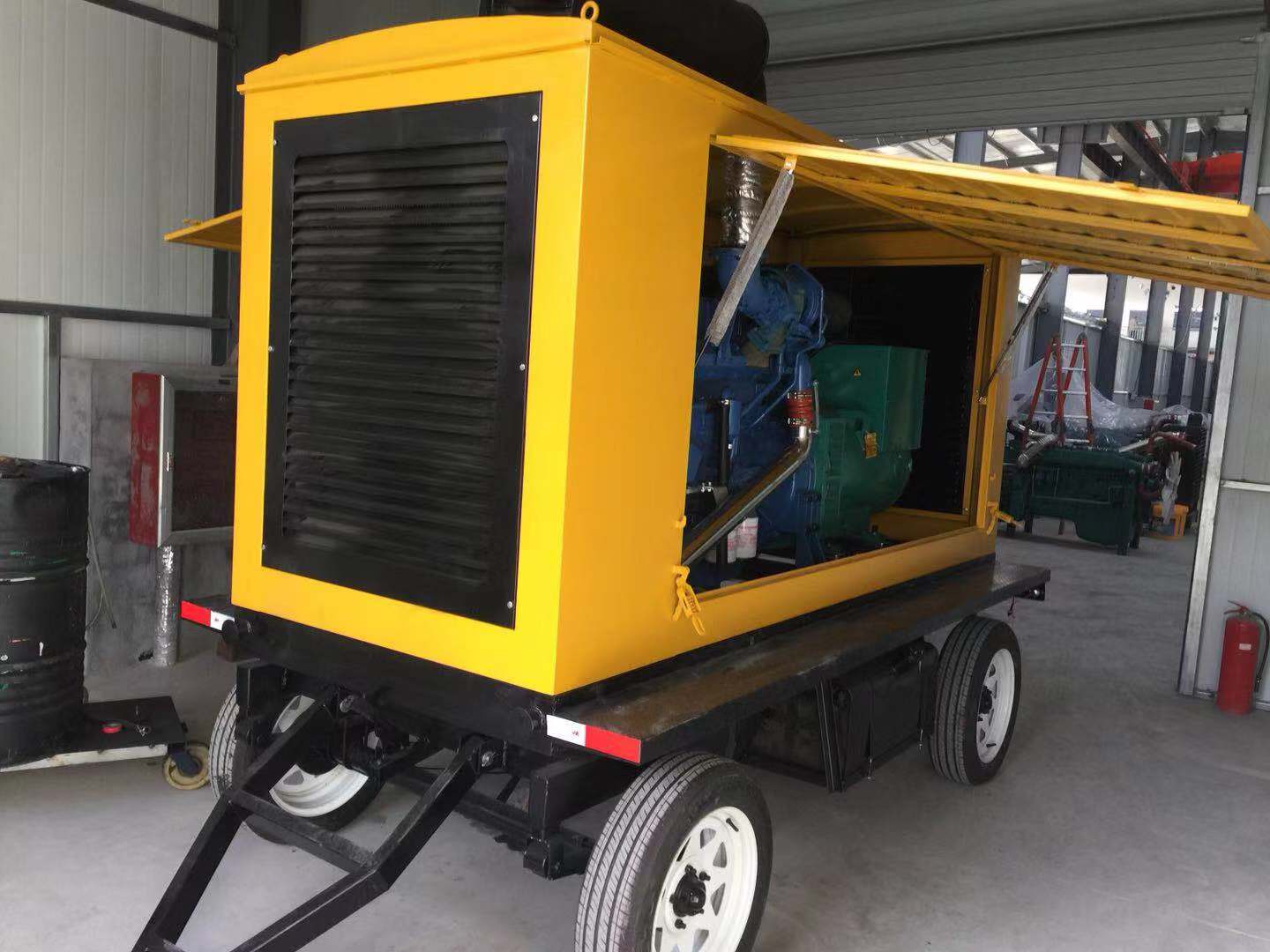

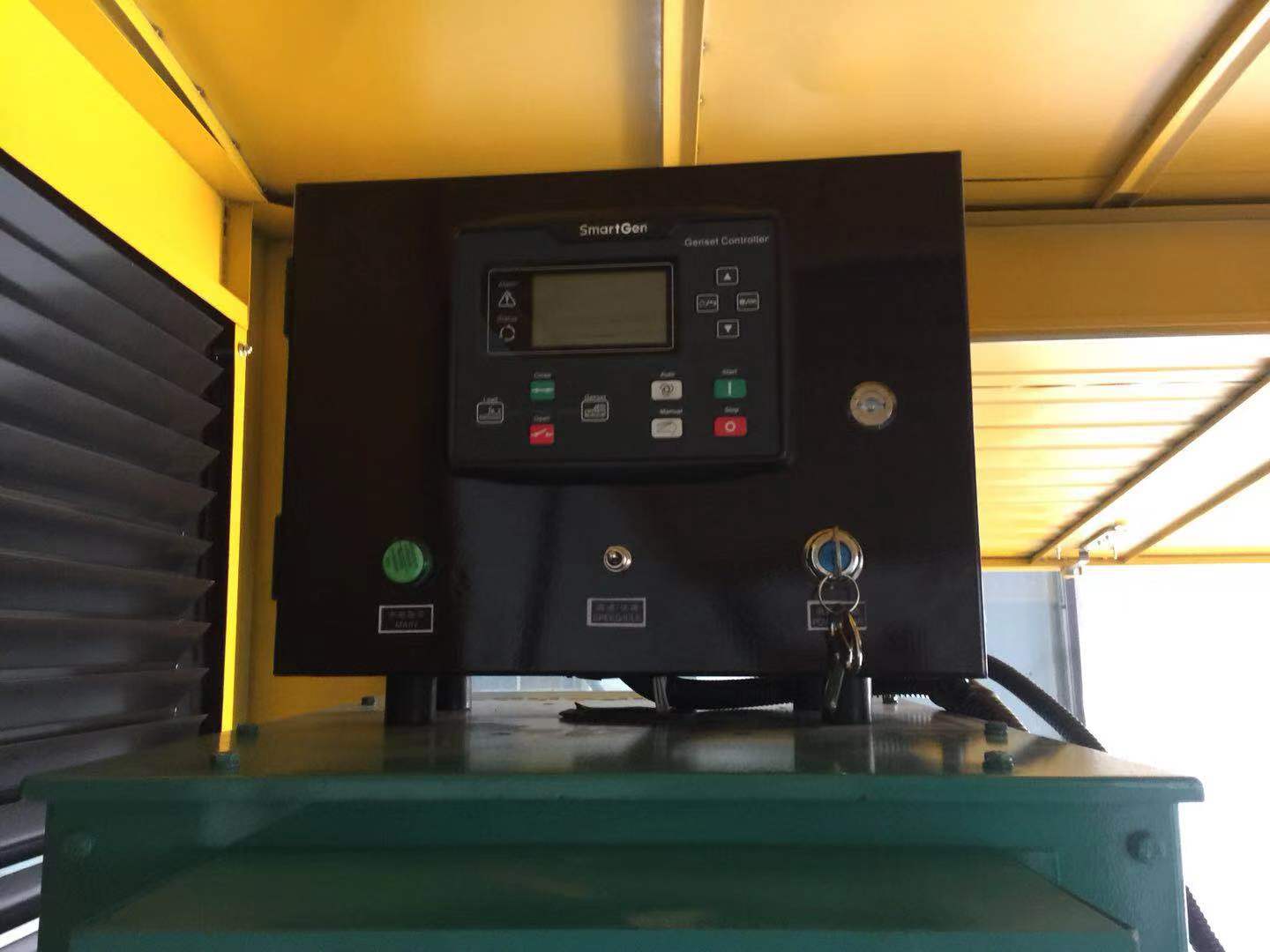

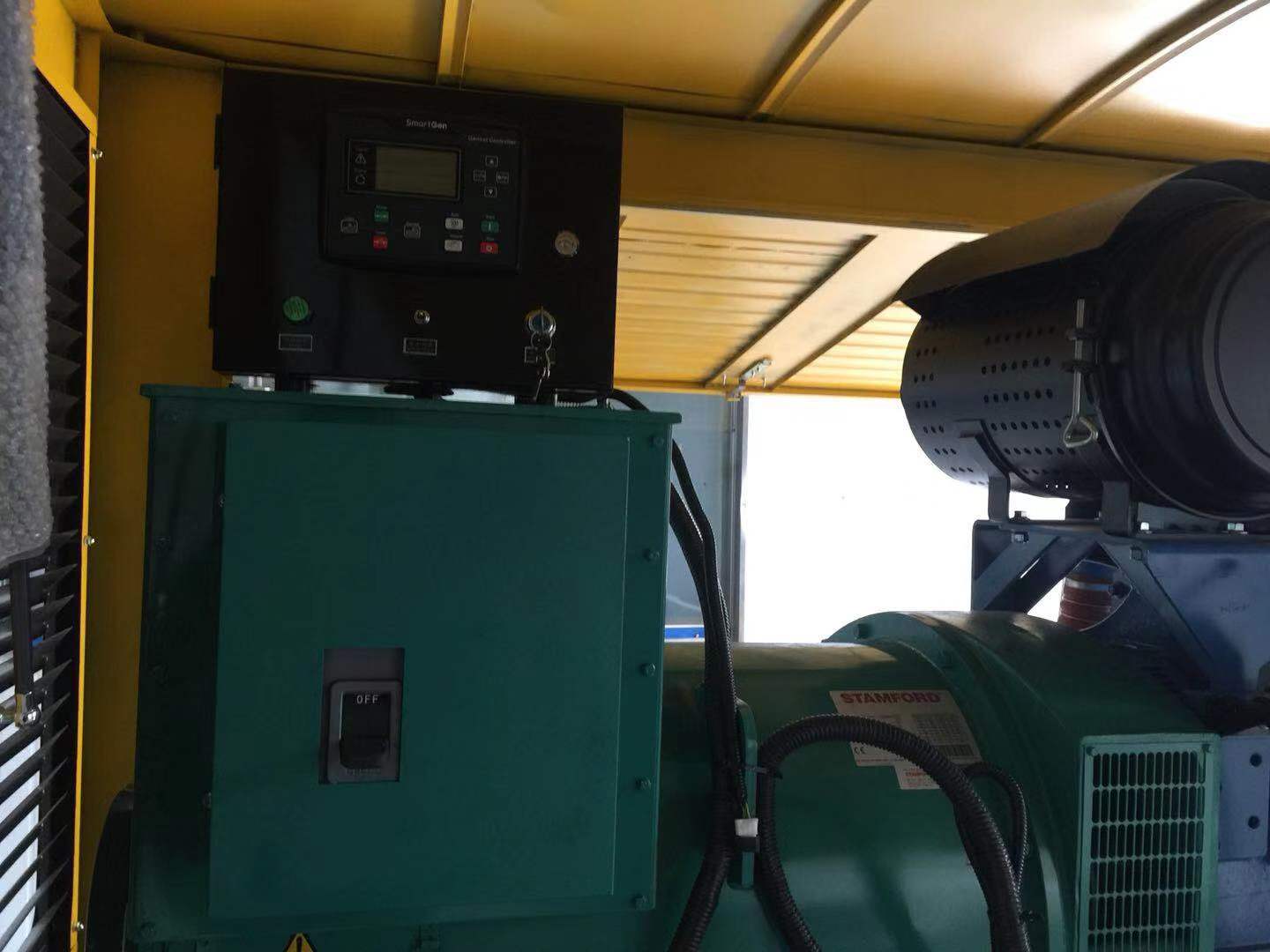

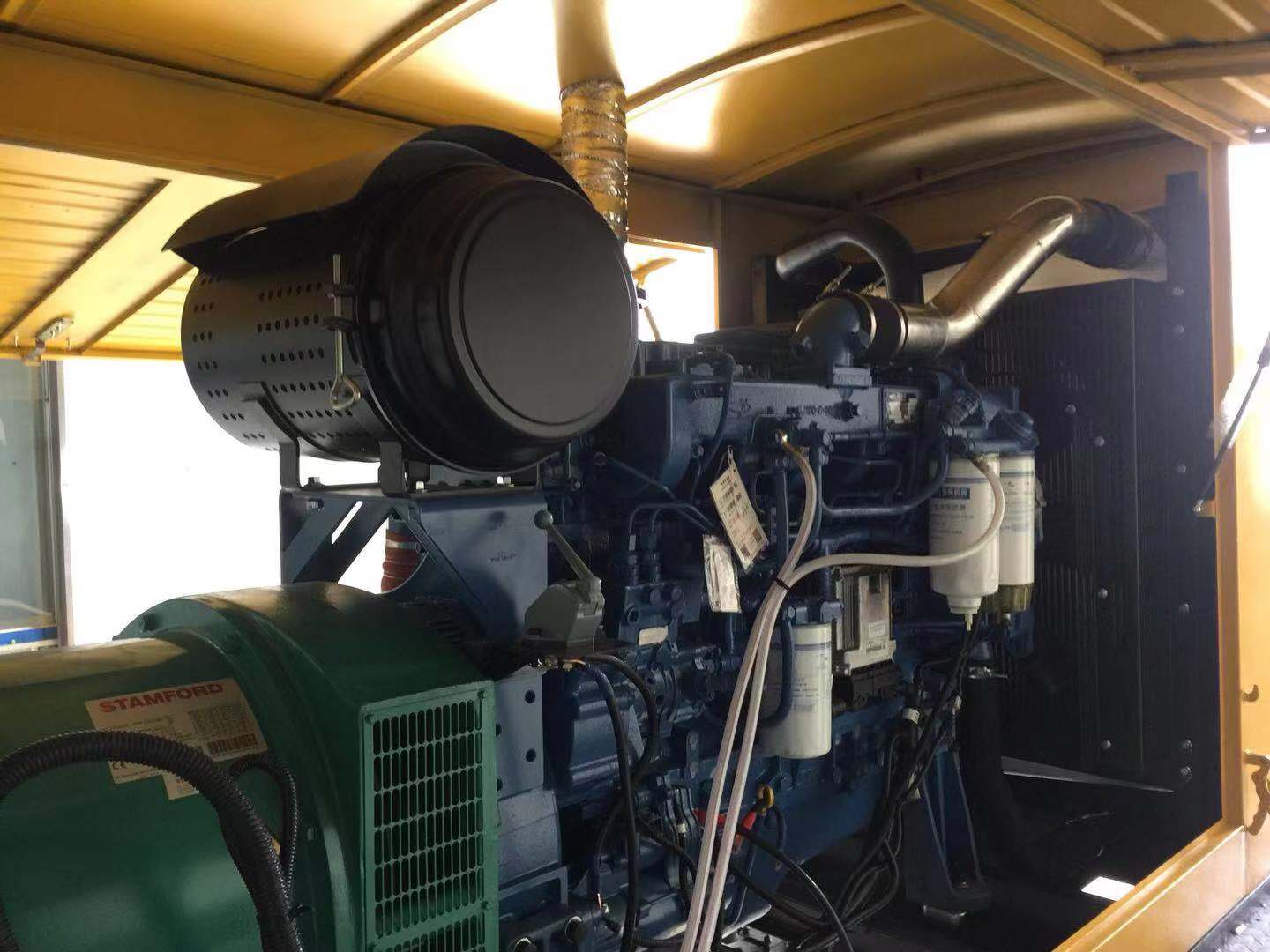

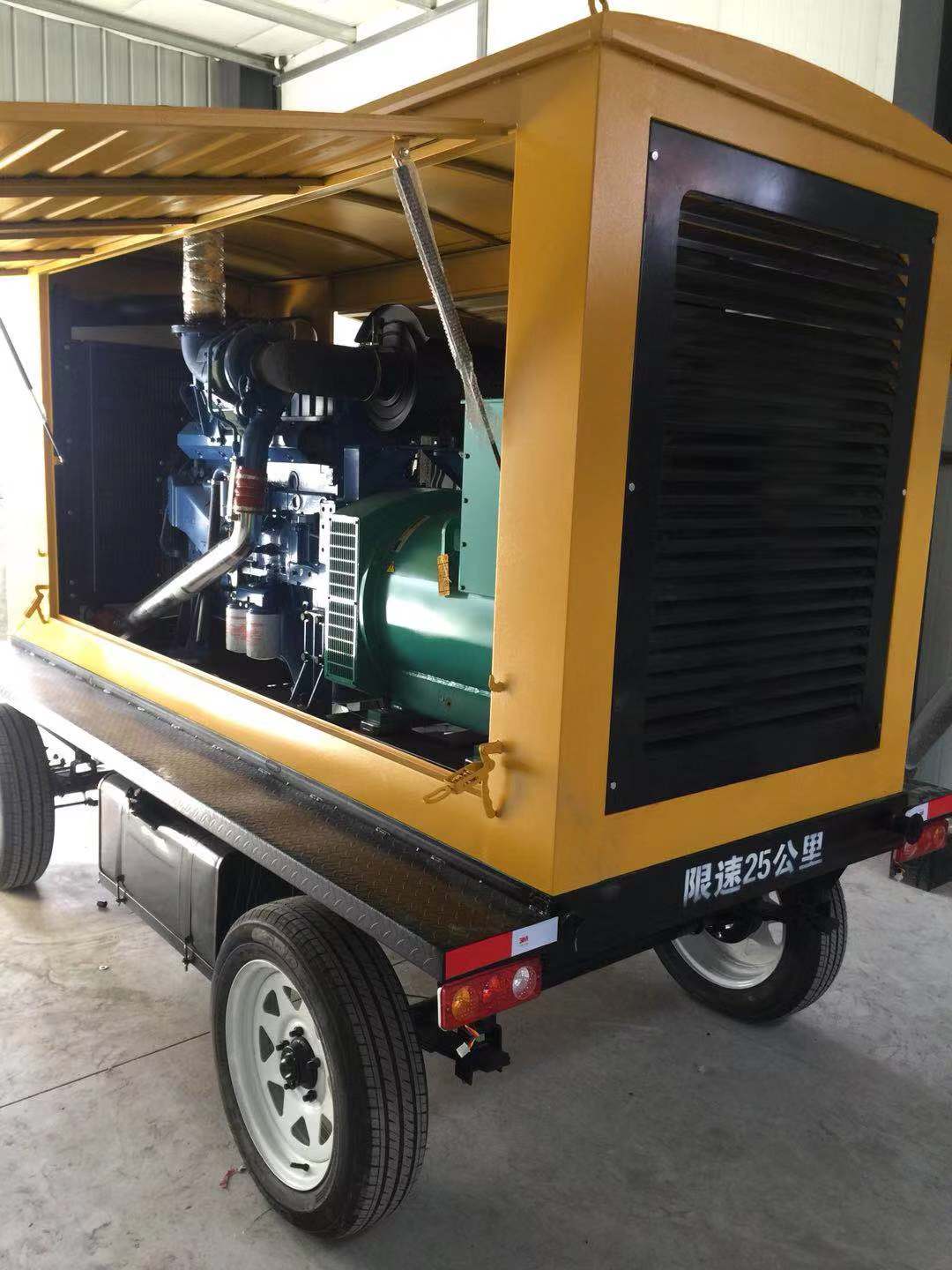

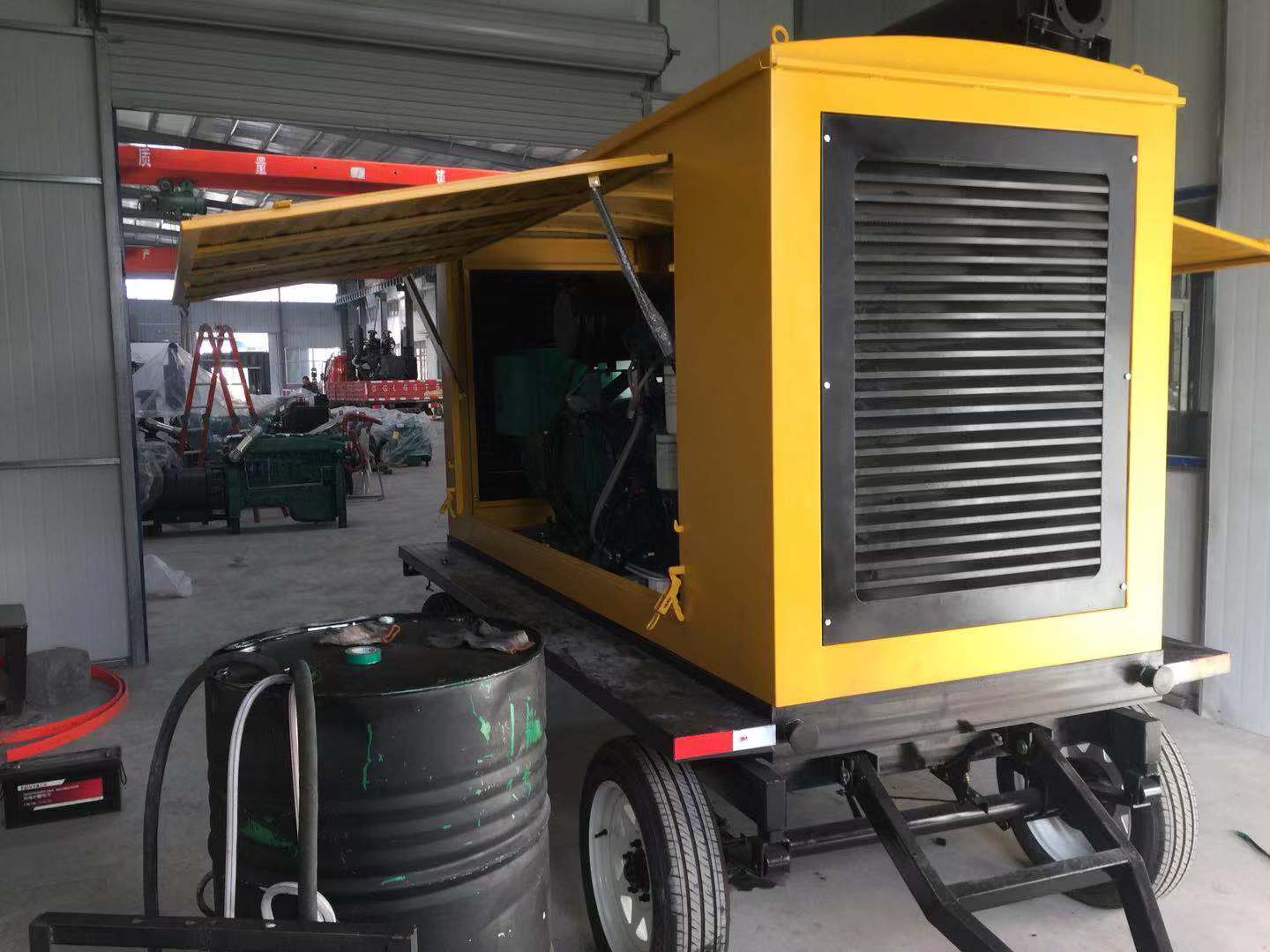

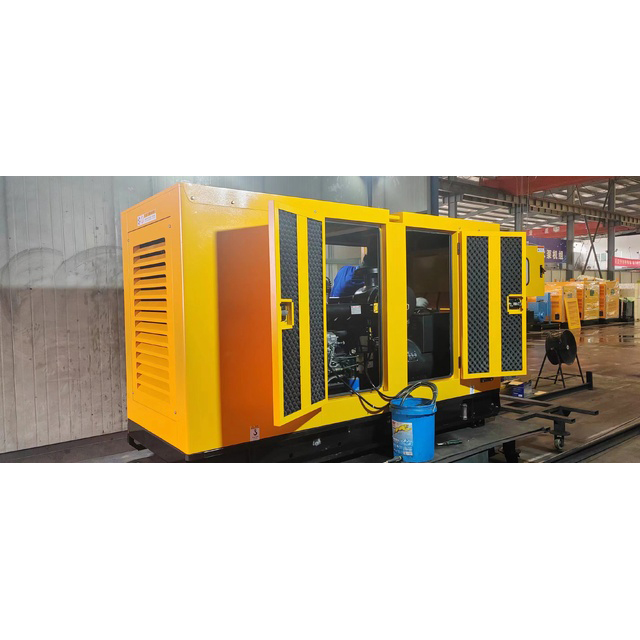

250KW mobile trailer diesel generator equipment picture:

250KW mobile trailer diesel generator equipment parameters:



Technical parameters of Yuchai 250KW diesel generator set
1. Unit model: GF-250
2. Unit power: 250KW
3. Generator model: SF-250-4
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): ≤195
9. Output current (A): 450
10. Number of phases/wires: three-phase four-wire
12. Overall dimensions (mm): 3000*1050*1580
13. Weight: 2300Kg II. Technical parameters of
Yuchai YC6MK420L-D20 diesel engine
1. Diesel engine model: YC6MK420L-D20
2. Standby power: 309KW
3. Manufacturer: Yuchai Machinery Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 24V DC start
6. Intake method: Turbocharged intercooler
7. Number of cylinders: 6
8. Cylinder bore/stroke: 123/145mm

9. Total cylinder displacement L: 10.34
10. Cooling water capacity L: 50
11. Engine oil capacity L: 28
12. Engine oil consumption rate (g/Kw*h): ≤0.15
13. Compression ratio: 16.8:1
14. Fuel supply method: Direct injection
15. Cylinder arrangement: Vertical
16. Intercooler: Water intercooler
17. Fuel model: Domestic 0# light diesel
18. Speed control method: Electronic speed control
19. Engine oil model: WD/40
20. Dimensions (mm): 1820*900*1370
21. Weight: 1030Kg
