150KW Cummins diesel generator
| Dongkang 150kW diesel generator set parameters | ||||
| Unit Model | BM-150 | Unit weight | 2100KG | |
| Output Power | 150KW/187KVA | Unit size | 2500×860×1563mm | |
| Power Factor | COSΦ=0.8(hysteresis) | Voltage | 400/230 | |
| Output Current | 271A | frequency | 50Hz | |
| Dongkang 150kW diesel generator set - [Diesel engine] parameters | ||||
| Engine Manufacturer | Dongfeng Cummins | |||
| Engine Model | 6CTA8.3-G2 | Exhaust volume | 8.30L | |
| Speed | 1500RPM | Coolant capacity | / | |
| power | 180/163KW | Number of cylinders | Inline 6 cylinders, 4-stroke, water-to-air intercooling | |
| Fuel consumption | ≤205g/kw.h | Engine cooling method | Closed loop water cooling | |
| Lubricating oil capacity | 24L | Speed control system | Electronic speed control | |
| Bore x stroke | 114×135 mm | Startup method | 24V DC start | |
| Compression ratio | 17.3:1 | Engine filtration system | Dry air filter, fuel filter, oil filter | |
| 150kW Diesel Generator Set - [Generator] Parameters | ||||
| Manufacturer | Galloping Power | |||
| model | RLW150 | Steady-state frequency change rate | Better than 5% | |
| Voltage control method | AVR (Automatic Voltage Stabilization) | No-load voltage adjustment range | ≥95%—105% | |
| Voltage Regulation | ±1% | Insulation grade/protection grade | H-class/IP22 | |
| Rated voltage/frequency/power factor | 400V/230V, 50Hz, 0.8 lag, three-phase four-wire | Excitation method | Brushless excitation | |
Generator set standard configuration | ||
Industrial water-cooled diesel engines | Pure copper motor, protection level IP22, insulation level | |
40℃ ambient temperature radiator, double-layer heat dissipation | Steel base | |
High efficiency shock absorber | Outlet switch | |
Muffler | Maintenance-free battery | |
Engine and generator random documents | Generator set instructions and operation manual | |
Optional accessories | ||
Floating Charger | ATS automatic load switching screen | |
Rainproof generator set (cabinet) | Silent generator set (cabinet) | |
Self-protection and self-starting unit control panel | Unit control panel with "three remote" functions | |
Mobile trailer power station (cabinet trailer) | Silent mobile power station (cabinet trailer) | |
Oil, diesel, water jacket, anti-condensation heater | Split daily fuel tank, integrated base fuel tank | |
Remark: 1. The unit is installed on a heavy steel structure frame, with a fully welded structure and integrated design. The frame design takes into account the wet weight and dynamic load of the unit, as well as the stress analysis of the installation support. 2. Install high-efficiency shock absorbers between the engine foot, alternator foot and base. They can absorb most of the vibration of the unit and can effectively isolate the impact of external vibration on the unit. 3. DC starter motor, charger, maintenance-free starting battery. The engine's CCA (cold starting current) and battery's AH (capacity) are taken into consideration when selecting. 4. For direct injection generator sets, there is no need to correct the power when the altitude is less than 1000 meters. Between 1000-3000 meters, the power should be corrected by 4% for every 500 meters increase; between 3000-5000 meters, the power should be corrected by 6% for every 500 meters increase. |

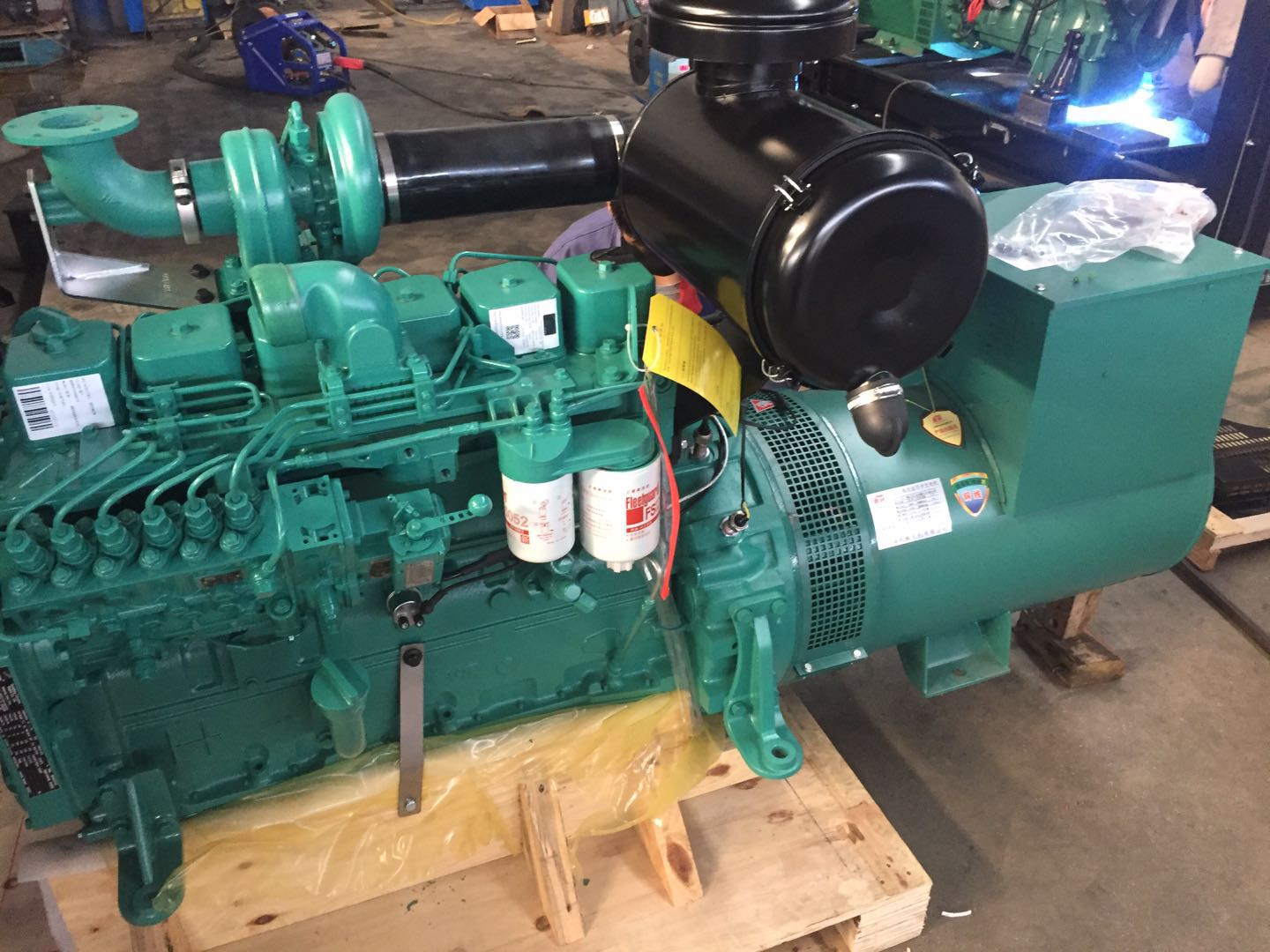

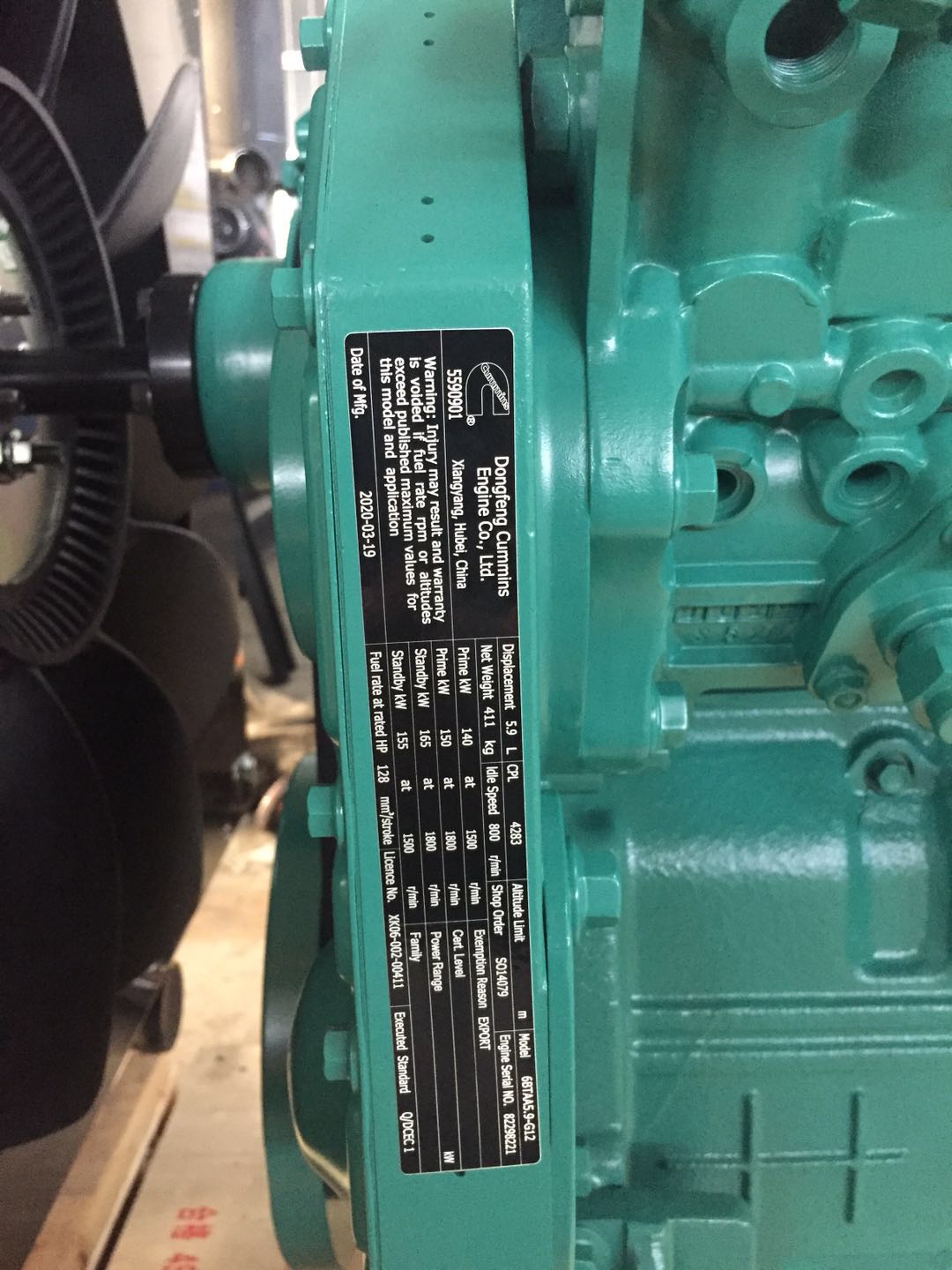

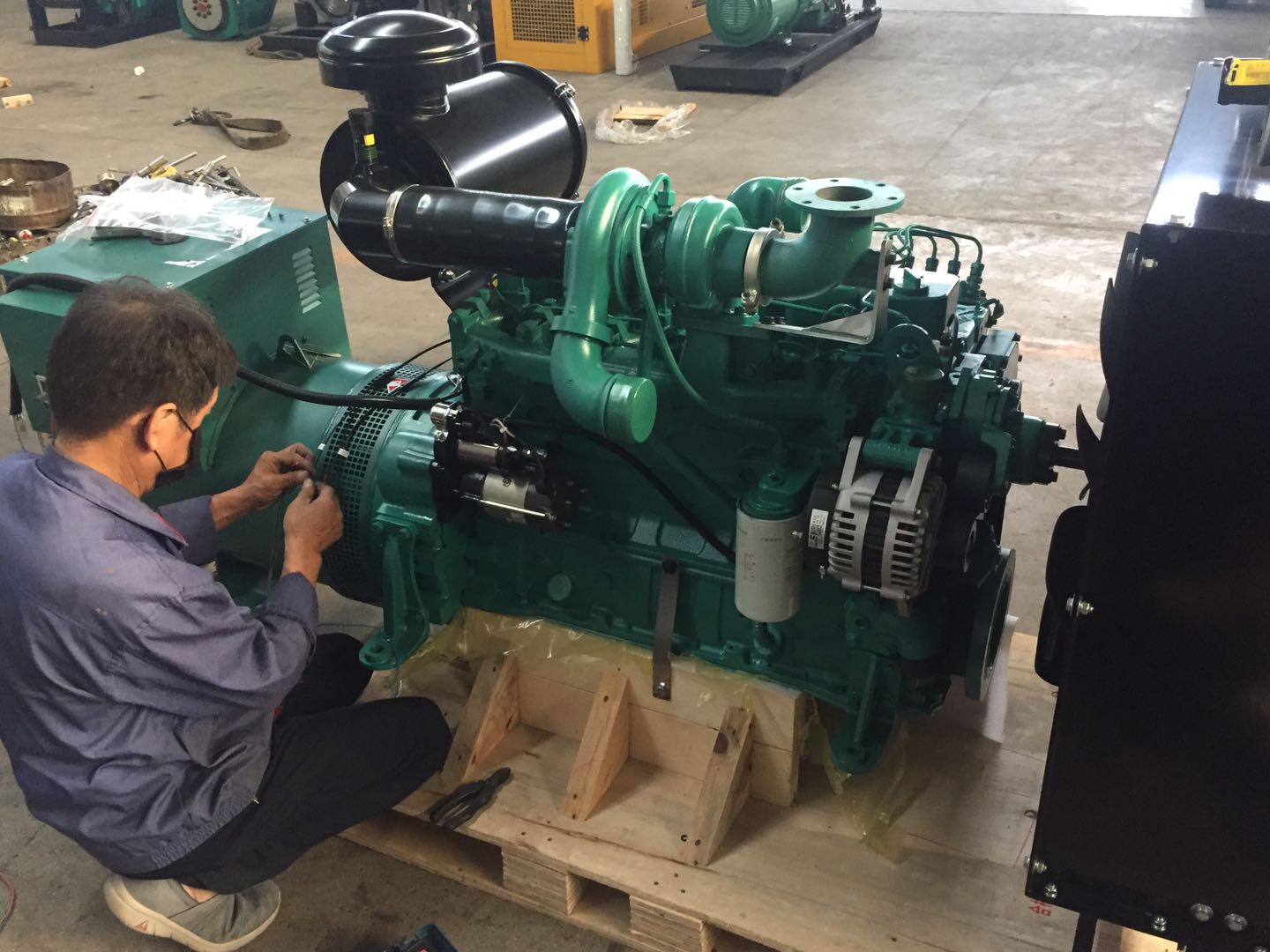

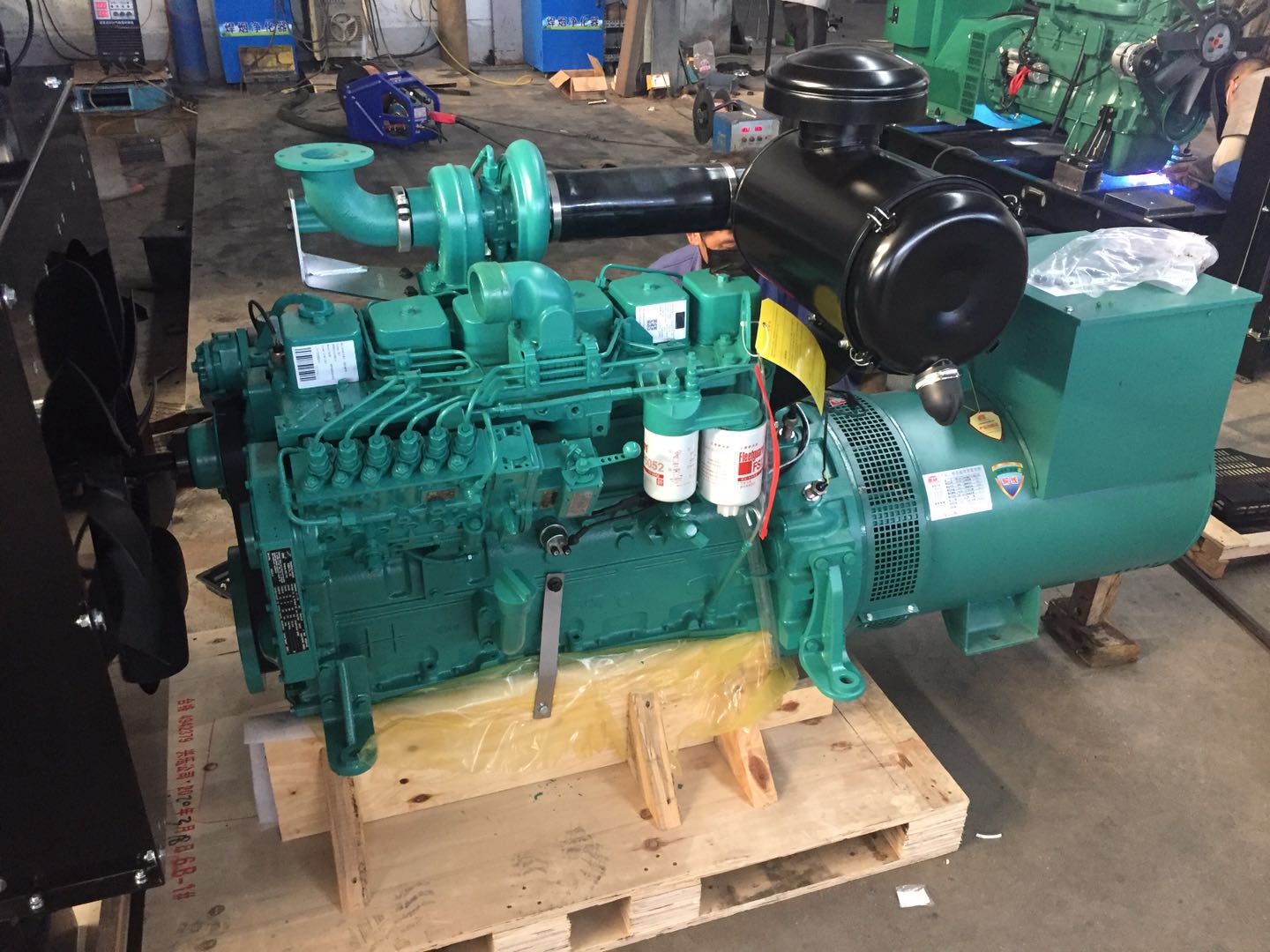

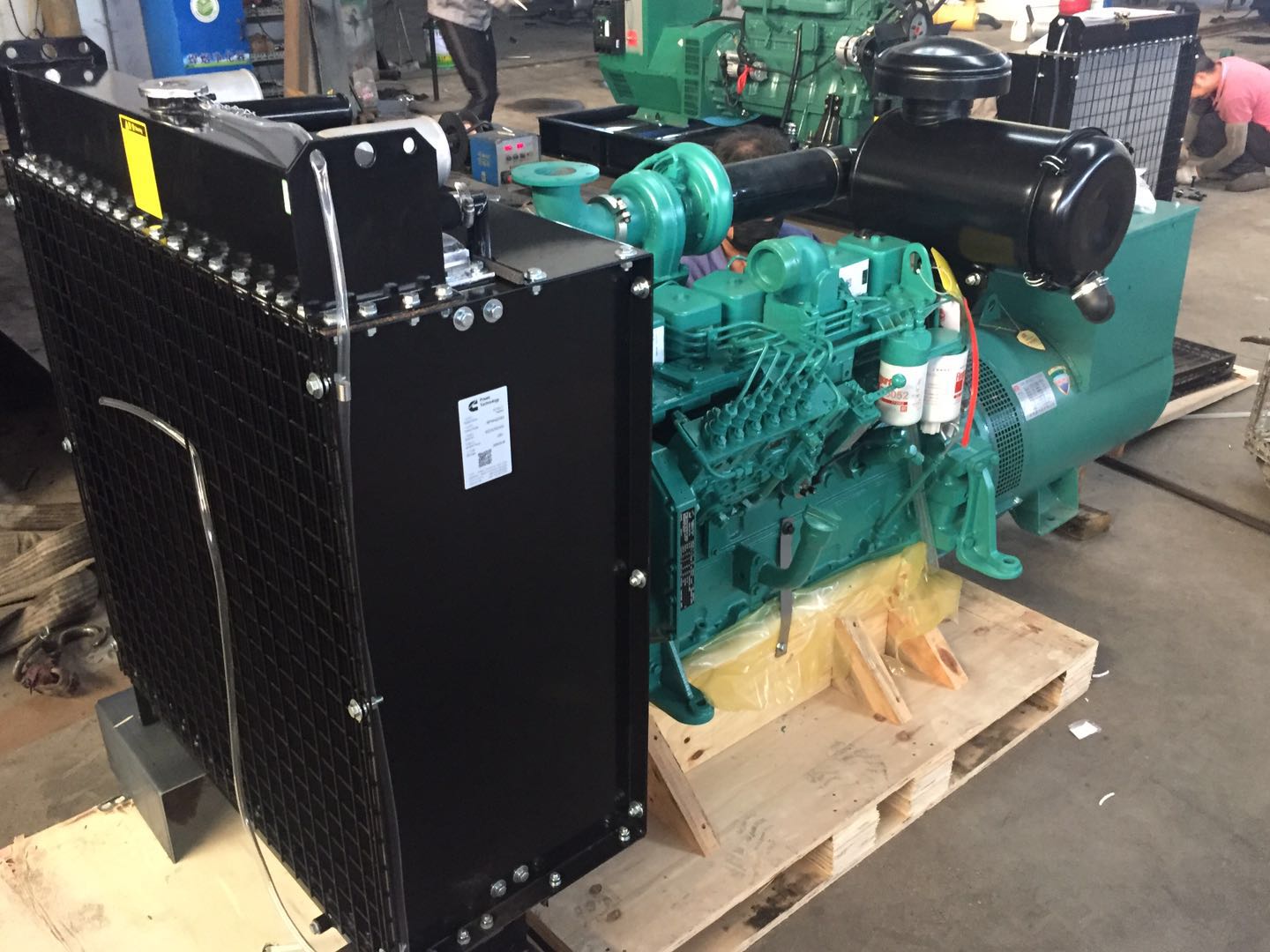

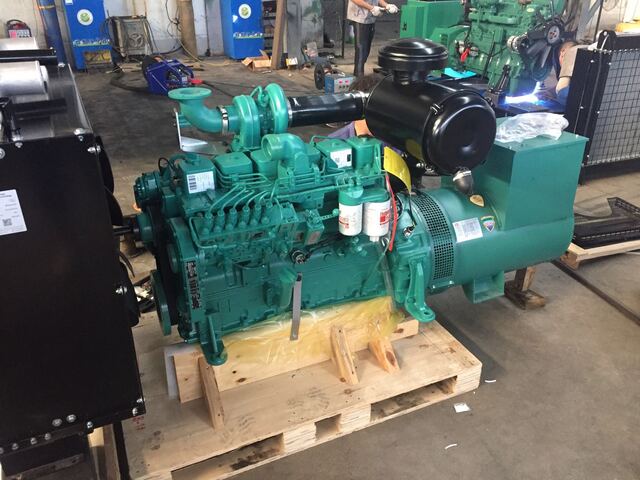

150KW Cummins diesel generator set equipment pictures:
