500KW Weichai Baudouin diesel generator set equipment parameters:



1. Technical Specifications



(1) Model: 500GF



Common power (KW): 500



Reserve power (KW): 572



Frequency: 50Hz



Output voltage: 400/230V



Speed: 1500rpm



Power factor: COSΦ=0.8 (lagging)



Fuel consumption (g/Kw*h): 210 (No. 0 diesel is recommended)



Output current (A): 900



Phase/wire number: three-phase four-wire



Noise LP7m: 105db



Overall dimensions (mm): 3000*1200*1600 (Applicable dimensions are subject to the actual product)



Weight: 3500Kg (weight is subject to the actual product)



(2) Diesel engine :



Brand: Baudouin



Place of Origin: Baudouin (Weifang) Power Co., Ltd.

Model: 6M33D572E200
Cooling start: Closed water cooling
Starting method: 24V DC start
Number of cylinders: 6
Displacement: 19.6L
Compression ratio: 15:1
Fuel supply method: Direct
injection Intake method: Turbocharged intercooling
Cylinder arrangement: V-type
Intercooling method: Water intercooling
Fuel model: Domestic 0# light diesel
Speed regulation method: Electronic speed regulation
Diesel engine coolant capacity: 41.63L
Diesel engine oil pan capacity: 60.5L Engine
oil model: WD/40
Cylinder bore/stroke: 150/185mm
Overall dimensions (mm): 2254*1138*1528
Diesel engine net weight (KG): 2090

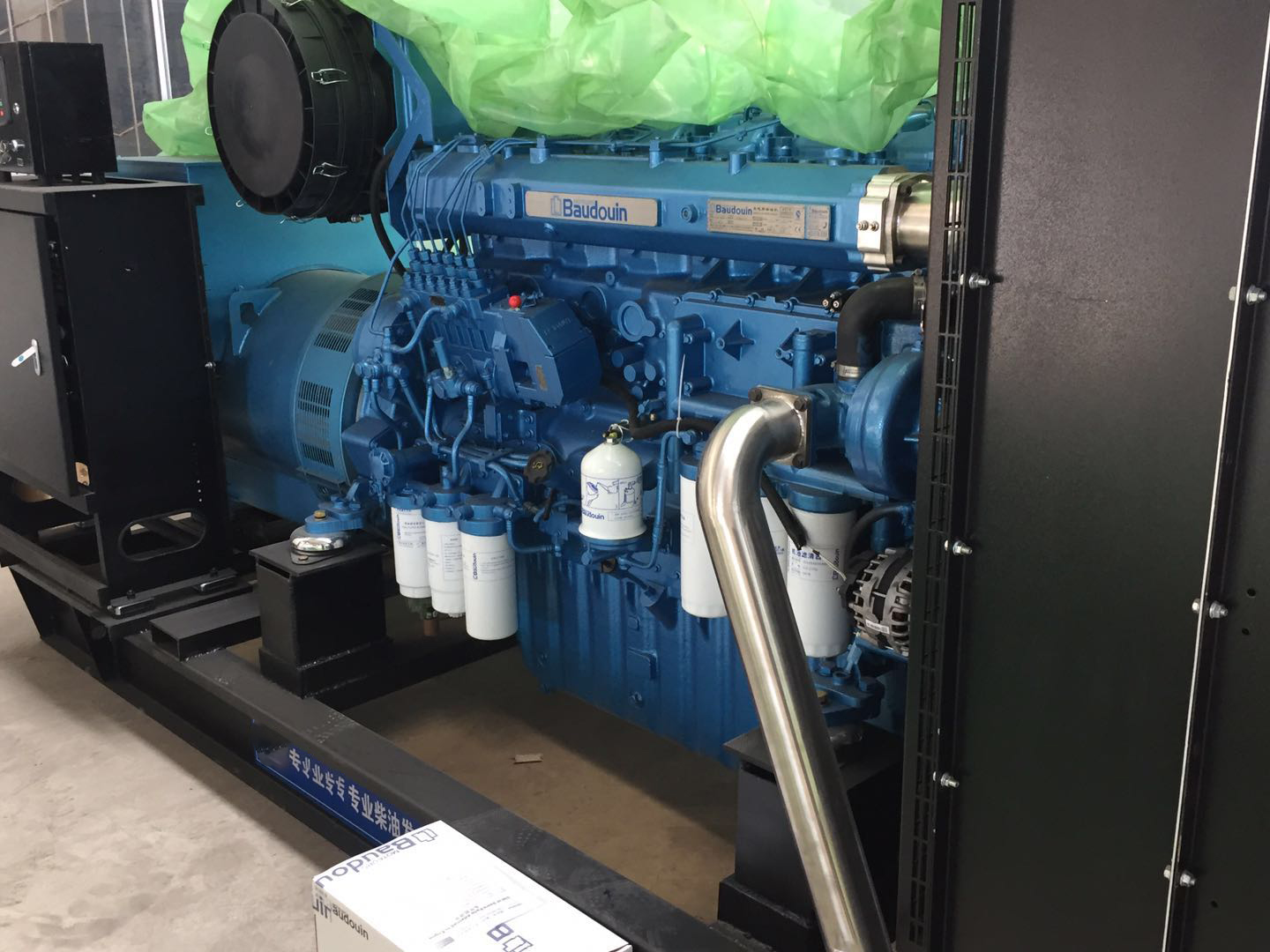

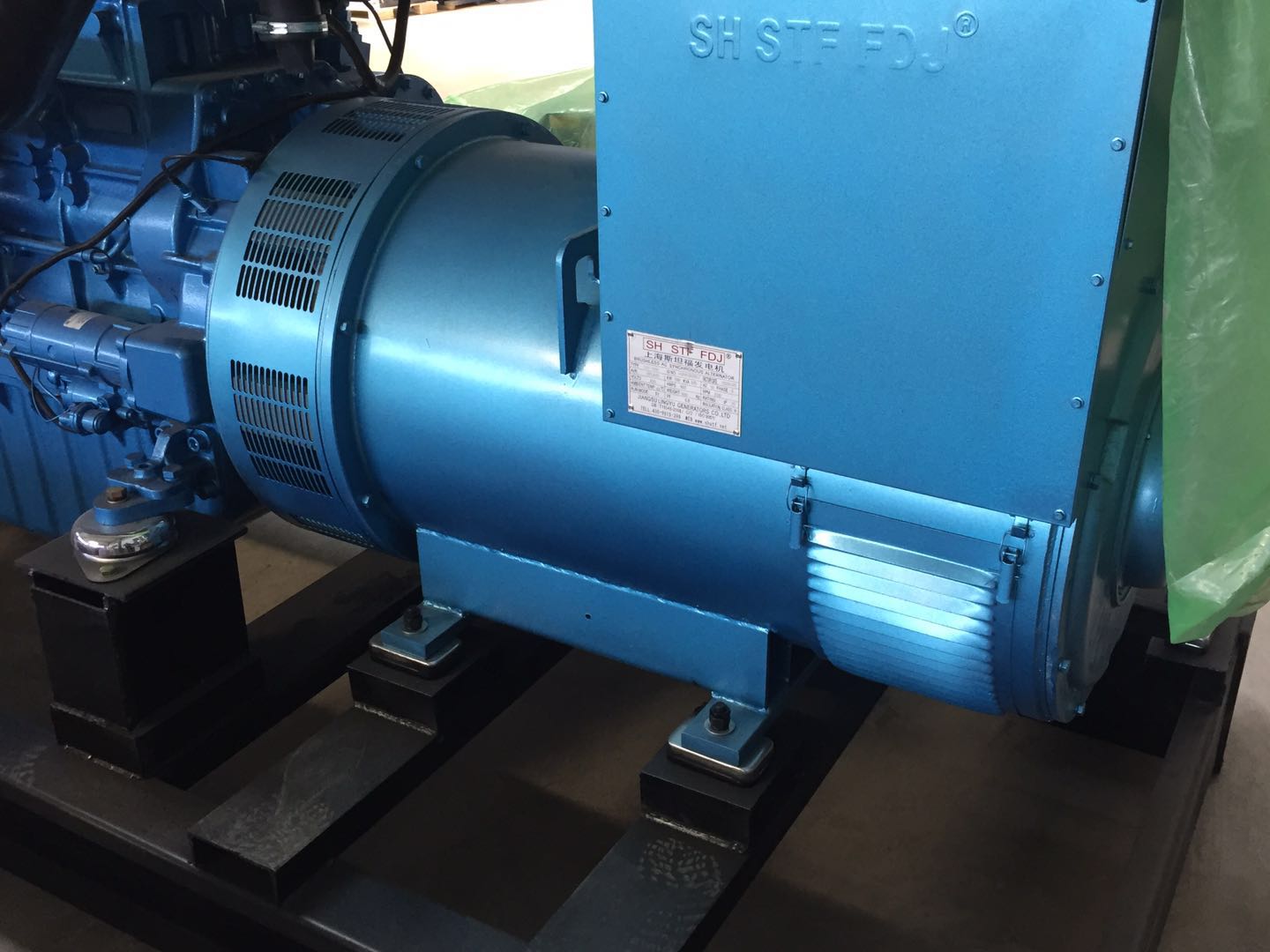

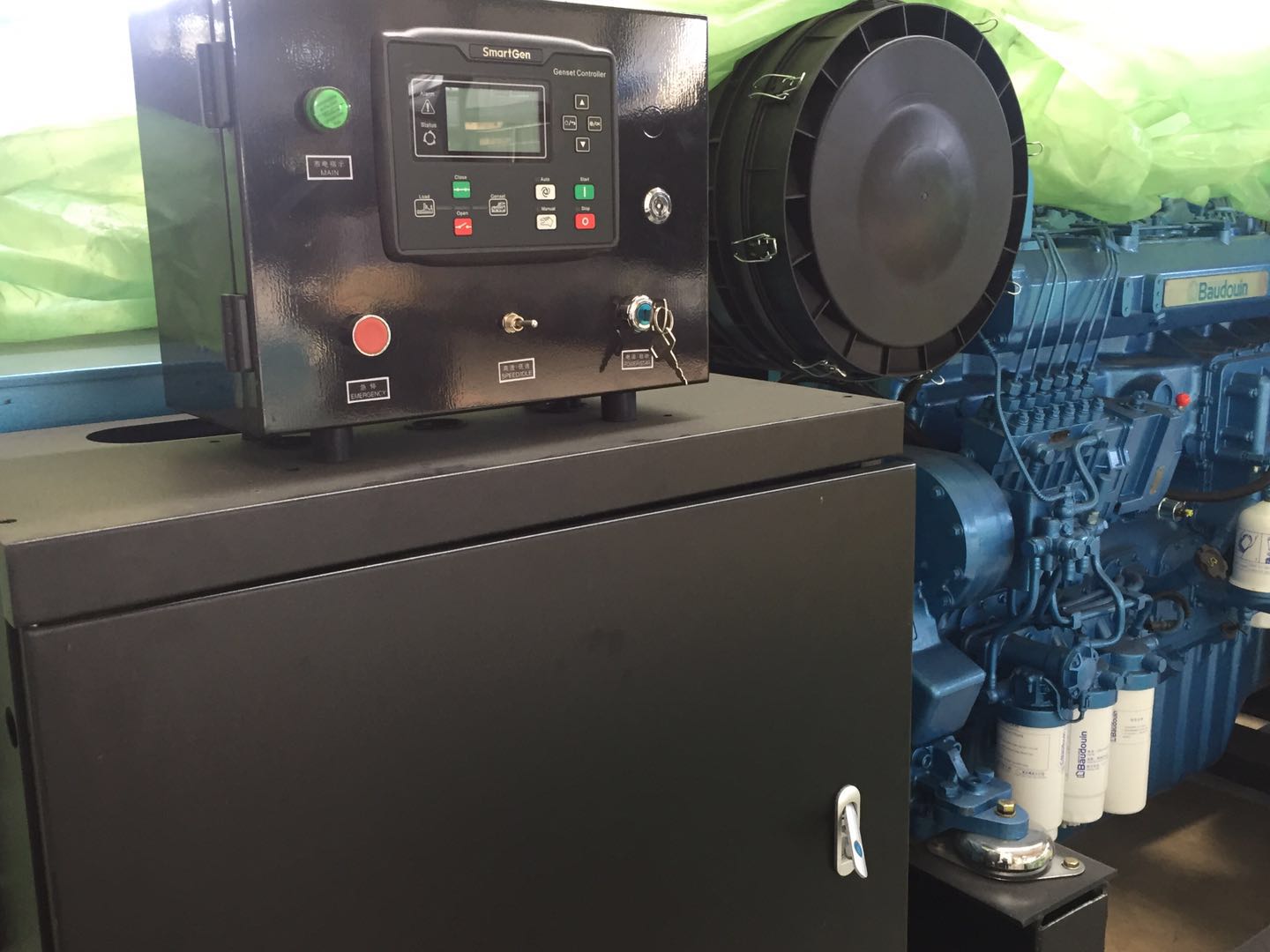

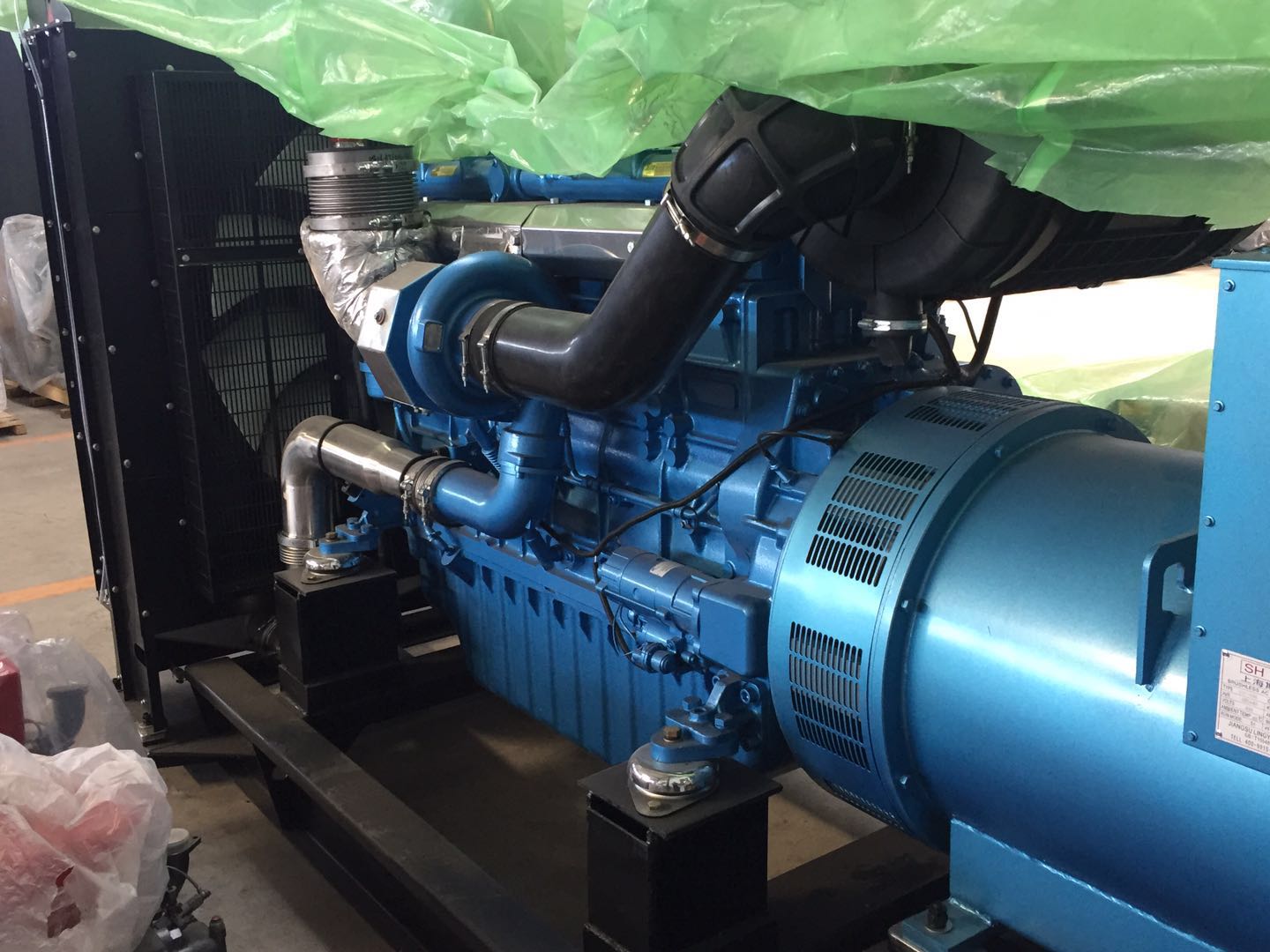

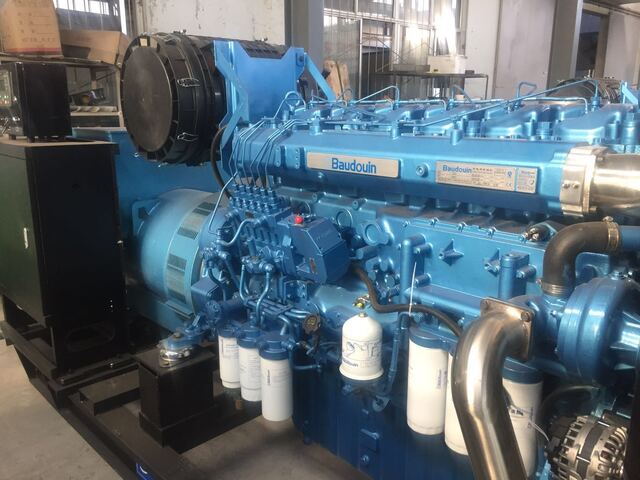

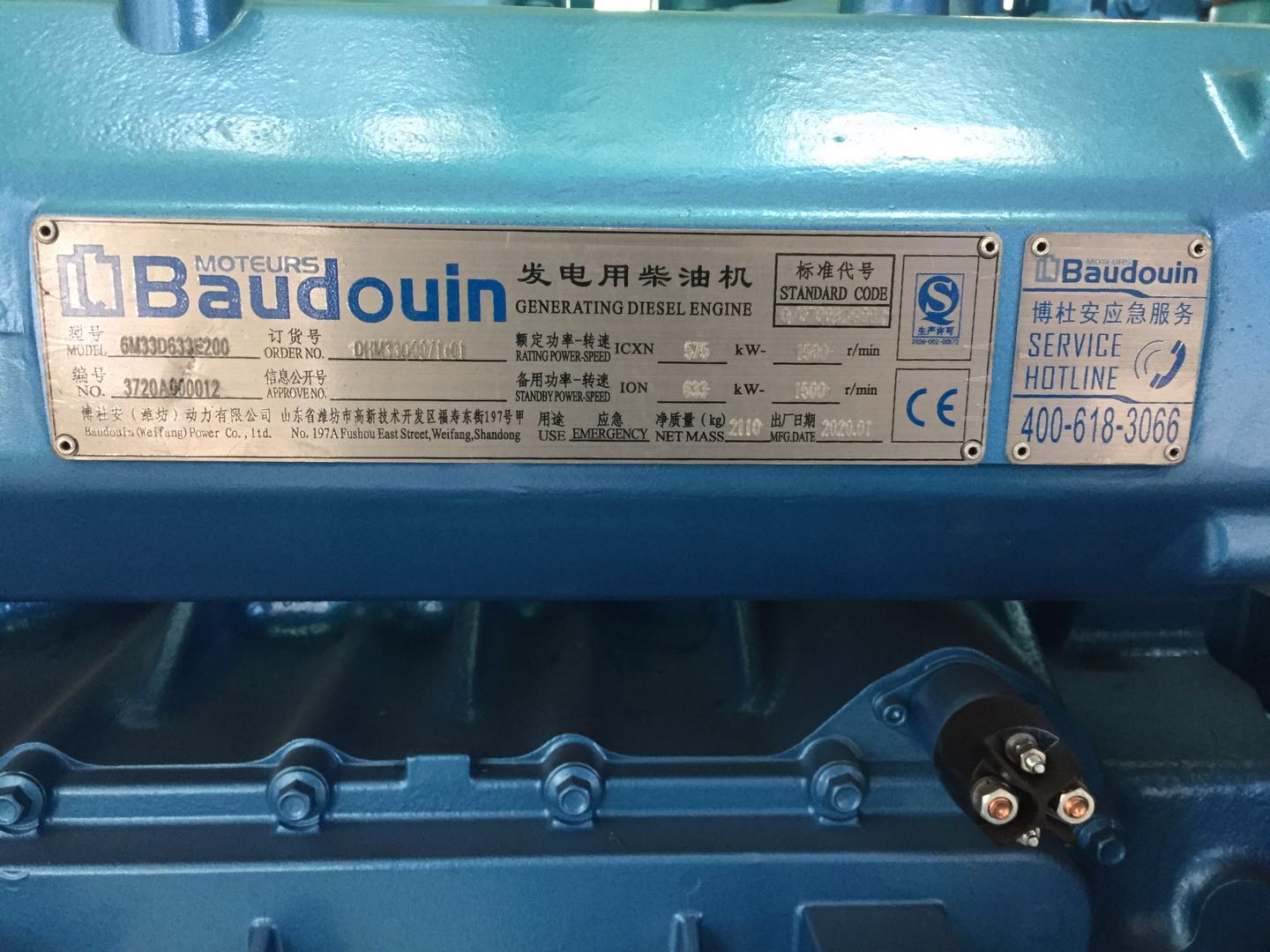

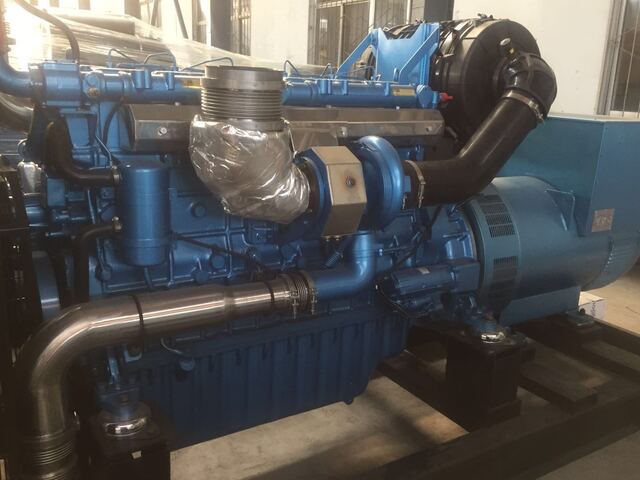

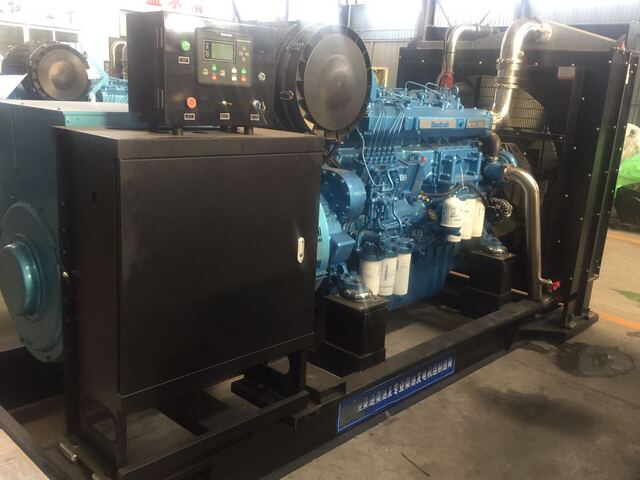

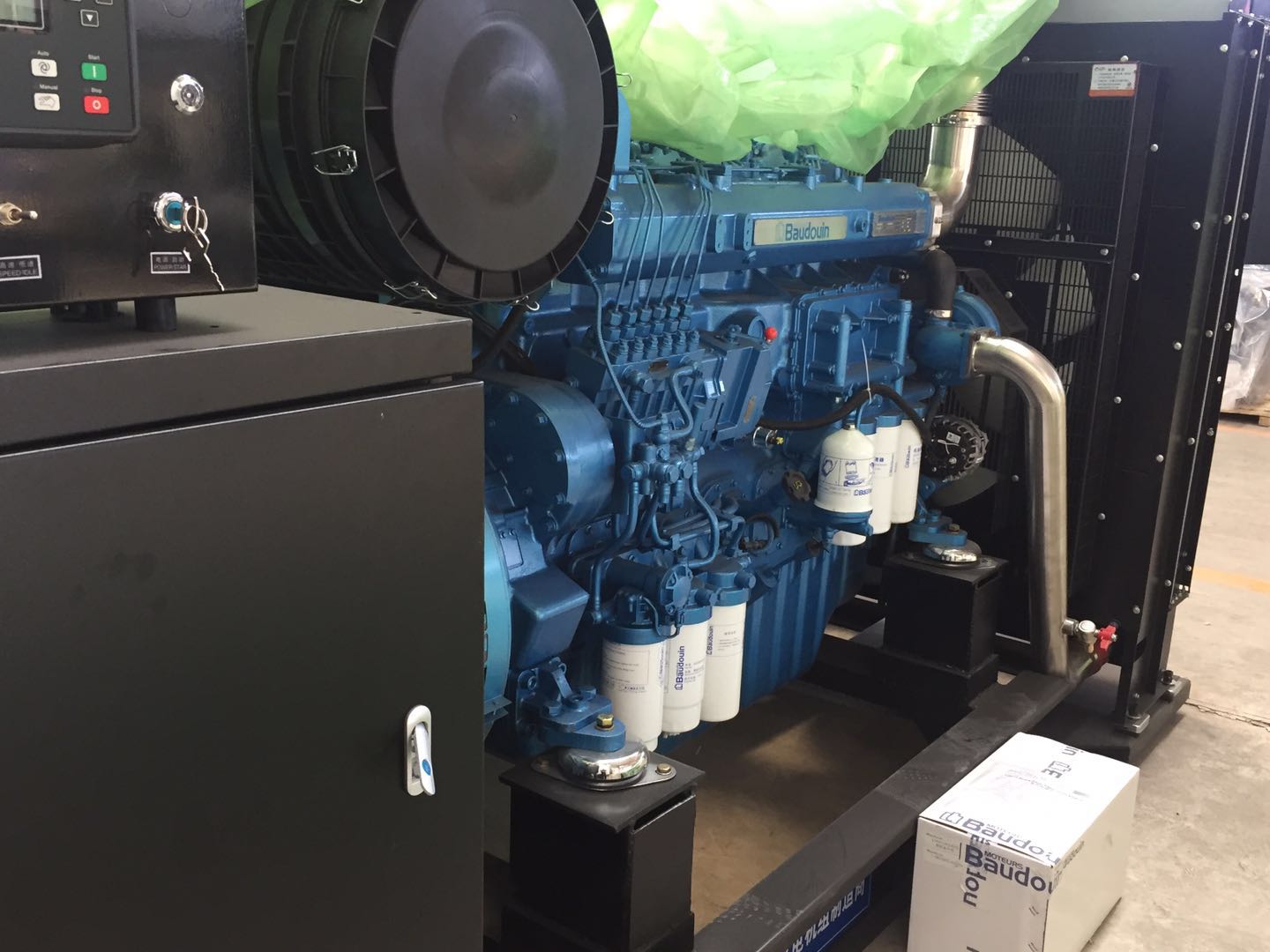

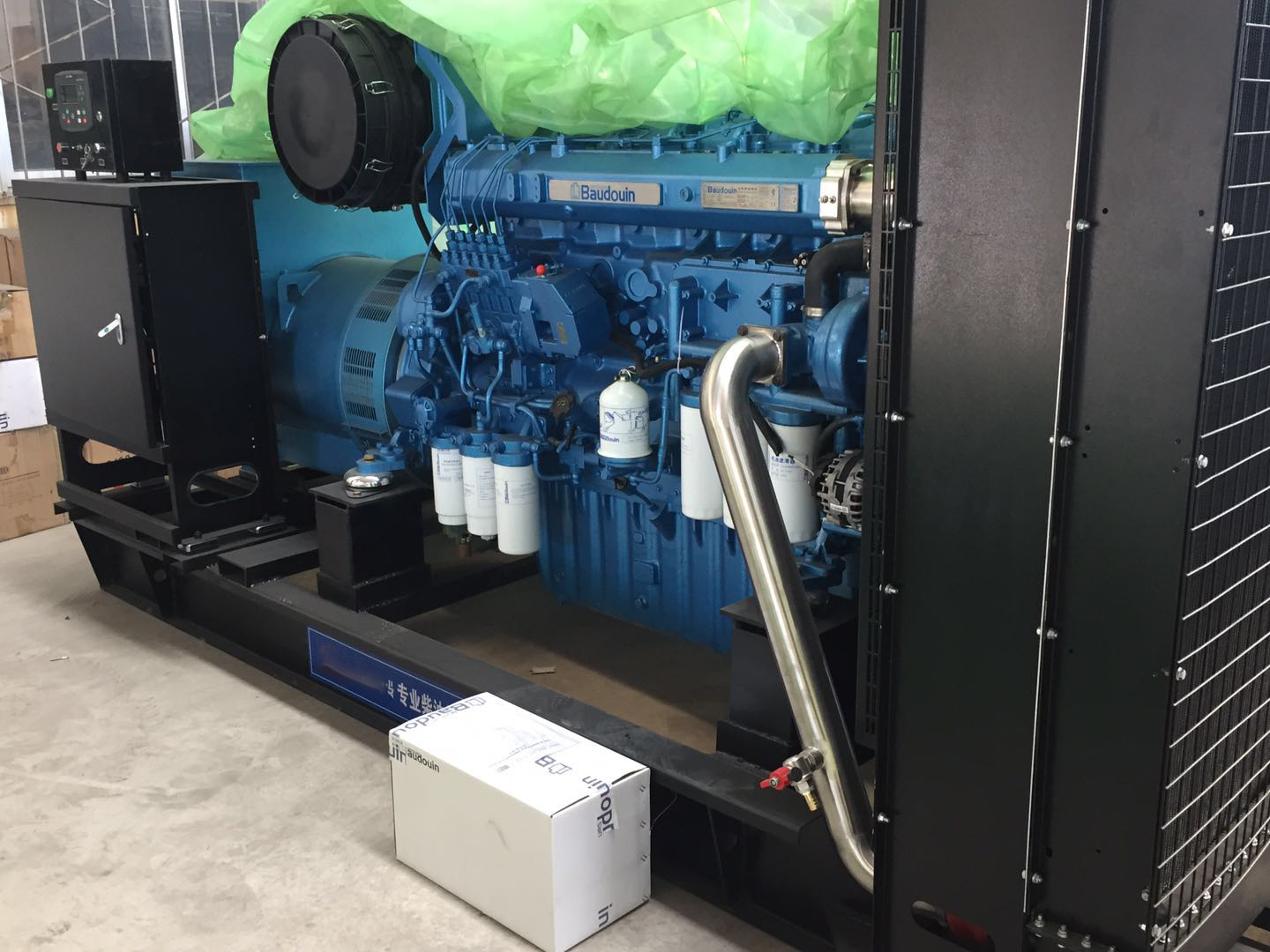

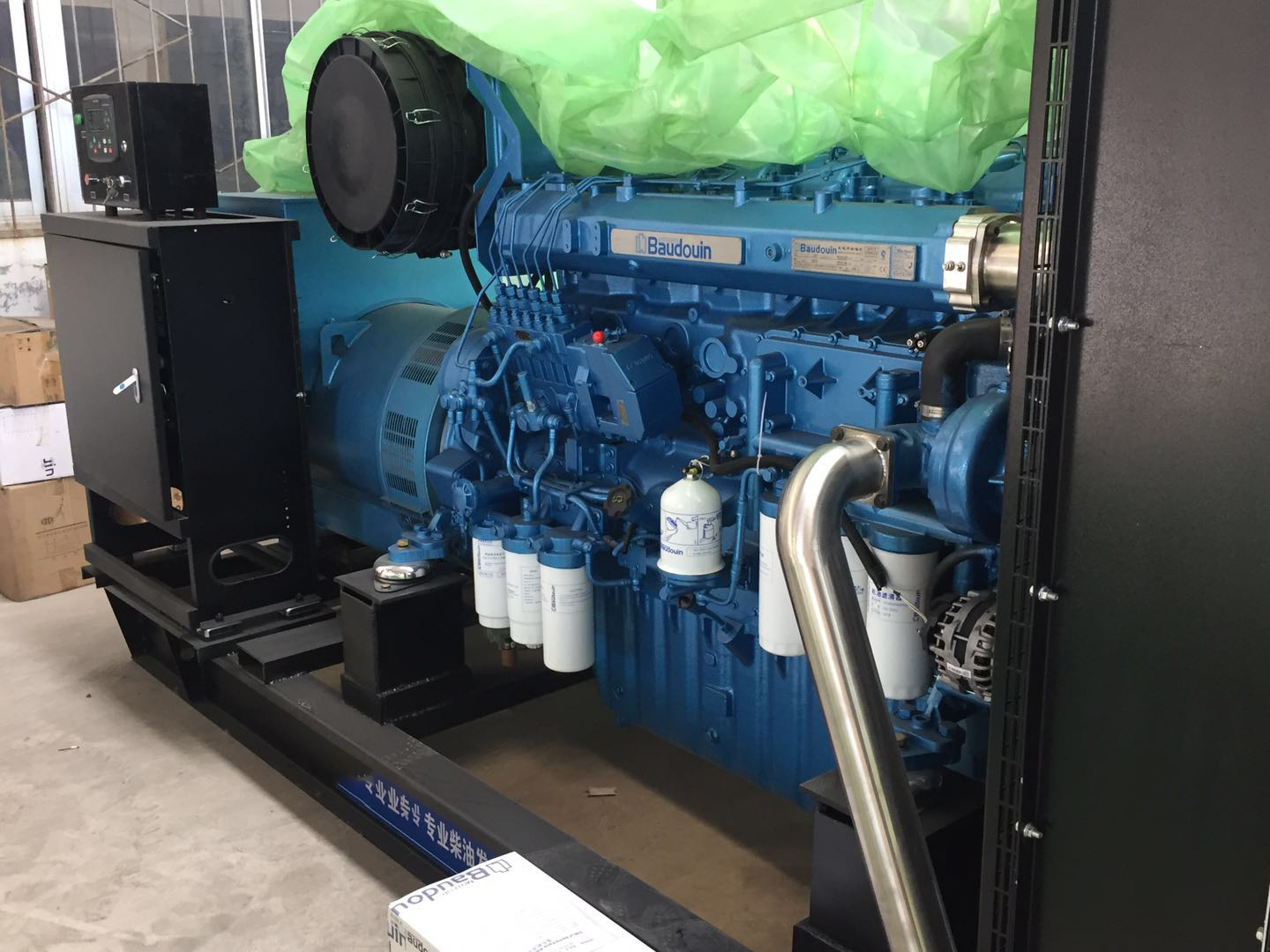

500KW Weichai Baudouin diesel generator equipment pictures:
